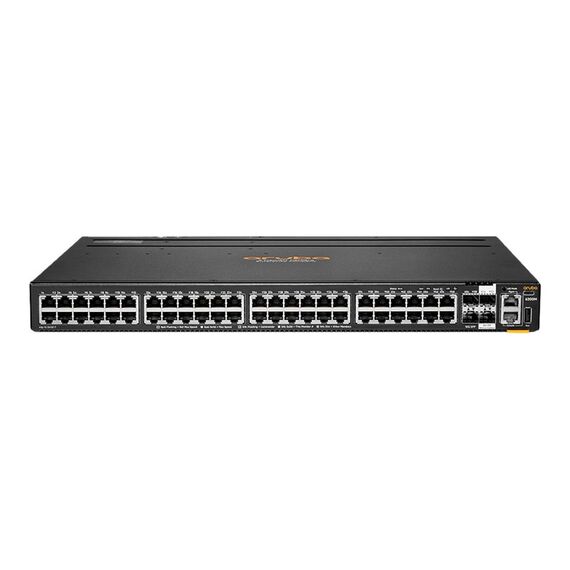

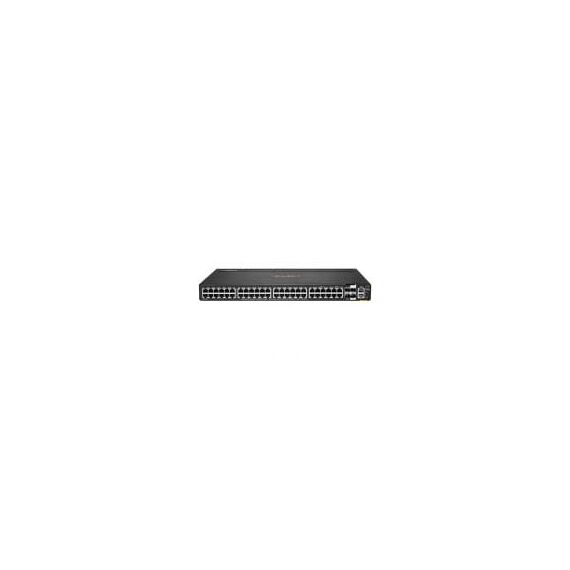

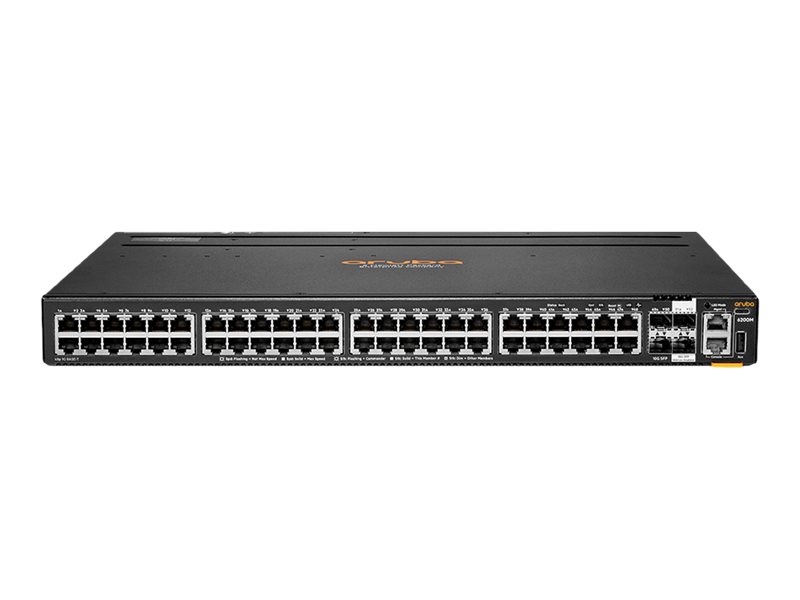

HPE Aruba 6200M 48G 4SFP+ Switch - Switch - Max / Stacking Distance 10 kms - L3 - Managed - 48 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink / stacking) - front and side to back - rack-mountable - BTO | R8Q69A

R8Q69A
8,045.27
9,573.87 inc. VAT
Out of stock
Product CodeCG40350 EAN Code0190017535029 ManufacturerHewlett Packard
Delivery
Payment options

Product Features

  • Automation and analytics
    The HPE Aruba Networking CX 6200 Switch series delivers unparalleled visibility with built-in analytics for real-time monitoring and troubleshooting to help fix problems faster. The Aruba Network Analytics Engine (NAE) automatically interrogates and analyzes events that can impact network health. Advanced telemetry and automation provide the ability to easily identify and troubleshoot network, system, application, and security related issues easily through the use of Python agents and REST APIs. The Time Series Database (TSDB) stores configuration and operational state data, making it available to quickly resolve network issues.
  • Performance and power
    The HPE Aruba Networking CX 6200 Switch series uses a fully distributed architecture with Aruba Gen7 ASICs that delivers very low latency, increased packet buffering, and adaptive power consumption. All switching and routing are wire-speed to meet the demands of bandwidth-intensive applications. Aruba Virtual Switching Framework (VSF) allows you to quickly grow your network using high performance front-plane stacking. Create 8 member stacks using built-in SFP+ ports with flexibility to create stacks that span longer distances using long-range transceivers.
  • Smarter segmentation
    The HPE Aruba Networking CX 6200 Switch series supports Aruba Dynamic Segmentation that automatically applies and enforces user, device, and application-aware policies on Aruba wired and wireless infrastructures. Automated device profiling, role-based access control, and Layer 7 firewall features deliver enhanced visibility and performance for a better overall experience for both IT and end-users alike. Switch-to-switch tunnels with VXLAN for low-latency and high performance use cases.

Special Fetures

  • Enterprise-class connectivity with support for ACLs, robust QoS, and common protocols such as static and Access OSPF routing
  • Scalability with 8 member VSF stacking
  • Intelligent monitoring and visibility via Aruba Network Analytics Engine
  • Aruba Dynamic Segmentation enables enhanced security and simple access for users and IoT

Product Specification

Device TypeSwitch - 48 ports - L3 - Managed - stackable
Enclosure TypeFront and side to back rack-mountable 1U
SubtypeGigabit Ethernet
Ports48 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink / stacking)
PerformanceSwitching capacity: 176 Gbps ¦ Throughput: 130.9 Mpps ¦ Latency (1 Gbps): 2.28 µs ¦ Latency (10 Gbps): 1.46 µs ¦ Packet buffer size: 8 MB ¦ Stacking bandwidth: 40 Gbps
CapacitySwitched virtual interfaces (SVIs): 128 ¦ IPv4 host table capacity: 8000 ¦ IPv6 host table capacity: 8000 ¦ IPv4 routes (Unicast): 2000 ¦ IPv6 routes (Unicast): 2000 ¦ IGMP groups: 1000 ¦ MLD groups: 1000 ¦ IPv4 ACL entries (ingress): 1000 ¦ IPv6 ACL entries (ingress): 1000 ¦ MAC ACL entries (ingress): 1000 ¦ IPv4 ACL entries (egress): 512 ¦ IPv6 ACL entries (egress): 256 ¦ MAC ACL entries (egress): 512
MAC Address Table Size16000 entries
Jumbo Frame Support9220 bytes
Max Units In A Stack8
Routing ProtocolOSPF, RIP-2, OSPFv2, OSPFv3, ECMP
Remote Management ProtocolSNMP, SNMP 3, SNMP 2c, CLI
Encryption AlgorithmMD5, SSL, FIPS 140-2
Authentication MethodRADIUS, TACACS+
FeaturesLayer 2 switching, ARP support, DiffServ support, VRRP support, QoS, TPM, ECMP, UDLD, DWRR, MIB, CoS, ToS, BPDU, SSM, NTP, security slot (Kensington security lock compatible), RPVST+, DNS support, IGMP support, UDLD, Auto MDIX, web GUI management portal, UTM, EQS
Compliant StandardsIEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.1ab (LLDP)
Processor1 x ARM: 1.8 GHz
RAM8 GB DDR4 SDRAM
Flash Memory16 GB
Expansion / Connectivity
Interfaces48 x 10/100/1000 Base-T RJ-45 ¦ 4 x 1/10Gbit LAN SFP+ 2x LRM; 2x LRM/MACSec 256 ¦ 1 x console RJ-45 ¦ 1 x management RJ-45 ¦ 1 x console (USB) Type C ¦ 1 x USB Type A host
Power
Power DeviceInternal power supply (not installed)
Max Supported Qty2
Voltage RequiredAC 100-120/200-240 V (50/60 Hz)
Power Consumption Operational75 Watt
Power Consumption Stand by56 Watt
Miscellaneous
Included AccessoriesRack kit (2 post), fan tray (field replaceable, hotswappable)
Compliant StandardsEN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, ICES-003 Class A, RoHS, Laser Class 1, WEEE, VCCI Class A, IEC 60950-1:2005 + A1:2009 + A2:2013, CISPR 35, EN 60825-1:2014, EN 61000-3-2:2019, IEC 60825-1:2014 Class 1, UL 62368-1 Third Edition, EN 61000-3-3:2013/A1:2019, IEC 62368-1:2018 Third Edition, EN 55035:2017+A11:2020, EN 62368-1:2014+A11:2017 2nd Ed., EN 62368-1:2020+A11:2020 3rd Ed., BS EN 62368-1:2014 + A11:2017 2nd Ed, BS EN 62368-1:2020 + A11:2020 3rd Ed, IEC 62368-1:2014 2nd Ed, CNS 15598-1:2020, CISPR 32 Ed 2.1: 2019 Class A, CISPR 35 Ed 1.0:2016, CSA 22.2 No.62368-1 Third Edition, EN 55032:2015 + A11:2020 Class A, FCC 47 CFR part 15B:2014 Class A
Pricing TypeBTO
Software / System Requirements
OS RequiredAOS-CX
Dimensions & Weight
Width44.2 cm
Depth38.5 cm
Height4.4 cm
Weight5.73 kg
Manufacturer Warranty
Service & SupportLimited warranty - lifetime
Environmental Parameters
Min Operating Temperature0 °C
Max Operating Temperature45 °C
Humidity Range Operating15 - 95% (non-condensing)
Min Storage Temperature-40 °C
Max Storage Temperature70 °C
Humidity Range Storage15 - 90% (non-condensing)
