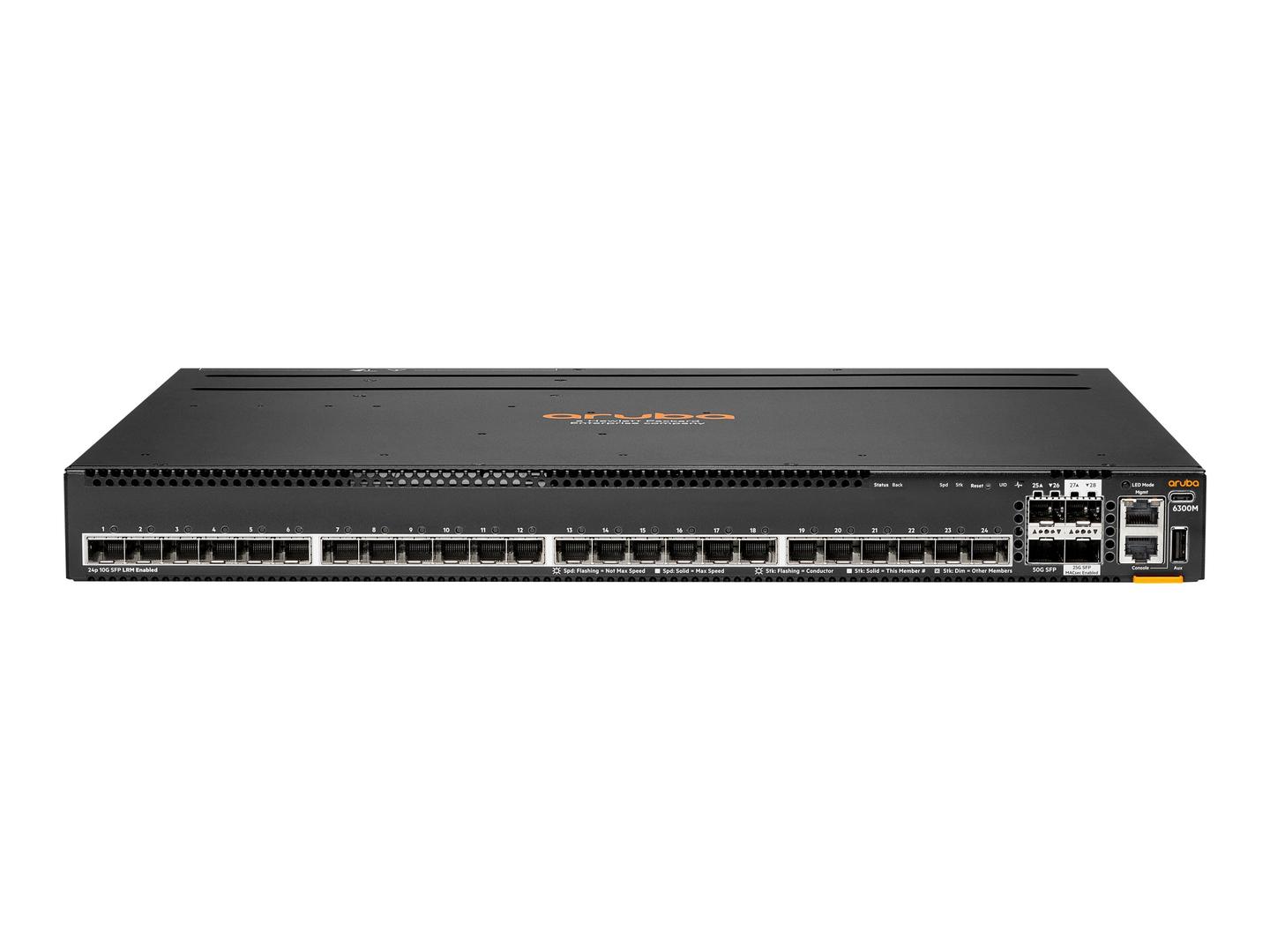

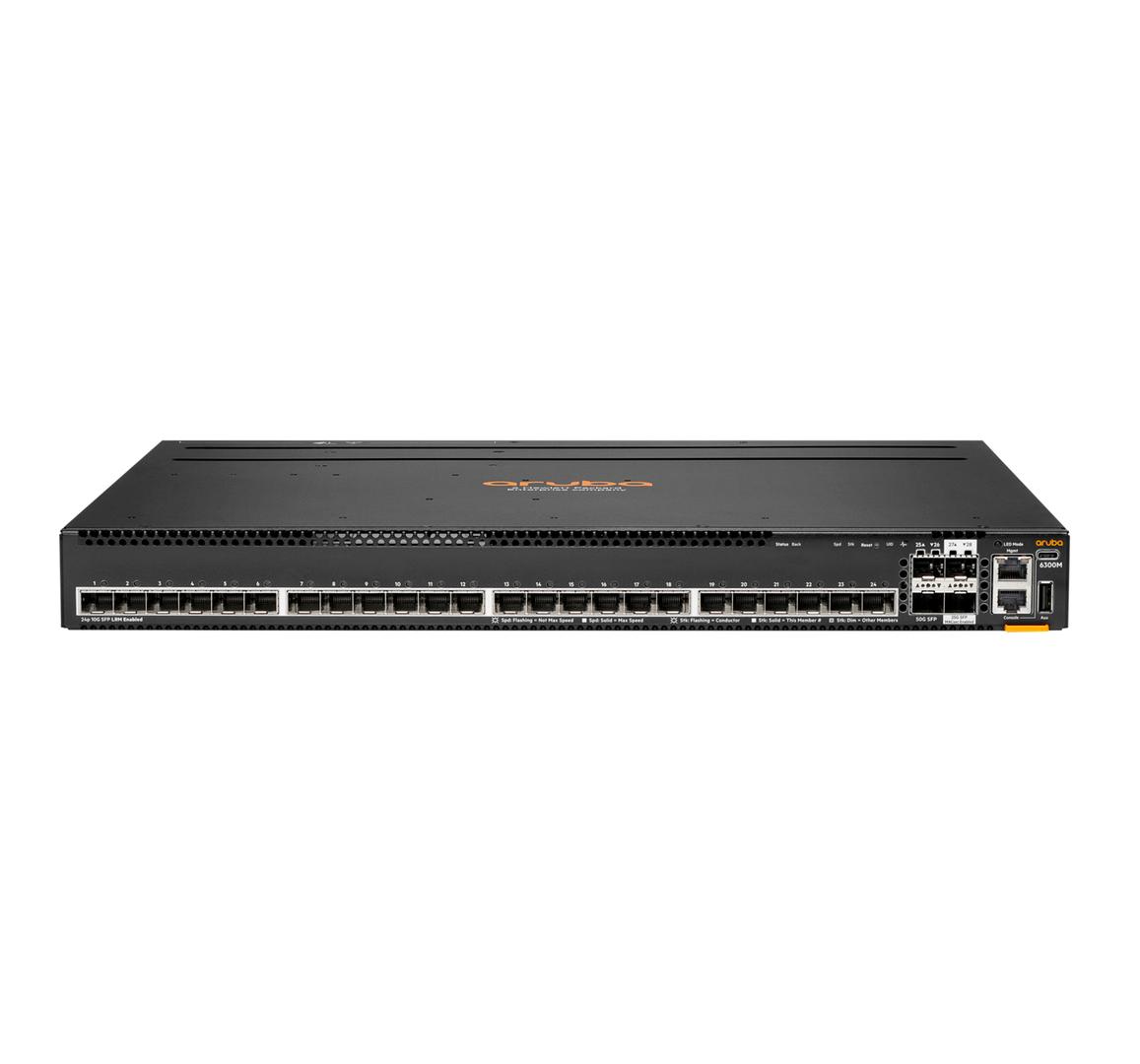

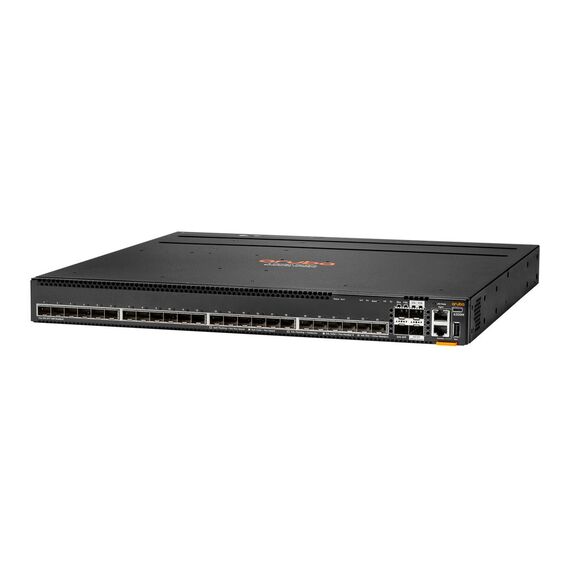

HPE Aruba 6300M 24p SFP+ LRM support and 2p 50G and 2p 25G MACsec Switch - Switch - L3 - Managed - 24 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking) + 2 x 1 Gigabit / 10 Gigabit / 25 Gigabit
Please sign in so that we can notify you about a reply
Product Features
- Advanced connectivity
Equipped with 24 SFP+ ports and additional 2p 50G and 2p 25G MACsec support, this switch ensures versatile and secure high-speed network connections. - Robust performance
With a switching capacity of 880 Gbps and throughput of 660 Gbps, the device delivers efficient handling of network traffic, minimizing latency across various speeds. - Comprehensive security
Features like RADIUS, Secure Shell (SSH), and TACACS+ authentication methods, along with extensive ACL support, provide a secure network environment resistant to unauthorized access. - Efficient management
Manageable via CLI, HTTPS, SNMP, and more, this switch offers flexible options for network management, ensuring smooth operation and easy configuration. - Durable and reliable
Designed for high performance in challenging conditions, it operates within a wide range of temperatures and humidity, supported by a dual hot-plug power supply for uninterrupted service.
Special Fetures
- 24 SFP+ ports for high-speed network connections
- 880 Gbps switching capacity for efficient traffic handling
- Secure network environment with RADIUS, SSH, and TACACS+
- Flexible management options including CLI and SNMP
- Dual hot-plug power supply ensures continuous operation
Product Specification
| Device Type | Switch - 24 ports - L3 - Managed - stackable |
| Enclosure Type | Front and side to back rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking) + 2 x 1 Gigabit / 10 Gigabit / 25 Gigabit SFP |
| Performance | Switching capacity: 880 Gbps ¦ Throughput: 660 Gbps ¦ Latency (1 Gbps): 4.24 µs ¦ Latency (10 Gbps): 1.5 µs ¦ Latency (25 Gbps): 2.91 µs ¦ Latency (50 Gbps): 3.49 µs ¦ Stacking bandwidth: 200 Gbps |
| Capacity | Switched virtual interfaces (SVIs): 1024 ¦ IPv4 host table capacity: 49152 ¦ IPv6 host table capacity: 49152 ¦ IPv4 routes (Unicast): 61000 ¦ IPv6 routes (Unicast): 61000 ¦ IPv4 routes (Multicast): 8192 ¦ IPv6 routes (Multicast): 8192 ¦ IGMP groups: 8192 ¦ MLD groups: 8192 ¦ IPv4 ACL entries (ingress): 20480 ¦ IPv6 ACL entries (ingress): 5120 ¦ MAC ACL entries (ingress): 20480 ¦ IPv4 ACL entries (egress): 8192 ¦ IPv6 ACL entries (egress): 2048 ¦ MAC ACL entries (egress): 8192 |
| MAC Address Table Size | 32768 entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | OSPF, EGP, BGP-4, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, IGMPv3, GRE, OSPFv3, MSDP, static IPv6 routing, ECMP, policy-based routing (PBR), MLD, Bidirectional Forwarding Detection (BFD), MSTP, RSTP, STP |
| Remote Management Protocol | SNMP, RMON, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, SSH, CLI, SFTP |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
| Features | DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, IPv6 support, High Availability, STP support, RSTP support, PVST, MSTP support, ACL support, QoS, Jumbo Frames support, MLD snooping, UDLD, Rapid PVST+, DWRR, LLDP support, fan tray, MIB, DHCP protection, dual firmware images, MVRP, packet storm protection, CoS, SP, broadcast storm protection, 16MB packet buffer, ToS, BPDU, VXLAN, Multicast Storm Protection, NTP, RA guard, ZTP, PIM, VLAN Tagging, RSTP, IPv4 and IPv6 dual stack, IP multicast, LRM optics support, Aruba VSF, dynamic IPv6 lockdown, ND snooping, Unicast Storm protection, Microsoft NLB |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX |
| Processor | 1 x ARM: 1.8 GHz |
| RAM | 8 GB DDR4 SDRAM |
| Flash Memory | 32 GB |
| Expansion / Connectivity | |
| Interfaces | 24 x Gigabit / 10Gbit LAN SFP+ with MACsec ¦ 2 x 1Gbit/10Gbit/25Gbit/50Gbit SFP ¦ 1 x USB-C console ¦ 1 x management ¦ 1 x USB Type A ¦ 1 x console ¦ 2 x 10/25Gbit LAN SFP with MACsec |
| Power | |

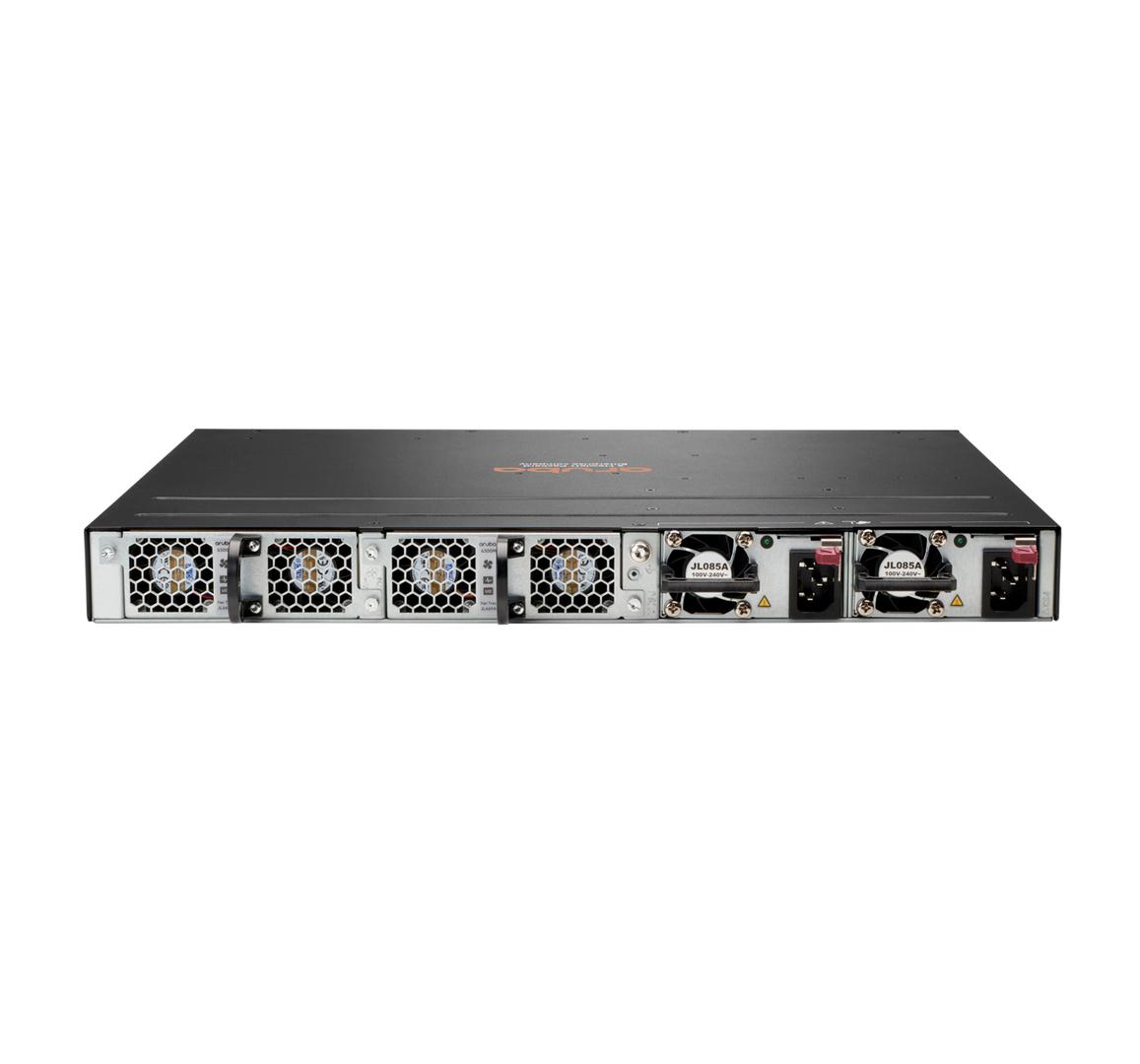

| Power Device | Internal power supply - hot-plug |
| Max Supported Qty | 2 |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Voltage Required | (50/60 Hz) |
| Miscellaneous | |
| Included Accessories | Fan tray |
| Rack Mounting Kit | Included |
| Compliant Standards | FCC Class A certified, CISPR 22 Class A, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, FCC Part 15, ICES-003 Class A, RoHS, WEEE, CAN/CSA C22.2 No. 60950-1-07, VCCI Class A, EN 50581:2012, IEC 60950-1:2005, EN 61000-3-3:2013, CISPR 24:2010, EN 55022:2010, EN 61000-3-2:2014, EN 60825-1:2007, IEC 60825-1:2007 Class 1, EN 55032:2012 Class A, CISPR 32 Class A, UL/CSA60950-1 (2nd Edition), CISPR 35, EN 55024:2010 Class A, EN 55035:2017, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 |
| Dimensions & Weight | |
| Width | 44.2 cm |
| Depth | 38.5 cm |
| Height | 4.4 cm |
| Weight | 5.47 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 15 - 95% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 15 - 95% (non-condensing) |
