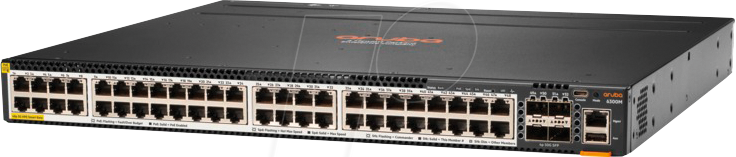

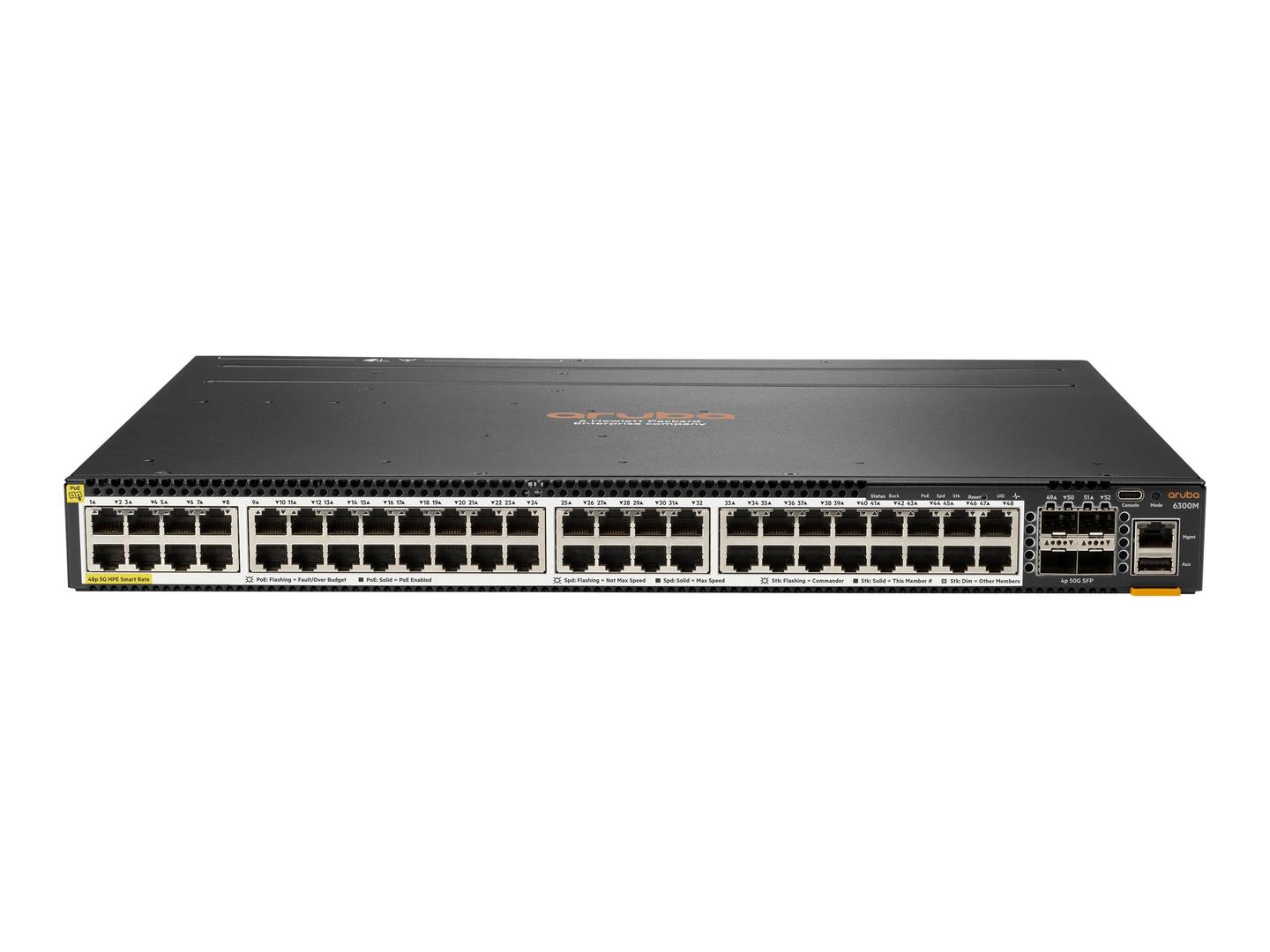

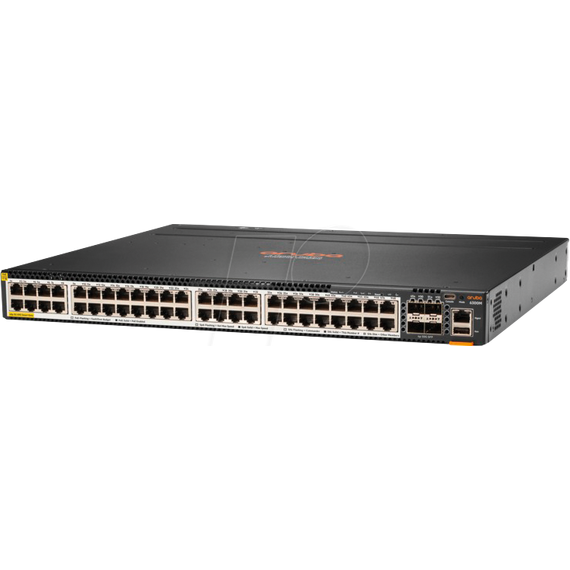

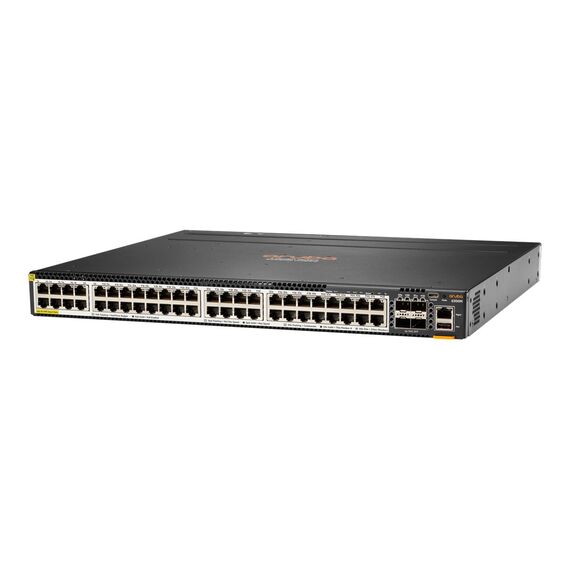

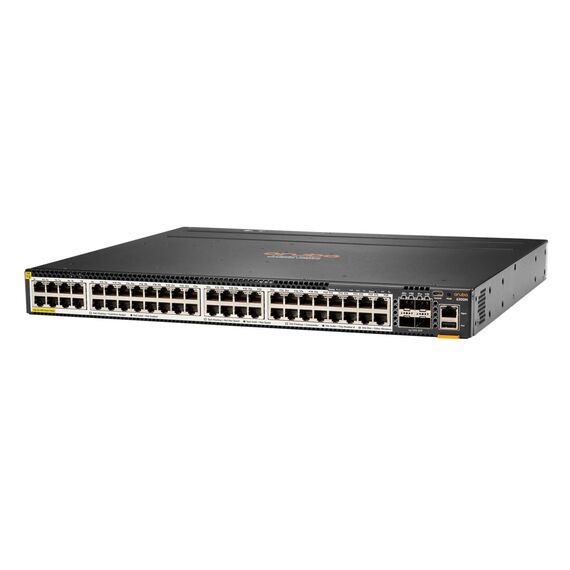

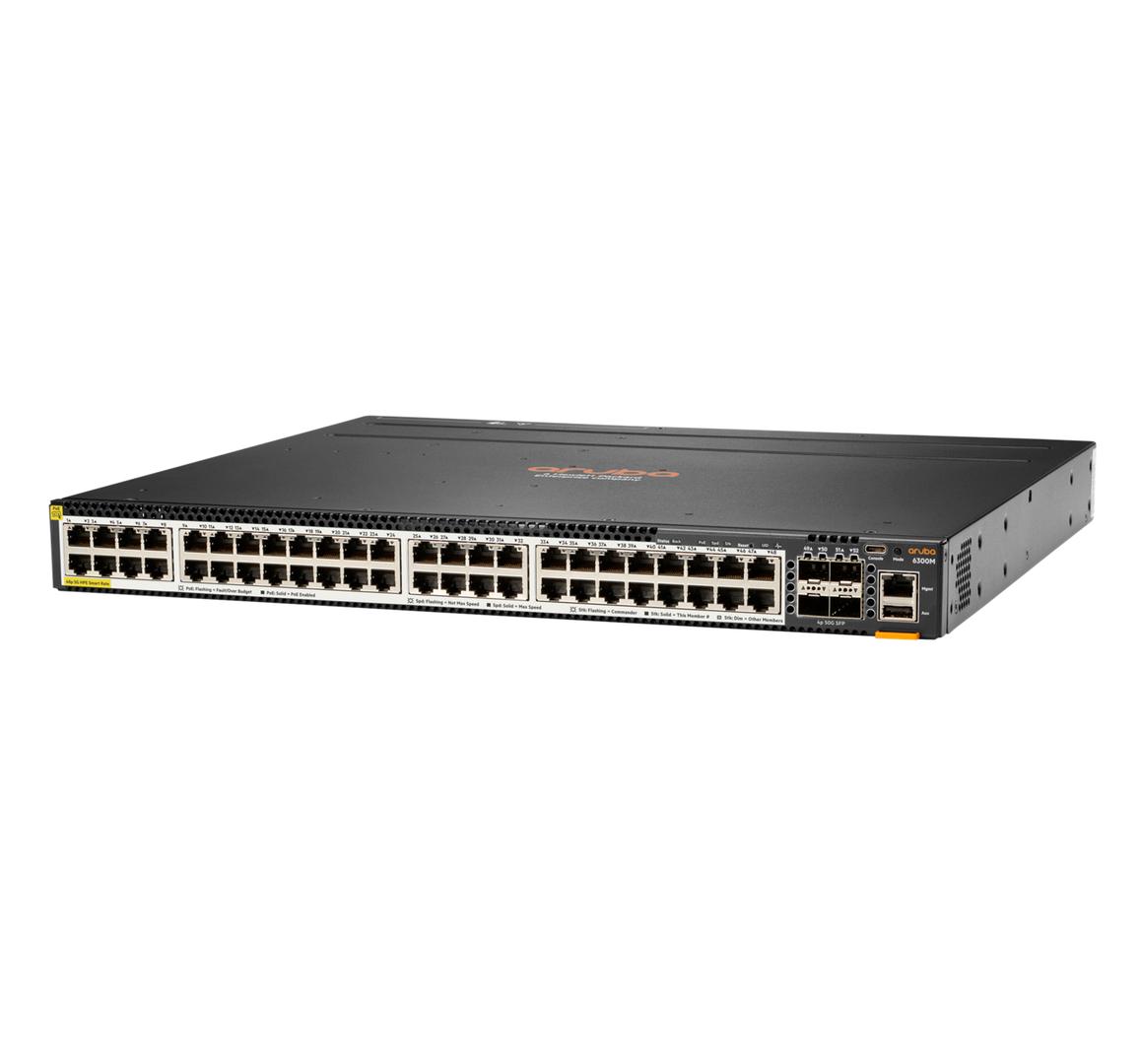

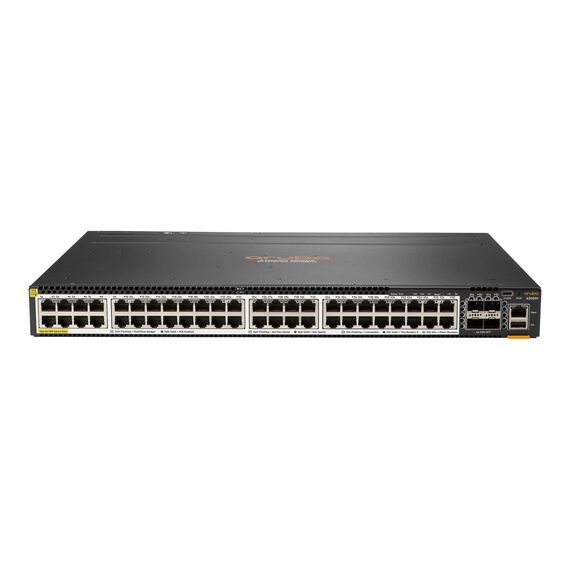

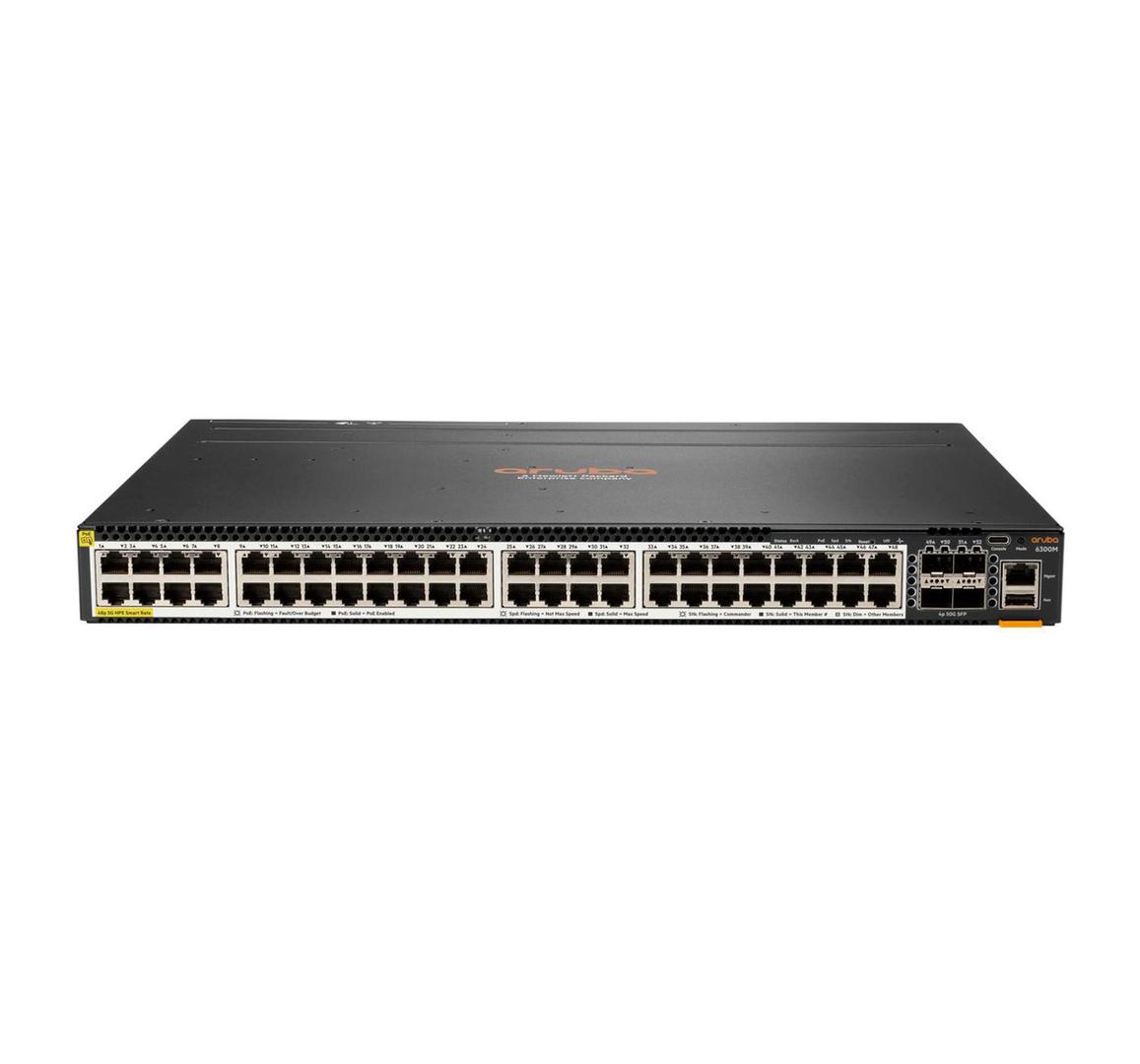

HPE Aruba 6300M - Switch - L3 - Managed - 48 x 100/1000/2.5G/5G (PoE+) + 4 x 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking) - front and side to back - rack-mountable - PoE+ (2880 W) | JL659A
HPE Aruba 6300M - Switch - L3 - Managed - 48 x 100/1000/2.5G/5G (PoE+) + 4 x 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking) - front and side to back - rack-mountable - PoE+ (2880 W) | JL659A
€20315.91 inc. VAT
JL659A
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Automation and analytics
The Aruba CX 6300 Switch Series delivers unparalleled visibility with built-in analytics for real-time monitoring and troubleshooting to help fix problems faster. The Aruba Network Analytics Engine (NAE) automatically interrogates and analyzes events that can impact network health. - Performance and power
The Aruba CX 6300 Switch Series uses a fully distributed architecture with Aruba Gen7 ASICs that deliver very low latency, increased packet buffering, and adaptive power consumption. All switching and routing are wire-speed to meet the demands of bandwidth-intensive applications. - Smarter segmentation
The Aruba CX 6300 Switch Series supports Aruba Dynamic Segmentation that automatically applies and enforces user, device, and application-aware policies on Aruba wired and wireless infrastructures.
Special Fetures
- Automation and analytics
- Performance and power
- Smarter segmentation
Product Specification
| Device Type | Switch - 48 ports - L3 - Managed - stackable |
| Enclosure Type | Front and side to back rack-mountable 1U |
| Subtype | 5 Gigabit Ethernet |
| Ports | 48 x 100/1000/2.5G/5G (PoE+) + 4 x 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 2880 W |
| Performance | Switching capacity: 880 Gbps ¦ Throughput: 654 Mpps ¦ Latency (1 Gbps): 4.24 µs ¦ Latency (10 Gbps): 1.5 µs ¦ Latency (25 Gbps): 2.91 µs ¦ Latency (50 Gbps): 3.49 µs ¦ Stacking bandwidth: 200 Gbps |
| Capacity | Switched virtual interfaces (SVIs): 1000 ¦ IPv4 host table capacity: 32000 ¦ IPv6 host table capacity: 32000 ¦ IPv4 routes (Unicast): 64000 ¦ IPv6 routes (Unicast): 32000 ¦ IPv4 routes (Multicast): 8000 ¦ IPv6 routes (Multicast): 8000 ¦ IGMP groups: 8000 ¦ MLD groups: 4000 ¦ IPv4 ACL entries (ingress): 5000 ¦ IPv6 ACL entries (ingress): 1250 ¦ MAC ACL entries (ingress): 5000 ¦ IPv4 ACL entries (egress): 2000 ¦ IPv6 ACL entries (egress): 500 ¦ MAC ACL entries (egress): 2000 |
| MAC Address Table Size | 32000 entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | EGP, BGP-4, IGMPv2, IGMP, VRRP, OSPFv2, IGMPv3, OSPFv3, MSDP, static IPv6 routing, ECMP, MLD, Bidirectional Forwarding Detection (BFD) |
| Remote Management Protocol | RMON, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, SSH, CLI, XRMON, SFTP |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
| Features | DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, High Availability, PVST, MSTP support, ACL support, QoS, Jumbo Frames support, MLD snooping, UDLD, Rapid PVST+, DWRR, LLDP support, MIB, DHCP protection, dual firmware images, MVRP, packet storm protection, CoS, SP, broadcast storm protection, ToS, BPDU, VXLAN, Multicast Storm Protection, NTP, RA guard, ZTP, PIM, VLAN Tagging, RSTP, IPv4 and IPv6 dual stack, IP multicast, Aruba VSF, dynamic IPv6 lockdown, ND snooping, Unicast Storm protection, Microsoft NLB |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3at, IEEE 802.1AX, IEEE 802.3bt |
| Processor | 1 x ARM Cortex-A72: 1.78 GHz |
| RAM | 8 GB DDR4 SDRAM |
| Flash Memory | 32 GB |
| Expansion / Connectivity | |
| Interfaces | 48 x 100/1000/2.5G/5G RJ-45 PoE+ - 60 W ¦ 4 x 1Gbit/10Gbit/25Gbit/50Gbit SFP56 ¦ 1 x USB-C console ¦ 1 x management ¦ 1 x USB Type A |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| Compliant Standards | FCC Class A certified, CISPR 22 Class A, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, FCC Part 15, ICES-003 Class A, RoHS, WEEE, CAN/CSA C22.2 No. 60950-1-07, VCCI Class A, EN 50581:2012, IEC 60950-1:2005, EN 61000-3-3:2013, CISPR 24:2010, EN 55022:2010, EN 61000-3-2:2014, EN 60825-1:2007, IEC 60825-1:2007 Class 1, EN 55032:2012 Class A, CISPR 32 Class A, UL/CSA60950-1 (2nd Edition), CISPR 35, EN 55024:2010 Class A, EN 55035:2017, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 |
| Dimensions & Weight | |
| Width | 44.2 cm |
| Depth | 38.5 cm |
| Height | 4.4 cm |
| Weight | 6.71 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 15 - 95% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 15 - 95% (non-condensing) |
Features - Hewlett Packard - JL659A
General
48-Port
More Details
Product Code
2M2PVM6
EAN Code
0190017339405
Manufacturer
Hewlett Packard
