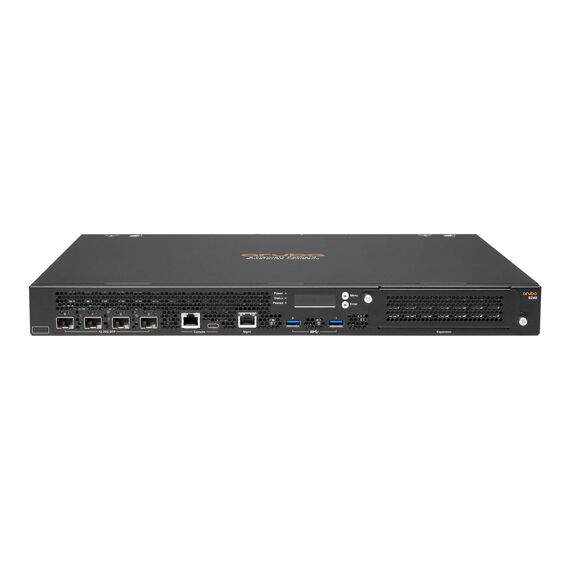

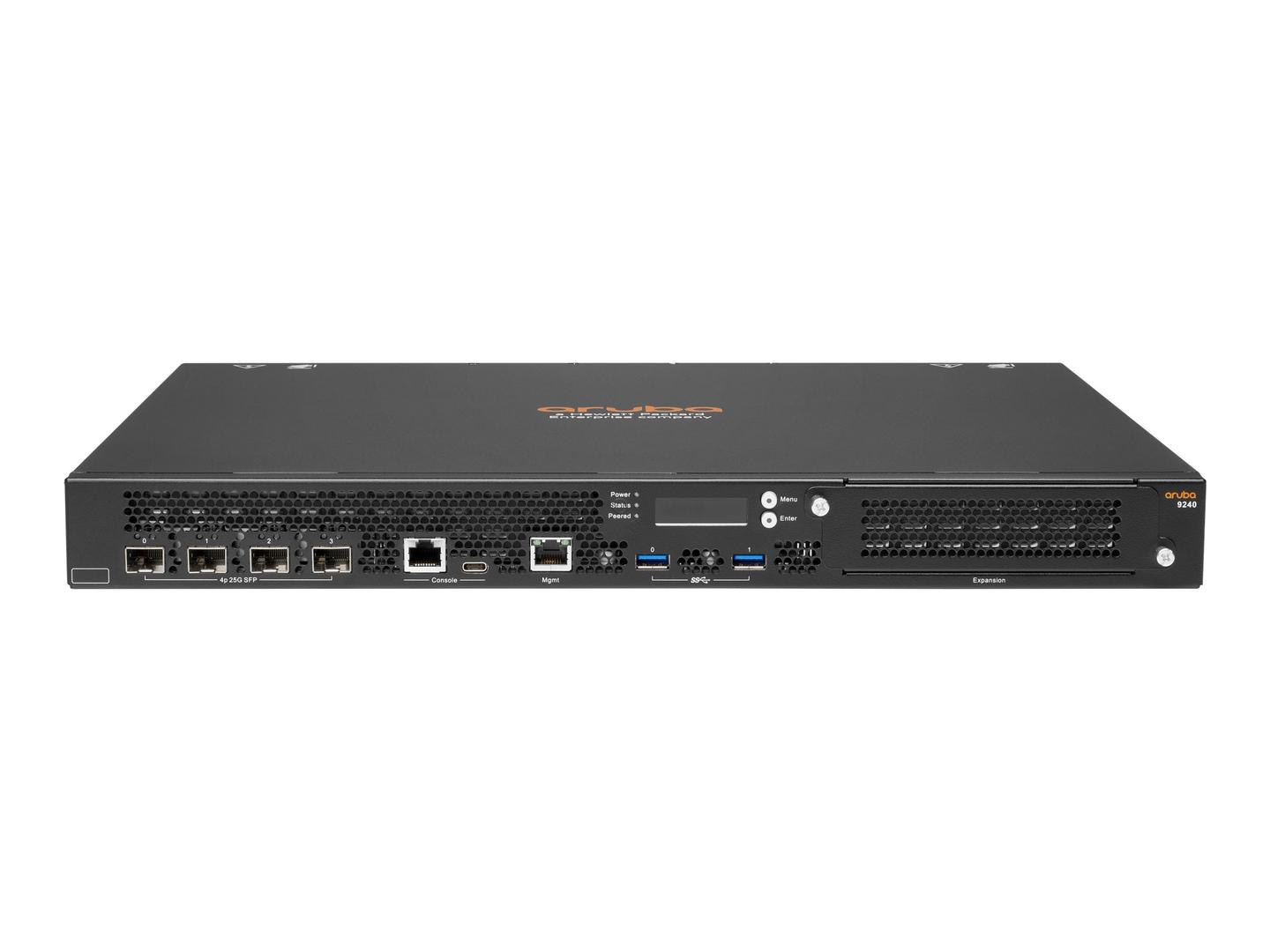

HPE Aruba 9240 (RW) - Gateway - 4 ports - 25GbE - 1U - BTO - rack-mountable | R7H97A

Product Features
- Scalable capacity
Designed to meet the demands of large-scale operations, the HPE Aruba 9240 (RW) supports up to 2048 access points and 32000 managed devices, ensuring robust connectivity across extensive networks. - Advanced connectivity
Equipped with multiple interface options including 25 Gb Ethernet, USB 3.0, and console ports, this device offers versatile connectivity solutions for a wide range of network configurations. - Reliable performance
With an MTBF of 185,301 hours and compliance with numerous standards, the HPE Aruba 9240 (RW) promises dependable operation in diverse environments, from 0 °C to 40 °C. - Enhanced network management
Features like the Policy Enforcement Firewall (PEF), Quality of Service (QoS), and Unified Communications facilitate sophisticated network management, optimizing traffic and ensuring secure, high-quality connections. - IoT-ready
IoT-compatible, this device is prepared to integrate with the Internet of Things, enabling smarter, more efficient network operations and connectivity for IoT devices.
Special Fetures
- Supports up to 2048 access points and 32000 managed devices for extensive network coverage
- Multiple connectivity options including 25 Gb Ethernet and USB 3.0 for versatile network configurations
- Operates reliably across a wide temperature range from 0 °C to 40 °C
- Includes advanced features like Policy Enforcement Firewall and Quality of Service for optimal network management
- IoT-compatible for future-proof network expansions
Product Specification
Device Type | Gateway |
Height (Rack Units) | 1U |
Width | 44.2 cm |
Depth | 39.6 cm |
Height | 4.4 cm |
Weight | 8.2 kg |
Localisation | Rest of World |
Networking | |
Form Factor | Rack-mountable |
Ports Qty | 4 |
Connectivity Technology | Wireless, wired |
Data Link Protocol | 25 Gigabit Ethernet |
Capacity | Maximum number of access points: 2048 ¦ Maximum number of managed devices: 32000 |
Status Indicators | Port status, power, status, peer node |
Features | Quality of Service (QoS), Unified Communications, 5 fans, Policy Enforcement Firewall (PEF) |
Internet of Things (IoT) | |
Internet of Things (IoT) Compatible | Yes |
Expansion / Connectivity | |
Expansion Slots | 1 (total) / 1 (free) x expansion slot |
Interfaces | 4 x 25Gb Ethernet - SFP28 ¦ 2 x USB 3.0 - Type A ¦ 1 x console - RJ-45 ¦ 1 x console - USB-C ¦ 1 x management - RJ-45 |
Miscellaneous | |
MTBF | 185.301 hours |
Compliant Standards | EN 61000-3-2, EN 61000-3-3, ICES-003 Class B, VCCI Class B, CNS 13438, FCC Part 15 Class B, KN35, EN 55032 Class B, AS/NZS CISPR 32 Class B, KN32 Class B, UL 62368-1 Second Edition, CISPR 32 Class B, EN 55035, CAN/CSA-C22.2 No. 62368-1-14, EN 62368-1:2014 Second Edition |
Pricing Type | BTO |
Power | |
Power Device | Internal power supply |
Installed Qty | 1 |
Max Supported Qty | 2 |
Power Redundancy | Optional |
Voltage Required | AC 100-240 V (50 - 60 Hz) |
Power Consumption Operational | 190 Watt |
Power Provided | 550 Watt |
Manufacturer Warranty | |
Service & Support | Limited warranty - parts and labour - 1 year ¦ Limited warranty - software application support - 90 days |
Environmental Parameters | |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 10 - 90% (non-condensing) |
Features - Hewlett Packard - R7H97A
