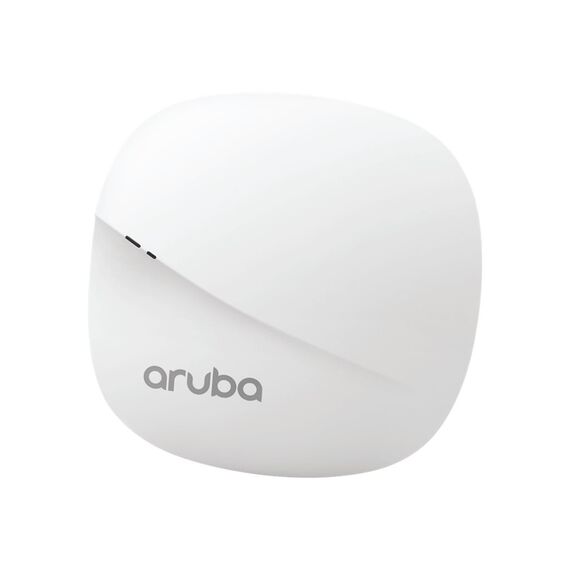

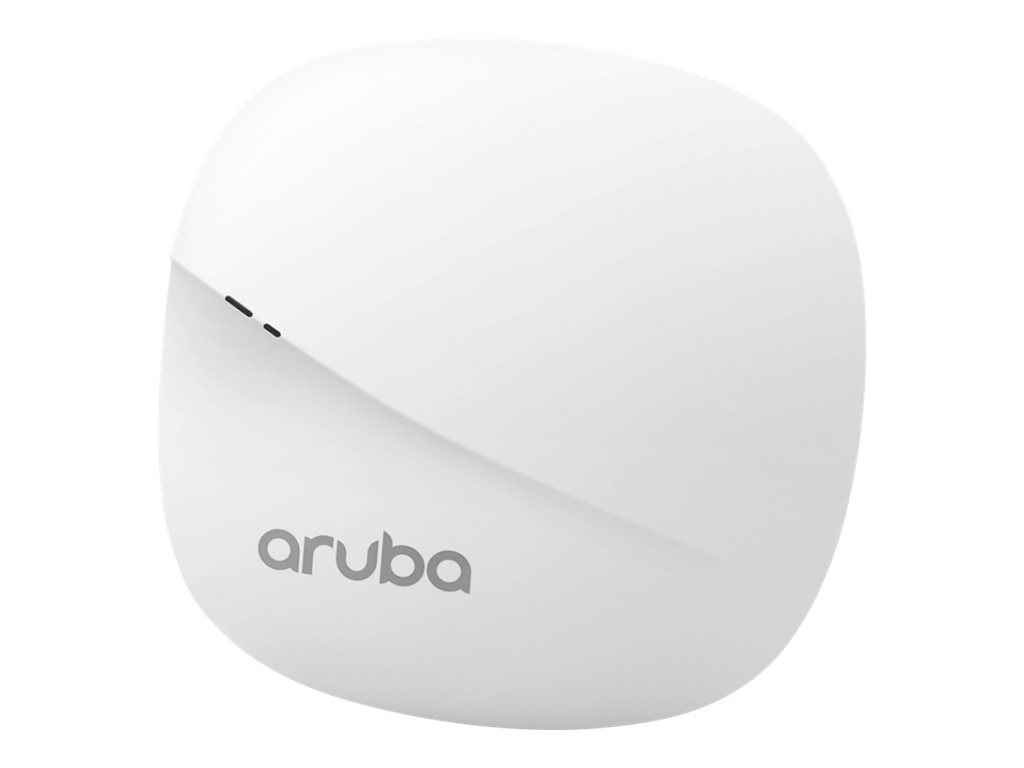

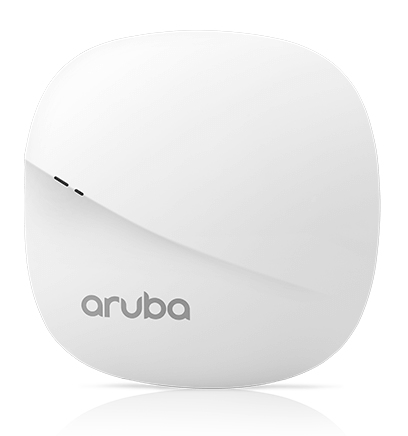

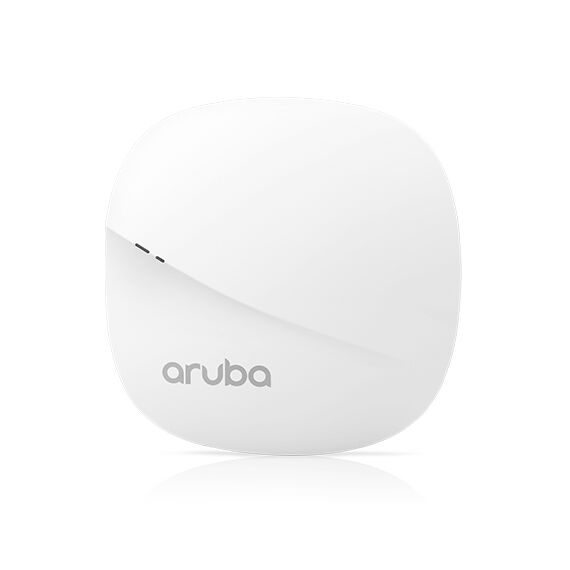

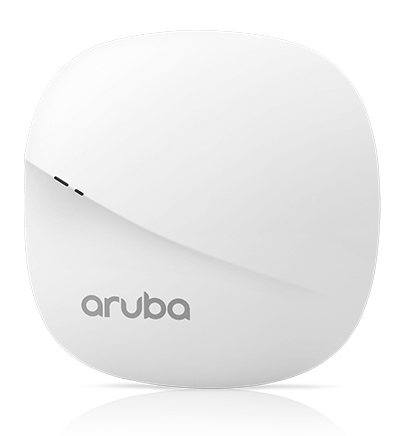

HPE Aruba AP-303 (RW) - Campus - radio access point - Wi-Fi 5 - 2.4 GHz, 5 GHz - in-ceiling | JZ320A
Please sign in so that we can notify you about a reply
Product Features
- Get a big performance advantage
ClientMatch technology improves performance and eliminates sticky client behavior while roaming. - Protect service quality over the air
AppRF technology enables prioritization and policy enforcement for business-critical enterprise apps. - Integrated Bluetooth beacon
An integrated Aruba beacon delivers location services that can be centrally managed.
Special Fetures
- Get a big performance advantage
- Protect service quality over the air
- Integrated Bluetooth beacon
Product Specification
| Device Type | Radio access point |
| Ruggedized Design | Indoor |
| Width | 15 cm |
| Depth | 15 cm |
| Height | 3.5 cm |
| Weight | 260 g |
| Networking | |
| Form Factor | In-ceiling |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 867 Mbps |
| Line Coding Format | CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Spread Spectrum Method | OFDM, DSSS |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Concurrent data rate (5 GHz): 867 Mbps ¦ Concurrent data rate (2.4 GHz): 300 Mbps |
| Capacity | Wireless clients per Wi-Fi radio: 256 ¦ BSSIDs per radio: 16 |
| Status Indicators | Power, system, status |
| Features | Auto-uplink (auto MDI/MDI-X), DFS support, Quality of Service (QoS), Trusted Platform Module (TPM), reset button, 2T2R MIMO technology, Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), security lock slot (cable lock sold separately), Advanced Cellular Coexistence (ACC), cyclic shift diversity (CSD), MU-MIMO technology, Bluetooth Low Energy Beaconing, enhanced ClientMatch, Aruba Beacons Bluetooth Low-Energy (BLE) technology, wireless intrusion protection |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, Wi-Fi CERTIFIED, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.11ac |
| Aerial | |
| Antenna | Internal |
| Antenna Qty | 2 |
| Directivity | Omni-directional |
| Internet of Things (IoT) | |
| Communications Technology | Bluetooth Low Energy (LE) |
| Expansion / Connectivity | |
| Interfaces | 1 x 1000Base-T (PoE) - RJ-45 ¦ 1 x console |
| Miscellaneous | |
| Included Accessories | Suspended ceiling rail adapter, ceiling mounting clips |
| MTBF | 795,000 hour(s) |
| Compliant Standards | EN 60950, IEC 60950, UL 60950, CB, UL 2043, FCC, EN 60601-1-2, cTUVus, EN 60601-1-1, LVD 2014/35/EU |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE |
| Software / System Requirements | |
| OS Required | ArubaOS, InstantOS |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 19 cm |
| Shipping Depth | 18 cm |
| Shipping Height | 6 cm |
| Shipping Weight | 410 g |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 93% (non-condensing) |
Features - Hewlett Packard - JZ320A
More Details
Product Code
2M27LT6
EAN Code
0190017232591
Manufacturer
Hewlett Packard
