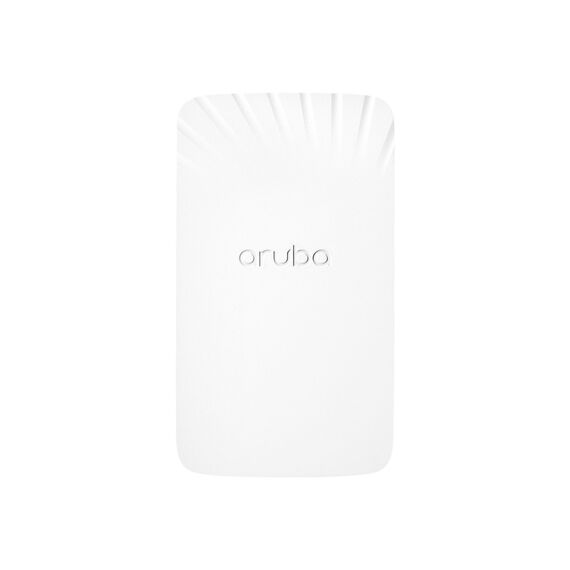

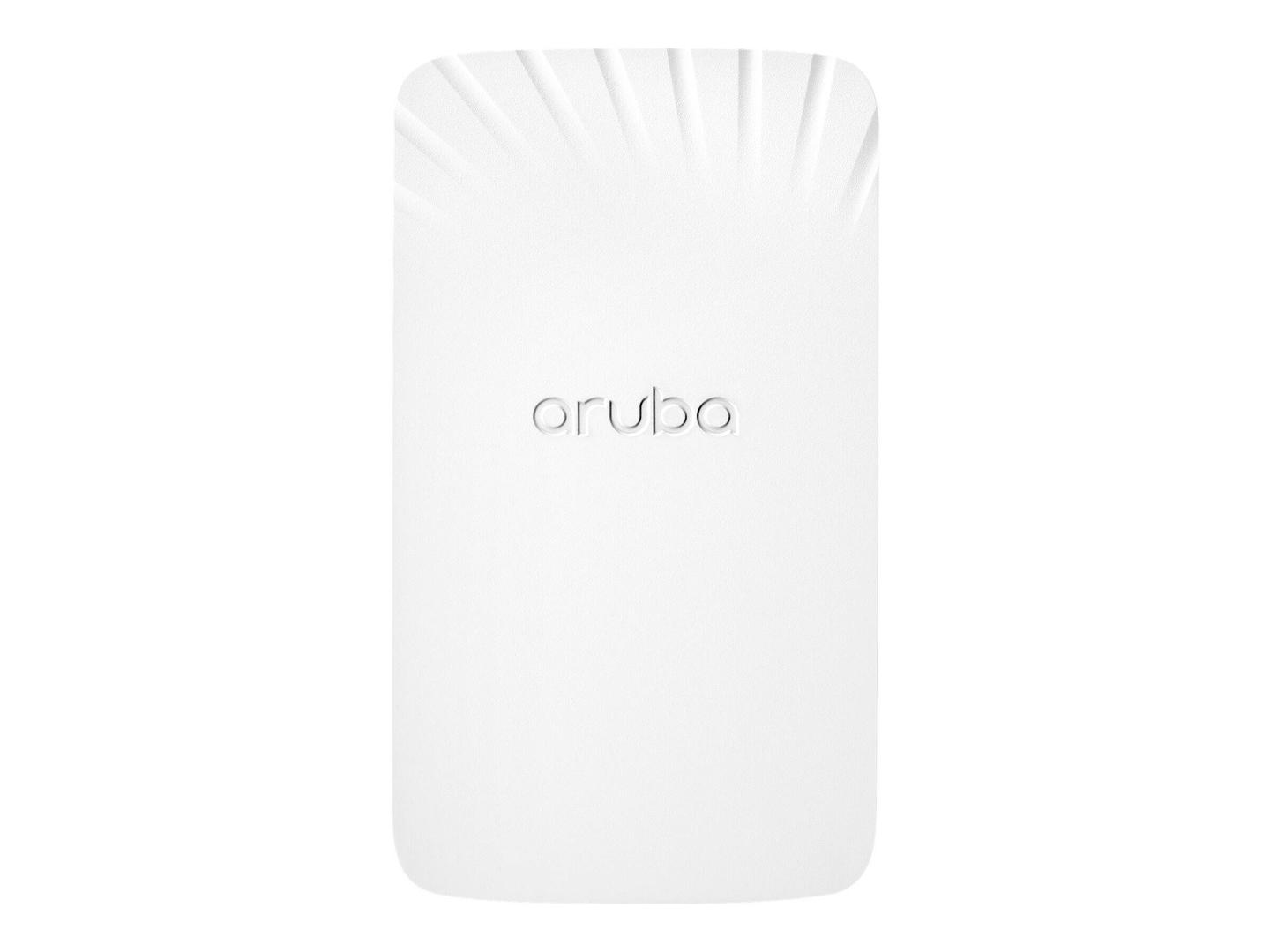

HPE Aruba AP-503H (RW) Unified Hospitality - Radio access point - 802.11a/b/g/n/ac/ax - 2.4 GHz, 5 GHz - BTO | R3V36A
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Radio access point |
| Ruggedized Design | Indoor |
| Width | 8.6 cm |
| Depth | 4.7 cm |
| Height | 15 cm |
| Weight | 360 g |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 1.5 Gbps |
| Line Coding Format | CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, 1024 QAM |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax |
| Spread Spectrum Method | OFDM, DSSS, OFDMA |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum data rate (5 GHz): 1.2 Gbps ¦ Maximum data rate (2.4 GHz): 287 Mbps ¦ VPN throughput (IPSec): 100 Mbps |
| Capacity | Wireless clients per Wi-Fi radio: 256 ¦ BSSIDs per radio: 16 |
| Status Indicators | Port status, power, system, status, PoE |
| Features | Auto-uplink (auto MDI/MDI-X), DFS support, Wi-Fi Multimedia (WMM) support, Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), Advanced Cellular Coexistence (ACC), cyclic shift diversity (CSD), packet aggregation A-MPDU, packet aggregation A-MSDU, High-Throughput (HT) support, 2x2 MIMO technology, Very High Throughput (VHT) support, High Efficiency (HE) support, Target Wait Time (TWT), HPE SmartRate, Advanced IoT Coexistence (AIC) |
| Encryption Algorithm | WPA, WPA2, WPA3-Enterprise, Opportunistic Wireless Encryption (OWE), Simultaneous Authentication of Equals (SAE) |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, Wi-Fi CERTIFIED, IEEE 802.11n, IEEE 802.3az, IEEE 802.11ac, IEEE 802.11ax |
| Aerial | |
| Antenna | Internal |
| Antenna Qty | 2 |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
| Communications Technology | Bluetooth Low Energy (LE), Zigbee |
| Expansion / Connectivity | |
| Interfaces | 2 x 1000Base-T - RJ-45 ¦ 1 x 1000Base-T (PoE+) - RJ-45 ¦ 1 x console - micro-USB |
| Miscellaneous | |
| Compliant Standards | FCC, EN 60601-1-2, EN 60601-1-1, EMC 2014/30/EU, LVD 2014/35/EU, ISED, RED 2014/53/EU, IEC/EN 62368-1, IEC/EN 60950 |
| Pricing Type | BTO |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE Class 3 |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 11.1 cm |
| Shipping Depth | 5.4 cm |
| Shipping Height | 16.7 cm |
| Shipping Weight | 450 g |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 93% (non-condensing) |
Features - Hewlett Packard - R3V36A
More Details
Product Code
2M21NTA
EAN Code
0190017395609
Manufacturer
Hewlett Packard
