HPE Aruba AP-504 (RW) / Campus / radio access point / Bluetooth 5.0 / Bluetooth, Wi-Fi 6 / 2.4 GHz, 5 GHz | R2H22A
Please sign in so that we can notify you about a reply
Product Features
- Multi-user M1M0 (MU-MIMO)
The 500 Series AP supports downlink MU-MIMO just like Wi- Fi 5 APs. The added benefit is the ability to multiply the number of clients that can now send traffic, thus optimizing client-to-AP spatial stream diversity. - Wi-Fi 6 and MU-MIMO aware client optimization
Aruba's patented AI-powered ClientMatch technology eliminates sticky client issues by placing Wi-Fi 6 capable devices on the available AP. Session metrics are used to steer mobile devices to the AP based on available bandwidth, types of applications being used and traffic type - even as users roam. - Aruba Advanced Cellular Coexistence (ACC)
This feature uses built-in filtering to automatically minimize the impact of interference from cellular networks, distributed antenna systems (DAS), and commercial small cell or femtocell equipment. - Intelligent Power Monitoring (IPM)
Aruba APs continuously monitor and report hardware energy consumption. They can also be configured to enable or disable capabilities based on available PoE power - ideal when wired switches have exhausted their power budget. - Green AP energy efficiency
Aruba Wi-Fi 6 APs utilize analytics from NetInsight to automatically transition in and out of a sleep mode based on client density. - VPN Tunnels
In Remote AP (RAP) and IAP-VPN deployments, the Aruba 500 Series can be used to establish a secure SSL/IPSec VPN tunnel to a Mobility Controller that is acting as a VPN concentrator. - Trusted Platform Module (TPM)
For enhanced device assurance, all Aruba Aps have an installed TPM for secure storage of credentials and keys, and boot code. - Simple and secure access
To simplify policy enforcement, the Aruba 500 Series uses Aruba's policy enforcement firewall (PEF) feature to encapsulate all traffic from the AP to the Mobility Controller (or Gateway) for end-to-end encryption and inspection. Policies are applied based on user role, device type, applications, and location. This reduces the manual configuration of SSIDs, VLANs and ACLs. PEF also serves as the underlying technology for Aruba Dynamic Segmentation. - High-density connectivity
Each 500 Series AP provides connectivity for a maximum of 256 associated clients per radio. In real-world scenarios, the maximum recommended client density is dependent on environmental conditions.
Special Features
- 1.77 Gbps of maximum throughput
- WPA3 and Enhanced Open security
- Built-in technology that resolves sticky client issues for Wi-Fi 6 and Wi-Fi 5 devices
- OFDMA and MU-MIMO for enhanced multi-user efficiency
- IoT-ready Bluetooth 5 and Zigbee support
Product Specification
| Device Type | Radio access point |
| Ruggedized Design | Indoor |
| Width | 16 cm |
| Depth | 16.1 cm |
| Height | 3.7 cm |
| Weight | 500 g |
| Networking | Networking |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 1.2 Gbps |
| Line Coding Format | CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM, OFDMA |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6) |
| Spread Spectrum Method | OFDM, DSSS, OFDMA |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum data rate (2.4 GHz): 574 Mbps ¦ Maximum data rate (5 GHz): 1.2 Gbps ¦ Aggregate throughput: 1.774 Gbps |
| Capacity | Wireless clients per Wi-Fi radio: 256 ¦ BSSIDs per radio: 16 ¦ OFDMA units: 8 |
| Status Indicators | System, status |
| Features | Auto-uplink (auto MDI/MDI-X), deep inspection, Trusted Platform Module (TPM), Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Direct Sequence Spread Spectrum (DSSS), Cyclic Delay Diversity (CDD), Advanced Cellular Coexistence (ACC), ClientMatch, cyclic shift diversity (CSD), MU-MIMO technology, packet aggregation A-MPDU, packet aggregation A-MSDU, SU-MIMO technology, Intelligent Power Monitoring (IPM), Dynamic Frequency Selection (DFS), High-Throughput (HT) support, LED off mode, Energy-Efficient Ethernet (EEE), Orthogonal Frequency Division Multiplexing (OFDM), 2x2 MIMO technology, Very High Throughput (VHT) support, security slot (Kensington security lock compatible), Orthogonal Frequency Division Multiple Access (OFDMA), High Efficiency (HE) support, Target Wait Time (TWT) |
| Encryption Algorithm | SSL, WPA, WPA2, WPA3 |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
| Aerial | Aerial |
| Antenna | External detachable |
| Antenna Qty | 2 |
| Internet of Things (IoT) | Internet of Things (IoT) |
| Internet of Things (IoT) Compatible | Yes |
| Communications Technology | Bluetooth Low Energy (LE), Zigbee |
| Expansion / Connectivity | Expansion / Connectivity |

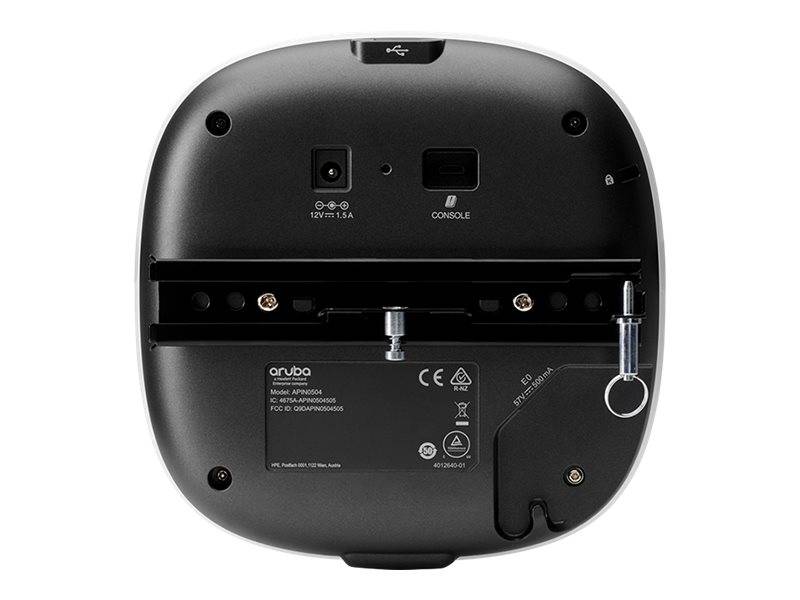

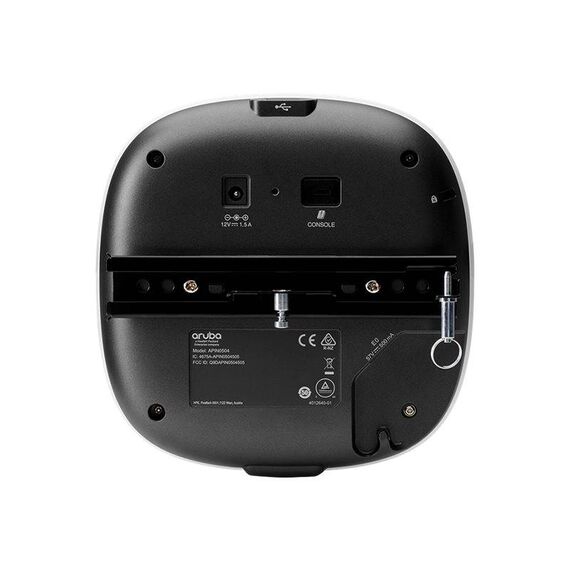

| Interfaces | 1 x 1000Base-T - RJ-45 ¦ 1 x USB 2.0 - Type A ¦ 2 x aerial - RP-SMA x 2 ¦ 1 x console - micro-USB |
| Miscellaneous | Miscellaneous |
| Included Accessories | Mounting bracket |
| MTBF | 148 years |
| Compliant Standards | UL 2043, FCC, EN 60601-1-1, CE/EMC, Directive 2014/35/EU, Directive 2014/30/EU, ISED, Directive 2014/53/EU, IEC/EN/UL 60950, ETS 300 019 Class 2.3, ETS 300 019 Class 1.2 |
| Power | Power |
| Power Over Ethernet (PoE) Supported | PoE |
| Power Consumption Operational | 8.9 Watt |
| Software / System Requirements | Software / System Requirements |
| OS Required | ArubaOS, InstantOS |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 93% (non-condensing) |
Features - Hewlett Packard - R2H22A
More Details
Product Code
2M2PFT7
EAN Code
0190017357935
Manufacturer
Hewlett Packard
