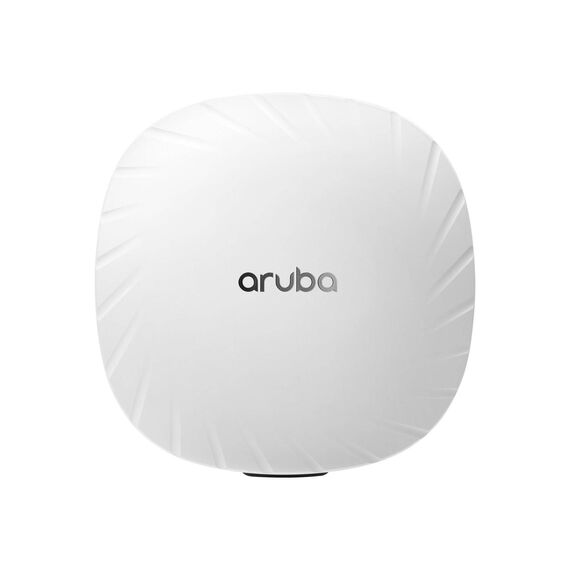

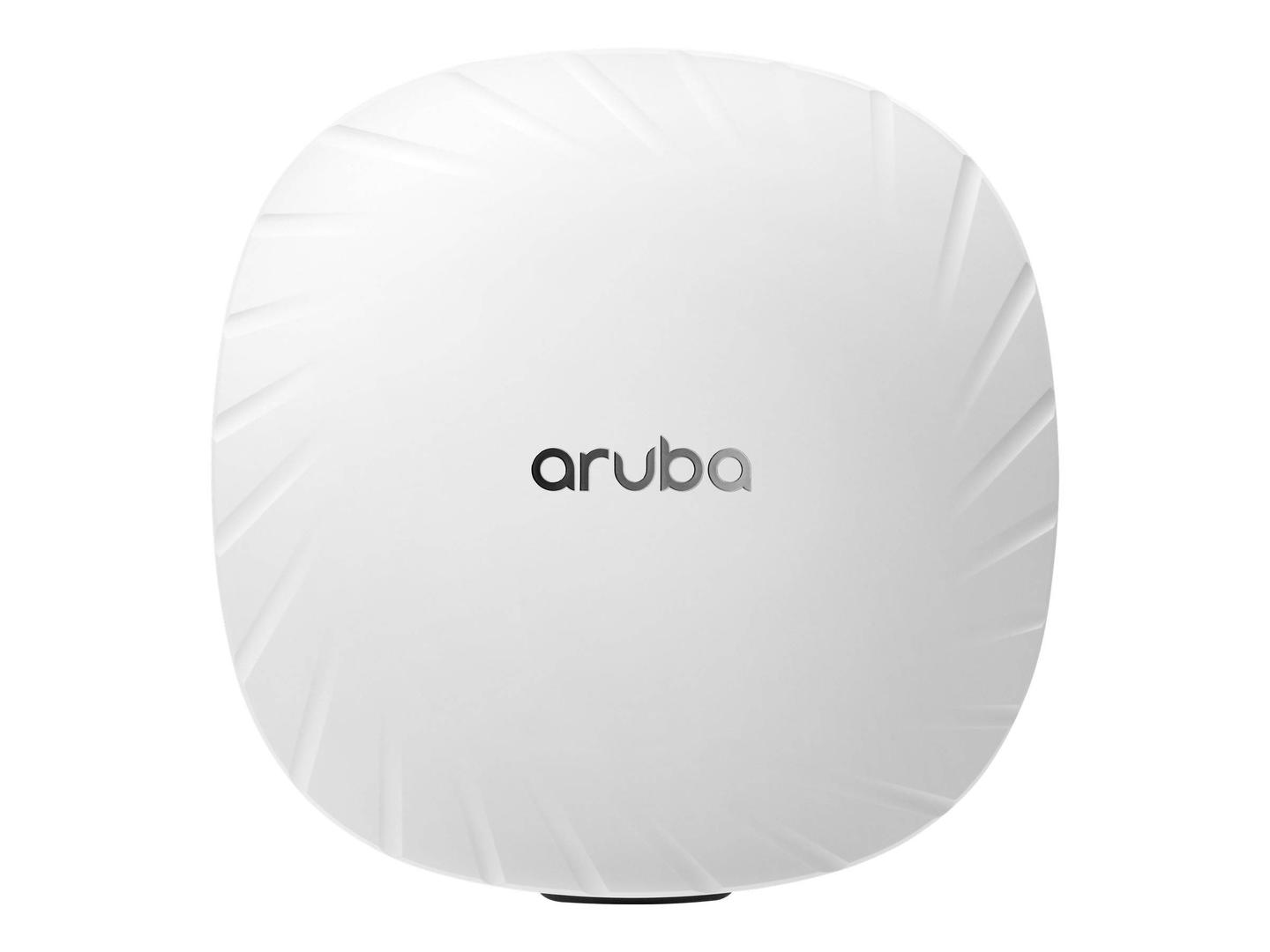

HPE Aruba AP-535 (RW) / Campus / radio access point / ZigBee, Bluetooth 5.0 / ZigBee, Bluetooth, Wi-Fi 6 / 2.4 GHz, 5 GHz | JZ336A
Please sign in so that we can notify you about a reply
Special Features
- AI-powered features for wireless RF and client connectivity optimization
- Dual-radio (dual 4x4 MIMO) 802.11ax AP
- Ideal for high-density environments, such as higher education, K12, retail branches, hotels and digital workplaces
Product Specification
| Device Type | Radio access point |
| Ruggedized Design | Indoor |
| Width | 24 cm |
| Depth | 24 cm |
| Height | 5.7 cm |
| Weight | 1.27 kg |
| Networking | Networking |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 2.4 Gbps |
| Line Coding Format | CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM, OFDMA |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, ZigBee, IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6) |
| Spread Spectrum Method | OFDM, DSSS |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum data rate (2.4 GHz): 1.150 Mbps ¦ Maximum data rate (5 GHz): 2.4 Gbps ¦ Aggregate bandwidth: 3.55 Gbps |
| Capacity | Wireless clients per Wi-Fi radio: 1024 ¦ OFDMA units: 37 ¦ BSSIDs per radio: 16 |
| Status Indicators | System, status |
| Features | Trusted Platform Module (TPM), LACP support, Adaptive Radio Management (ARM), Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Direct Sequence Spread Spectrum (DSSS), Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), Advanced Cellular Coexistence (ACC), ClientMatch, cyclic shift diversity (CSD), AppRF technology, MU-MIMO technology, packet aggregation A-MPDU, packet aggregation A-MSDU, Air Monitor (AM), Intelligent Power Monitoring (IPM), Dynamic Frequency Selection (DFS), Secure Core Technology (SCT), High-Throughput (HT) support, 4x4 MU-MIMO technology, LED off mode, Energy-Efficient Ethernet (EEE), Orthogonal Frequency Division Multiplexing (OFDM), Aruba AirMatch, spectrum analyser, Very High Throughput (VHT) support, security slot (Kensington security lock compatible), Orthogonal Frequency Division Multiple Access (OFDMA), unified AP support, custom deep-sleep mode, High Efficiency (HE) support, Target Wait Time (TWT) |
| Encryption Algorithm | WPA, WPA2, WPA3 |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac, IEEE 802.3bz, IEEE 802.3bt, IEEE 802.11ax |
| Aerial | Aerial |
| Antenna | Internal |
| Antenna Qty | 4 |
| Directivity | Omni-directional |
| Gain Level | 5.4 dBi |
| Internet of Things (IoT) | Internet of Things (IoT) |
| Internet of Things (IoT) Compatible | Yes |
| Communications Technology | Bluetooth, Zigbee |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x HPE Smart Rate - RJ-45 ¦ 1 x 5GBase-T - RJ-45 ¦ 1 x USB 2.0 - Type A ¦ 1 x console - micro-USB |
| Miscellaneous | Miscellaneous |
| Included Accessories | Base bracket |
| MTBF | 114 years |
| Compliant Standards | EN 60950, IEC 60950, UL 60950, UL 2043, FCC, EN 60601-1-2, EN 60601-1-1, EMC 2014/30/EU, LVD 2014/35/EU, ISED, RED 2014/53/EU |
| Power | Power |
| Power Over Ethernet (PoE) Supported | PoE |
| Power Consumption Operational | 26.4 Watt |
| Software / System Requirements | Software / System Requirements |
| OS Required | ArubaOS, InstantOS |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 28.5 cm |
| Shipping Depth | 30 cm |
| Shipping Height | 10.5 cm |
| Shipping Weight | 1.93 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 93% (non-condensing) |
Features - Hewlett Packard - JZ336A
More Details
Product Code
2M2LEP3
EAN Code
0190017232751
Manufacturer
Hewlett Packard
