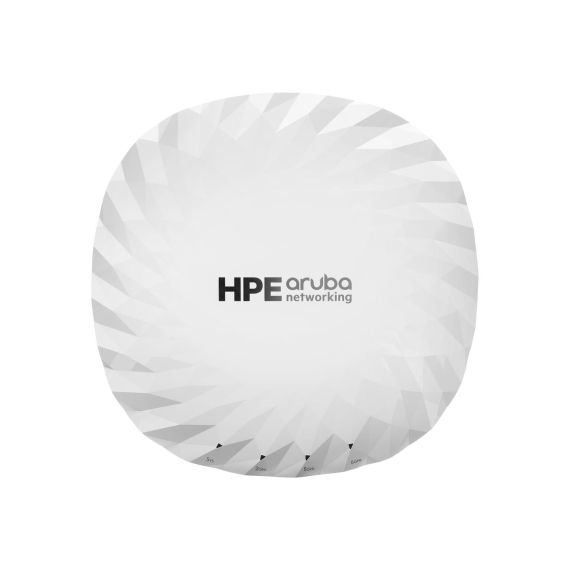

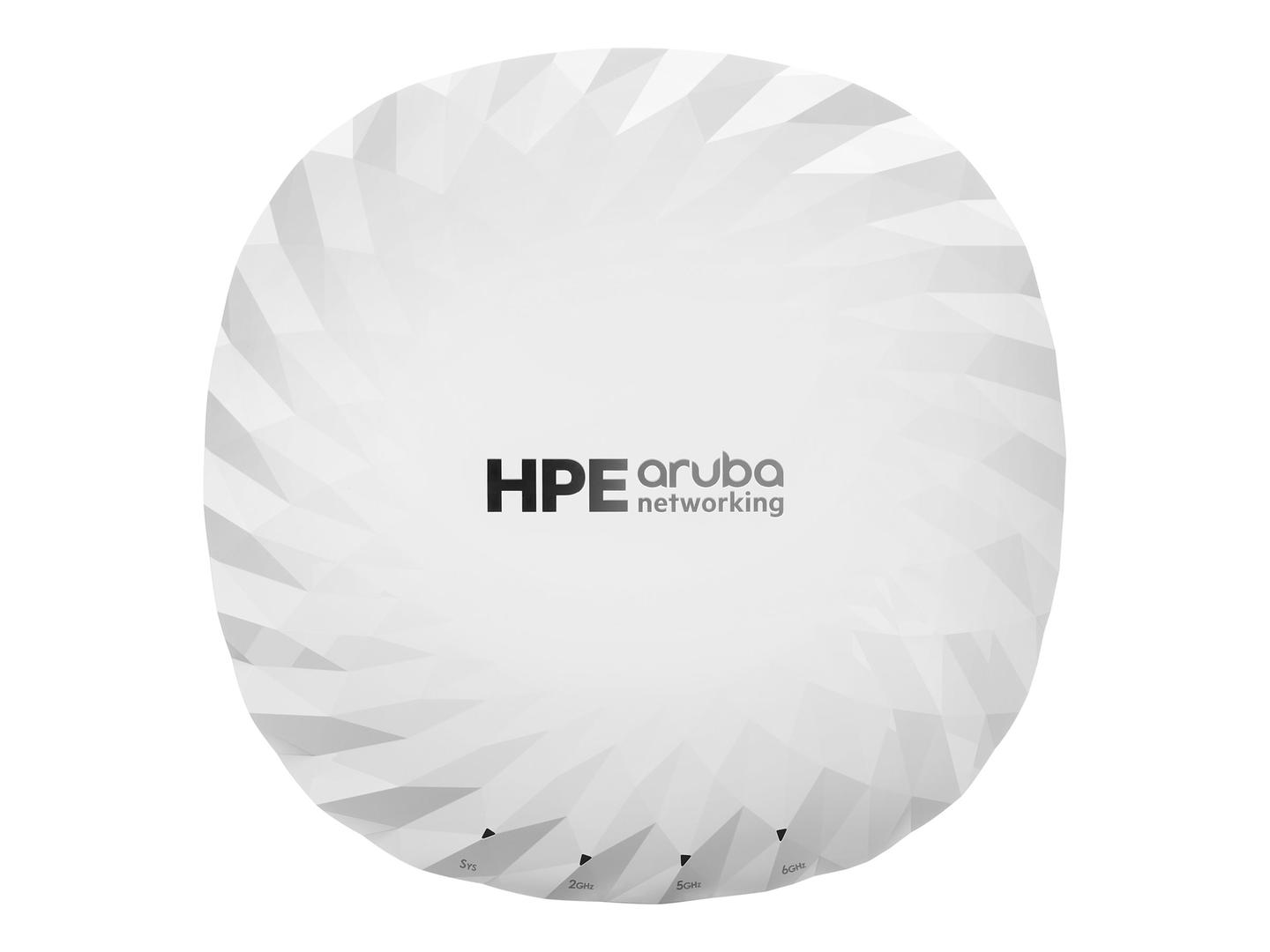

HPE Aruba AP-735 (RW) - Campus - radio access point - Wi-Fi 7, Bluetooth 6.0 LE - Wi-Fi 6 - ZigBee, Bluetooth, Wi-Fi 7 - 2.4 GHz, 5 GHz, 6 GHz - BTO (pack of 5) | S0H12A
Product Features
- Advanced connectivity
Equipped with Wi-Fi 7 technology, the HPE Aruba AP-735 (RW) ensures high-speed, reliable connections across multiple bands (2.4 GHz, 5 GHz, and 6 GHz), catering to the demands of modern devices and applications. - Robust security
Featuring a comprehensive suite of encryption algorithms including WPA3, the device offers robust security measures to protect sensitive data and maintain a secure wireless network environment. - Efficient performance
With a maximum data rate of up to 14.45 Gbps and support for features like MU-MIMO technology and OFDMA, this wireless access point is designed to handle high-density environments effortlessly, ensuring smooth performance. - Versatile IoT integration
The HPE Aruba AP-735 (RW) supports Bluetooth Low Energy (LE) and Zigbee, making it an ideal choice for businesses looking to integrate a wide range of IoT devices into their network infrastructure. - Sustainable operation
This device promotes energy efficiency with features like ENERGY STAR and a custom deep-sleep mode, aligning with sustainability goals without compromising on performance.
Special Fetures
- Supports Wi-Fi 7 technology for high-performance wireless connectivity
- Includes advanced encryption standards like WPA3 for enhanced network security
- Features MU-MIMO and OFDMA for efficient data transmission in dense environments
- Offers Bluetooth Low Energy (LE) and Zigbee for comprehensive IoT device compatibility
- Designed with energy-saving features like ENERGY STAR and custom deep-sleep mode
Product Specification
Packaged Quantity | 5 (specifications are for single item) |
Device Type | Radio access point |
Ruggedized Design | Indoor |
Width | 24 cm |
Depth | 24 cm |
Height | 5.6 cm |
Weight | 1.44 kg |
Networking | |
Form Factor | External |
Connectivity Technology | Wireless |
Data Transfer Rate | 14.4 Gbps |
Line Coding Format | CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM, 4096 QAM, DSSS |
Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, ZigBee, IEEE 802.11be (Wi-Fi 7), Bluetooth 6.0 LE |
Spread Spectrum Method | OFDM, DSSS, OFDMA |
Frequency Band | 2.4 GHz, 5 GHz, 6 GHz |
Performance | Maximum data rate (2.4 GHz): 688 Gbps <br /> Maximum data rate (5 GHz): 2.9 Gbps <br /> Maximum data rate (6 GHz): 5.8 Gbps <br /> Aggregate bandwidth: 14.45 Gbps |
Capacity | Wireless clients per Wi-Fi radio: 512 <br /> OFDMA units: 37 <br /> BSSIDs per radio: 16 |
Status Indicators | System, status, radio |
Features | Auto-uplink (auto MDI/MDI-X), Wi-Fi Multimedia (WMM) support, Trusted Platform Module (TPM), Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Direct Sequence Spread Spectrum (DSSS), Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), Advanced Cellular Coexistence (ACC), ClientMatch, cyclic shift diversity (CSD), packet aggregation A-MPDU, packet aggregation A-MSDU, Intelligent Power Monitoring (IPM), Dynamic Frequency Selection (DFS), High-Throughput (HT) support, LED off mode, Energy-Efficient Ethernet (EEE), Orthogonal Frequency Division Multiplexing (OFDM), Aruba AirMatch, 2x2:2 MU-MIMO technology, Very High Throughput (VHT) support, WMM Power Save, security slot (Kensington security lock compatible), Orthogonal Frequency Division Multiple Access (OFDMA), unified AP support, custom deep-sleep mode, High Efficiency (HE) support, Target Wait Time (TWT), Wi-Fi 7 technology |
Encryption Algorithm | WPA, WPA-Enterprise, WPA3, Opportunistic Wireless Encryption (OWE), WPA2-MPSK, CNSA |
Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3bt, Wi-Fi CERTIFIED 7, IEEE 802.3af, IEEE 802.3az |
Aerial | |
Antenna | Internal |
Directivity | Omni-directional |
Gain Level | 5.5 dBi |
Internet of Things (IoT) | |
Internet of Things (IoT) Compatible | Yes |
Communications Technology | Bluetooth Low Energy (LE), Zigbee |
Expansion / Connectivity | |
Interfaces | 2 x 1000Base-T (PoE) - RJ-45 <br /> 1 x serial / console - micro-USB <br /> 2 x USB - Type A |
Miscellaneous | |
Included Accessories | Mounting bracket |
MTBF | 72 years |
Compliant Standards | EN 60950, IEC 60950, UL 60950, UL 2043, FCC, EN 60601-1-2, EN 60601-1-1, EMC 2014/30/EU, LVD 2014/35/EU, EN 62368-1, IEC 62368-1, ISED, RED 2014/53/EU |
Pricing Type | BTO |
Power | |
Power Over Ethernet (PoE) Supported | PoE Class 5 |
Power Consumption Operational | 36 Watt |
Software / System Requirements | |
OS Required | ArubaOS, InstantOS |
Dimensions & Weight (Shipping) | |
Shipping Width | 27.1 cm |
Shipping Depth | 25.8 cm |
Shipping Height | 8.9 cm |
Shipping Weight | 1.83 kg |
Manufacturer Warranty | |
Service & Support | Limited warranty - lifetime |
Environmental Parameters | |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 50 °C |
Humidity Range Operating | 5 - 95% (non-condensing) |
