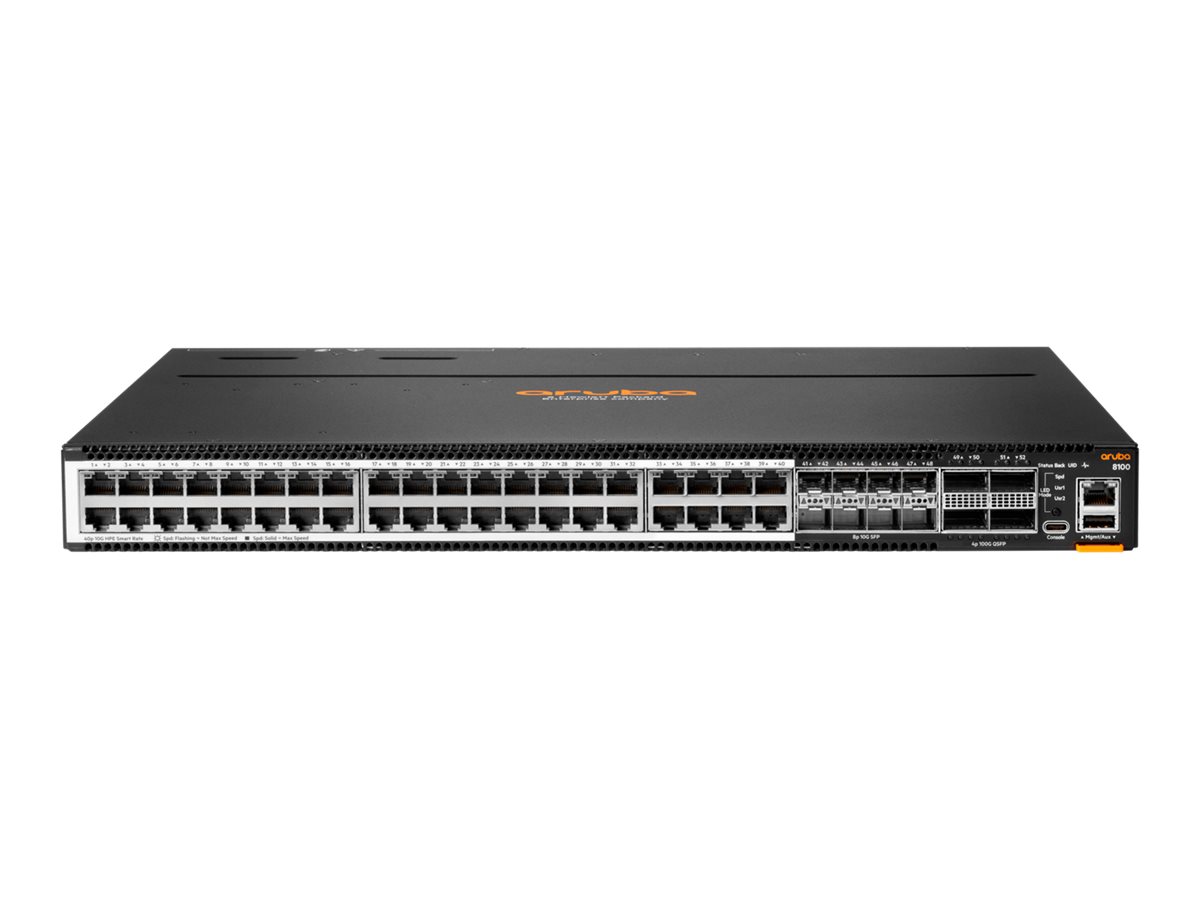

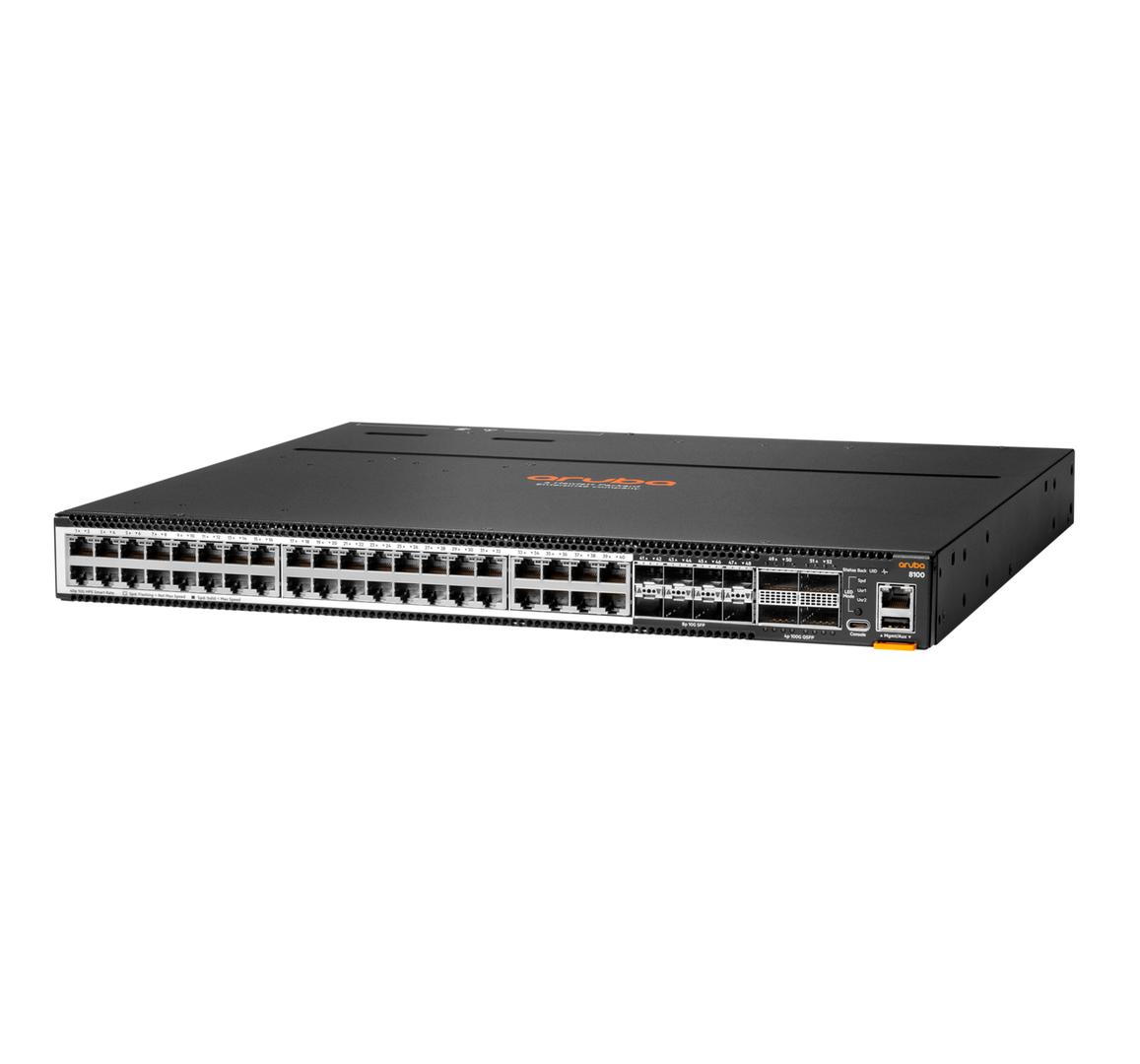

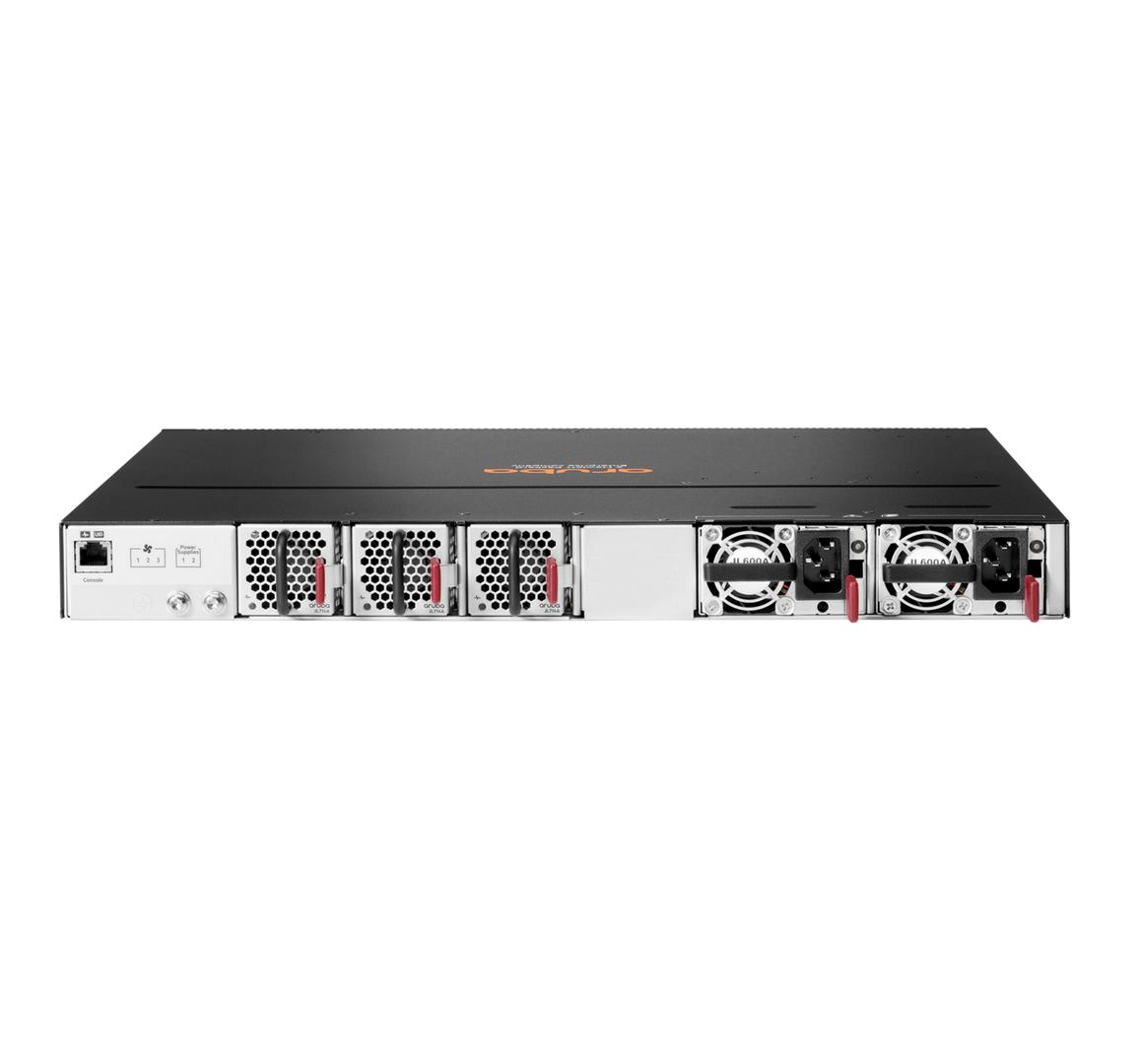

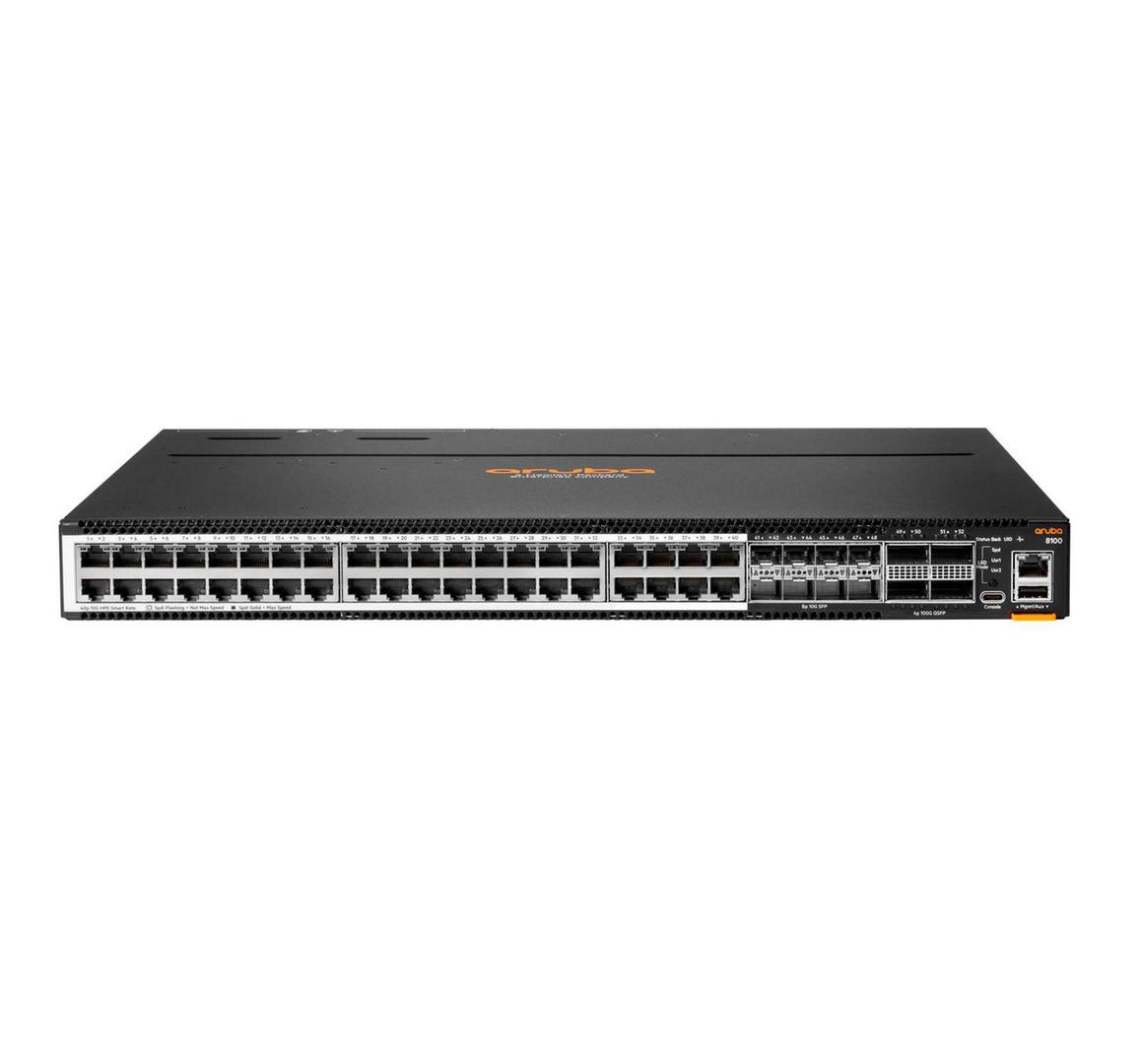

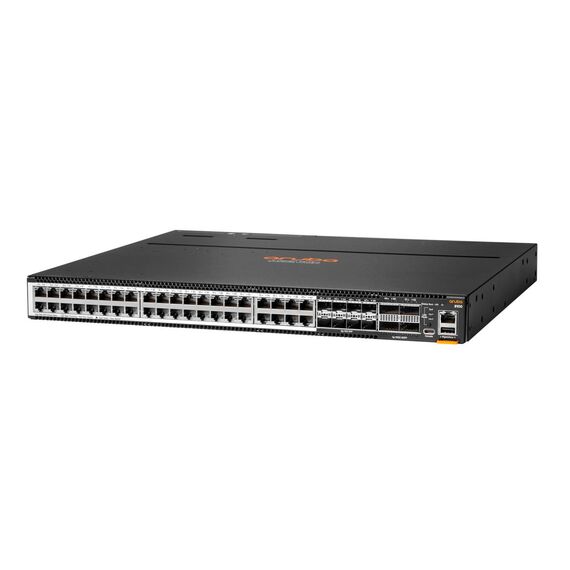

HPE Aruba Networking CX 8100 40x10GBase-T 8x10G SFP+ 4x40/100G QSFP28 Switch - Switch - L3 - Managed - 40 x 100/1000/2.5G/5G/10GBase-T + 8 x Gigabit SFP / 10 Gigabit SFP+ + 4 x 40 Gigabit QSFP+ / 100 Gigabit QSFP28 - front to back airflow - rack-mountable
HPE Aruba Networking CX 8100 40x10GBase-T 8x10G SFP+ 4x40/100G QSFP28 Switch - Switch - L3 - Managed - 40 x 100/1000/2.5G/5G/10GBase-T + 8 x Gigabit SFP / 10 Gigabit SFP+ + 4 x 40 Gigabit QSFP+ / 100 Gigabit QSFP28 - front to back airflow - rack-mountable
€31892.08 inc. VAT
R9W92A
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Modular cloud-native architecture
Aruba CX 8100 Switch series features AOS-CX which simplify the complexities of managing data center networks with automation options to match your IT organization's operating model. Proactively detect issues and speed troubleshooting with actionable insights provided by an analytics engine embedded in every switch. Always-on infrastructure designed for resiliency and upgrades with zero downtime. REST APIs and Python scripting provide fine-grained microservices architecture enabling full integration with other workflow systems and services. Continual state synchronization provides superior fault tolerance and high availability. Always-on infrastructure designed for resiliency and upgrades with zero downtime. - Aruba network analytics engine
Aruba CX 8100 Switch series utilizes the Aruba Network Analytics Engine (NAE) for advanced telemetry and automation to provide industry-first monitoring and troubleshooting systems that greatly improve network operations. Customers can use data from The Time Series Database (TSDB) to store configuration and operational state to write software modules to troubleshoot problems. This data may also be used to analyze trends, identify anomalies, and predict future capacity requirements. - High availability and resiliency
All software processes in the Aruba CX 8100 Switch series run as microservices that communicate via the state database of the switch; there is no direct communication between microservices. Should software process crash, the impact of that failure will be limited. The ability of AOS-CX to maintain synchronous state across dual control planes allows a unique high availability solution called Aruba Virtual Switching Extension (VSX). Aruba VSX provides a robust, yet simple solution for high availability with a unique design for control plane synchronization and an architecture that is redundant in both hardware and software by deploying two chassis with an inter-switch link, maintaining its independent control. - Software-defined automation
The Aruba CX 8100 Switch series is supported by Aruba Fabric Composer, a software-defined orchestration solution that simplifies and accelerates leaf-spine network provisioning and day-to-day operations across rack-scale compute and storage infrastructure. Orchestrate a discrete set of switches as a single networking fabric to simplify operations and troubleshooting. This infrastructure and application-aware solution also automates various configuration and lifecycle events.
Special Fetures
- Modular cloud-native architecture
- Aruba network analytics engine
- High availability and resiliency
- Software-defined automation
Product Specification
| Device Type | Switch - 40 ports - L3 - Managed |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 40 x 100/1000/2.5G/5G/10GBase-T + 8 x Gigabit SFP / 10 Gigabit SFP+ + 4 x 40 Gigabit QSFP+ / 100 Gigabit QSFP28 |
| Performance | Switching capacity: 1.76 Tbps |
| Capacity | IPv4 ACL entries (ingress): 16384 ¦ IPv6 ACL entries (ingress): 4096 ¦ MAC ACL entries (ingress): 16384 ¦ IPv4 ACL entries (egress): 2048 ¦ IPv6 ACL entries (egress): 512 ¦ MAC ACL entries (egress): 2048 ¦ Maximum number of VLANs: 1024 ¦ IGMP groups: 4000 ¦ MLD groups: 4000 ¦ Packet buffer size: 32 MB ¦ IPv4 routes (Multicast): 4096 ¦ IPv6 routes (Multicast): 4096 ¦ Link aggregation groups: 54 ¦ IPv4 routes (Unicast): 24576 ¦ IPv6 routes (Unicast): 12288 |
| MAC Address Table Size | 147456 entries |
| Jumbo Frame Support | 9000 bytes |
| Routing Protocol | BGP-4, RIP-2, IGMPv2, IGMP, IGMPv3, MLDv2, MLD |
| Remote Management Protocol | SNMP 2, SNMP, SNMP 3, MIB |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Features | Layer 2 switching, port mirroring, sFlow, QoS, ECMP, BFD, DCB, GRE, ERPS, RoCE, BPDU, RoCE v2, OSPF, NTP, policy based routing, RPVST+, UDLD, layer 3 routing, Address Resolution Protocol, Aruba VSX, Dynamic VXLAN with BGP-EVPN, BGP-4 |
| Compliant Standards | IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3an, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.3by |
| Processor | 1 x ARM Cortex-A72: 1.8 GHz |
| RAM | 16 GB |
| Flash Memory | 32 GB |
| Expansion / Connectivity | |
| Interfaces | 40 x 100/1000/2.5G/5G/10GBase-T RJ-45 ¦ 8 x Gigabit / 10Gbit LAN SFP+ ¦ 4 x 40/100Gbit LAN QSFP28/QSFP+ ¦ 1 x USB-C console ¦ 1 x serial RJ-45 ¦ 1 x USB Type A AUX |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | AC 100-127/200-240 V (50/60 Hz) |
| Power Consumption Stand by | 120 Watt |
| Miscellaneous | |
| Included Accessories | 3 fan trays, 2-Post Rack Kit |
| Compliant Standards | IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, Laser Class 1, EN 61000-4-8, VCCI Class A, EN 61000-3-3:2013, IEC 61000-3-3:2013, EMC 2014/30/EU, CNS 13438 Class A, Directive 2014/35/EU, KN32 Class A, EN 55032:2015, CISPR 35, EN 60825-1:2014, EN 55035:2017, IEC 62368-1: 2014, EN 62368-1:2014 Second Edition, EN 61000-3-2:2019, IEC 60825-1:2014 Class 1, IEC 61000-3-2:2019, IEC 62368-1:2018, EN 63000:2018, UL62368-1/CAN/CSA C22.2 No.62368-1, FCC CFR 47 Part 15: 2018 Class A, AS/NZS CISPR 32:2015 Class A, CISPR-32 Class A, EN 62368-1:2020 3rd Edition |
| Software / System Requirements | |
| OS Required | AOS-CX |
| Dimensions & Weight | |
| Width | 44.25 cm |
| Depth | 40.64 cm |
| Height | 4.4 cm |
| Weight | 8.57 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 15 - 95% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 15 - 95% (non-condensing) |
