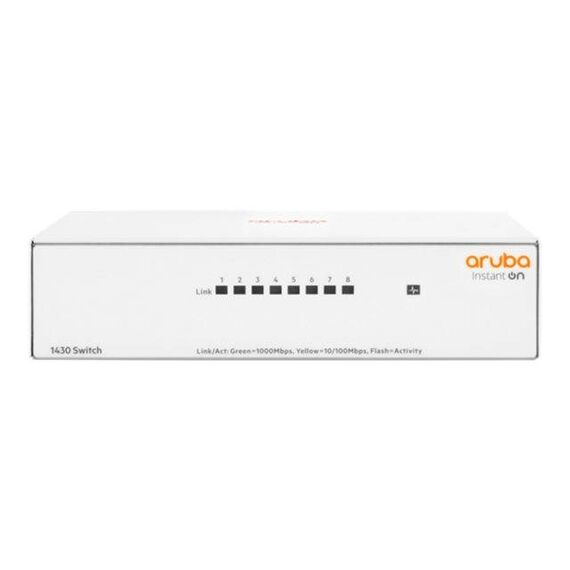

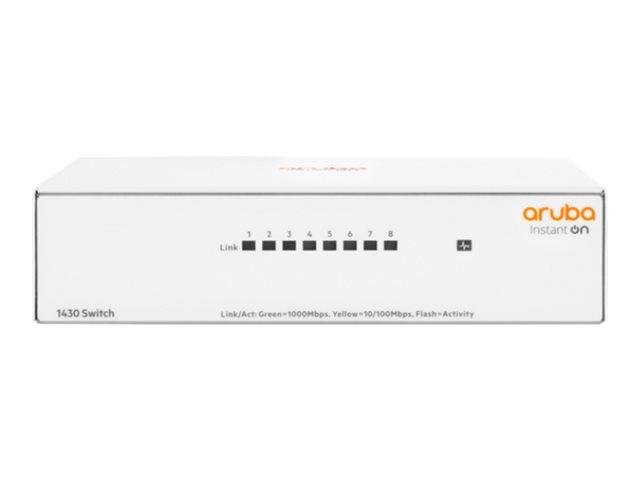

HPE Aruba Instant On 1430 8G Switch / Switch / unmanaged / 8 x 10/100/1000 / desktop, wall-mountable / BTO | R8R45A
HPE Aruba Instant On 1430 8G Switch / Switch / unmanaged / 8 x 10/100/1000 / desktop, wall-mountable / BTO | R8R45A
€79.33 inc. VAT
R8R45A
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Switch - 8 ports - unmanaged |
| Enclosure Type | Desktop, wall-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 |
| Performance | Throughput: 11.9 Mbps ¦ Switching capacity: 16 Gbps ¦ Latency (100 Mbps): 2.7 µs ¦ Latency (1 Gbps): 1.8 µs |
| Capacity | MAC address entries: 8192 |
| MAC Address Table Size | 8192 entries |
| Jumbo Frame Support | 9216 bytes |
| Features | Flow control, auto-sensing per device, MDI/MDI-X switch, wall mountable, Spanning Tree Protocol (STP) support, fanless, 2MB packet buffer, VoIP support, DiffServ Code Point (DSCP) support |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az |
| RAM | 128 KB EEPROM |
| Status Indicators | Port status, link/activity |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 8 x 10/100/1000 Base-T RJ-45 |
| Power | Power |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Electric Current Required | 1 A |
| Power Consumption Stand by | 1.7 Watt |
| Miscellaneous | Miscellaneous |
| MTBF | 416.2 years |
| Compliant Standards | EN 61000-3-2, IEC 61000-3-2, ICES-003 Class B, VCCI Class B, FCC CFR47 Part 15 B Class B, AS/NZS CISPR 32 Class B, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 61000-4-11, IEC/EN 61000-4-2, CNS 13438 Class B, UL 62368-1 Second Edition, IEC/EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013, UL 62368-1, EN 55032:2015 Class B, EN 55035, CISPR 35, CISPR 32:2015 Class B, IEC/EN 61000-3-3, IEC/EN 60825-1:2014 Class 2, IEC/EN 62368-1, UL 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Second Edition, KS C 9835, KS C 9832 Class B |
| Pricing Type | BTO |
| Localisation | English / Europe |
| Dimensions & Weight | Dimensions & Weight |
| Width | 15.7 cm |
| Depth | 13.8 cm |
| Height | 3.7 cm |
| Weight | 590 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - lifetime ¦ Technical support - live chat - lifetime ¦ Technical support - phone consulting - 90 days from date of purchase |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 15 - 95% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 15 - 90% (non-condensing) |
Features - Hewlett Packard - R8R45A
General
8-Port
More Details
Product Code
CE96340
EAN Code
0190017537924
Manufacturer
Hewlett Packard
