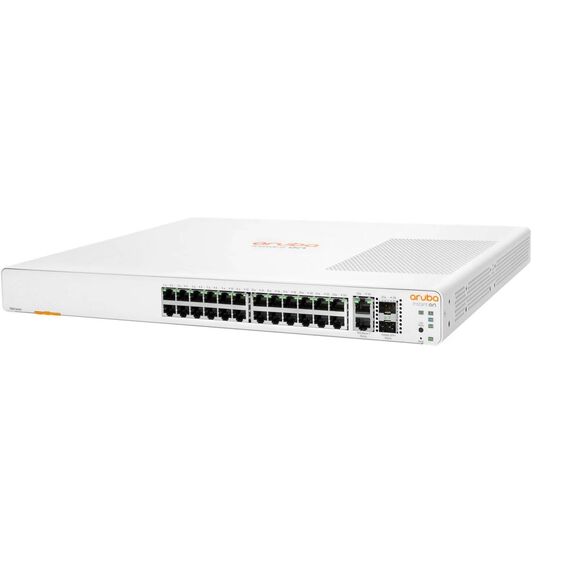

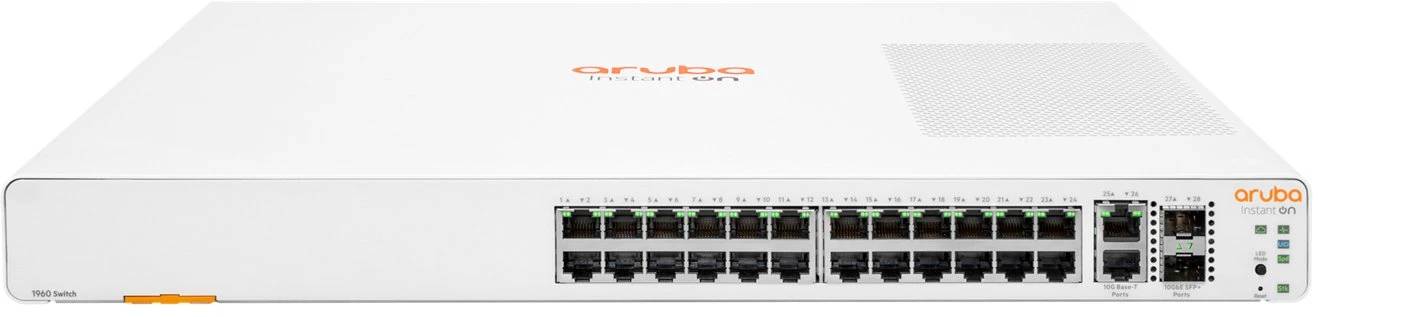

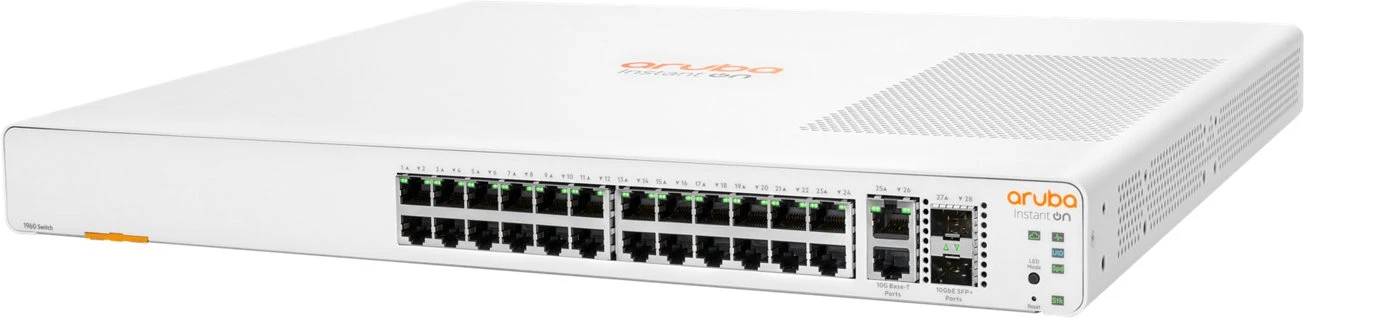

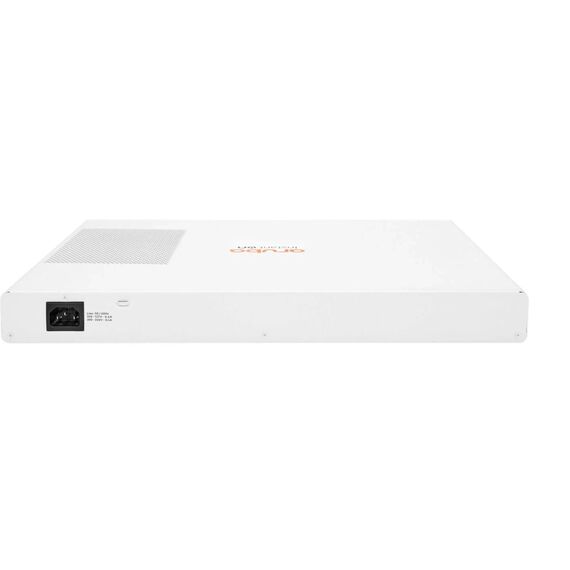

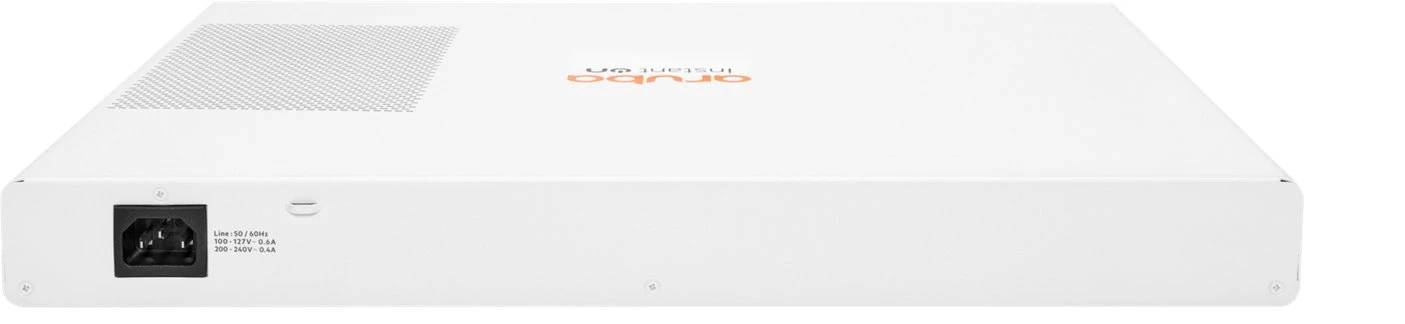

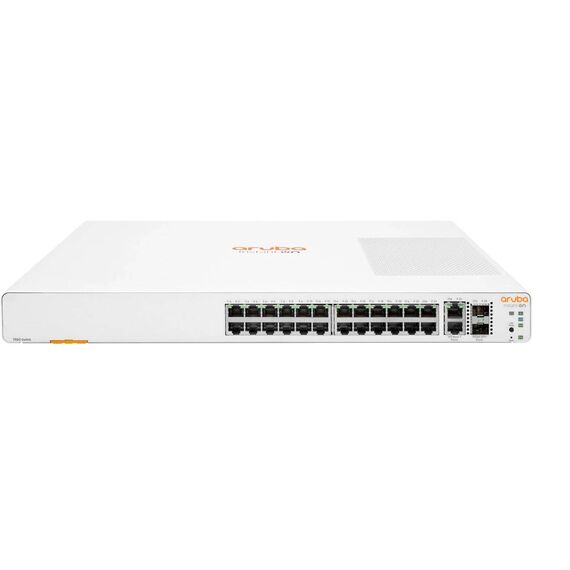

HPE Aruba Instant On 1960 24G 2XGT 2SFP+ Switch / Switch / Managed / 24 x 10/100/1000 + 2 x 10 Gigabit SFP+ + 2 x 100/1000/10GBase-T / rack-mountable | JL806A

HPE Aruba Instant On 1960 24G 2XGT 2SFP+ Switch / Switch / Managed / 24 x 10/100/1000 + 2 x 10 Gigabit SFP+ + 2 x 100/1000/10GBase-T / rack-mountable | JL806A
Description
Aruba Instant On 1960 Switches are advanced, smart-managed, fixed configuration Gigabit stackable switches designed for small and growing businesses that are easy to deploy and affordable. These switches are designed to scale as business grows, making adding more employees, devices and applications simple. Aruba Instant On 1960 switches are made to handle today's bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to improve user experience and application performance.
HPE Aruba Instant On 1960 24G 2XGT 2SFP+ Switch / Switch | JL806A
Special Features
- Simplify network management by stacking up to (four) 4 Aruba Instant On 1960 switches and managing them through one single IP address
- Stacking supported via local and cloud-managed stacking modes
- The Aruba 1960 aggregation switch comes with twelve (12) 10GBase-T and four (4) SFP+ ports, providing 10G connectivity to servers, network storage devices and access switches alike
- For environments with heavy bandwidth needs, 10GBase-T and SFP+ uplink ports deliver lightning-fast network speeds and nearly eliminates traffic bottlenecks
Product features
- High-level Gigabit with 10GbE networking for advanced small businesses
Each model of the Aruba Instant On 1960 Switch Series includes four 10GbE connections to connect to servers, network storage devices, or to other switches. Two connections of 10GBASE-T deliver 10GbE over copper Category 6a cabling for simple, affordable, high-bandwidth connections to a maximum distance of 100 meters. - Simplify network deployment and management for small organizations
The Aruba Instant On 1960 Switch series can be deployed using two management modes - Instant On cloud-management (access via mobile app and/or web portal) and the local web GUI. Each switch has a pull-out tag, known as a luggage tag, on the front panel of the switch. - Ease of use with cloud-managed stacking
The Aruba Instant On mobile app and cloud-based web portal make cloud-managed stacking easy - just follow the recommendations to stack up to four (4) Aruba Instant On 1960 switches and manage as a single entity. The Aruba Instant On mobile app automatically detects members, making multiple stack members easy to setup and manage remotely. Automated configurations and streamlined workflows allow users to manage all stack members through one single dashboard without the need for device reboot. - Robust security to protect your network
The Aruba Instant On 1960 Switch Series lets you use VLANs and Access Control Lists to set bounds on what data can be seen by which users. Leverage 802.1X with a RADIUS server to ensure only known and authorized users can access your network. Supports Automatic denial-of-service (DOS) monitors and protects the network against malicious attacks.
Product Specification
Device Type | Switch - 24 ports - Managed |
Enclosure Type | Rack-mountable 1U |
Subtype | Gigabit Ethernet |
Ports | 24 x 10/100/1000 + 2 x 10 Gigabit SFP+ + 2 x 100/1000/10GBase-T |
Performance | Throughput: 95 Mpps ¦ Switching capacity: 128 Gbps ¦ Latency (100 Mbps): 4.4 µs ¦ Latency (1 Gbps): 2.2 µs ¦ Latency (10 Gbps): 1.1 µs |
Capacity | MAC address entries: 16000 ¦ IPv4 routes (static): 32 ¦ IPv6 routes (static): 32 |
MAC Address Table Size | 16000 entries |
Jumbo Frame Support | 9216 bytes |
Routing Protocol | Static IP routing |
Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, RADIUS |
Authentication Method | RADIUS |
Features | Flow control, DHCP support, auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), port mirroring, IPv6 support, half duplex mode, full duplex mode, Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Trusted Platform Module (TPM), fanless, Link Aggregation Control Protocol (LACP), Class of Service (CoS), Energy-Efficient Ethernet (EEE), BPDU Filter, auto voice VLAN, Media Endpoint Discovery (LLDP-MED) |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1s, IEEE 802.1ab (LLDP) |
Processor | 1 x ARM: 800 MHz |
Status Indicators | Port status, power |
Interfaces | 24 x 10/100/1000 Base-T RJ-45 ¦ 2 x 10 Gigabit Ethernet / 10 Gigabit Ethernet SFP+ SFP+ ¦ 2 x 10GBase-T RJ-45 |
Power Device | Internal power supply |
Voltage Required | AC 100-240 V (50/60 Hz) |
MTBF | 123 years |
Compliant Standards | EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, EN 61000-3-3, ICES-003 Class A, VCCI Class A, CNS 13438 Class A, KN35, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, AS/NZS CISPR 32 Class A, KN32 Class A, IEC/EN 61000-4-11, IEC/EN 61000-4-2, UL 62368-1 Second Edition, IEC/EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013, EN 55032:2015 Class A, CISPR 32:2015 Class A, UL 62368-1, EN 55035, CISPR 35, IEC/EN 60825-1:2014 Class 2, IEC/EN 62368-1, UL 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Second Edition, FCC CFR47 Part 15 B Class A 2018 |
Width | 44.25 cm |
Depth | 35.05 cm |
Height | 4.395 cm |
Weight | 3.9 kg |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 15 - 95% (40 °C) |
Min Storage Temperature | -40 °C |
Max Storage Temperature | 70 °C |
