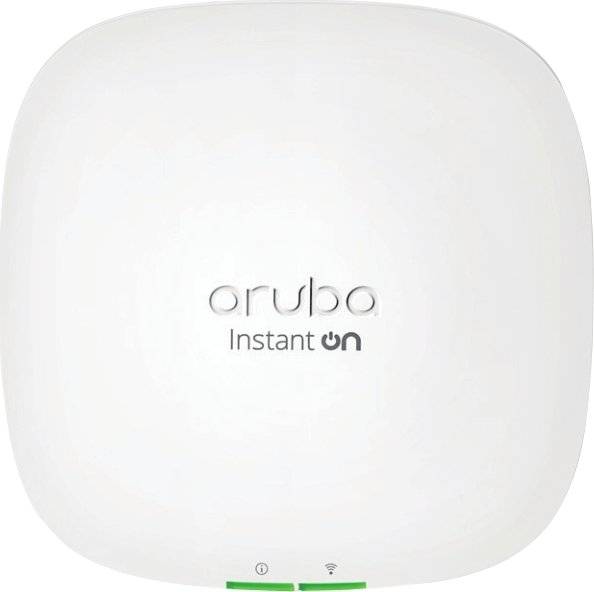

HPE Aruba Instant ON AP22 / Radio access point / Bluetooth, Wi-Fi 6 / 2.4 GHz, 5 GHz / DC power / wall / ceiling mountable | R6M50A
Product Features
- Built-in security gateway/firewall
Stop unwanted people and bots from accessing your network. Leverage advanced features that do not require external gateways - or the complexity that comes with them. Quickly and easily swap it out with another AP in a single click, in case of gateway failure. - Complete app visibility and control
Get full visibility into the apps running on your network. Block certain applications from being used. Manage this feature straight from the Aruba Instant On app. - Tailored user experiences
Customize the experience with logos, authentications, and rules of use. Apply bandwidth rates. Set data usage per app. Limit duration of use. Use an external portal or service like Facebook Wi-Fi. Create open guest networks for quick and easy access. - Enterprise grade Wi-Fi and features
Control network widths, channels, and channel widths to suit your specific environment. Keep users happy as they move between spaces or meetings with a seamless handoff between APs. Just provide secure WPA2 or WPA3 authentication on your networks and Aruba will do the rest. - Multi-site management
Manage multiple sites, multiple networks, distributed deployments, and multi-tenancy deployments with ease through Aruba's cloud-hosted web interface and mobile app. Create unique configurations, statistics, guest portals, and admin read/write and read-only privileges for every site.
Special Features
- Fast 802.11ax, 2X2:2
- Wi-Fi Certified 6 (Wi-Fi 6)
- MU-MIMO performance
- Smart Mesh Wi-Fi support
- Built-in Wi-Fi router/gateway functionality
- Integrated Bluetooth
- Easy-to-use web and mobile app for setup and management
- Secure Guest Wi-Fi with simple setup
- Application classification, control and visibility
Product Specification
Device Type | Radio access point |
Ruggedized Design | Indoor |
Width | 16 cm |
Depth | 16 cm |
Height | 3.7 cm |
Weight | 500 g |
Localisation | Europe |
Networking | Networking |
Form Factor | Wall / ceiling mountable |
Connectivity Technology | Wireless |
Line Coding Format | 1024 QAM |
Data Link Protocol | Bluetooth, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax |
Spread Spectrum Method | OFDMA |
Network / Transport Protocol | PPPoE |
Frequency Band | 2.4 GHz, 5 GHz |
Performance | Maximum data rate (5 GHz): 1.2 Gbps ¦ Maximum data rate (2.4 GHz): 574 Mbps |
Status Indicators | Status |
Features | Firewall protection, manageable, static IP mode, Trusted Platform Module (TPM), reset button, Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, security lock slot (cable lock sold separately), Advanced Cellular Coexistence (ACC), MU-MIMO technology, 2x2 MIMO technology, Bluetooth (BLE) clients support, Target Wait Time (TWT), Smart Mesh technology, BSS Coloring |
Encryption Algorithm | WPA2, WPA3 |
Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
Aerial | Aerial |
Antenna | Internal |
Directivity | Omni-directional |
Internet of Things (IoT) | Internet of Things (IoT) |
Internet of Things (IoT) Compatible | Yes |
Communications Technology | Bluetooth Low Energy (LE) |
Expansion / Connectivity | Expansion / Connectivity |
Interfaces | 1 x Ethernet 1000 (uplink) |
Miscellaneous | Miscellaneous |
Included Accessories | Wall/ceiling rail mounting clip |
Cables Included | 1 x network cable ¦ 1 x power adapter ¦ 1 x power cable (EU) |
MTBF | 91 years |
Compliant Standards | UL 2043, EN 60601-1-2, EN 60601-1-1 |
Power | Power |
Power Over Ethernet (PoE) Supported | PoE |
Power Device | External power adapter |
Voltage Required | DC 12 V |
Power Provided | 18 Watt |
Software / System Requirements | Software / System Requirements |
Software Included | InstantOn |
Manufacturer Warranty | Manufacturer Warranty |
Service & Support | Limited warranty - 1 year ¦ Technical support - phone consulting - 90 days ¦ Product info support - web support - 1 year |
Environmental Parameters | Environmental Parameters |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
