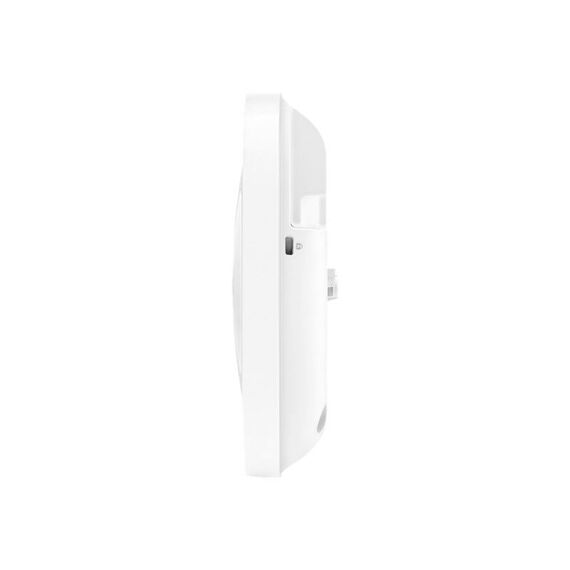

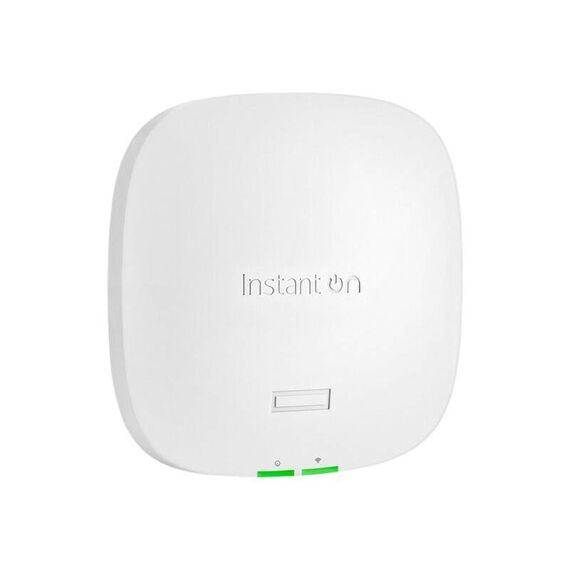

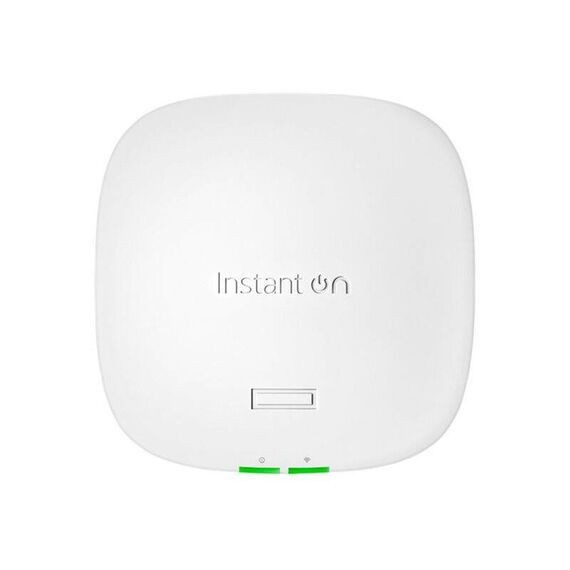

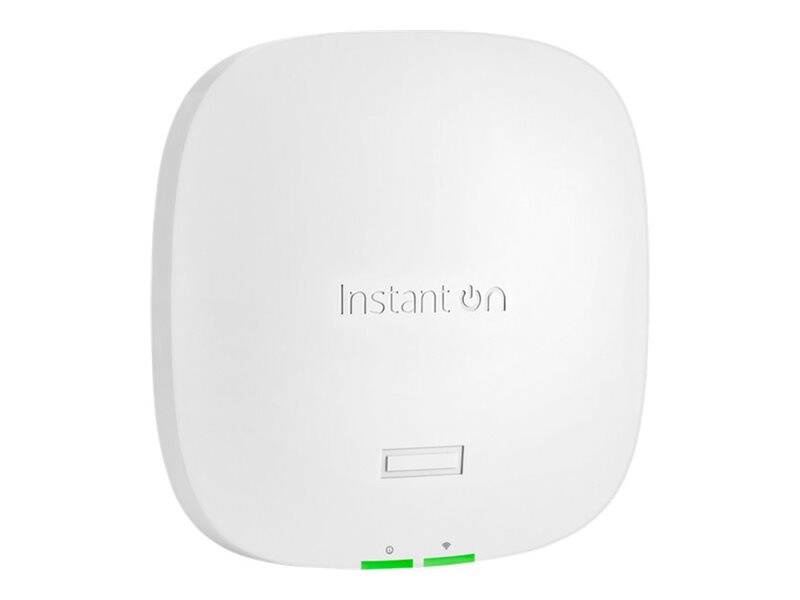

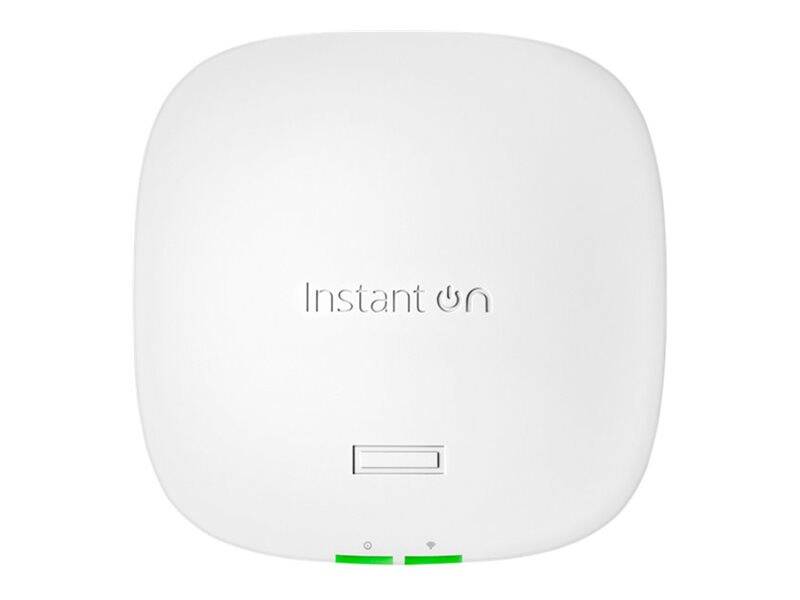

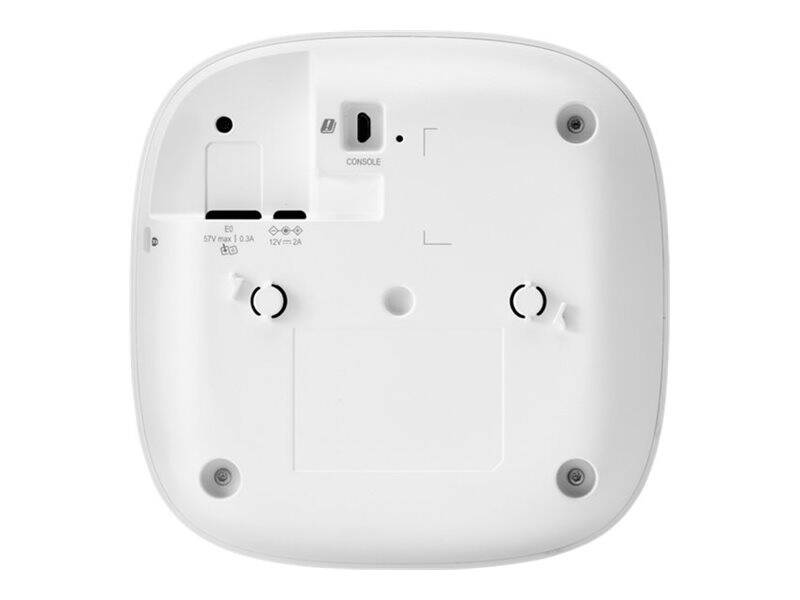

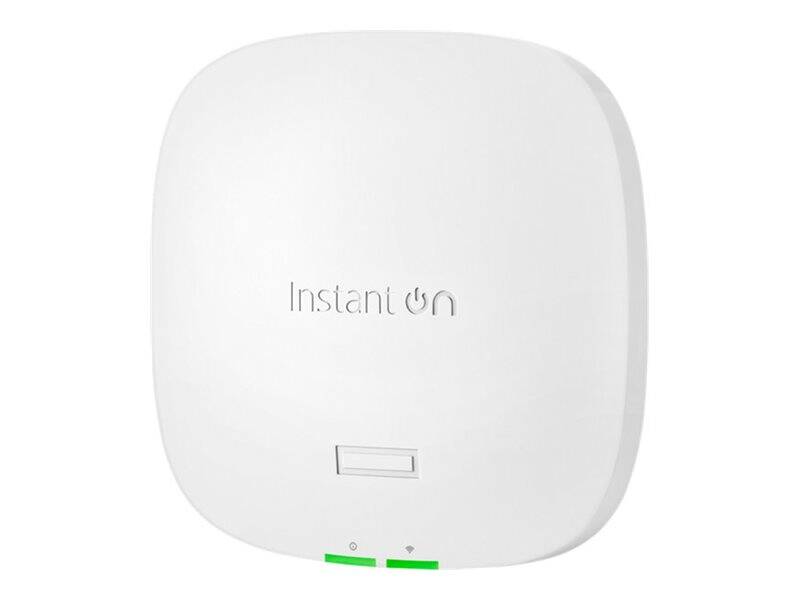

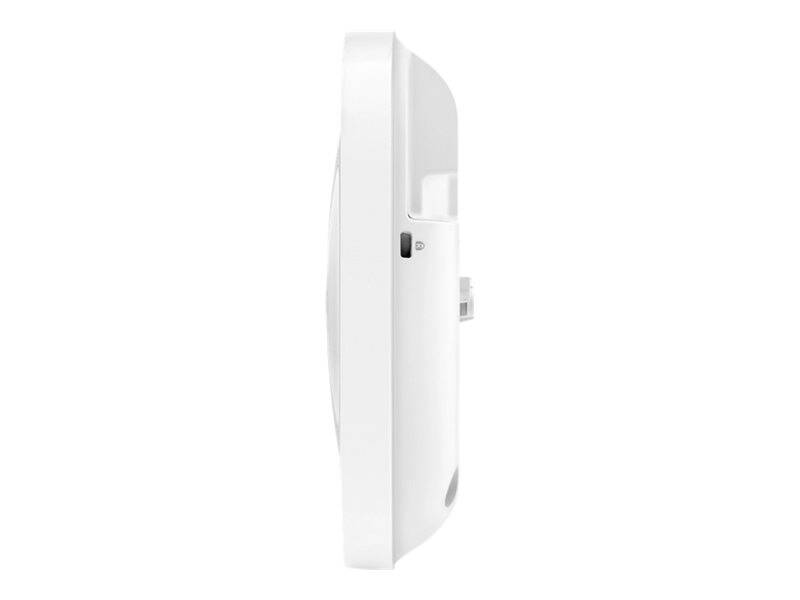

HPE Networking Instant On AP32 (RW) - Radio access point - Wi-Fi 6 - Wi-Fi 6E - 2.4 GHz, 5 GHz, 6 GHz - wall / ceiling mountable | S1T23A
S1T23A
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- 802.11ax Wi-Fi Certified 6E
HPE Networking Instant On AP32 access points feature Orthogonal Frequency-Division Multiple Access (OFDMA), allowing multiple Wi-Fi 6 capable clients to be handled simultaneously per channel. This improves efficiency by boosting overall capacity, reducing latency, and improving end-user experience. Target Wake Time (TWT) is ideal for IoT devices that communicate infrequently, as it establishes a schedule for when clients need to communicate with an AP. This reduces power consumption and can extend the battery life of clients. Multiple Input, Multiple Output (MIMO) allows the access point to serve multiple clients (Wi-Fi 5 and Wi-Fi 6) simultaneously. - Wi-Fi 6E 6 GHz band to fast-track your devices
HPE Networking Instant On AP32 is ready to elevate your growing network needs with Wi-Fi 6E. This tri-band, dual radio access point offers different broadcasting configurations: 6 GHz and 5 GHz for impressive throughput, 2.4 GHz and 6 GHz to support IoT and modern wireless devices, and 2.4 GHz and 5 GHz for businesses not yet ready to use 6E wireless standards.
Special Fetures
- Wi-Fi Certified 6E support for up to 75 user devices
- 2.5 Gigabit Ethernet uplink port that relieves bottlenecks brought by bandwidth-intense applications
- 6 GHz band dedicated to Wi-Fi 6E-enabled devices with up to 2.4Gbps wireless throughput

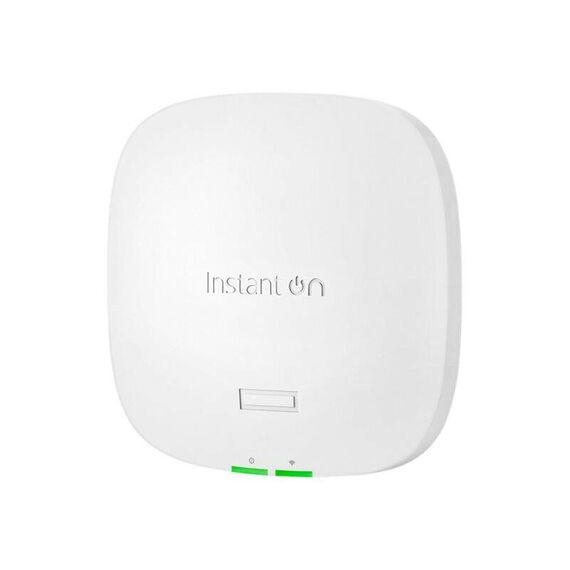

- The modern minimal design blends the HPE Networking Instant On AP32 into any environment
- Enable quiet mode to disable lights for less distraction
Product Specification
| Device Type | Radio access point |
| Ruggedized Design | Indoor |
| Width | 16 cm |
| Depth | 16 cm |
| Height | 3.9 cm |
| Weight | 520 g |
| Networking | |
| Form Factor | Wall / ceiling mountable |
| Connectivity Technology | Wireless |
| Line Coding Format | 1024 QAM |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E) |
| Spread Spectrum Method | OFDMA |
| Network / Transport Protocol | PPPoE |
| Frequency Band | 2.4 GHz, 5 GHz, 6 GHz |
| Performance | Maximum data rate (6 GHz): 2.4 Gbps ¦ Maximum data rate (5 GHz): 1.2 Gbps ¦ Maximum data rate (2.4 GHz): 574 Mbps |
| Status Indicators | Status, wireless |
| Features | Static IP mode, Trusted Platform Module (TPM), reset button, Low Density Parity Check (LDPC), Advanced Cellular Coexistence (ACC), MU-MIMO technology, 2x2 MIMO technology, security slot (Kensington security lock compatible), Target Wait Time (TWT), PoE Class 4, Transmit Beamforming, PoE Class 3, BSS Coloring |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac, IEEE 802.3bt, IEEE 802.11ax, Wi-Fi CERTIFIED 6E |
| Aerial | |
| Antenna | Internal |
| Antenna Qty | 2 |
| Directivity | Omni-directional |
| Expansion / Connectivity | |
| Interfaces | 1 x 2.5 GBase-T - RJ-45 |
| Miscellaneous | |
| Included Accessories | Ceiling/wall mount clip |
| MTBF | 62 years |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE |
| Power Device | External power adapter (not included) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
