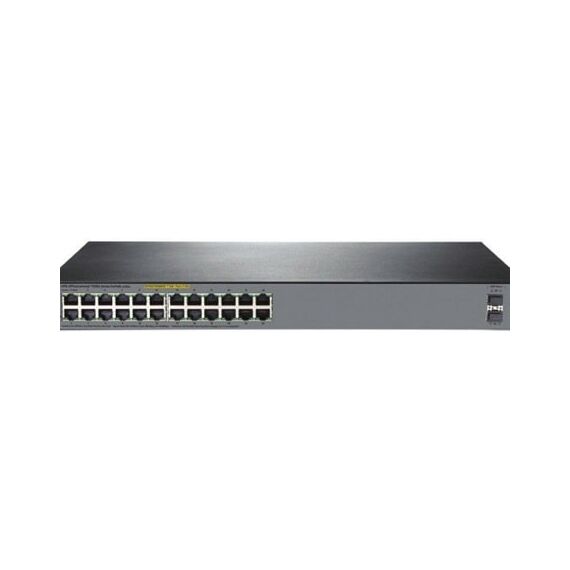

HPE OfficeConnect 1920S 24G 2SFP PoE+ 370W / Switch / L3 / Managed / 24 x 10/100/1000 (PoE+) + 2 x 100/1000 SFP / desktop, rack-mountable, wall-mountable / PoE+ (370 W) | JL385A

Brand: Hewlett Packard

Write a review

CODE (SKU):

JL385A

€612.34

€728.68 inc. VAT

Out of stock

Add to wish list Ask a question

Product Code02:JL385A EAN Code0190017138312 ManufacturerHewlett Packard

Find similar

Delivery

Payment options

Description
Features
Reviews

HPE OfficeConnect 1920S 24G 2SFP PoE+ 370W / Switch / L3 / Managed / 24 x 10/100/1000 (PoE+) + 2 x 100/1000 SFP / desktop, rack-mountable, wall-mountable / PoE+ (370 W) | JL385A

Description

The HPE OfficeConnect 1920S switch series consists of advanced smart-managed fixed-configuration Gigabit switches designed for small businesses in an easy-to-administer solution. All HPE OfficeConnect 1920S switches support flexible installation options, including mounting on wall, under table, or on desktop.

HPE OfficeConnect 1920S 24G 2SFP PoE+ 370W / Switch / L3 / Managed / 24 x | JL385A

Special Features

Complete session logging
Port mirroring
Dual flash images
Network time protocol
FTP and TFTP
Remote monitoring

Product features

Complete session logging
It provides detailed information for problem identification and resolution.
Port mirroring
It enables traffic on a port or VLAN to be simultaneously sent to a network analyzer for monitoring.
Dual flash images
They provide independent primary and secondary operating system files for backup while upgrading.
Network time protocol
It synchronizes timekeeping among distributed time servers; keeps timekeeping consistent among all clock-dependent devices within the network so that the devices can provide diverse applications based on the consistent time.
FTP and TFTP
It provides different mechanisms for configuration updates; FTP allows bidirectional transfers over a TCP/IP network; trivial FTP (TFTP) is a simpler method using user Datagram Protocol (UDP).
Remote monitoring
Remote monitoring (RMON) provides advanced monitoring and reporting capabilities for statistics, history, alarms and events. RMON data is retrieved from the switch through a network management platform over SNMP.

Product Specification

Device Type	Switch - 24 ports - L3 - Managed
Enclosure Type	Desktop, rack-mountable, wall-mountable 1U
Subtype	Gigabit Ethernet
Ports	24 x 10/100/1000 (PoE+) + 2 x 100/1000 SFP
Power Over Ethernet (PoE)	PoE+
PoE Budget	370 W
Performance	Latency (100 Mbps): 7 µs ¦ Latency (1 Gbps): 2 µs ¦ Throughput: 77.3 Mpps ¦ Routing/switching capacity: 52 Gbps
Capacity	Routing table entries: 32
MAC Address Table Size	16000 entries
Jumbo Frame Support	9216 bytes
Routing Protocol	IGMP, static IPv4 routing
Remote Management Protocol	SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS
Encryption Algorithm	SSL
Authentication Method	RADIUS
Features	Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, IPv6 support, half duplex mode, full duplex mode, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), fanless, DHCP relay, DHCP client, port isolation, Class of Service (CoS), 1.5MB packet buffer, Link Aggregation, Network Timing Protocol (NTP), LLDP-MED
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3at, IEEE 802.3az
Processor	1 x ARM Cortex-A9: 400 MHz
RAM	256 MB SDRAM
Flash Memory	64 MB
Interfaces	24 x 1000Base-T RJ-45 PoE+ ¦ 2 x 1000Base-X SFP
Voltage Required	AC 120/230 V (50/60 Hz)
MTBF	57.1 years
Compliant Standards	CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, EN55024, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, EN 60825-1, CAN/CSA C22.2 No. 60950-1, VCCI Class A, CNS 13438, ICES-003 issue 5 Class A, FCC CFR47 Part 15 B Class A, EN 55032:2015
Width	44.25 cm
Depth	32.26 cm
Height	4.39 cm
Weight	4.4 kg
Service & Support	Limited warranty - advance parts replacement - lifetime - shipment - response time: next business day ¦ Technical support - phone consulting - lifetime - shipment
Min Operating Temperature	0 °C
Max Operating Temperature	40 °C
Humidity Range Operating	15 - 95% (40 °C)
Min Storage Temperature	-40 °C
Max Storage Temperature	70 °C
Humidity Range Storage	15 - 95% (60 °C)
