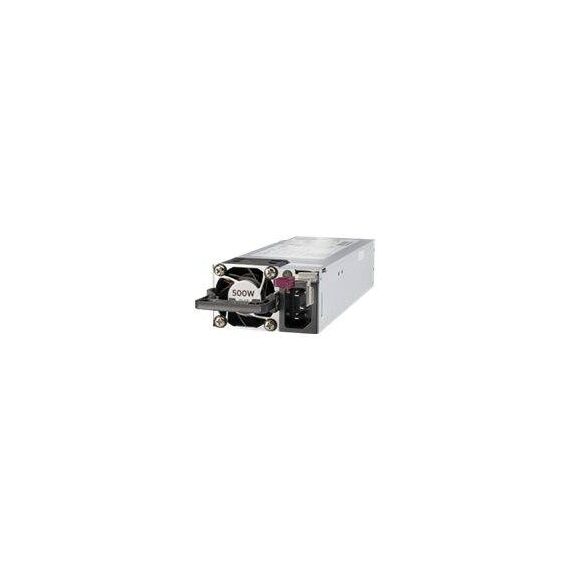

HPE / Power supply / hot-plug / redundant (plug-in module) / Flex Slot / 80 PLUS Platinum / AC 100-240 V / 500 Watt / 563 VA | 865408-B21
865408-B21
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Features
- Increases power density with 1600W Platinum power supply
- Delivers 48V DC input option in the HPE flexible slot power supply form factor
Product Specification
| Device Type | Power supply - hot-plug / redundant - plug-in module |
| Specification Compliance | Flex Slot |
| Power Device | Power Device |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |
| Input Connectors | Power IEC 60320 C14 |
| Power Capacity | 500 Watt / 563 VA |
| Efficiency | 94% |
| 80 PLUS Certification | 80 PLUS Platinum |
| Miscellaneous | Miscellaneous |
| Compliant Standards | UL, TUV, C-Tick, BSMI, cUL, CCC, KCC, WEEE, low halogen, CISPR Class A |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 55 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Dimensions & Weight | Dimensions & Weight |
| Width | 6.8 cm |
| Depth | 22.53 cm |
| Height | 4.04 cm |
| Weight | 910 g |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 19.05 cm |
| Shipping Depth | 37.47 cm |
| Shipping Height | 14.61 cm |
| Shipping Weight | 1.59 kg |
| Compatibility Information | Compatibility Information |
| Designed For | HPE Cloudline CL2600 Gen10 Network Choice (500 Watt), CL2600 Gen10 Premium (500 Watt), CL2600 Gen10 Premium Network Choice (500 Watt), CL2800 Gen10 (500 Watt), CL2800 Gen10 Network Choice (500 Watt) ¦ HPE Nimble Storage dHCI Large Solution with HPE ProLiant DL380 Gen10 (500 Watt), Medium Solution with HPE ProLiant DL325 Gen10 Plus (500 Watt), Medium Solution with HPE ProLiant DL360 Gen10 (500 Watt), Small Solution with HPE ProLiant DL360 Gen10 (500 Watt) ¦ HPE ProLiant DL160 Gen10 SMB, DL180 Gen10 Entry (500 Watt), DL180 Gen10 SMB (500 Watt), DL325 Gen10 Base (500 Watt), DL325 Gen10 Plus (500 Watt), DL325 Gen10 Plus All-NVMe Flash Node for Qumulo (500 Watt), DL325 Gen10 Solution (500 Watt), DL360 Gen10 All Flash Server for Weka (500 Watt), DL360 Gen10 Compute Server for Cohesity DataPlatform (500 Watt), DL360 Gen10 Network Choice (500 Watt), DL360 Gen10 Performance for Cohesity DataPlatform (500 Watt), DL360 Gen10 Remote Office Branch Office Server for Cohesity DataPlatform (500 Watt), DL360 Gen10 SMB (500 Watt), DL360 Gen10 SMB Network Choice (500 Watt), DL380 Gen10 All Flash Server for Datera (500 Watt), DL380 Gen10 Entry SMB (500 Watt), DL380 Gen10 for Cohesity DataPlatform (500 Watt), DL380 Gen10 for SAP HANA Compute Block (500 Watt), DL380 Gen10 Hybrid Server for Datera (500 Watt), DL380 Gen10 Network Choice (500 Watt), DL380 Gen10 Network Choice for CTERA (500 Watt), DL380 Gen10 NVMe All Flash Server for Datera (500 Watt), DL380 Gen10 Server for CTERA (500 Watt), DL380 Gen10 SMB (500 Watt), DL380 Gen10 SMB Networking Choice (500 Watt), DL385 Gen10 Plus (500 Watt), DL385 Gen10 Plus Entry (500 Watt), DL385 Gen10 SMB (500 Watt), DL388 Gen10 Network Choice (500 Watt), DL560 Gen10 for SAP HANA Compute Block (500 Watt), DX385 Gen10 Plus (500 Watt), ML350 Gen10 High Performance (500 Watt), ML350 Gen10 SMB (500 Watt), ML350 Gen10 Special Server (500 Watt) ¦ HPE SimpliVity 325 Gen10 Node (500 Watt) |
Features - Hewlett Packard - 865408-B21
More Details
Product Code
04:244569
EAN Code
0190017072661
Manufacturer
Hewlett Packard
