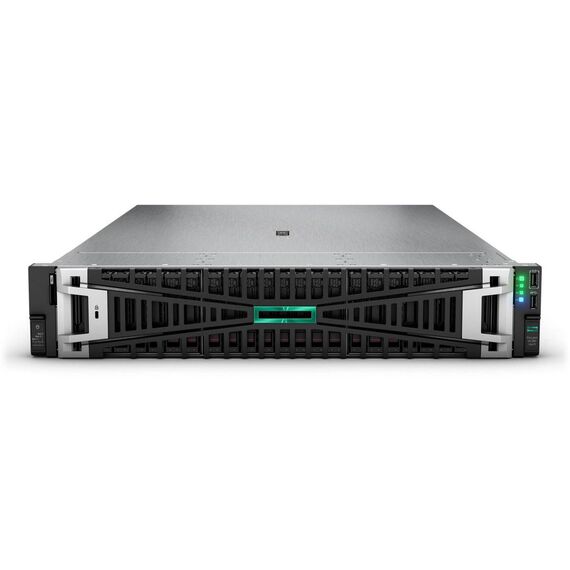

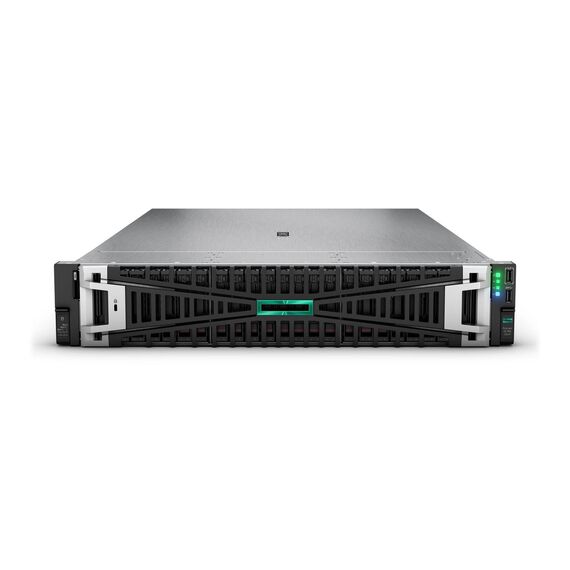

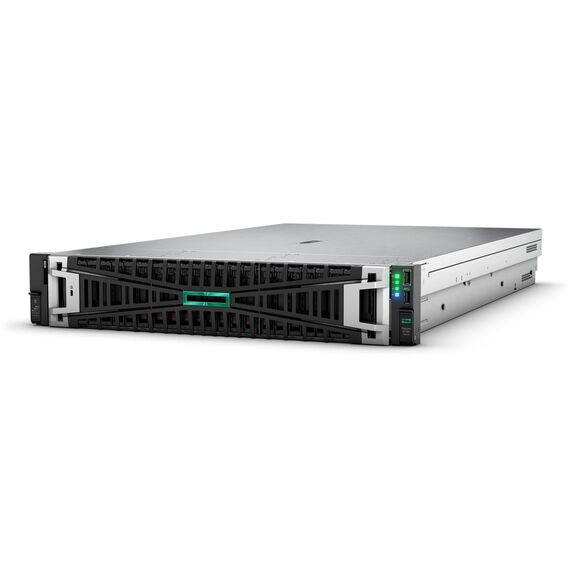

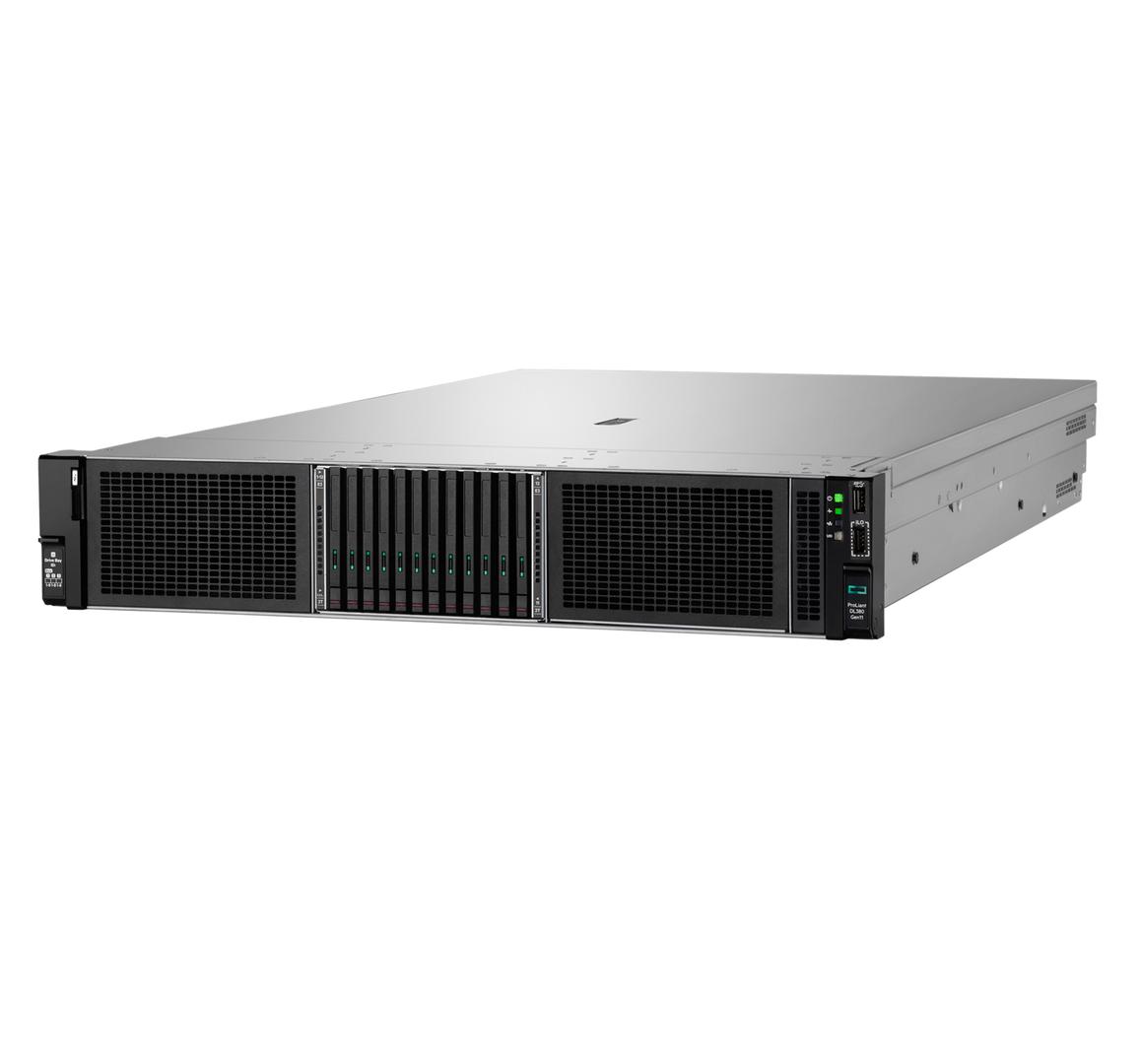

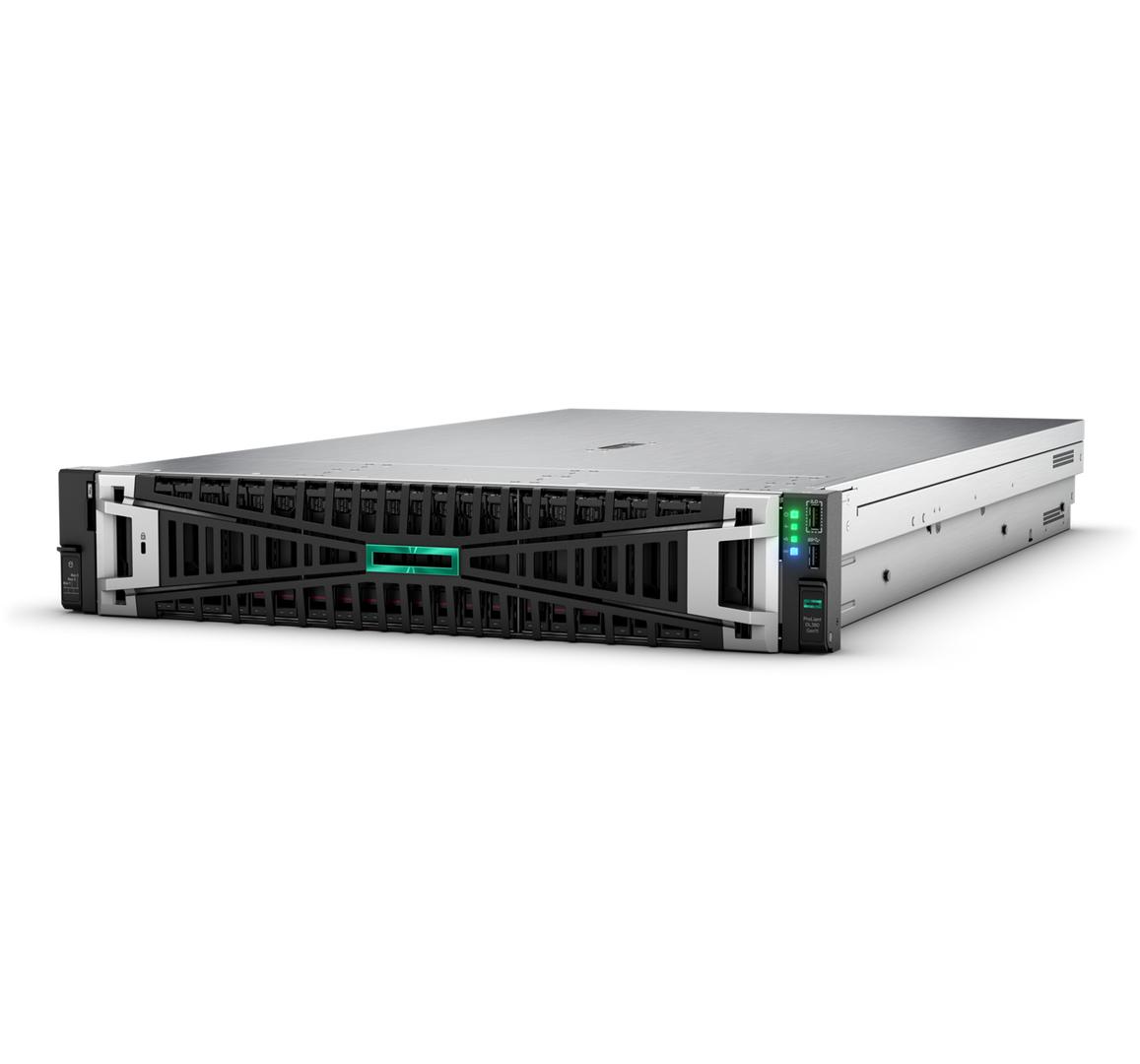

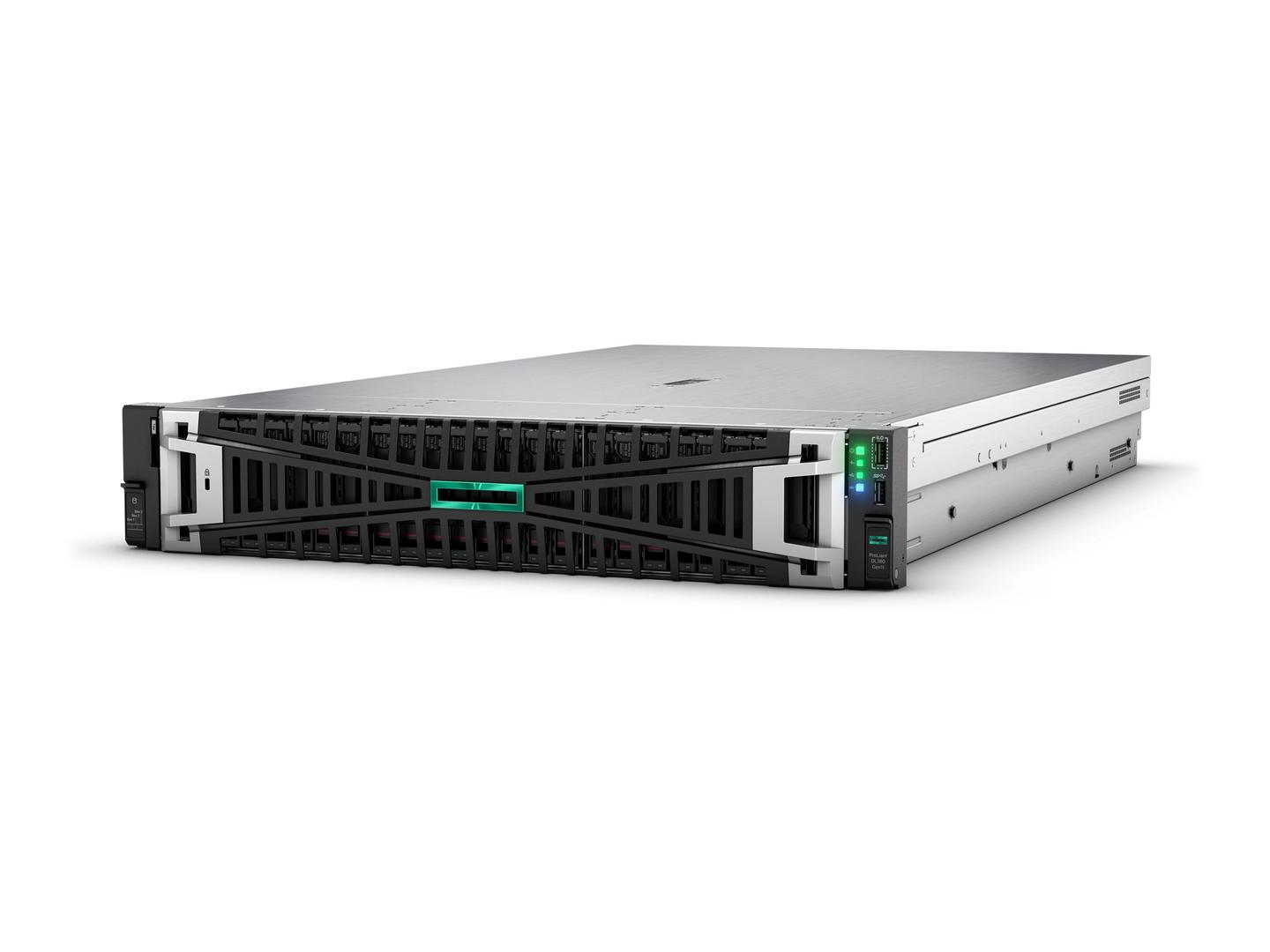

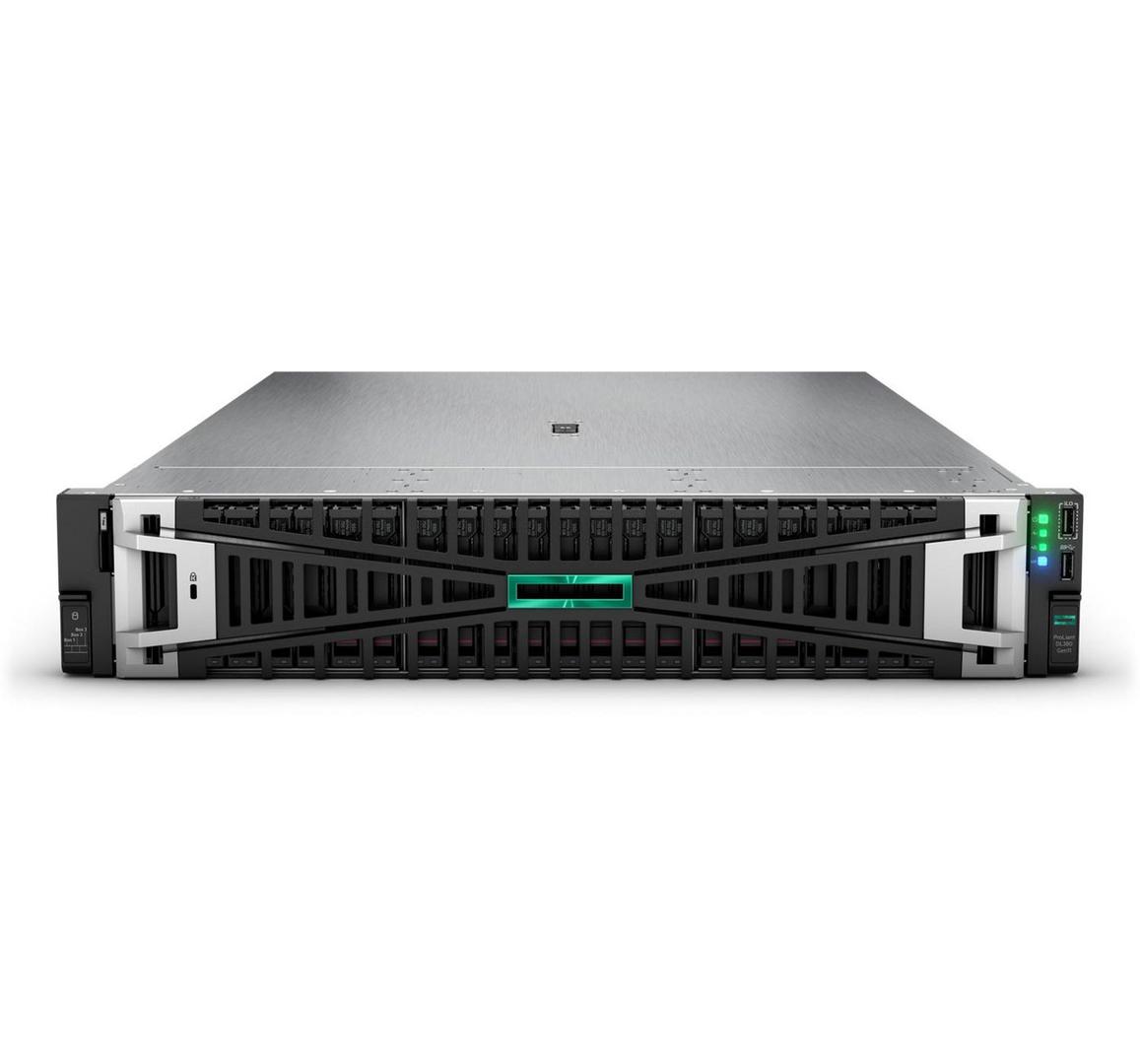

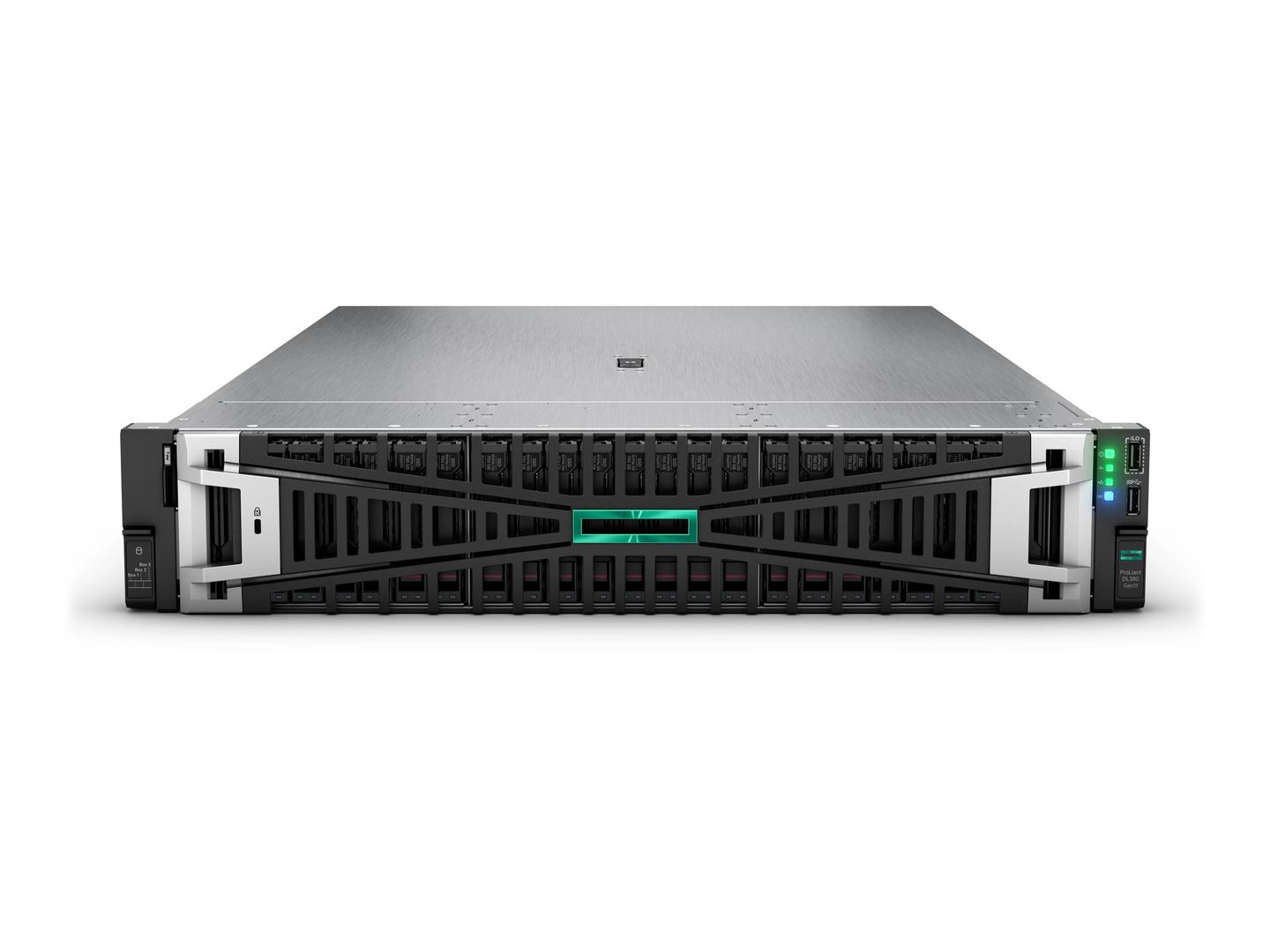

HPE ProLiant DL380 Gen11 Network Choice | P71675-425
Product Features
- Intuitive cloud operating experience: simple, self-service, and automated
HPE ProLiant DL380 Gen11 servers are engineered for your hybrid world. HPE ProLiant DL380 Gen11 servers simplify the way you control your business's compute - from edge to cloud - with a cloud operating experience. Transform business operations and pivot your team from reactive to proactive with global visibility and insight through a self-service console. Automate tasks for efficiency in deployment, instant scalability, and seamless, simplified support and lifecycle management reducing tasks and shortening maintenance windows. - Trusted security by design: uncompromising, fundamental, and protected
The HPE ProLiant DL380 Gen11 server utilizes the HPE Silicon Root of Trust, HPE's fundamental approach to security that provides zero-trust architecture at the silicon level and ensures all server essential firmware is free from malware or compromised code. This server, powered by Intel Xeon Scalable processor, adds hardware- and software-assisted security features, including Intel Software Guard Extensions and Intel Boot Guard, which help secure the server hardware foundation on which critical apps run and better protect data in memory. HPE ProLiant Gen11 servers continuously protect healthy servers by providing rapid detection of security-compromised servers, even to the point of not allowing them to boot if it identifies and contains malicious code, and secure servers at the edge with IDevID certificates installed by default. HPE ProLiant servers provide automated recovery from a security event, including restoration of validated firmware, and facilitating recovery of operating system, application and data connections, providing the fastest path to bring a server back online and into normal operations. - Optimized performance for your workloads: accelerated, open, and efficient
The HPE ProLiant DL380 Gen11 server is an excellent choice for compute and data storage demanding workloads (AI, ML, telco, DB analytics, VDI, containers) requiring maximum core count, GPU capabilities, and network and I/O bandwidth. Harness major computer performance. The HPE ProLiant DL380 Gen11 server is powered by the Intel Xeon Scalable processor with next-generation technology that supports up to 60 cores per processor, 350 W, and massive memory. The HPE ProLiant DL380 Gen11 server provides advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 2 x16 PCIe Gen5 and 2 OCP slots to improve I/O throughput and reduce latency. It provides 16 DIMM channels per processor for large DDR5 memory with increased memory bandwidth and performance, and lower power requirements. It provides real-time operational feedback on server performance plus recommendations for fine-tuning BIOS settings to customize for changing business needs. - Available in an as-a-service experience
The HPE ProLiant DL380 Gen11 server is supported by HPE GreenLake to simplify IT infrastructure management across your entire hybrid estate. With 24 x 7 monitoring and management, the experts do the heavy lifting to manage your environment with services built into consumption-based solutions. Hewlett Packard Enterprise provides customers with choices in how they acquire and consume IT beyond traditional financing and leasing, offering options that free trapped capital, accelerate infrastructure updates, and provide on-premises pay-per-use consumption with HPE GreenLake.
Special Fetures
- Intuitive cloud operating experience: simple, self-service, and automated
- Trusted security by design: uncompromising, fundamental, and protected
- Optimized performance for your workloads: accelerated, open, and efficient
- Available in an as-a-service experience
Product Specification
Type | Server - AI Ready |
Product Form Factor | Rack-mountable - 2U |
Built-in Devices | Led panel |
Embedded Security | Trusted Platform Module (TPM) Security Chip |
Server Scalability | 2-way |
Hot-Swap Bays Qty | 12 |
Localisation | Region: Austria, France, Germany, Switzerland, United Kingdom, Ireland, Scotland |
Processor / Chipset | |
CPU | Intel Xeon Silver 4510 |
Clock Speed | 2.4 GHz |
Max Turbo Speed | 4.1 GHz |
Number of Cores | 12-core |
CPU Qty | 1 |
Max CPU Qty | 2 |
CPU Upgradability | Upgradable |
Chipset Type | Intel C741 |
Cache Memory | |
Installed Size | 30 MB |
Cache Per Processor | 30 MB |
RAM | |
Installed Size | 64 GB (installed) / 8 TB (max) |
Technology | DDR5 SDRAM |
Effective Memory Speed | 4400 MHz |
Rated Memory Speed | 5600 MHz |
Form Factor | DIMM 288-pin |
Slots | 32 (Total) / 30 (empty) |
Features | Registered, HPE SmartMemory, slots 17 - 32 are available in two-processor configuration only |
Configuration Features | 2 x 32 GB |
Hard Drive | |
Type | HDD |
Capacity | 2 x 8 TB |
Interface Type | SATA |
Storage Controller | |
Type | 1 x RAID - PCIe |
Storage Controller Name | HPE MR416i-p Gen11 SPDM |
Channel Qty | 16 |
Buffer Size | 8 GB |
Optical Storage | |
Type | No optical drive |
Monitor | |
Monitor Type | None. |
Graphics Controller | |
Video Memory | 16 MB |
Video Interfaces | VGA |
Networking | |
Interface (Bus) Type | Open Compute Project mezzanine (OCP) 3.0 |
Ethernet Ports | 4 x Gigabit Ethernet |
Ethernet Controller | Broadcom BCM5719 |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
Remote Management Controller | Integrated Lights-Out 6 |
Features | Wake on LAN (WoL), PXE support |
Compliant Standards | OCP 3.0 |
Expansion / Connectivity | |
Bays | 1 (total) / 1 (free) x external Universal Media Bay ¦ 12 (total) / 10 (free) x hot-swap 3.5" LFF |
Slots | 2 (total) / 2 (free) x FlexibleLOM ¦ 1 (total) / 1 (free) x PCIe 5.0 x16 - full-length, full-height ¦ 1 (total) / 1 (free) x PCIe 5.0 x16 - full-length, full-height (x8 mode) ¦ 1 (total) / 1 (free) x PCIe 5.0 x16 - half-length, full-height (x8 mode) |

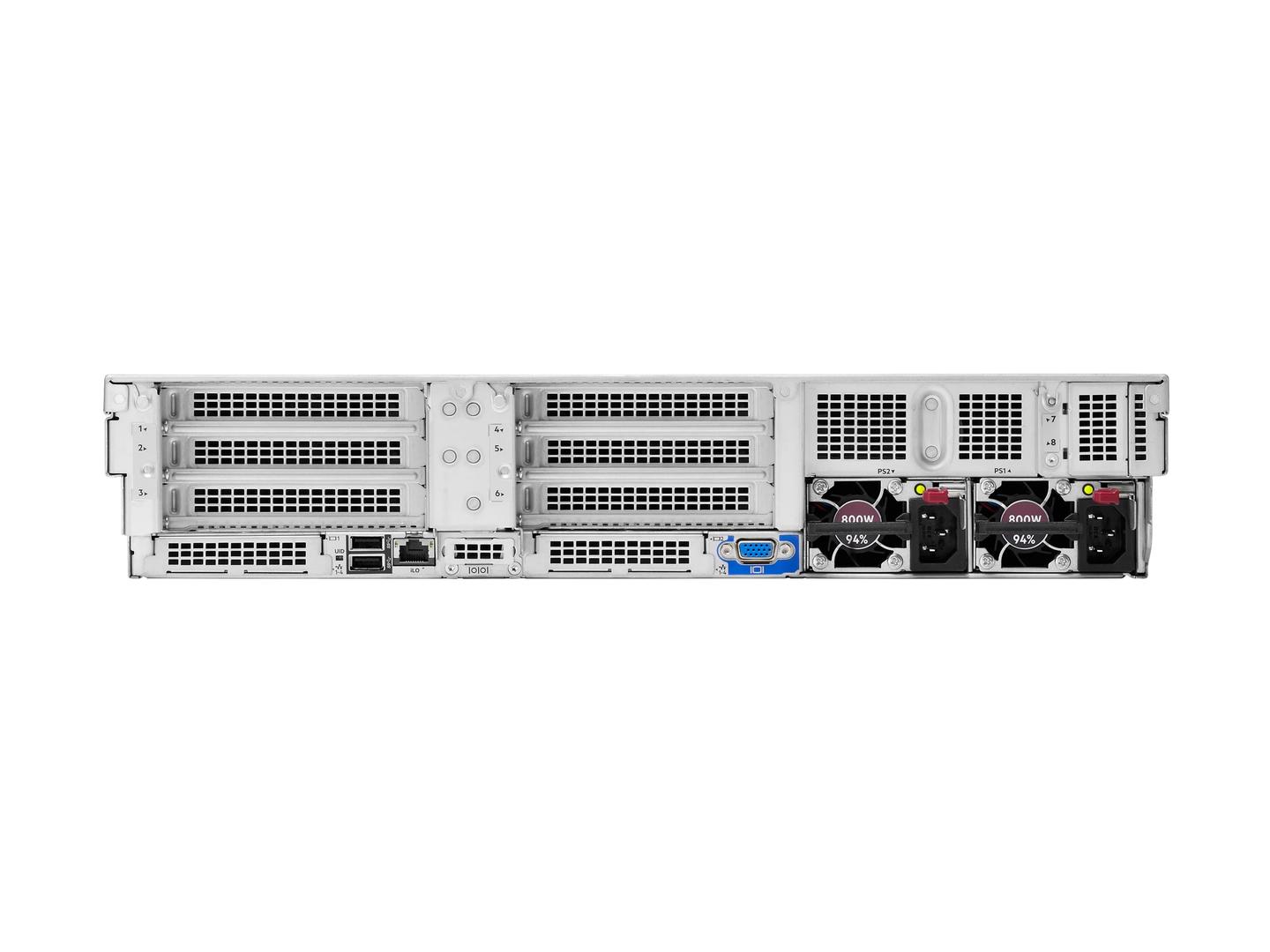

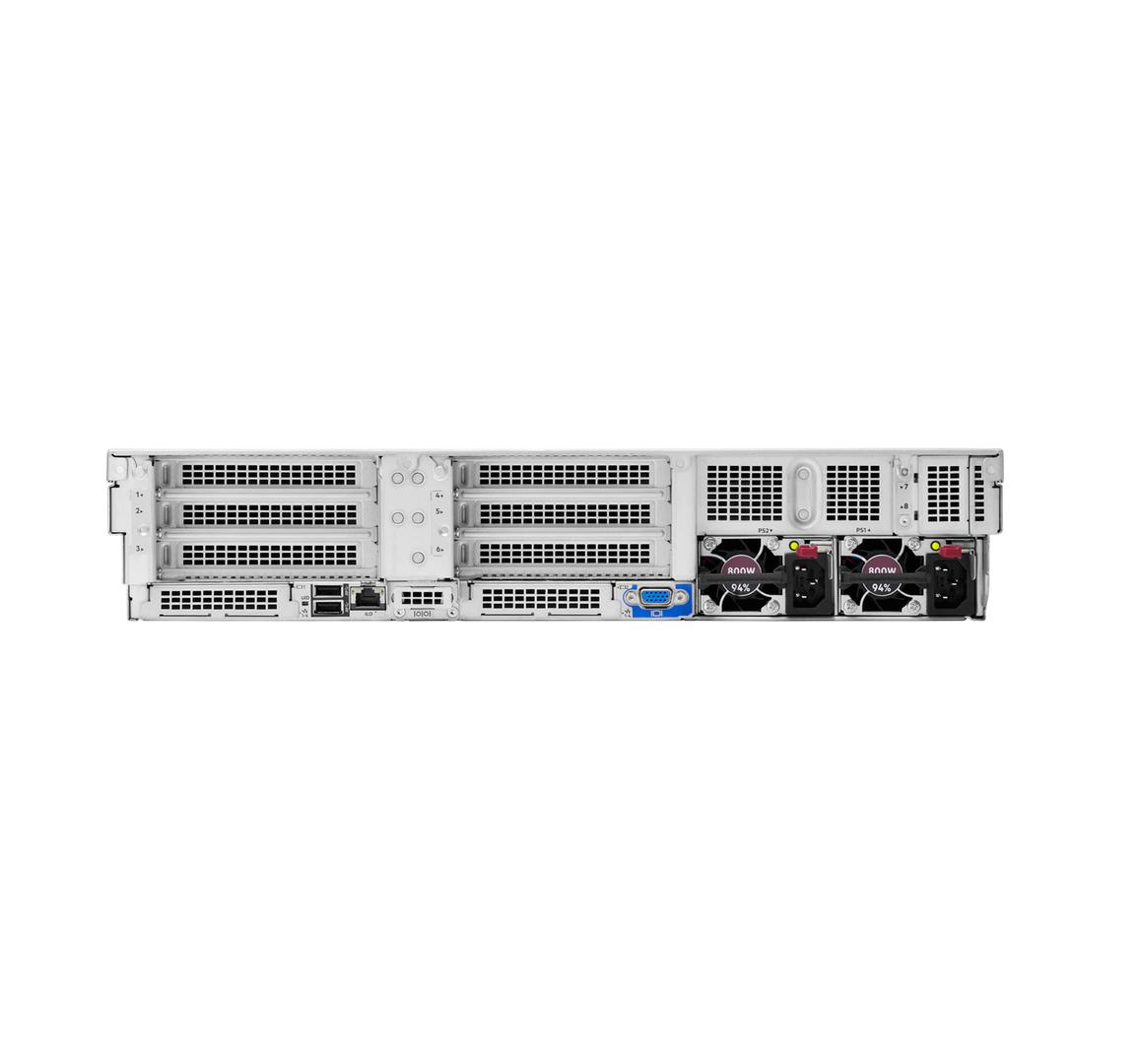

Interfaces | 1 x USB 3.0 (1 in front) (HPE iLO Service Port) ¦ 4 x USB 3.0 (2 rear, 2 internal) ¦ 1 x HPE iLO - RJ-45 (1 rear) ¦ 1 x VGA (1 rear) ¦ 4 x LAN (Gigabit Ethernet) |
Miscellaneous | |
Included Accessories | HPE Easy Install Rails |
Compliant Standards | AES, FIPS 140-2, Triple DES, TLS v1.2, low halogen, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, Redfish API, ACPI 6.3, SMBIOS 3.2, ErP Lot 9 |
Manufacturer Selling Program | HPE Smart Choice |
Power | |
Device Type | Power supply - hot-plug |
Power Redundancy | Yes |
Power Redundancy Scheme | 1+1 |
Installed Qty | 2 |
Max Supported Qty | 2 |
Voltage Required | AC 100-240 V |
Power Provided | 1000 Watt |
80 PLUS Certification | 80 PLUS Titanium |
Operating System / Software | |
OS Provided | No operating system |
OS Certified | Microsoft Windows Server, Red Hat Enterprise Linux, VMware ESXi, Oracle Linux, Canonical Ubuntu |
Software | HPE Server UEFI |
Manufacturer Warranty | |
Service & Support | Limited warranty - parts and labour - 3 years - on-site |
Dimensions & Weight | |
Width | 44.8 cm |
Depth | 73.25 cm |
Height | 8.75 cm |
Weight | 18 kg |
Environmental Parameters | |
Min Operating Temperature | 10 °C |
Max Operating Temperature | 35 °C |
Humidity Range Operating | 8 - 90% RH (non-condensing) |
