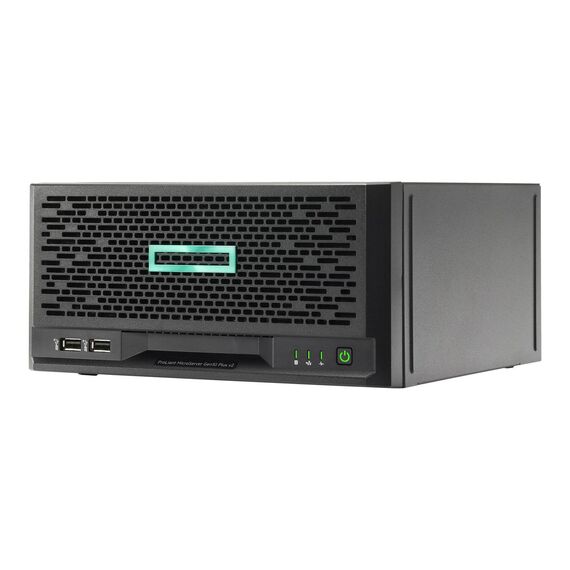

HPE ProLiant MicroServer Gen10 Plus v2 Entry - Server - ultra micro tower - 1-way - 1 x Pentium Gold G6405 / 4.1 GHz - RAM 16 GB - SATA - non-hot-swap 3.5" bay(s) - no HDD - UHD Graphics 610 - Gigabit Ethernet - no OS | P54644-421

Product Features
- More micro and versatile, yet more powerful
The HPE ProLiant MicroServer Gen10 Plus v2 server measures 4.68" and can be placed either horizontally or vertically to fit different customer workspaces. Powered by up to four cores in the processor and huge DDR4 ECC UDIMM, it delivers better performance for small business applications. - Security innovations
The HPE ProLiant MicroServer Gen10 Plus server v2 server features major firmware anchored directly into the silicon security protection built-in across the server lifecycle, starting with Silicon Root of Trust. Secure Recovery allows server firmware to roll back to the last, known-good state or factory settings after detection of compromised code. Additional security options are available with Trusted Platform Module (TPM) to prevent unauthorized access to the server and reliably store artifacts used to authenticate the server. - Industry-leading services and ease of deployment
The HPE ProLiant MicroServer Gen10 Plus v2 server comes with an available complete set of services from HPE Pointnext Services, delivering confidence, reducing risk, and helping you realize agility and stability. HPE Pointnext Services simplifies all stages of the IT journey. Advisory and Professional Services understand customer challenges and design an enhanced solution.
Special Fetures
- Powerful processors
- Huge memory
- PCIe expansion: PCIe Gen4
Product Specification
Type | Server |
Product Form Factor | Ultra micro tower |
Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
Server Scalability | 1-way |
Internal Bays Qty | 4 |
Localisation | Region: EMEA |
Processor / Chipset | |
CPU | Intel Pentium Gold G6405 |
Clock Speed | 4.1 GHz |
Number of Cores | Dual-Core |
CPU Qty | 1 |
Max CPU Qty | 1 |
CPU Upgradability | Upgradable |
Processor Main Features | Hyper-Threading Technology, Intel Smart Cache |
CPU Socket | LGA1200 Socket |
Chipset Type | Intel C252 |
Cache Memory | |
Installed Size | L3 Cache - 4 MB |
Cache Per Processor | 4 MB |
RAM | |
Installed Size | 16 GB / 64 GB (max) |
Technology | DDR4 SDRAM - ECC |
Effective Memory Speed | 2666 MHz |
Rated Memory Speed | 3200 MHz |
Form Factor | DIMM 288-pin |
Slots | 2 (Total) / 1 (empty) |
Features | Unbuffered |
Configuration Features | 1 x 16 GB |
Hard Drive | |
Type | No HDD |
Storage Controller | |
Type | 1 x RAID |
Controller Interface Type | SATA 6Gb/s |
Storage Controller Name | Intel VROC SATA Software RAID |
RAID Level | RAID 0, RAID 1, RAID 5, RAID 10 |
Optical Storage | |
Type | No optical drive |
Monitor | |
Monitor Type | None. |
Graphics Controller | |
Graphics Processor | Intel UHD Graphics 610 |
Video Interfaces | VGA, DisplayPort |
Networking | |
Ethernet Ports | 4 x Gigabit Ethernet |
Ethernet Controller | Intel I350-AM4 |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
Remote Management Protocol | SNMP 3, IPMI 2.0, SMASH CLP |
Features | Wake on LAN (WoL), ACPI support, PXE support |
Expansion / Connectivity | |
Bays | 4 (total) / 4 (free) x internal 3.5" LFF |
Slots | 1 (total) / 1 (free) x PCIe 4.0 x16 - low-profile ¦ 1 (total) / 1 (free) x expansion slot (iLO Enablement Kit slot) |
Interfaces | 1 x VGA ¦ 1 x DisplayPort ¦ 4 x USB 3.2 Gen 1 - Type A (3 rear, 1 internal) ¦ 2 x USB 3.2 Gen 2 - Type A (2 in front) ¦ 1 x USB 2.0 - Type A (1 rear) ¦ 4 x LAN (Gigabit Ethernet) |
Miscellaneous | |
Theft/Intrusion Protection | Security lock slot (cable lock sold separately), padlock loop |
Security Slot Type | Kensington security slot |
Compliant Standards | FCC Class B certified, EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, FCC CFR47 Part 15, GB 9254, CNS 13438, K24, CISPR 32, EN 55032, K32 |
Power | |
Device Type | Power adapter |
Voltage Required | AC 100-240 V (50/60 Hz) |
Power Provided | 180 Watt |
Operating System / Software | |
OS Provided | No operating system |
Manufacturer Warranty | |
Service & Support | Limited warranty - parts and labour - 1 year - on-site - response time: next business day |
Dimensions & Weight | |
Width | 24.5 cm |
Depth | 24.5 cm |
Height | 11.89 cm |
Weight | 4.23 kg |
Environmental Parameters | |
Humidity Range Operating | 8 - 90% RH (non-condensing) |
Sound Emission | 24 dBA |
Features - Hewlett Packard - P54644-421
