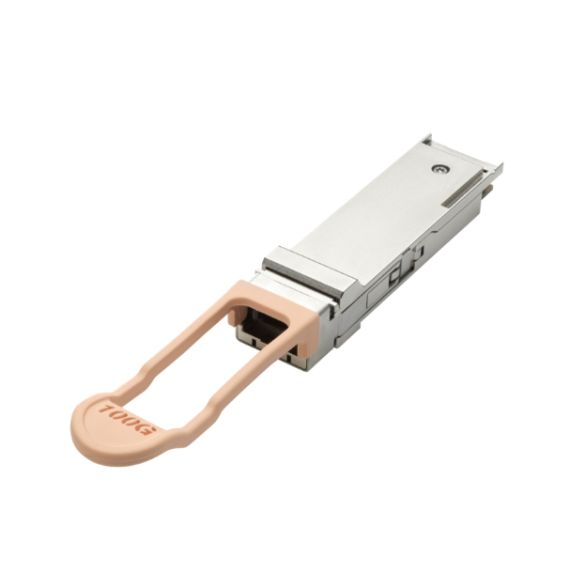

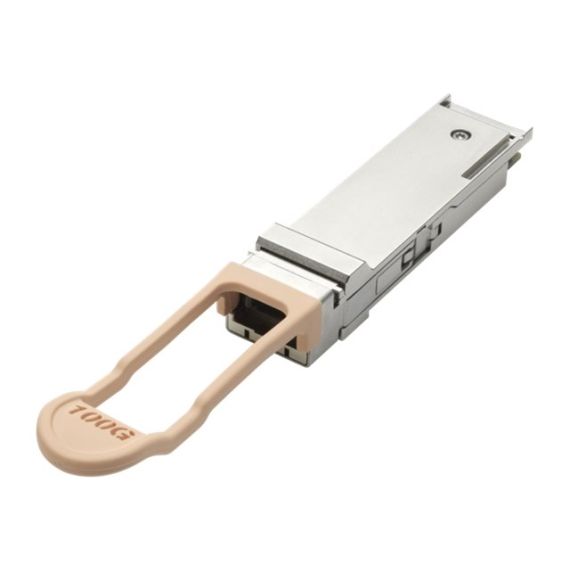

HPE Bidirectional Transceiver - QSFP28 transceiver module - 100GbE - 100GBASE-BiDi - LC multi-mode - up to 150 m - 850 nm / 900 nm - for CX 10000 Empty Chassis, 8360-48XT4C v2 | 845972-B21
845972-B21
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Fetures
- Features four optical lanes in each direction, allowing each to operate at 25 Gb
- MPO and Duplex LC connectors for plugging in multi-mode fiber cables
Product Specification
| Device Type | QSFP28 transceiver module |
| Form Factor | Plug-in module |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 100GBASE-BiDi |
| Data Link Protocol | 100GbE |
| Data Transfer Rate | 100 Gbps |
| Optical Wave Length | 850 nm / 900 nm |
| Max Transfer Distance | 150 m |
| Expansion / Connectivity | |
| Interfaces | 1 x 100Gb Ethernet - LC multi-mode |
| Miscellaneous | |
| Compliant Standards | OM4, OM3, OM5 |
| Power | |
| Power Consumption Operational | 3.5 Watt |
| Dimensions & Weight | |
| Width | 1.86 cm |
| Depth | 12.8 cm |
| Height | 1.29 cm |
| Weight | 44 g |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
| Humidity Range Operating | 0 - 85% (non-condensing) |
| Compatibility Information | |
| Designed For | HPE Aruba CX 10000 Empty Chassis, 8360-48XT4C v2 |
Features - Hewlett Packard - 845972-B21
More Details
Product Code
2M2LEH4
EAN Code
0190017017938
Manufacturer
Hewlett Packard
