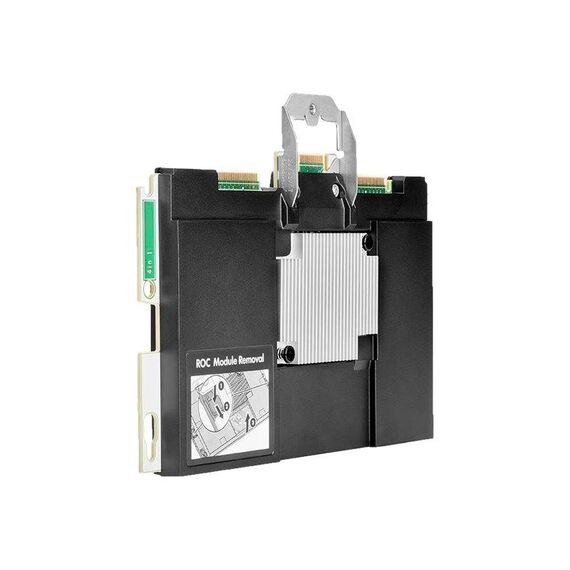

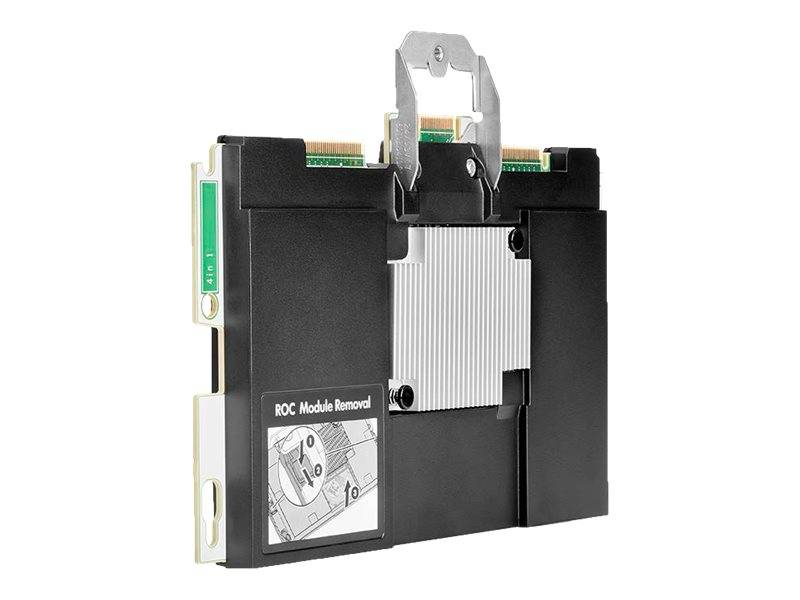

HPE Smart Array E208i-c SR Gen10 / Storage controller (RAID) / 8 Channel / SATA 6Gb/s / SAS 12Gb/s / 12 Gbit/s / RAID 0, 1, 5, 10 / PCIe 3.0 x8 / for Nimble Storage dHCI Large Solution with HPE ProLiant DL380 Gen10; ProLiant DL380 Gen10 | 823852-B21
823852-B21-2
Product Code04:353096
ManufacturerHewlett Packard
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Cost-effective SAS storage connectivity
The HPE Smart Array E208i-c SR Gen10 Controller is a cost-effective, enterprise-class controller that provides the basic building blocks for simple RAID storage solutions and delivers 12 Gb/s SAS connectivity on HPE Synergy Gen10 compute modules when connected to 12 Gb/s internal storage devices. - Improved efficiency and storage management
The HPE Smart Array E208i-c SR Gen10 Controller has increased flexibility with Mixed Mode which operates in RAID and HBA simultaneously.
Special Features
- Cost-effective SAS storage connectivity
- Improved efficiency and storage management
Product Specification
| Device Type | Storage controller (RAID) - plug-in card |
| Host Bus | PCIe 3.0 x8 |
| Storage Controller | Storage Controller |
| Interface | SATA 6Gb/s / SAS 12Gb/s |
| Data Transfer Rate | 12 Gbit/s |
| Supported Devices | Hard drive, disk array (RAID) |
| Channel Qty | 8 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10 |
| Maximum LUNs | 64 |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | SATA 6Gb/s / SAS 12Gb/s (internal) |
| Software / System Requirements | Software / System Requirements |
| OS Required | Microsoft Windows Server, Red Hat Enterprise Linux, CentOS, Oracle Solaris, Citrix XenServer, Oracle Linux, ClearOS, VMware vSphere (ESXi), Microsoft Windows Hyper-V Server |
| Compatibility Information | Compatibility Information |
| Designed For | HPE Nimble Storage dHCI Large Solution with HPE ProLiant DL380 Gen10 ¦ HPE ProLiant DL380 Gen10, DL380 Gen10 48TB Server for Cohesity DataPlatform, DL380 Gen10 96TB Server for Cohesity DataPlatform, DL380 Gen10 All Flash Server for Datera, DL380 Gen10 Base, DL380 Gen10 Entry, DL380 Gen10 Entry SMB, DL380 Gen10 for Cohesity DataPlatform, DL380 Gen10 for SAP HANA Compute Block, DL380 Gen10 High Performance, DL380 Gen10 Hybrid Server for Datera, DL380 Gen10 Network Choice, DL380 Gen10 Network Choice for CTERA, DL380 Gen10 NVMe All Flash Server for Datera, DL380 Gen10 Performance, DL380 Gen10 Server for CTERA, DL380 Gen10 SMB, DL380 Gen10 SMB Networking Choice, DL380 Gen10 Solution, DL388 Gen10 Network Choice ¦ HPE Synergy 480 Gen10 Base Compute Module, 480 Gen10 Compute Module, 480 Gen10 Entry Compute Module, 480 Gen10 Performance Compute Module, 480 Gen10 Premium Backplane Compute Module, 480 Gen10 Standard BackPlane Compute Module, 480 Gen10 w/o Drives Compute Module, 660 Gen10 Base Compute Module, 660 Gen10 Compute Module, 660 Gen10 Entry Compute Module, 660 Gen10 Performance Compute Module, 660 Gen10 Premium Compute Module |
