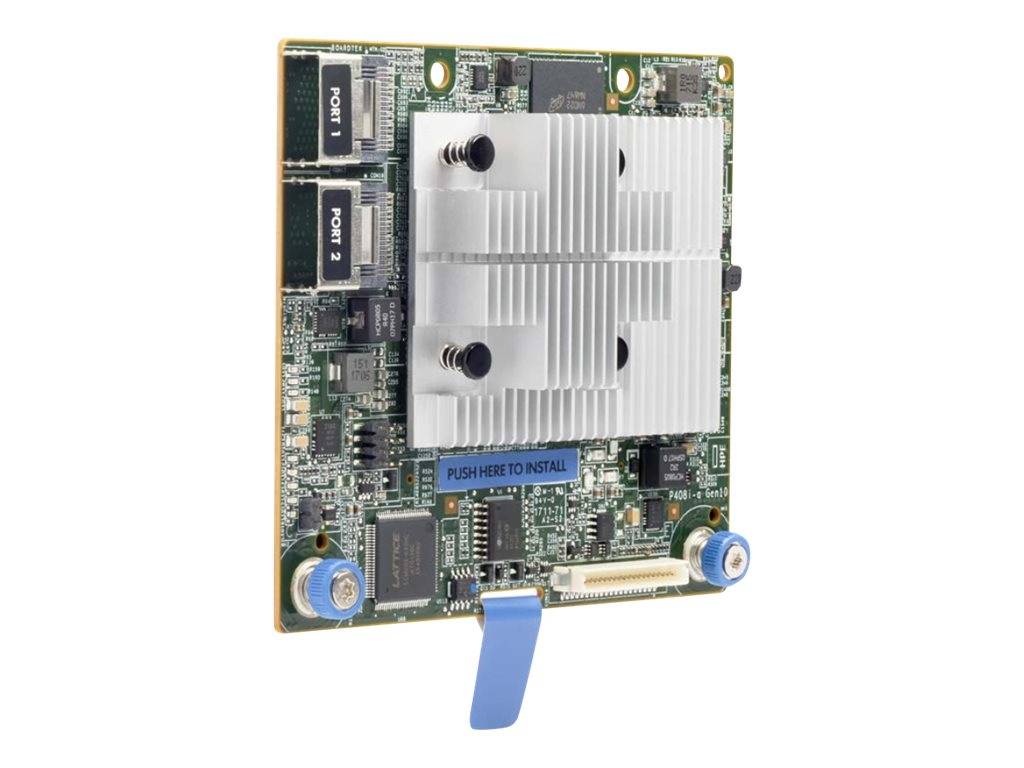

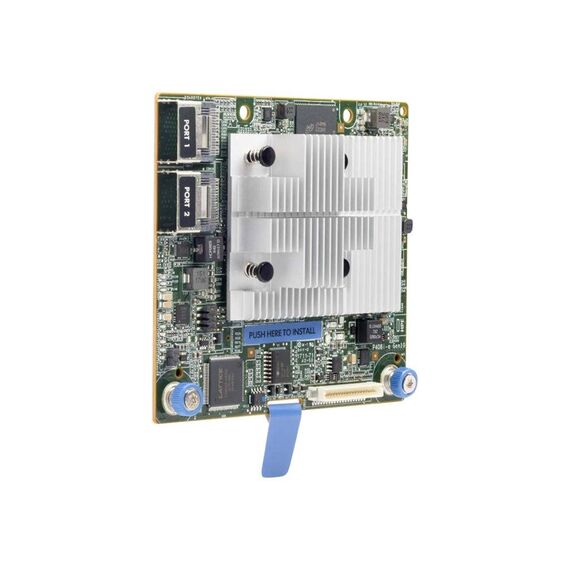

HPE Smart Array P408I-A SR Gen10 / Storage controller (RAID) / 8 Channel / SATA 6Gb/s / SAS 12Gb/s / 12 Gbit/s / RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM / PCIe 3.0 x8 / for Nimble Storage dHCI Small Solution with HPE ProLiant DL360 Gen10; | 804331-B21
804331-B21
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Increased performance for faster data insights
The HPE Smart Array P408i-a SR Gen10 controller is an enterprise-class RAID controller that increases performance in messaging, database, or general server applications. - Improved efficiency and storage management
The HPE Smart Array P408i-a SR Gen10 controller has increased flexibility with Mixed Mode which operates in RAID and HBA simultaneously and eliminates the expense of having to purchase another controller.
Special Features
- Increased performance for faster data insights
- Improved efficiency and storage management
Product Specification
| Device Type | Storage controller (RAID) - plug-in card |
| Host Bus | PCIe 3.0 x8 |
| Storage Controller | Storage Controller |
| Interface | SATA 6Gb/s / SAS 12Gb/s |
| Data Transfer Rate | 12 Gbit/s |
| Buffer Size | 2 GB |
| Supported Devices | Hard drive, disk array (RAID) |
| Channel Qty | 8 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM |
| Maximum LUNs | 64 |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 2 x SATA 6Gb/s / SAS 12Gb/s (internal) |
| Miscellaneous | Miscellaneous |
| Compliant Standards | FIPS 140-2 Level 1 |
| Software / System Requirements | Software / System Requirements |
| OS Required | Microsoft Windows Server, Red Hat Enterprise Linux, CentOS, Oracle Solaris, Citrix XenServer, Oracle Linux, ClearOS, VMware vSphere (ESXi), Microsoft Windows Hyper-V Server |
| Compatibility Information | Compatibility Information |
| Designed For | HPE Nimble Storage dHCI Large Solution with HPE ProLiant DL380 Gen10, Medium Solution with HPE ProLiant DL360 Gen10, Small Solution with HPE ProLiant DL360 Gen10 ¦ HPE ProLiant DL180 Gen10 Entry, DL360 Gen10, DL360 Gen10 All Flash Server for Weka, DL360 Gen10 Base, DL360 Gen10 Compute Server for Cohesity DataPlatform, DL360 Gen10 Entry, DL360 Gen10 High Performance, DL360 Gen10 Low, DL360 Gen10 Network Choice, DL360 Gen10 Performance, DL360 Gen10 Performance for Cohesity DataPlatform, DL360 Gen10 SMB, DL360 Gen10 SMB Network Choice, DL360 Gen10 Solution, DL380 Gen10, DL380 Gen10 48TB Server for Cohesity DataPlatform, DL380 Gen10 96TB Server for Cohesity DataPlatform, DL380 Gen10 All Flash Server for Datera, DL380 Gen10 Base, DL380 Gen10 Entry, DL380 Gen10 Entry SMB, DL380 Gen10 for Cohesity DataPlatform, DL380 Gen10 for SAP HANA Compute Block, DL380 Gen10 High Performance, DL380 Gen10 Hybrid Server for Datera, DL380 Gen10 Network Choice, DL380 Gen10 Network Choice for CTERA, DL380 Gen10 NVMe All Flash Server for Datera, DL380 Gen10 Performance, DL380 Gen10 Server for CTERA, DL380 Gen10 SMB, DL380 Gen10 SMB Networking Choice, DL380 Gen10 Solution, DL388 Gen10 Network Choice, XL270d Gen10, XL270d Gen10 for HPE Ezmeral Container Platform, XL450 Gen10, XL450 Gen10 200TB Server for Cohesity DataPlatform, XL450 Gen10 400TB Server for Cohesity DataPlatform, XL450 Gen10 700TB Server for Cohesity DataPlatform, XL675d Gen10 Plus |
Features - Hewlett Packard - 804331-B21
More Details
Product Code
04:257566
EAN Code
4514953854161
Manufacturer
Hewlett Packard
