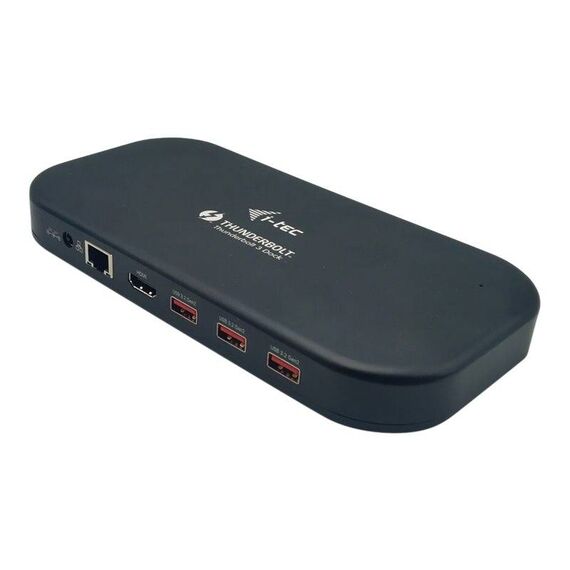

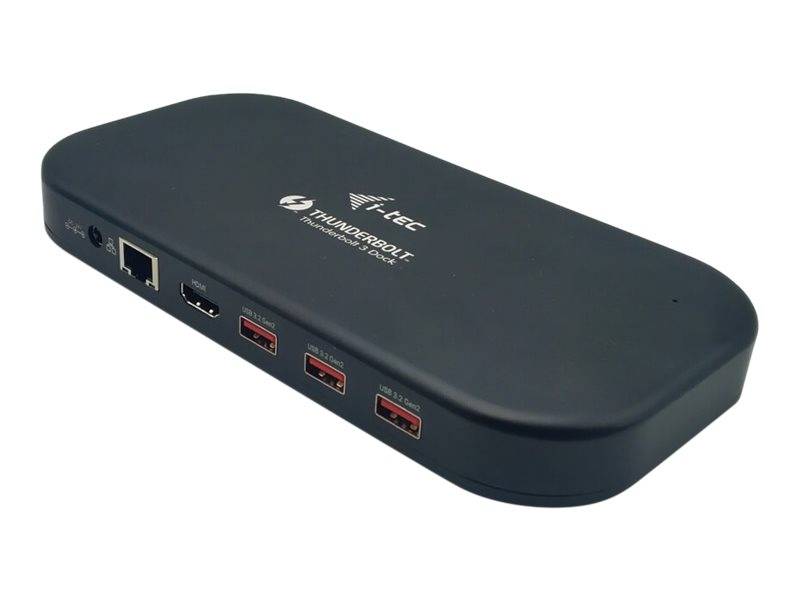

i-Tec / Docking station / Thunderbolt 3 / HDMI, Thunderbolt / GigE / 134 Watt | TB3HDMIDOCKPD
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | Docking station |
| Width | 19.8 cm |
| Depth | 9.8 cm |
| Height | 2.2 cm |
| Weight | 340 g |
| Enclosure Colour | Black |
| Video | Video |
| Max Resolution Details | 3840 x 2160 - 60 Hz (Single Display (HDMI)) ¦ 7680 x 4320 - 30 Hz (Single Display (Thunderbolt)) ¦ 5120 x 2880 - 60 Hz (Single Display (Thunderbolt)) ¦ 3840 x 2160 - 60 Hz (Dual Display (HDMI + Thunderbolt)) ¦ 2560 x 1440 - 144 Hz (Dual Display (HDMI + Thunderbolt)) ¦ 3840 x 2160 - 30 Hz (Single Display (HDMI)) |
| Networking | Networking |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 (total) / 1 (free) x microSD ¦ 1 (total) / 1 (free) x SD Memory Card |
| Interfaces | 2 x USB 3.2 Gen 1 with Battery Charging 1.2 - 9 pin USB Type A ¦ 3 x USB 3.2 Gen 2 with Battery Charging 1.2 - 9 pin USB Type A ¦ 1 x audio / video - HDMI - 19 pin HDMI Type A ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x Thunderbolt 3 - 24 pin USB-C ¦ 1 x headphone/microphone combo jack - mini-phone 3.5 mm |
| Miscellaneous | Miscellaneous |
| Cables Included | 1 x USB-C to DisplayPort cable - 1.5 m ¦ Thunderbolt 3 cable - 70 cm |
| Features | Security lock slot (cable lock sold separately), 4K Ultra HD, DisplayPort Alt Mode, 60W power delivery, 8K Ultra HD, ABS housing |
| Security Slot Type | Kensington security slot |
| Compliant Standards | DisplayPort 1.4 |
| Power | Power |
| Power Device | Power adapter |
| Voltage Required | 24 V |
| Power Provided | 134 Watt |
| System Requirements | System Requirements |
| OS Required | Apple MacOS, Linux, Apple iPadOS, Microsoft Windows 10 / 11 |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 2 years ¦ Technical support - lifetime |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 26 cm |
| Shipping Depth | 13 cm |
| Shipping Height | 8 cm |
| Shipping Weight | 1242 g |
Features - i-tec - TB3HDMIDOCKPD
More Details
Product Code
CF32556
EAN Code
8595611705748
Manufacturer
i-tec
