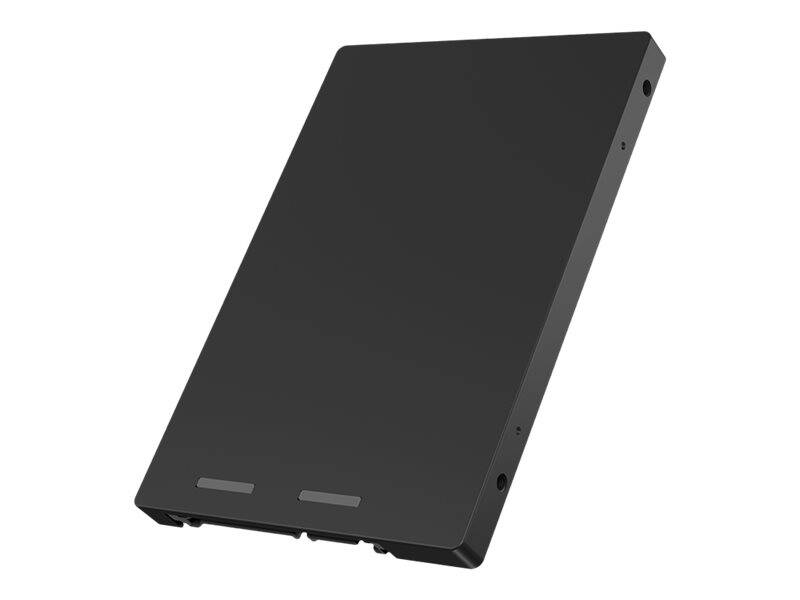

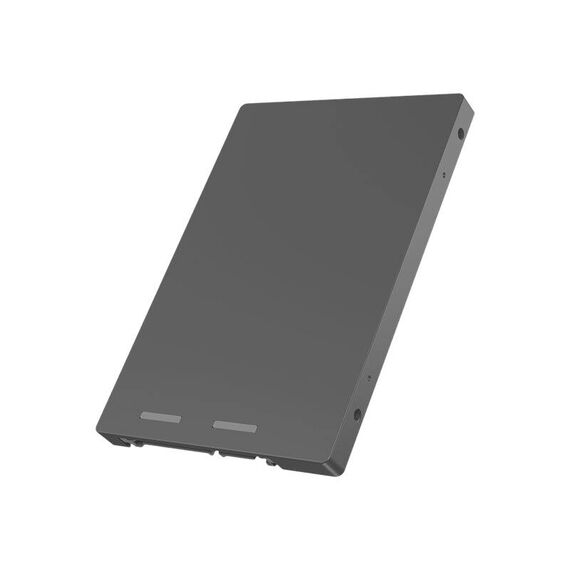

ICY BOX IB-M2S253 / Storage bay adapter / 2.5" to M.2 / SATA 6Gb/s / SATA / black | IB-M2S253
Please sign in so that we can notify you about a reply
Product Features
- EasySwap
Simply convert from M2 to 2.5" format. If no M.2 slot is available, an M.2 SSD can still be fitted: just use an existing SATA 22-pin or a 7-pin and 15-pin SATA III connector via the IB-M2S253 adapter. Up to 6 Gbit/s data transfer rate is possible. - Flexibility
The four fixtures for all common M.2 lengths ensure maximum flexibility, even when installing a shorter M.2 SSD. - High-quality workmanship
Made of aluminum, it is particularly robust and durable. With 2.5" and the usual drill holes for installation, the adapter ensures 100% 2.5" comfort.
Special Features
- Simply converted
- Standard 2.5" format
- Common formats
- Quality matters
Product Specification
| Device Type | Storage bay adapter - internal |
| Supported Form Factor | 2.5" to M.2 |
| Host Bus | SATA |
| Product Material | Aluminium |
| Colour | Black |
| Storage Controller | Storage Controller |
| Interface | SATA 6Gb/s |
| Data Transfer Rate | 6 Gbit/s |
| Supported Devices | Solid state drive |
| Expansion / Connectivity | Expansion / Connectivity |
| Bays | 1 x internal - M.2 2230/2242/2260/2280 |
| Interfaces | 1 x SATA 6Gb/s - SATA combo |
| Connections | 1 x SATA 6Gb/s - 22 pin Serial ATA |
| Compatible Bay | 1 x internal 2.5" |
| Miscellaneous | Miscellaneous |
| Features | Fanless, supports AHCI mode, bus powered, passive cooling |
| Mounting Kit | Included |
| Software / System Requirements | Software / System Requirements |
| OS Required | Microsoft Windows |
| Dimensions & Weight | Dimensions & Weight |
| Width | 0.7 cm |
| Depth | 10 cm |
| Height | 7 cm |
| Weight | 46 g |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 2.7 cm |
| Shipping Depth | 20 cm |
| Shipping Height | 10.5 cm |
| Shipping Weight | 111 g |
Features - Icy Box - IB-M2S253
Colour
black
More Details
Product Code
04:421151
EAN Code
4250078172611
Manufacturer
Icy Box
