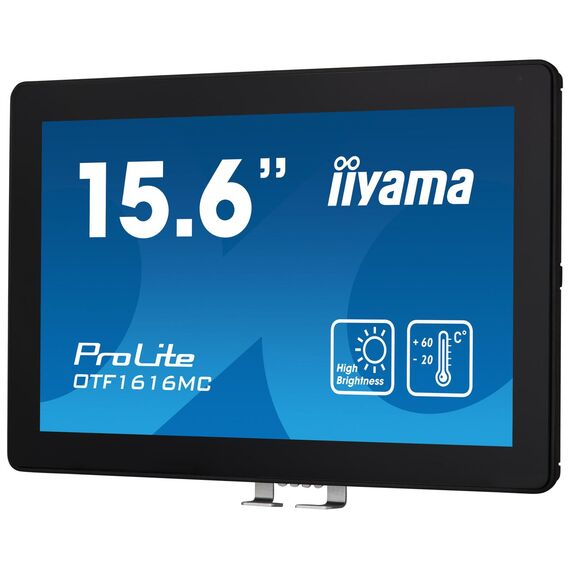

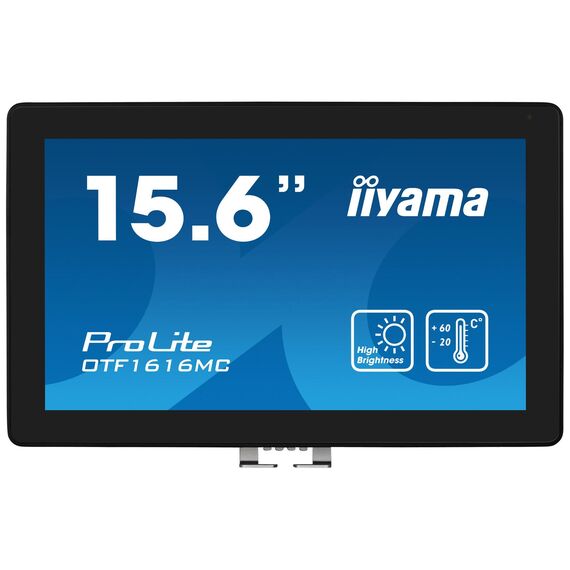

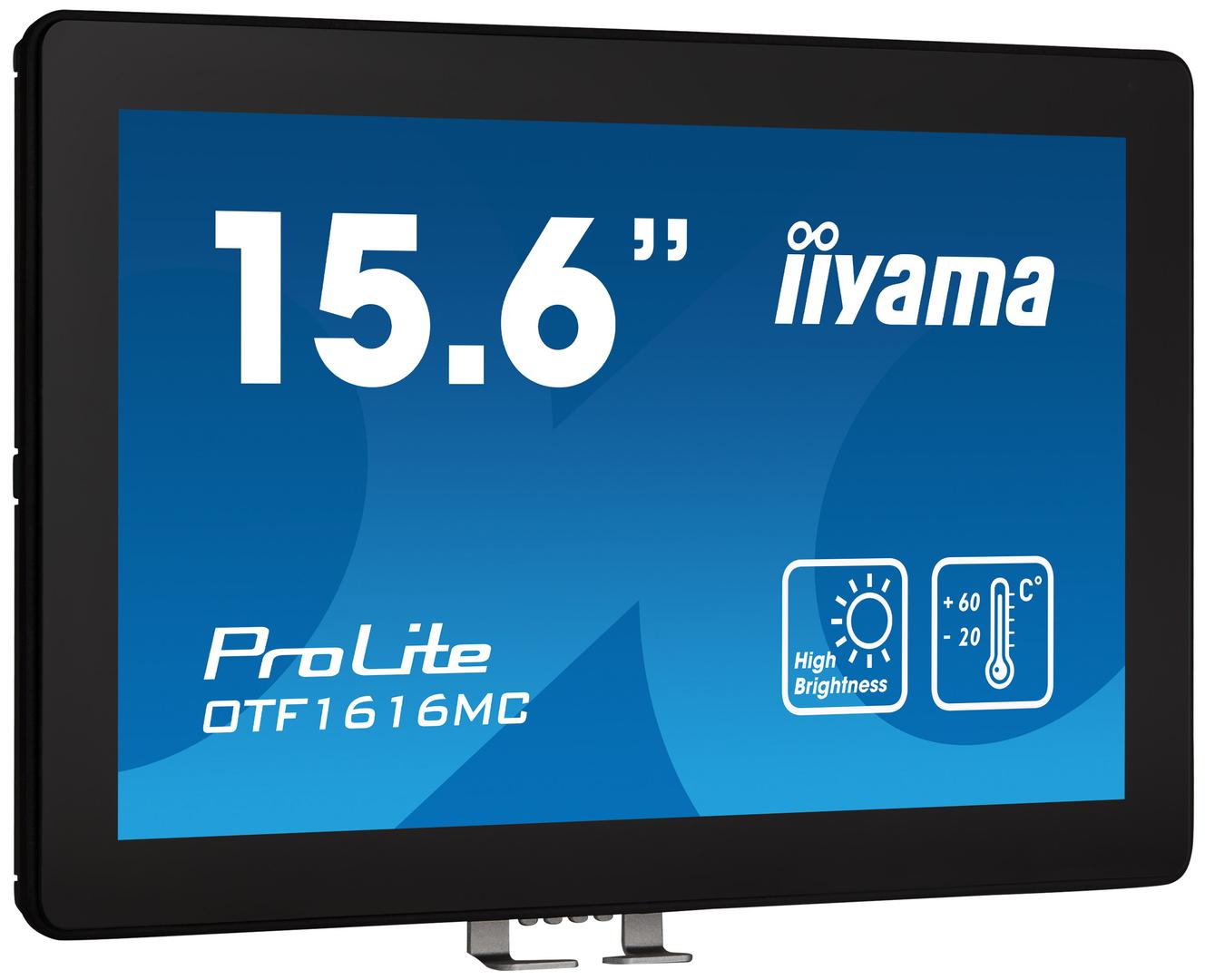

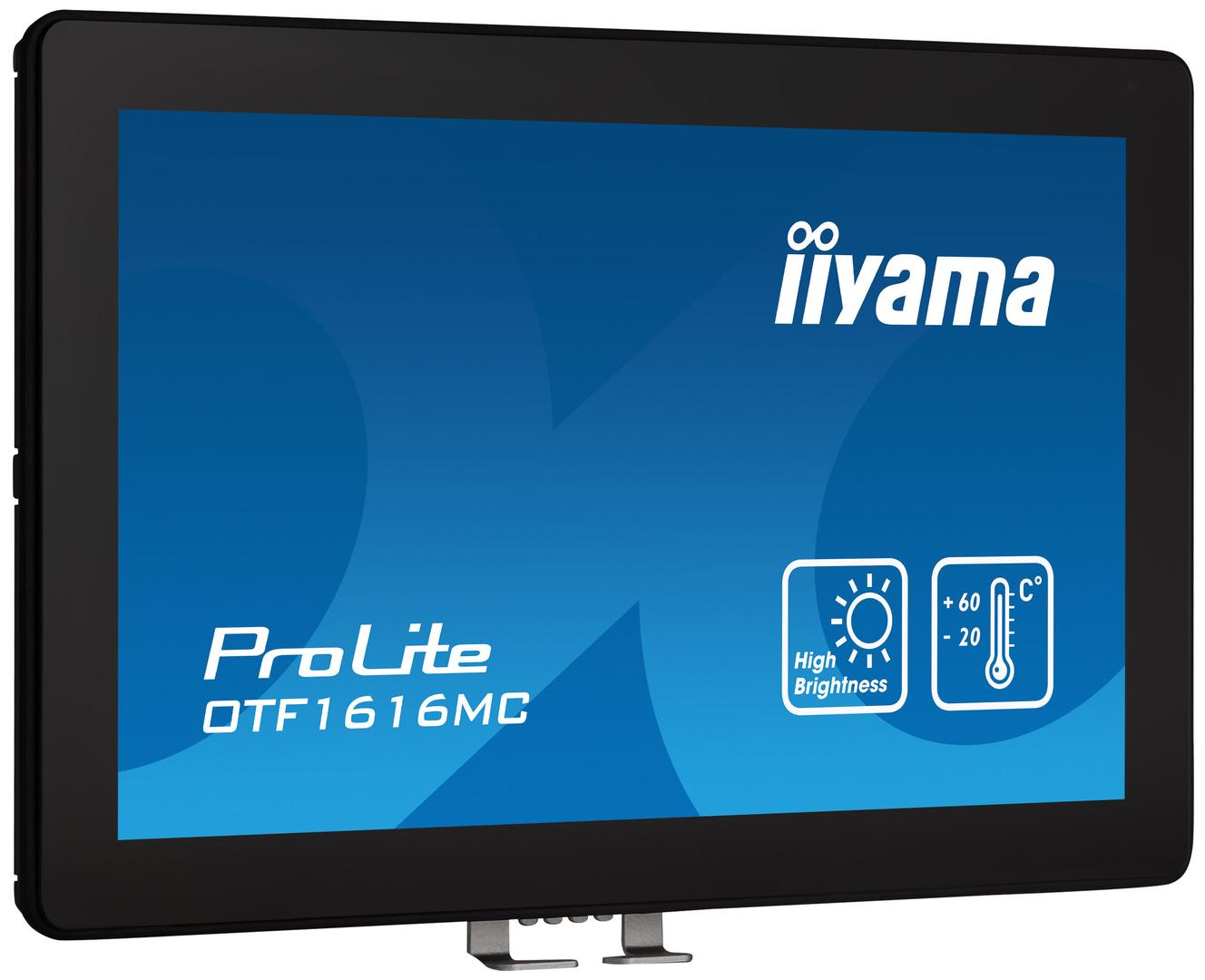

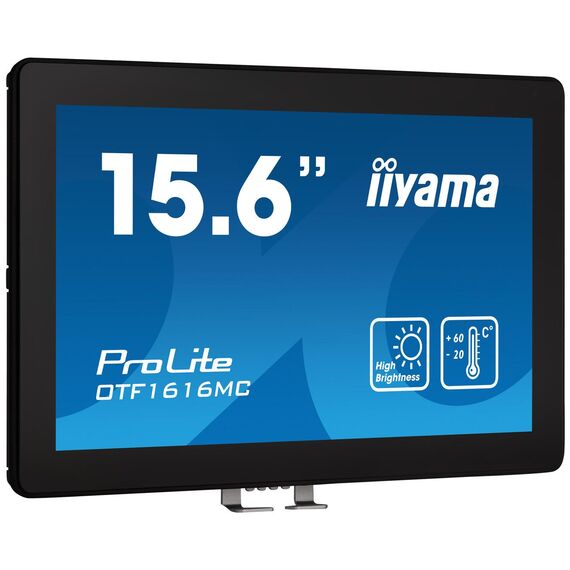

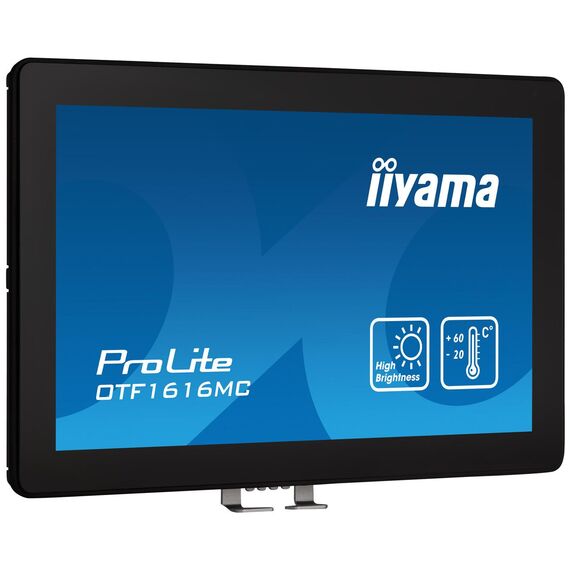

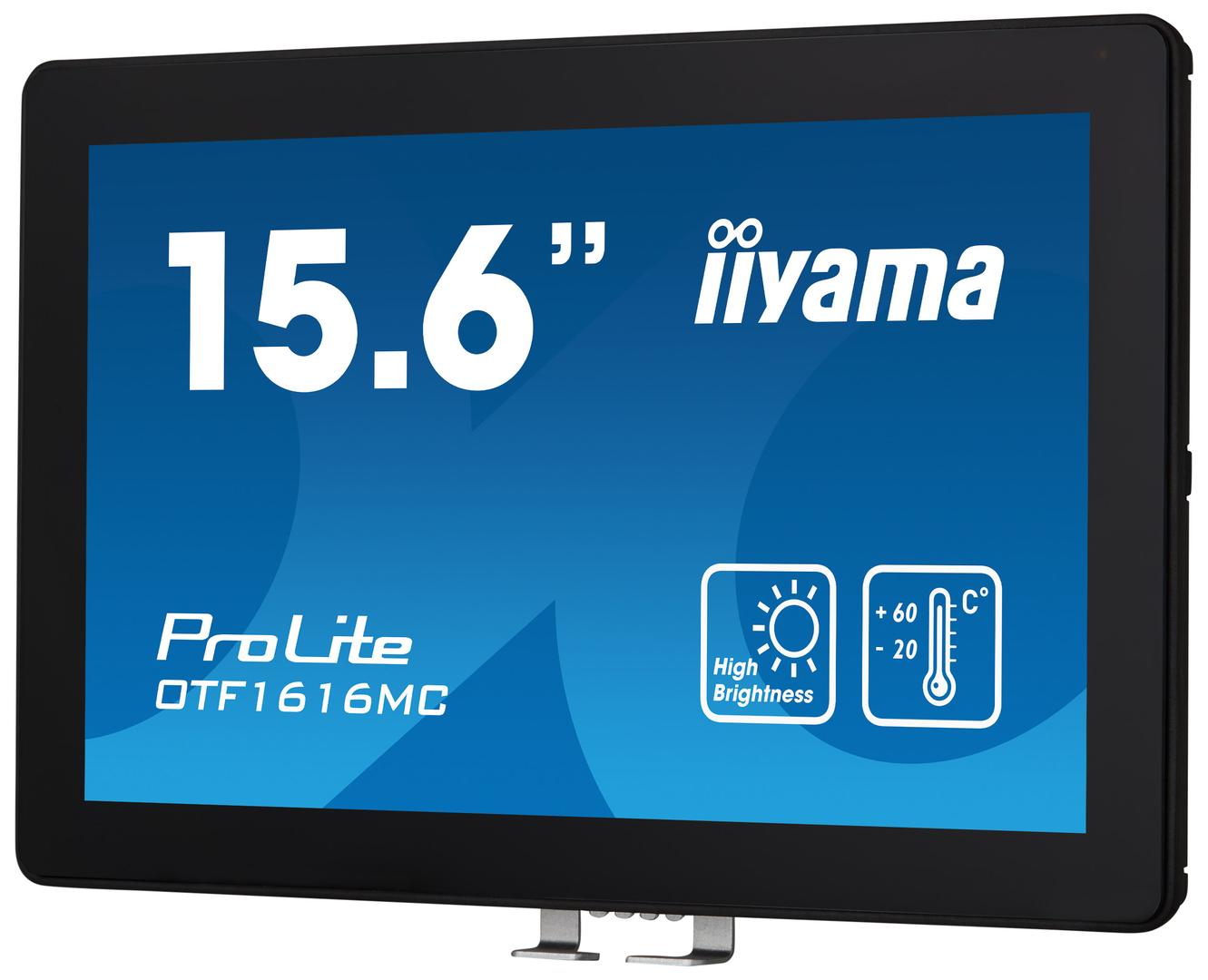

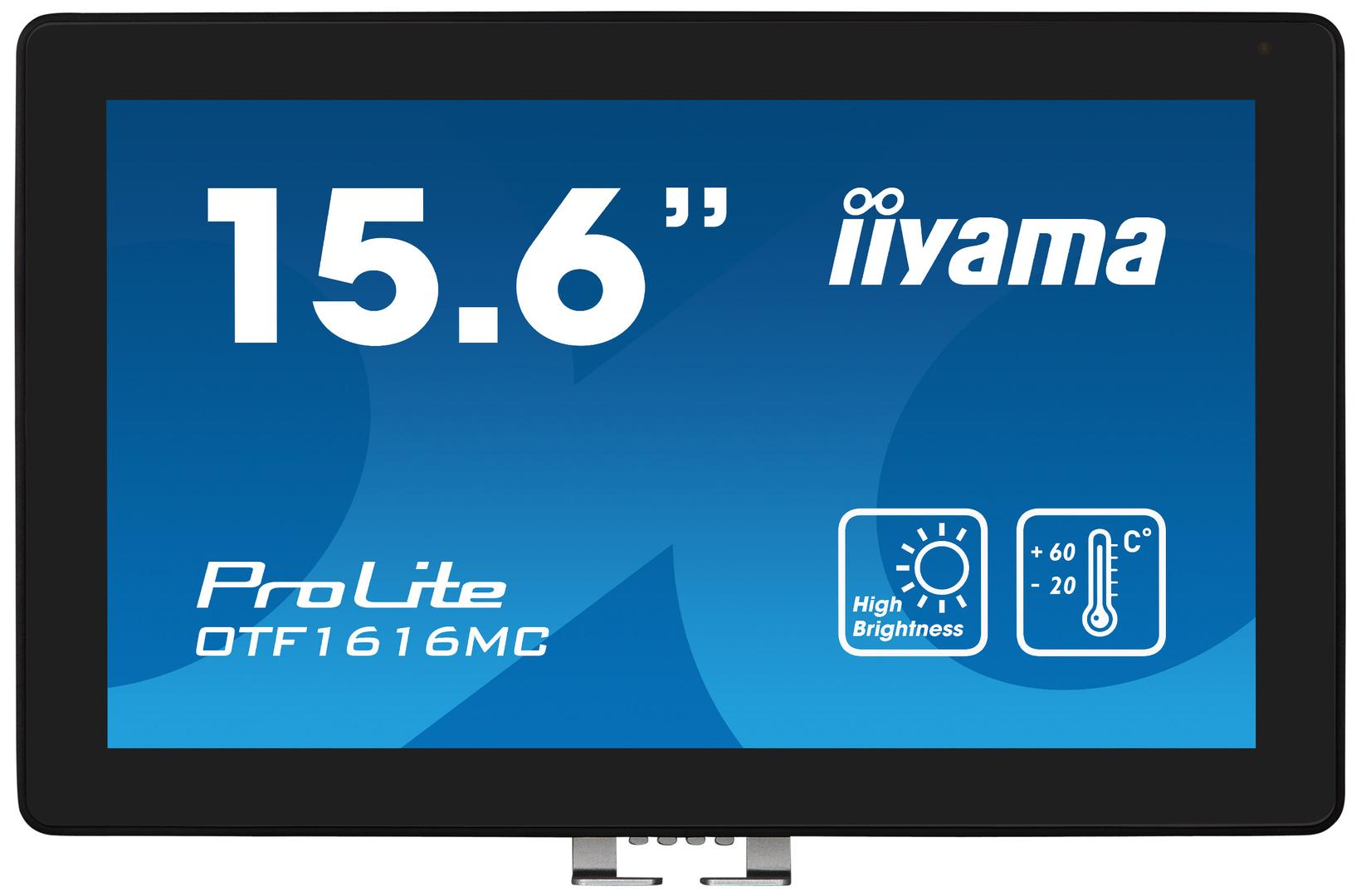

iiyama ProLite OTF1616MC-B1 / LED monitor / 15.6" / open frame / touchscreen / 1920 x 1080 Full HD (1080p) @ 60 Hz / VA / 1100 cd/m² / 800:1 / 25 ms / HDMI, VGA, DisplayPort / black | OTF1616MC-B1
Please sign in so that we can notify you about a reply
Product Features
- Responsive multi-touch technology
The touchscreen utilizes projected capacitive technology, allowing up to 10 simultaneous touch points, providing an intuitive and engaging user experience in interactive applications. - High image brightness
With an image brightness of 1100 cd/m2 and anti-glare coating, this monitor ensures visibility even in well-lit environments, making it ideal for public displays and signage. - Robust built-in sensors
Equipped with ambient light and proximity sensors, the monitor can automatically adjust brightness levels to optimize performance based on the surrounding light conditions. - Durable and scratch-resistant design
Featuring a 7H hard coating and UV resistance, the surface is designed to withstand daily use while maintaining clear visibility and touch responsiveness. - Varied compatibility options
The monitor supports a range of interface connections, including HDMI, VGA, and DisplayPort, allowing for seamless integration with various devices and systems.
Special Features
- 15.6-inch diagonal size with Full HD 1080p resolution
- 10-point multi-touch screen with palm rejection feature
- Proximity and ambient light sensors for adaptive brightness
- Scratch-resistant and anti-fingerprint coating for durability
- Supports multiple input signals including HDMI and DisplayPort
Product Specification
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Energy Class | Class E |
| Diagonal Size | 15.6" |
| Built-in Devices | Ambient light sensor, proximity sensor |
| Panel Type | VA |
| Aspect Ratio | 16:9 |
| Native Resolution | Full HD (1080p) 1920 x 1080 at 60 Hz |
| Pixel Pitch | 0.179 mm |
| Brightness | 1100 cd/m² |
| Brightness w/touchscreen | 935 cd/m² |
| Contrast Ratio | 800:1 |
| Colour Support | 16.2 million colours |
| Response Time | 25 ms (black-to-black) |
| Horizontal Refresh Rate | 31.5 - 67.5 kHz |
| Horizontal Viewing Angle | +89 / -89 |
| Vertical Viewing Angle | +89 / -89 |
| Screen Coating | 7H Hard Coating |
| Backlight Technology | LED backlight |
| OSD Languages | English, German, French, Spanish, Italian, Chinese, Japanese |
| Features | Anti-fingerprint (AF) coating, Projected Capacitive Touch (P-CAP) technology, HDCP, landscape mode, portrait mode, Face Up mode, 3.15 mm glass thickness, 60950 ball drop test, UV resistance, touch through-glass, palm rejection function, 8-bit(6-bit + Hi-FRC) Colour Depth, edge-to-edge glass, scratch-resistant |
| Colour | Black |
| Dimensions (WxDxH) | 39.85 cm x 4.2 cm x 24.6 cm |
| Weight | 3 kg |
| Input | Input |
| Type | Touch-screen - touchscreen |
| Movement Detection Technology | Projected capacitive |
| Connectivity | Connectivity |

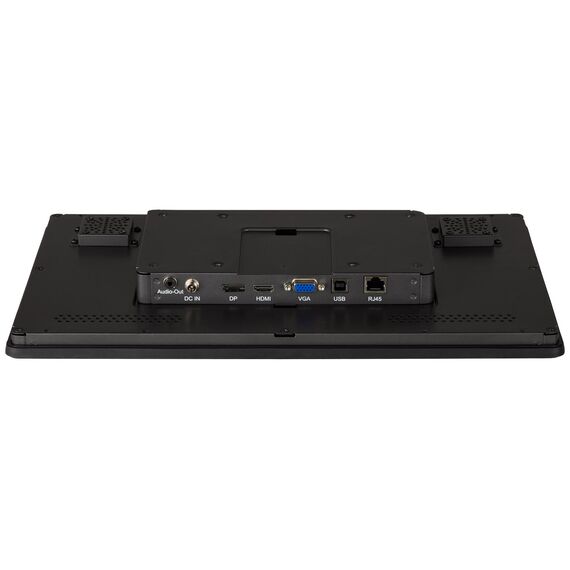

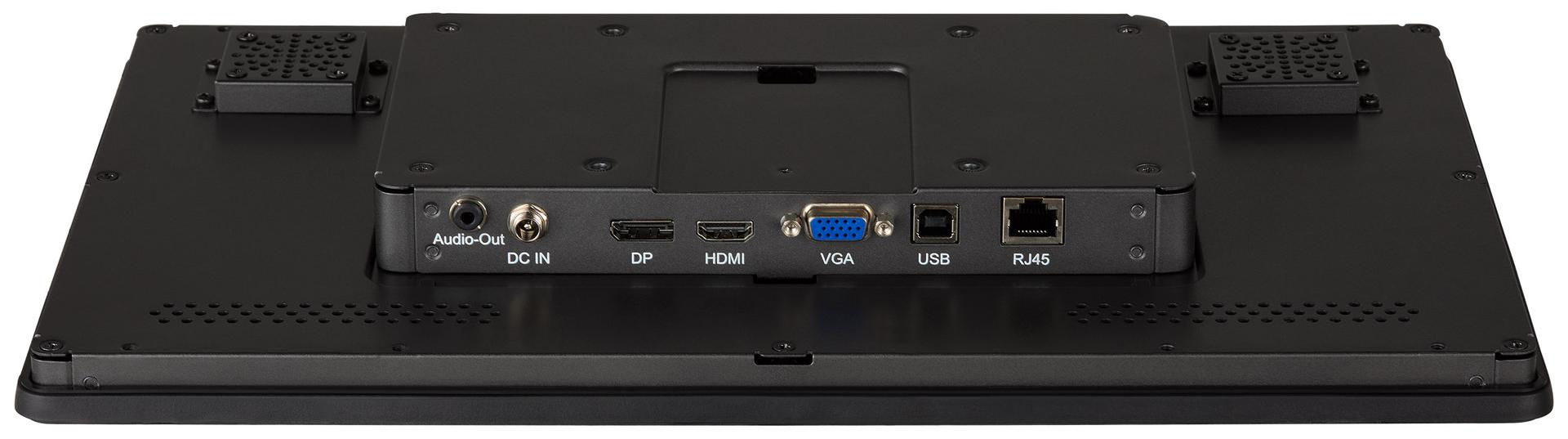

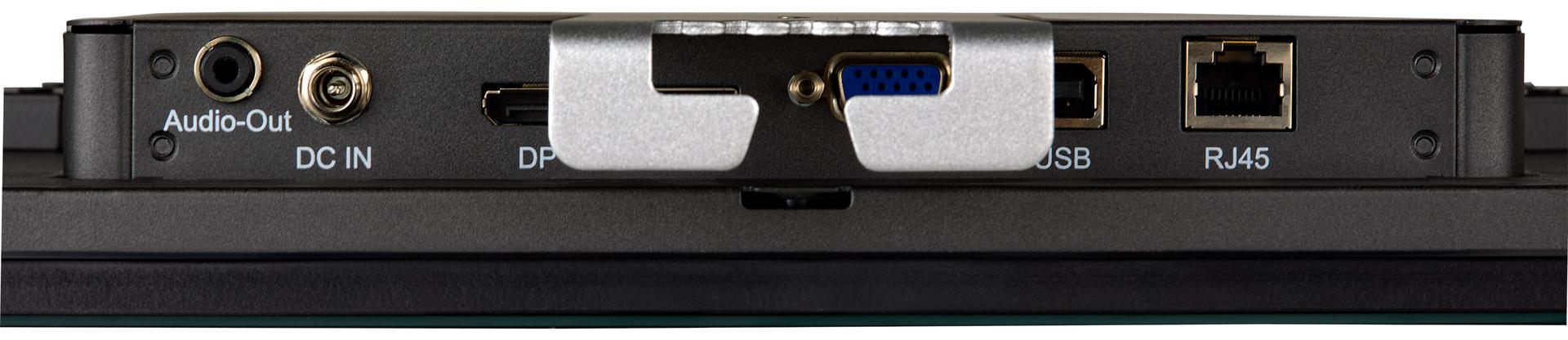

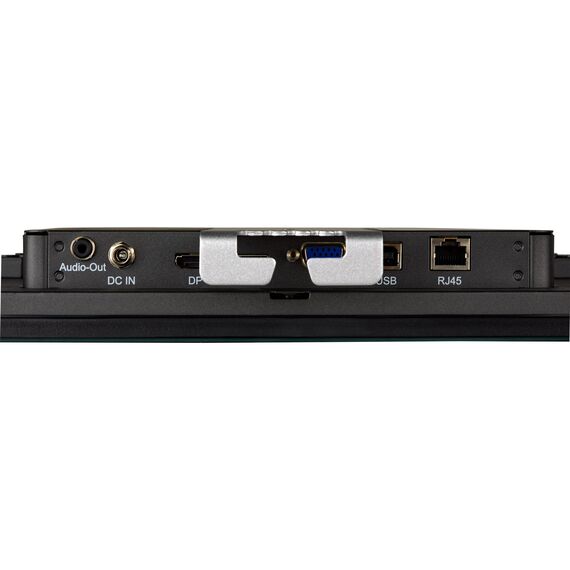

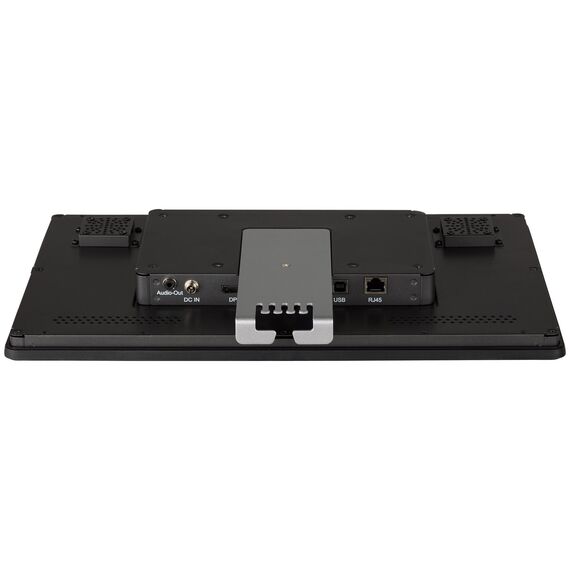

| Interfaces | DisplayPort HDMI VGA Audio line-out (mini-jack) LAN (RJ-45) |
| Mechanical | Mechanical |

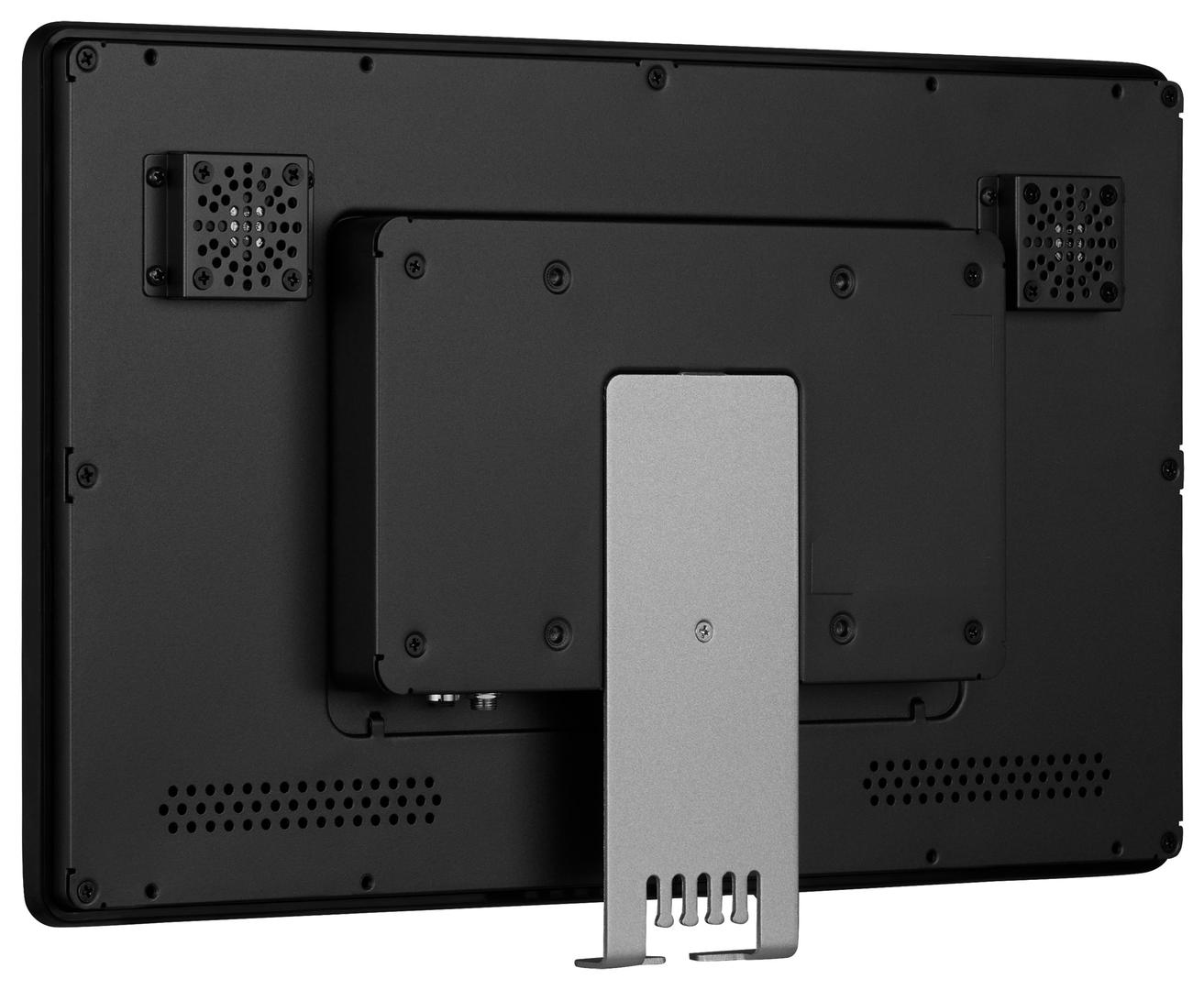

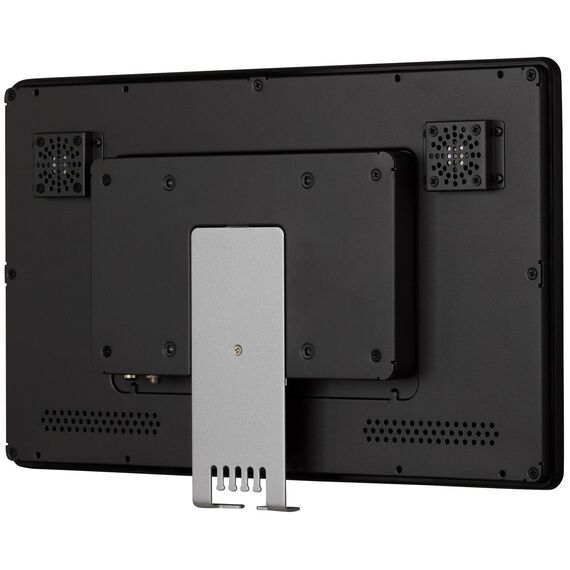

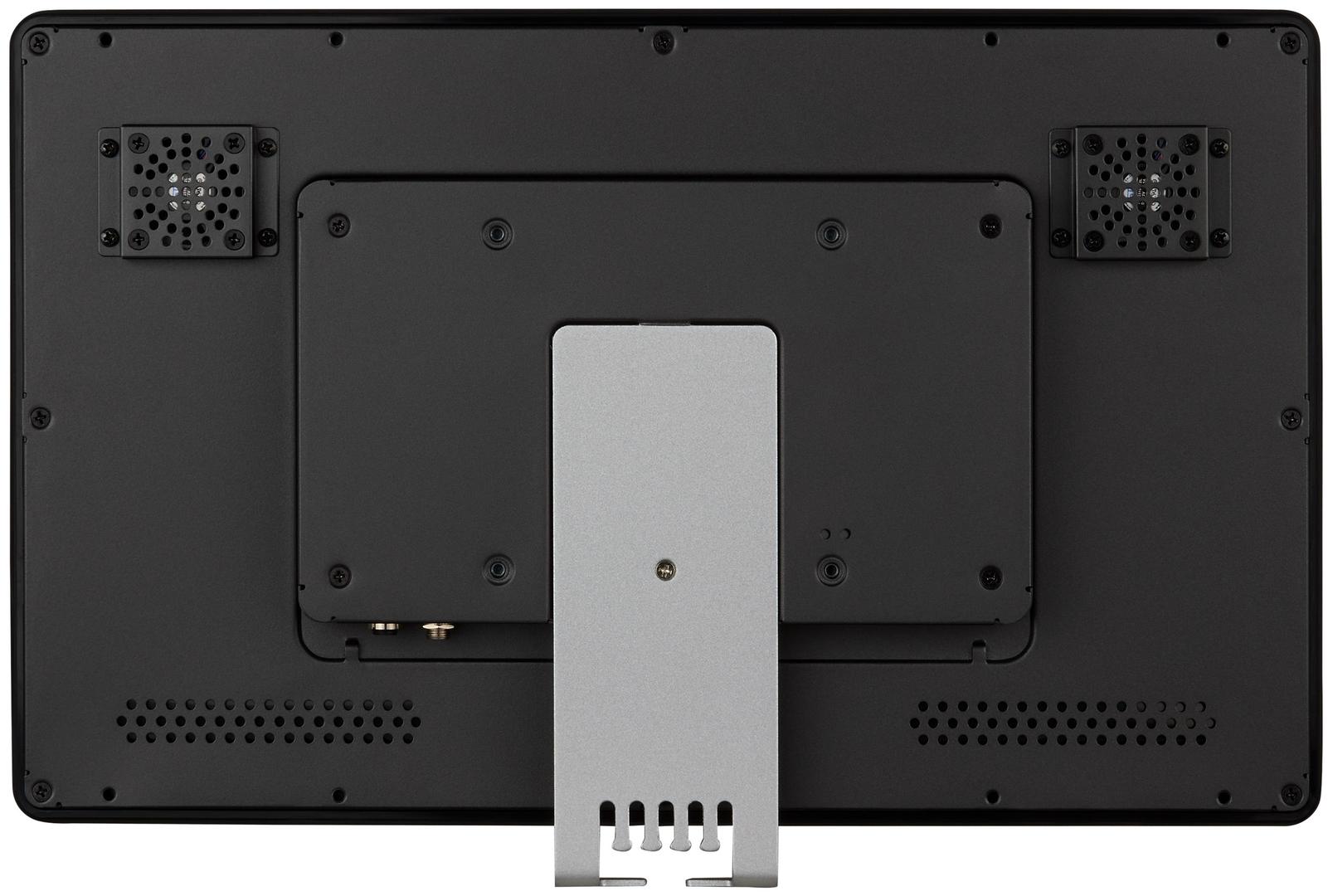

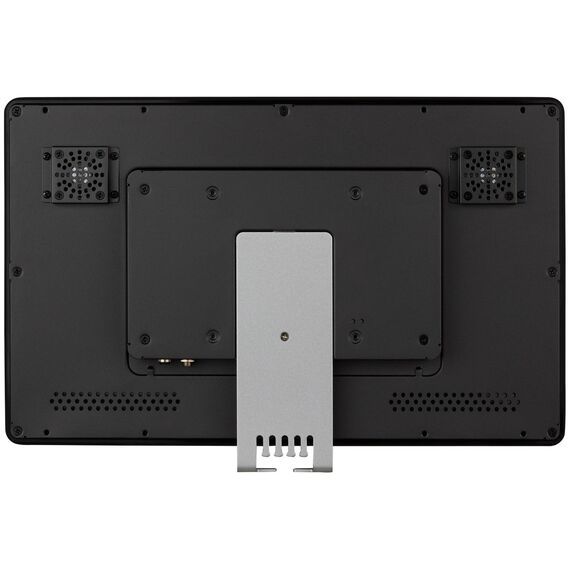

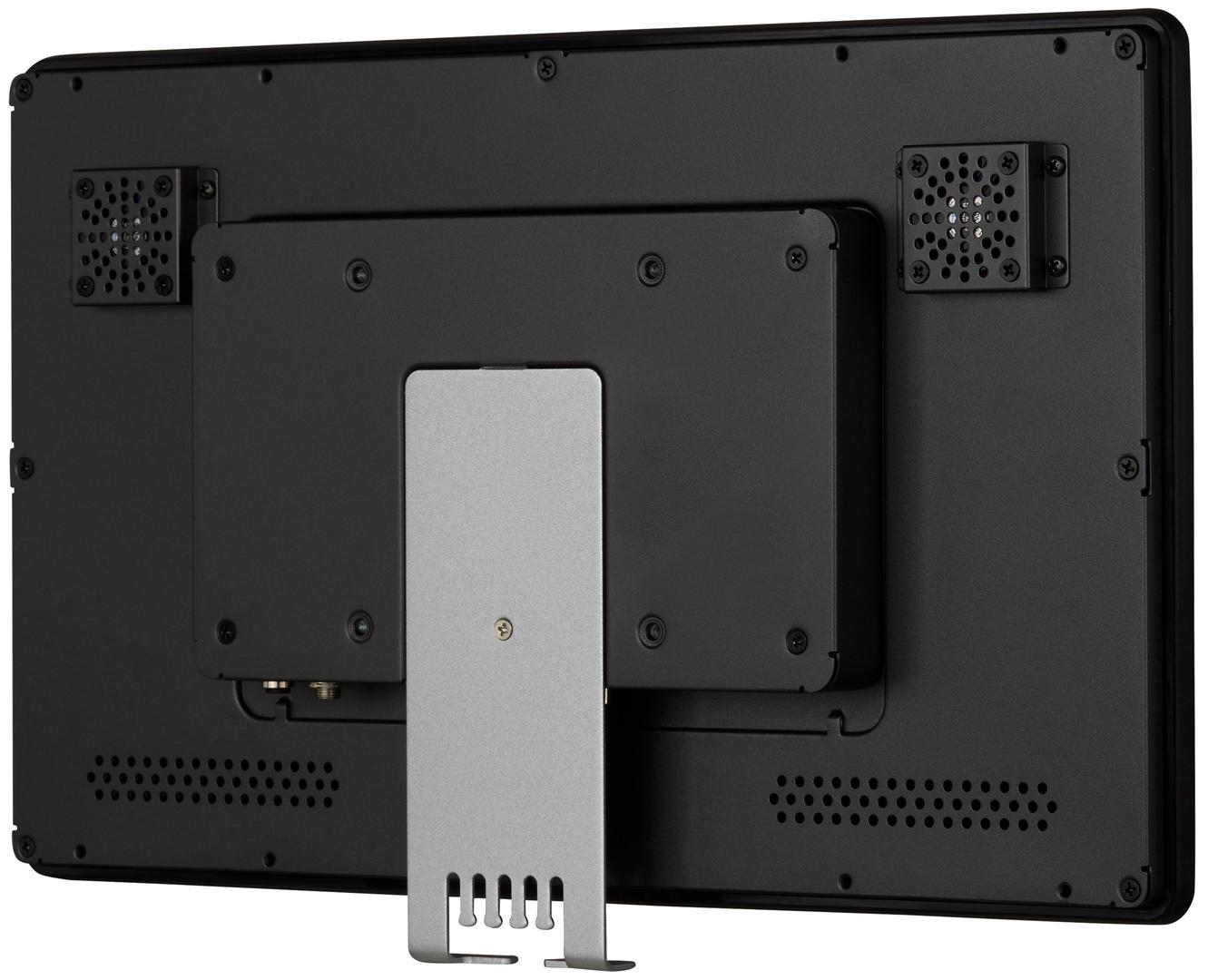

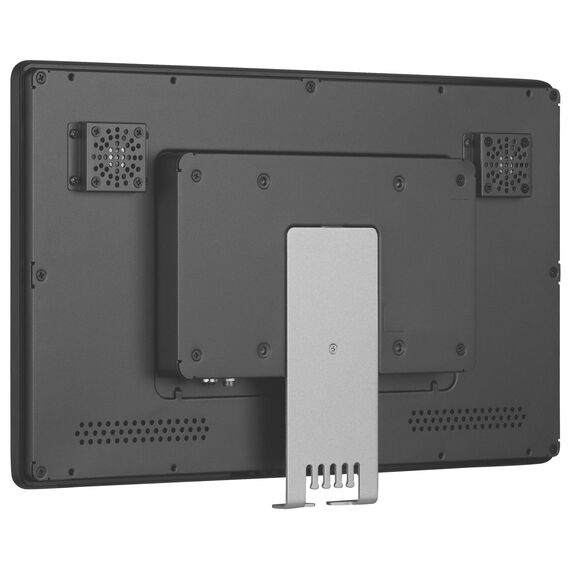

| VESA Mounting Interface | 100 x 100 mm |
| Miscellaneous | Miscellaneous |
| Features | 85% light transmittance, VESA interface support |

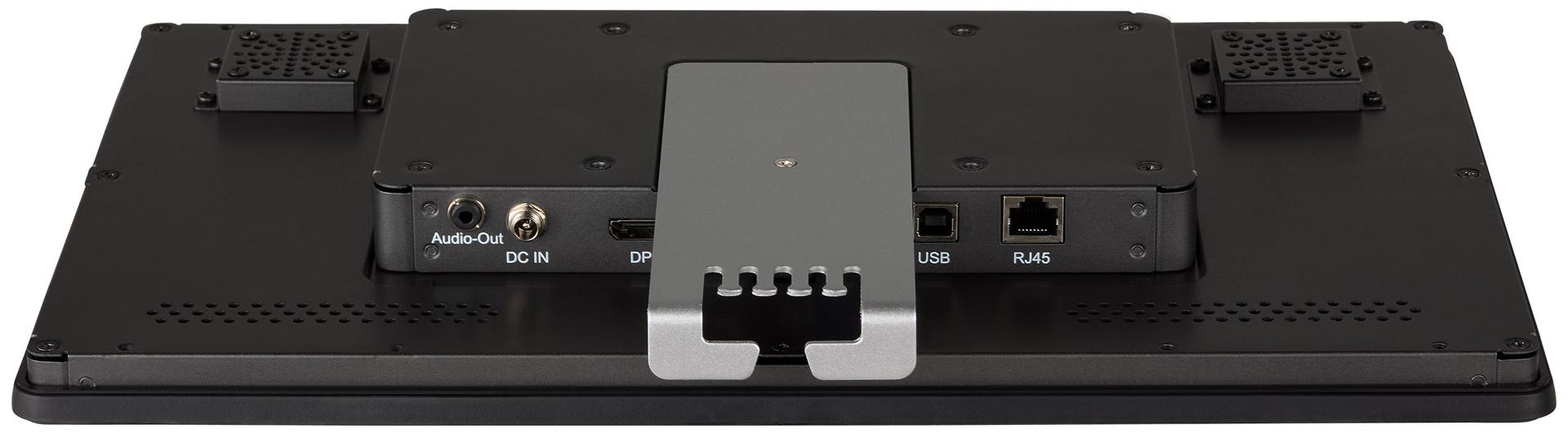

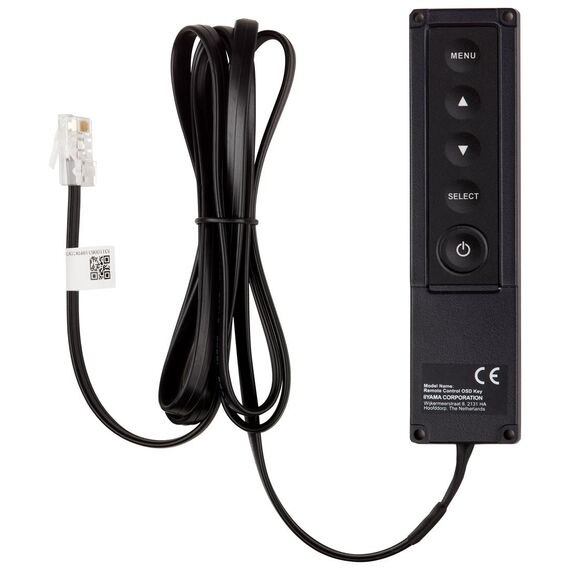

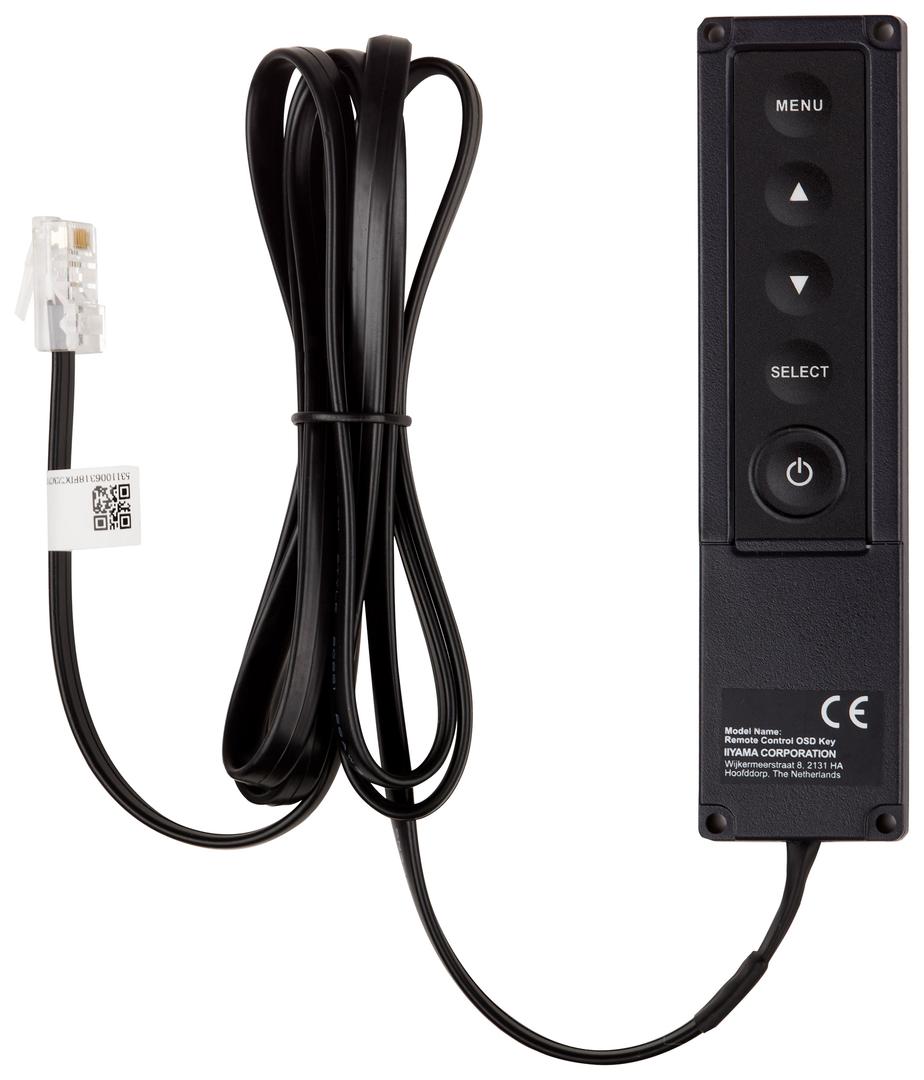

| Included Accessories | Power adapter, external control pad, cable cover |
| Cables Included | 1 x HDMI cable 1 x DisplayPort cable 1 x USB cable |
| Mounting Kit | Optional |
| MTBF | 60,000 hours |
| Compliant Standards | Plug and Play, DDC-2B, IP65 front, EAC, RoHS, ERP, WEEE, cULus, REACH, UKCA, REACH SvHC |
| Power | Power |
| Power Consumption SDR (On mode) | 11 kWh/1000h |
| Power Consumption (Typical) | 24 Watt |
| Power Consumption Stand by | 1.5 Watt |
| Power Consumption (Off Mode) | 0.3 Watt |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 48.5 cm |
| Shipping Depth | 15 cm |
| Shipping Height | 37 cm |
| Shipping Weight | 4.62 kg |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 60 °C |
Features - Iiyama - OTF1616MC-B1
More Details
Product Code
CK95194
EAN Code
4948570123742
Manufacturer
Iiyama
