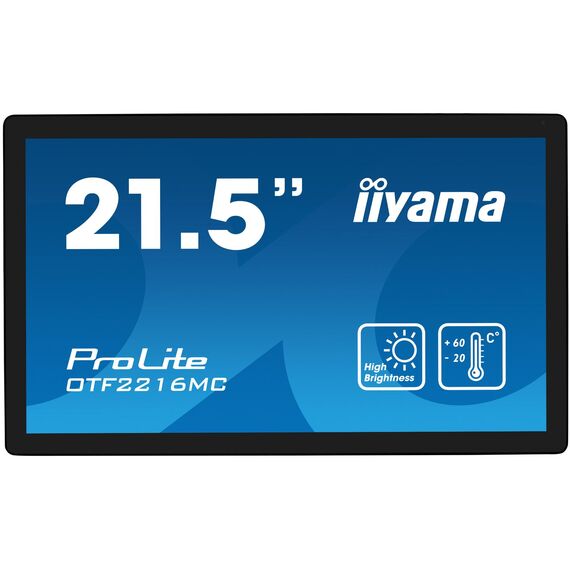

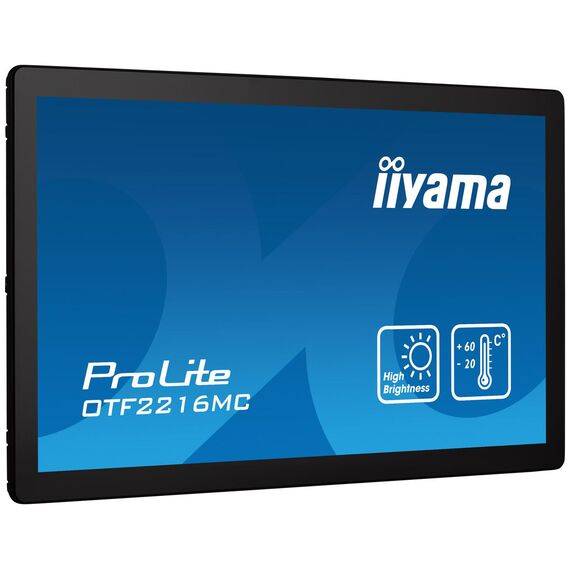

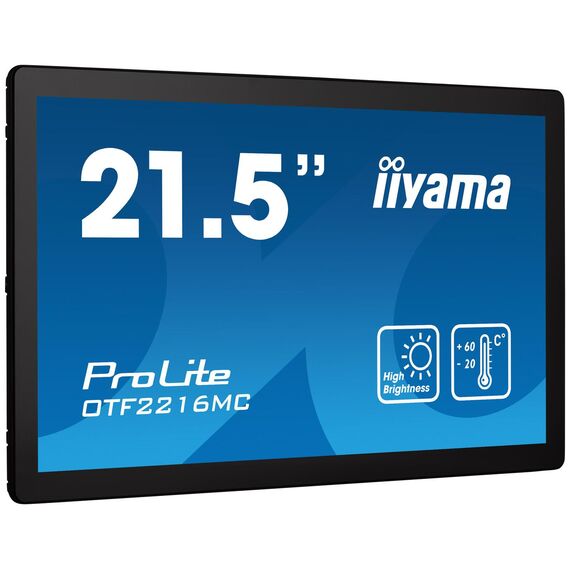

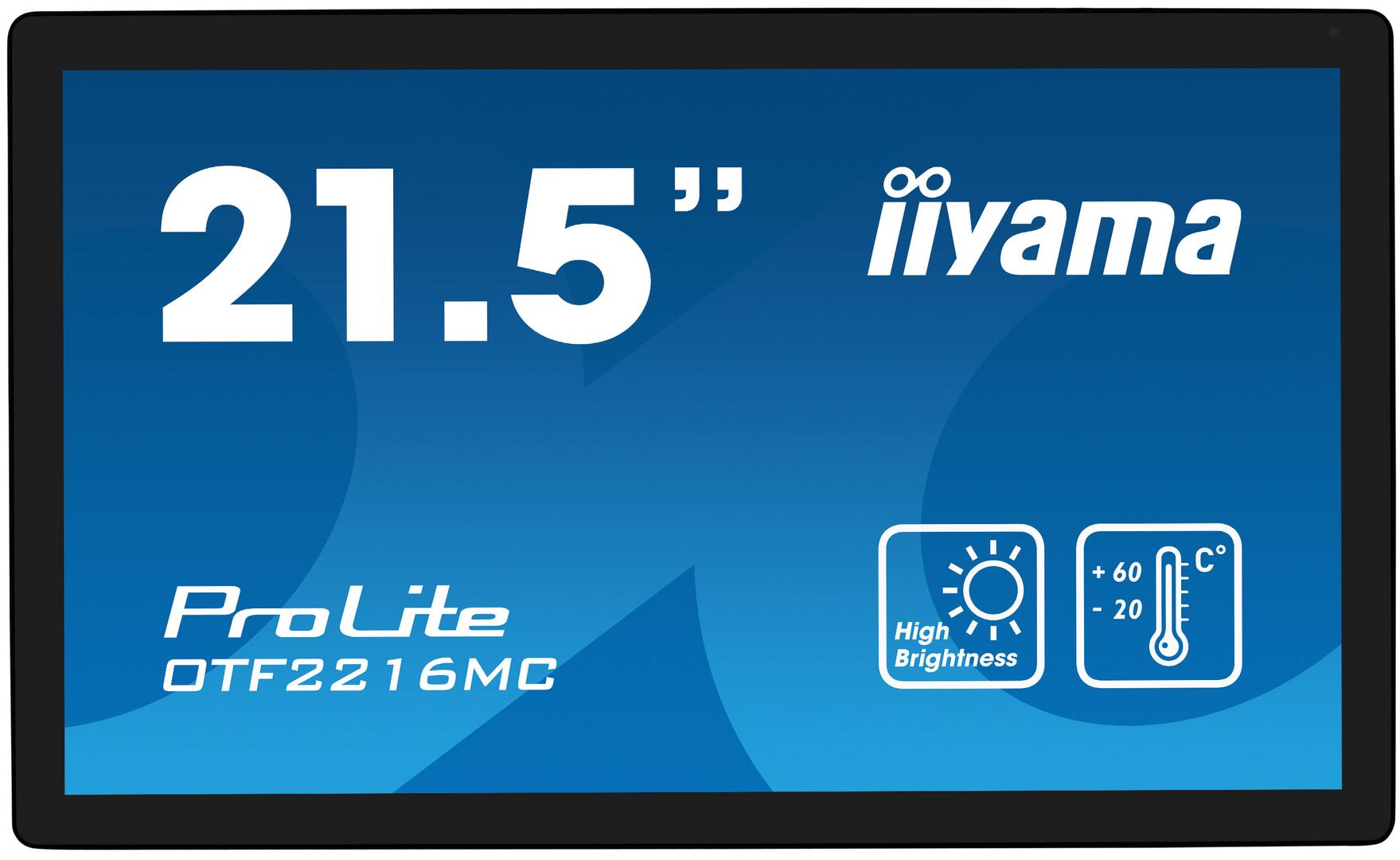

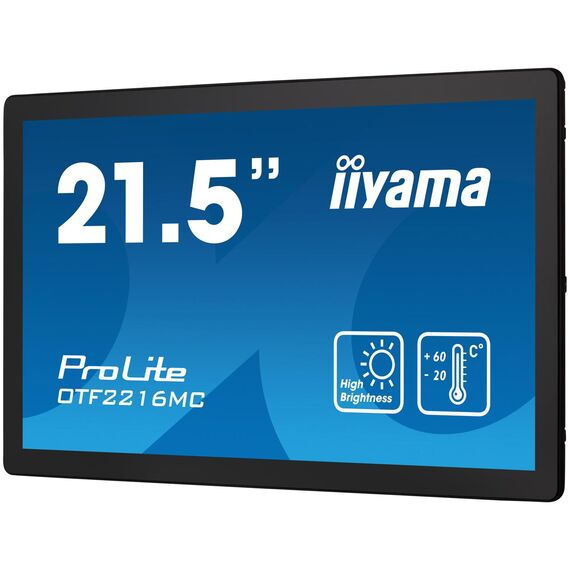

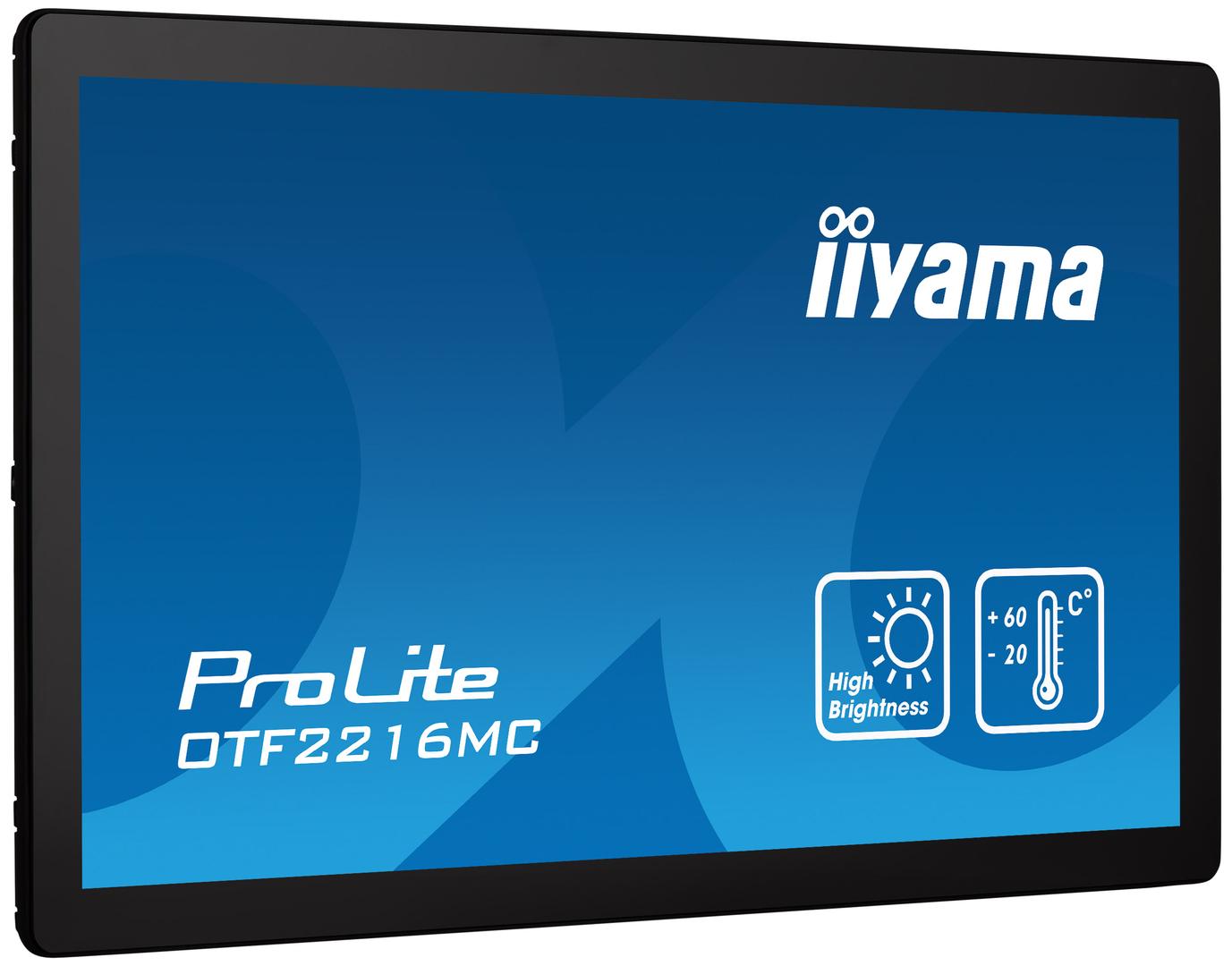

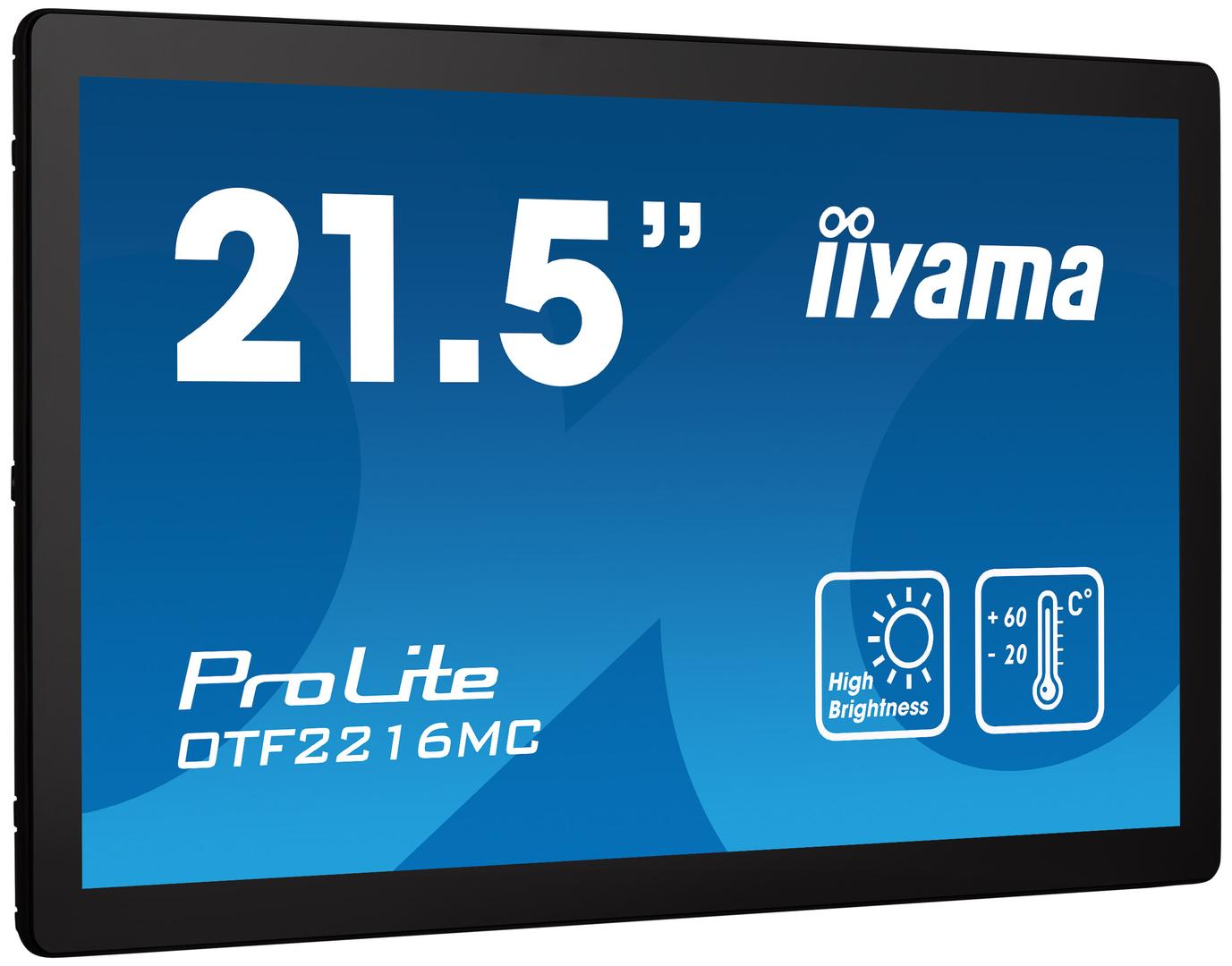

iiyama ProLite OTF2216MC-B1 / LED monitor / 22" (21.5" viewable) / open frame / touchscreen / 1920 x 1080 Full HD (1080p) @ 60 Hz / VA / 1100 cd/m² / 5000:1 / 25 ms / HDMI, VGA, DisplayPort / black | OTF2216MC-B1
Please sign in so that we can notify you about a reply
Product Features
- Responsive multi-touch capability
The monitor features ten-point multi-touch capabilities through projected capacitive technology, allowing for fluid and intuitive interaction with applications and content. - Immersive visual quality
With a native resolution supporting Full HD (1080p) and a pixel pitch of 0.248 mm, the display ensures sharp and detailed images for an immersive viewing experience. - Robust protection features
An anti-fingerprint coating alongside 7H hard coating ensures that the display remains clear and free from marks, while UV resistance increases longevity in various environments. - Versatile installation options
The VESA interface support enables easy mounting across different setups, facilitating adaptability for wall-mounted or kiosk applications. - Energy efficient performance
Designed with energy efficiency in mind, the monitor falls under Energy Class E, making it an environmentally friendly option without compromising performance.
Special Features

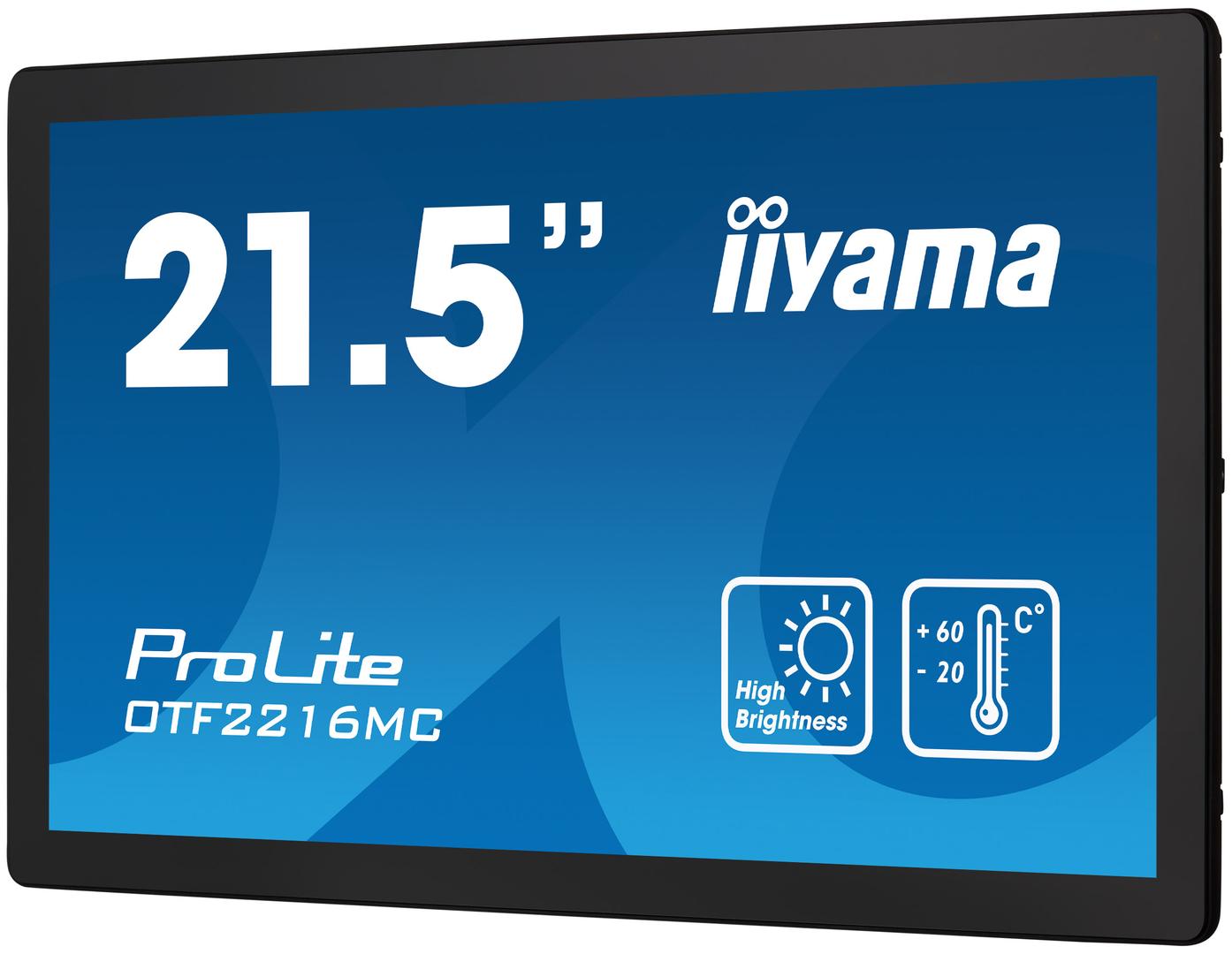

- 21.5-inch open frame touchscreen display
- 5000:1 image contrast ratio for vivid visuals
- Built-in proximity and ambient light sensors
- Supports multiple connectivity options including HDMI and DisplayPort
- Designed for interactive use with projected capacitive touch technology
Product Specification
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Energy Class | Class E |
| Diagonal Size | 22" |
| Viewable Size | 21.5" |
| Built-in Devices | Ambient light sensor, proximity sensor |
| Panel Type | VA |
| Aspect Ratio | 16:9 |
| Native Resolution | Full HD (1080p) 1920 x 1080 at 60 Hz |
| Pixel Pitch | 0.248 mm |
| Brightness | 1100 cd/m² |
| Brightness w/touchscreen | 935 cd/m² |
| Contrast Ratio | 5000:1 |
| Colour Support | 16.7 million colours (8-bit) |
| Response Time | 25 ms (black-to-black) |
| Horizontal Refresh Rate | 31.4 - 82 kHz |
| Horizontal Viewing Angle | +89 / -89 |
| Vertical Viewing Angle | +89 / -89 |
| Screen Coating | 7H Hard Coating |
| Backlight Technology | LED backlight |
| OSD Languages | English, German, French, Spanish, Italian, Chinese, Japanese |
| Features | Projected Capacitive Touch (P-CAP) technology, HDCP, 60950 ball drop test, landscape mode, portrait mode, Face Up mode, 3.15 mm glass thickness, anti-fingerprint (AF) coating, touch through-glass, UV resistance, auto FAN control |
| Colour | Black |

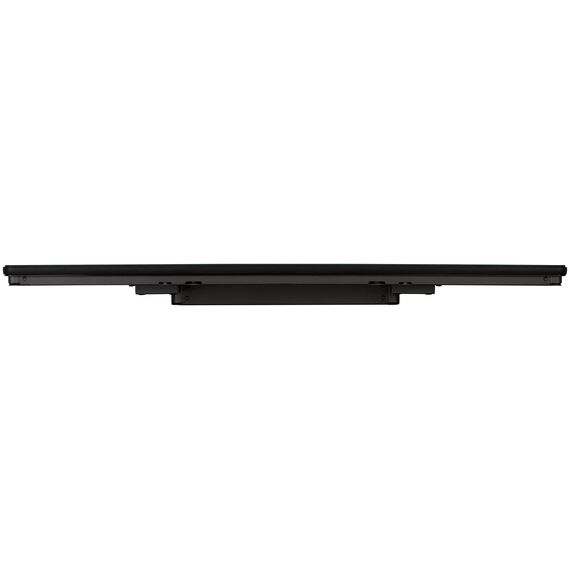

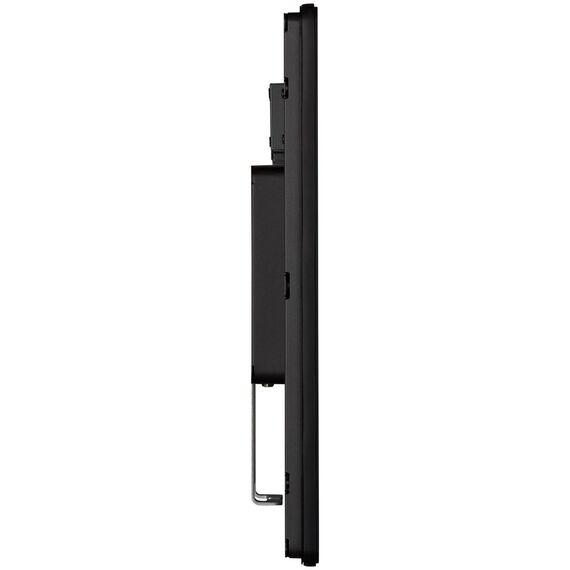

| Dimensions (WxDxH) | 52 cm x 4.25 cm x 31.5 cm |
| Weight | 4.5 kg |
| Input | Input |
| Type | Touch-screen - touchscreen |
| Movement Detection Technology | Projected capacitive |
| Connectivity | Connectivity |

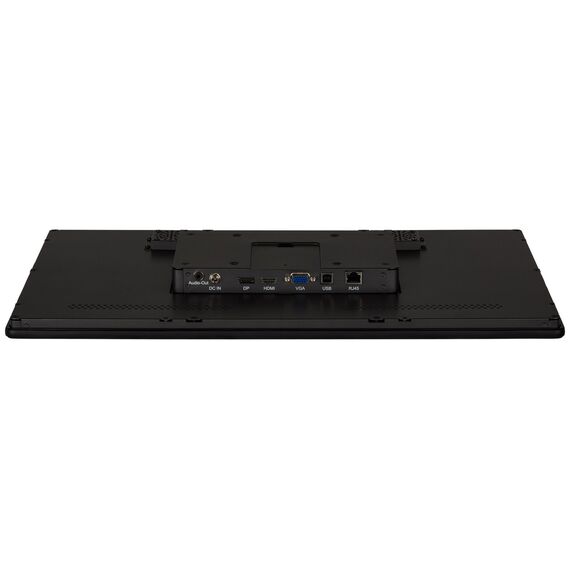

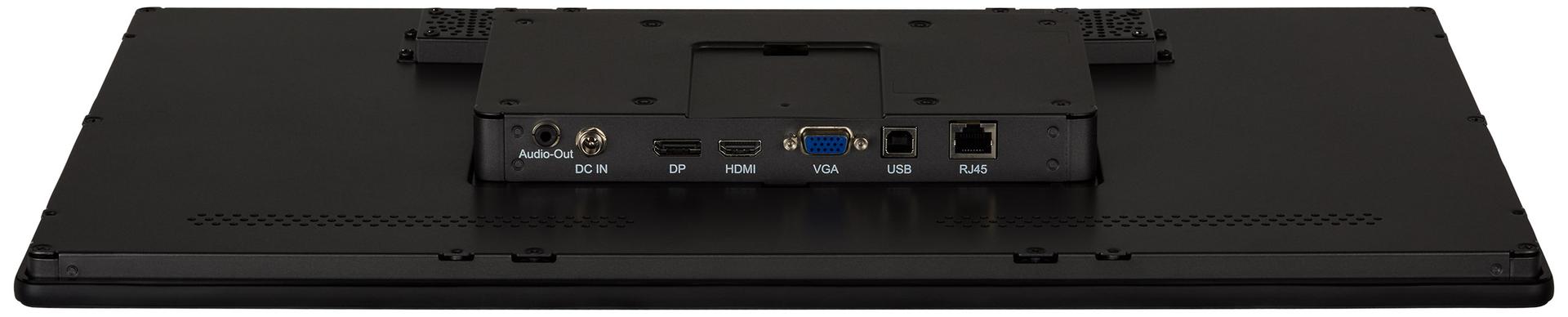

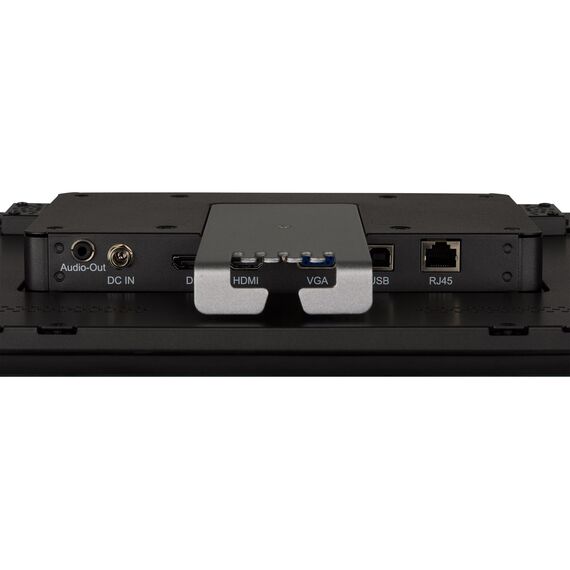

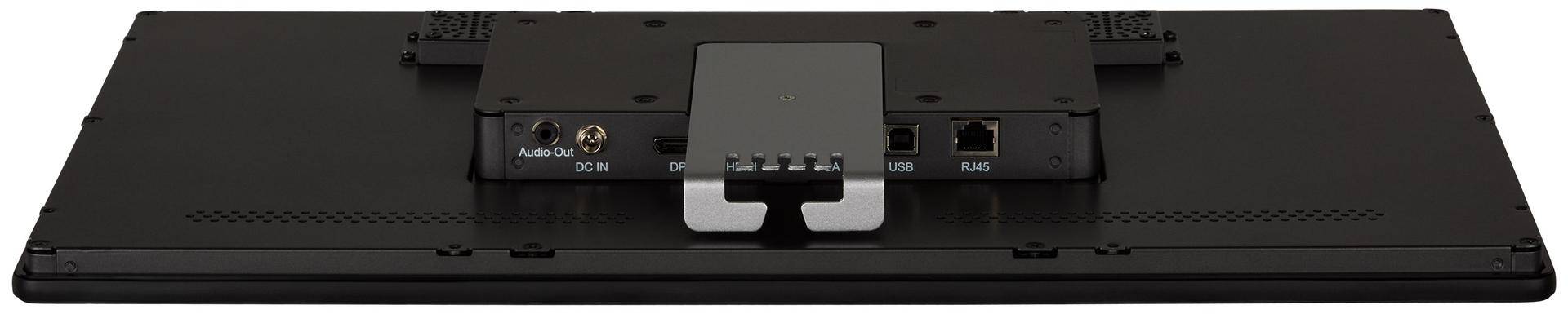

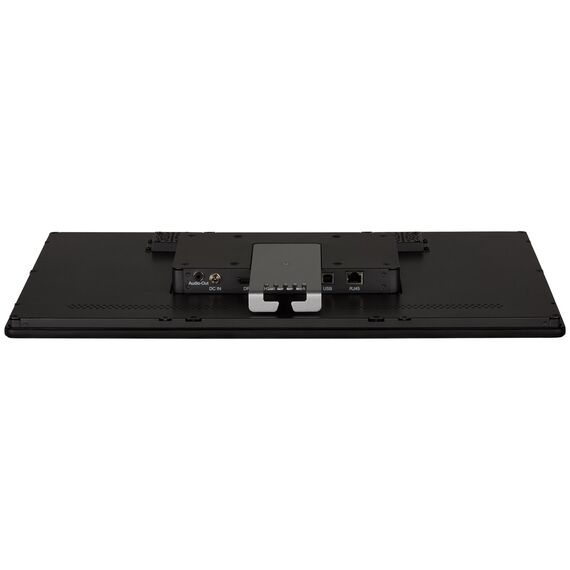

| Interfaces | DisplayPort HDMI VGA Audio line-out (mini-jack) LAN (RJ-45) |
| Mechanical | Mechanical |

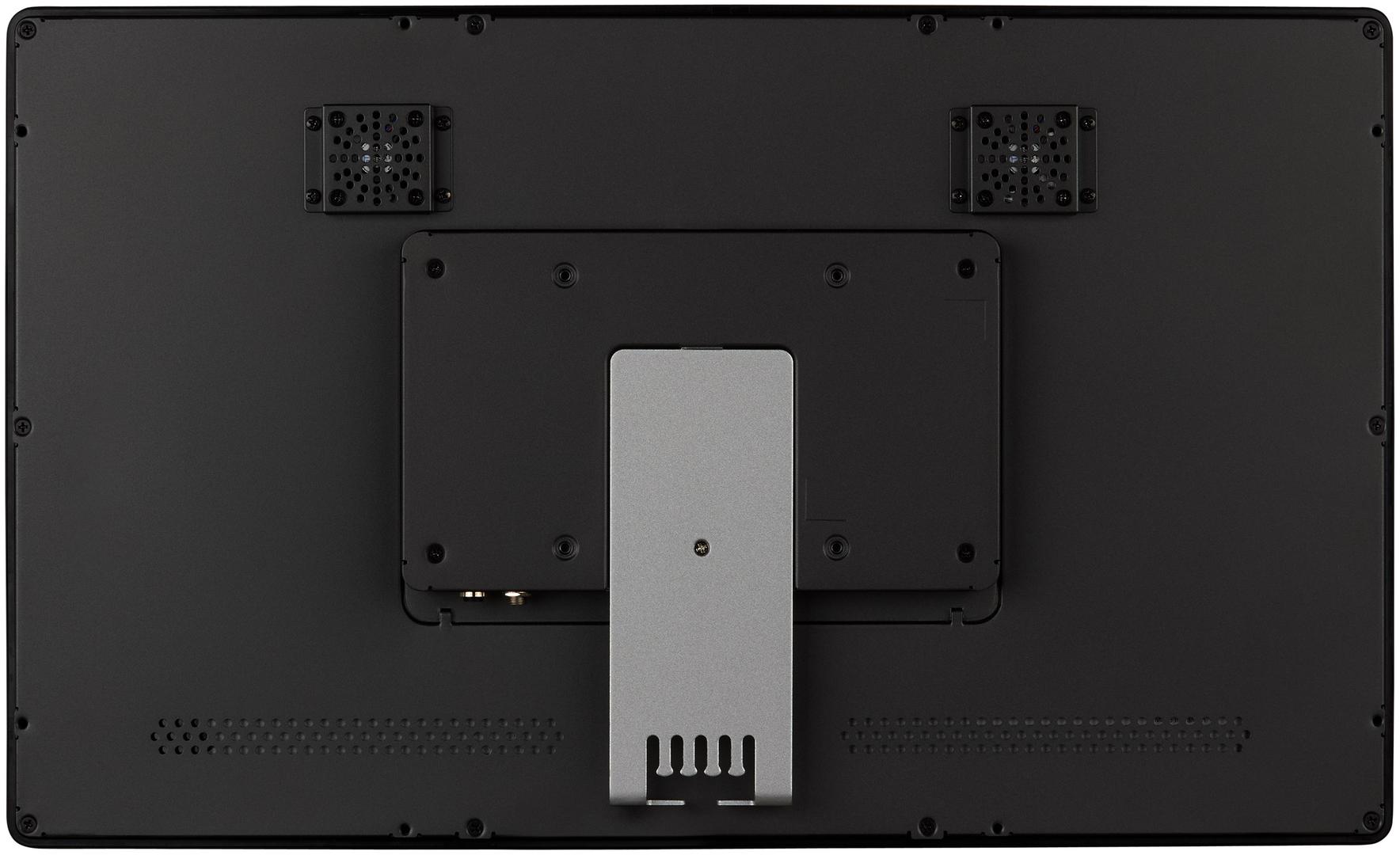

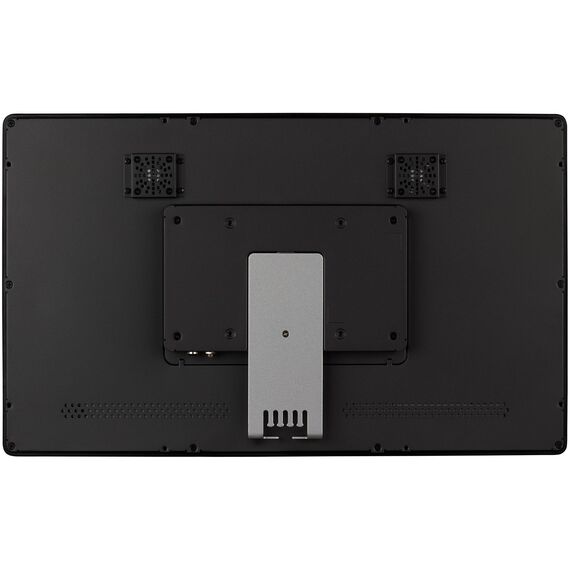

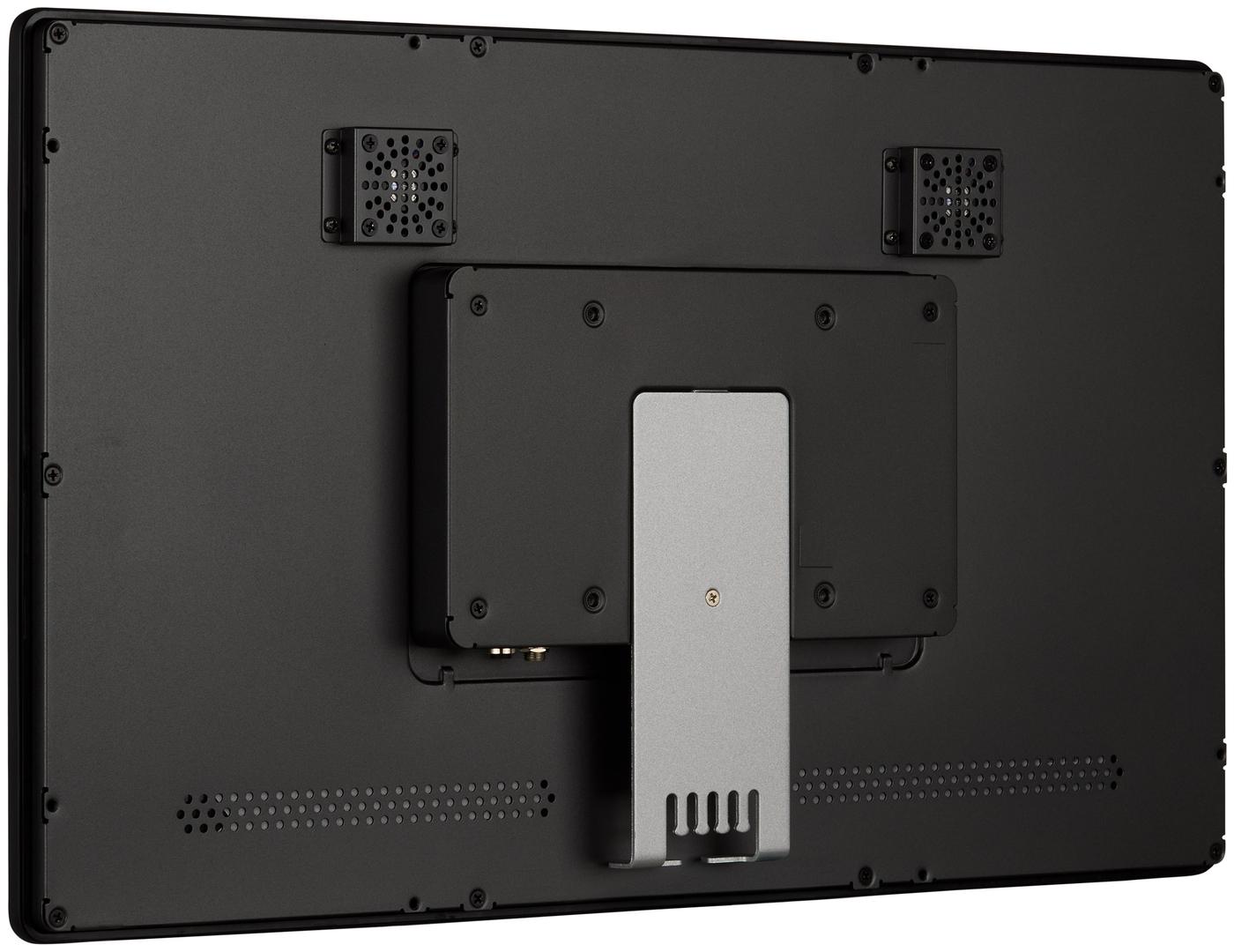

| VESA Mounting Interface | 100 x 100 mm |
| Miscellaneous | Miscellaneous |
| Features | 85% light transmittance, VESA interface support |

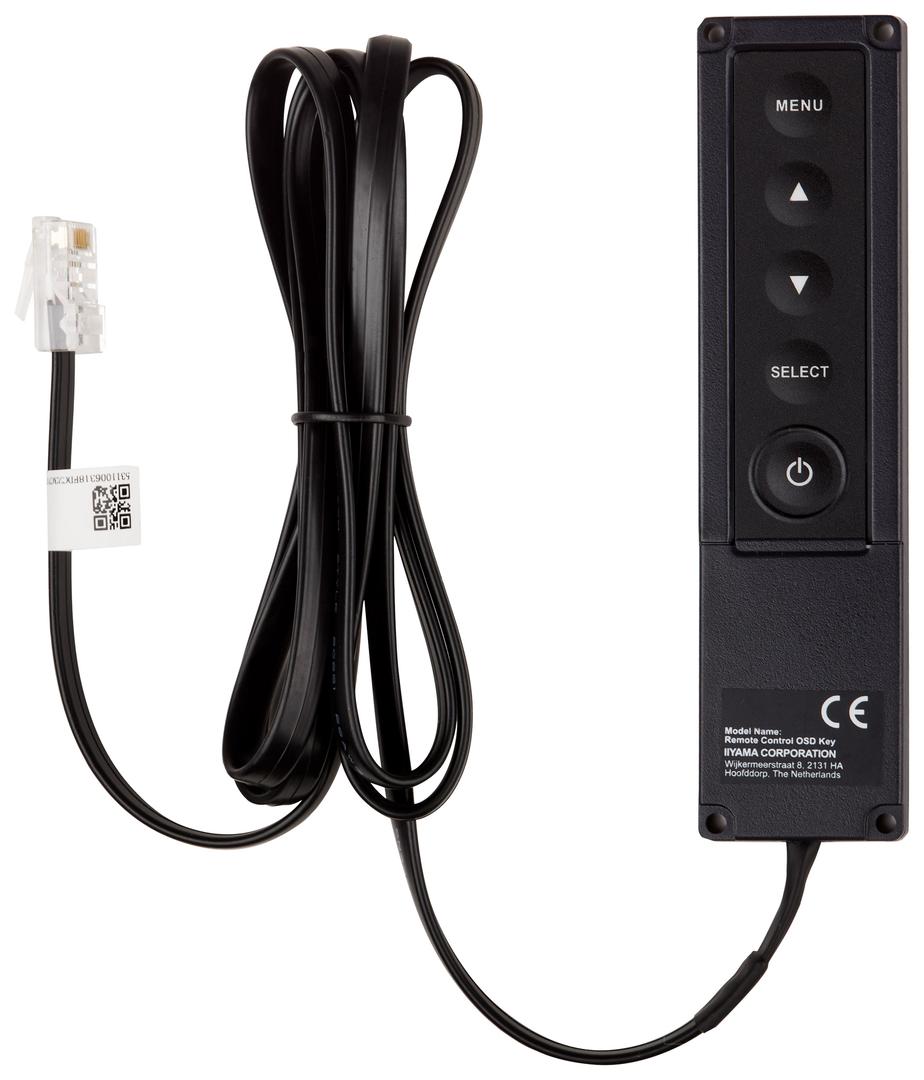

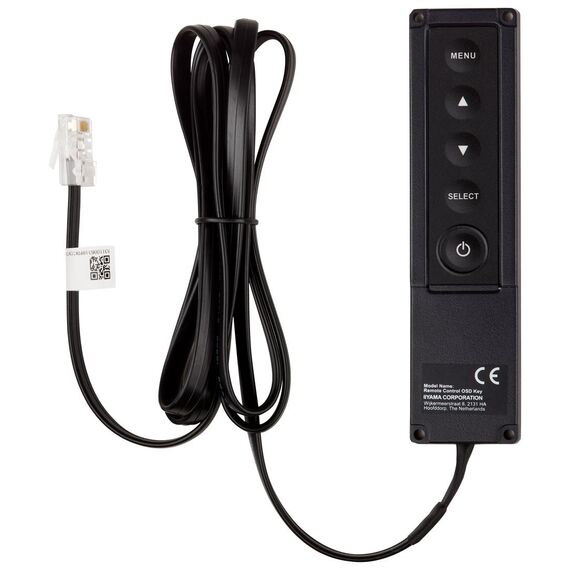

| Included Accessories | Power adapter, external control pad, cable cover |
| Cables Included | 1 x HDMI cable 1 x DisplayPort cable 1 x USB cable |
| Mounting Kit | Optional |
| MTBF | 60,000 hours |
| Compliant Standards | Plug and Play, DDC-2B, IP65 front, EAC, RoHS, ERP, WEEE, cULus, REACH, UKCA, REACH SvHC |
| Power | Power |
| Power Consumption SDR (On mode) | 16 kWh/1000h |
| Power Consumption (Typical) | 43 Watt |
| Power Consumption Stand by | 1.5 Watt |
| Power Consumption (Off Mode) | 0.3 Watt |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 60.8 cm |
| Shipping Depth | 15 cm |
| Shipping Height | 40 cm |
| Shipping Weight | 4.6 kg |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 60 °C |
Features - Iiyama - OTF2216MC-B1
More Details
Product Code
CK95195
EAN Code
4948570123735
Manufacturer
Iiyama
