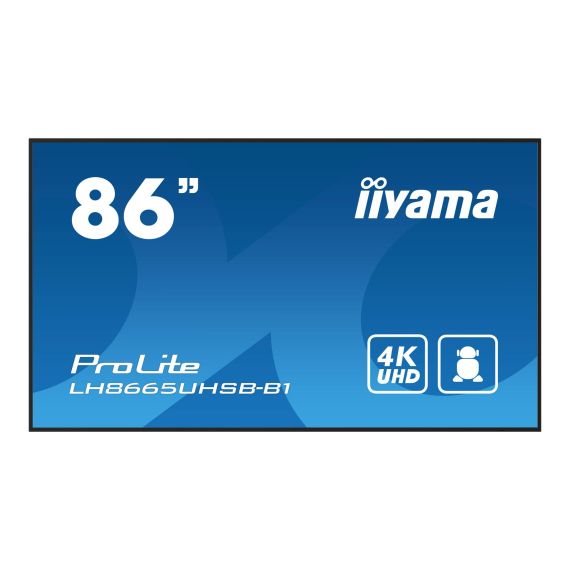

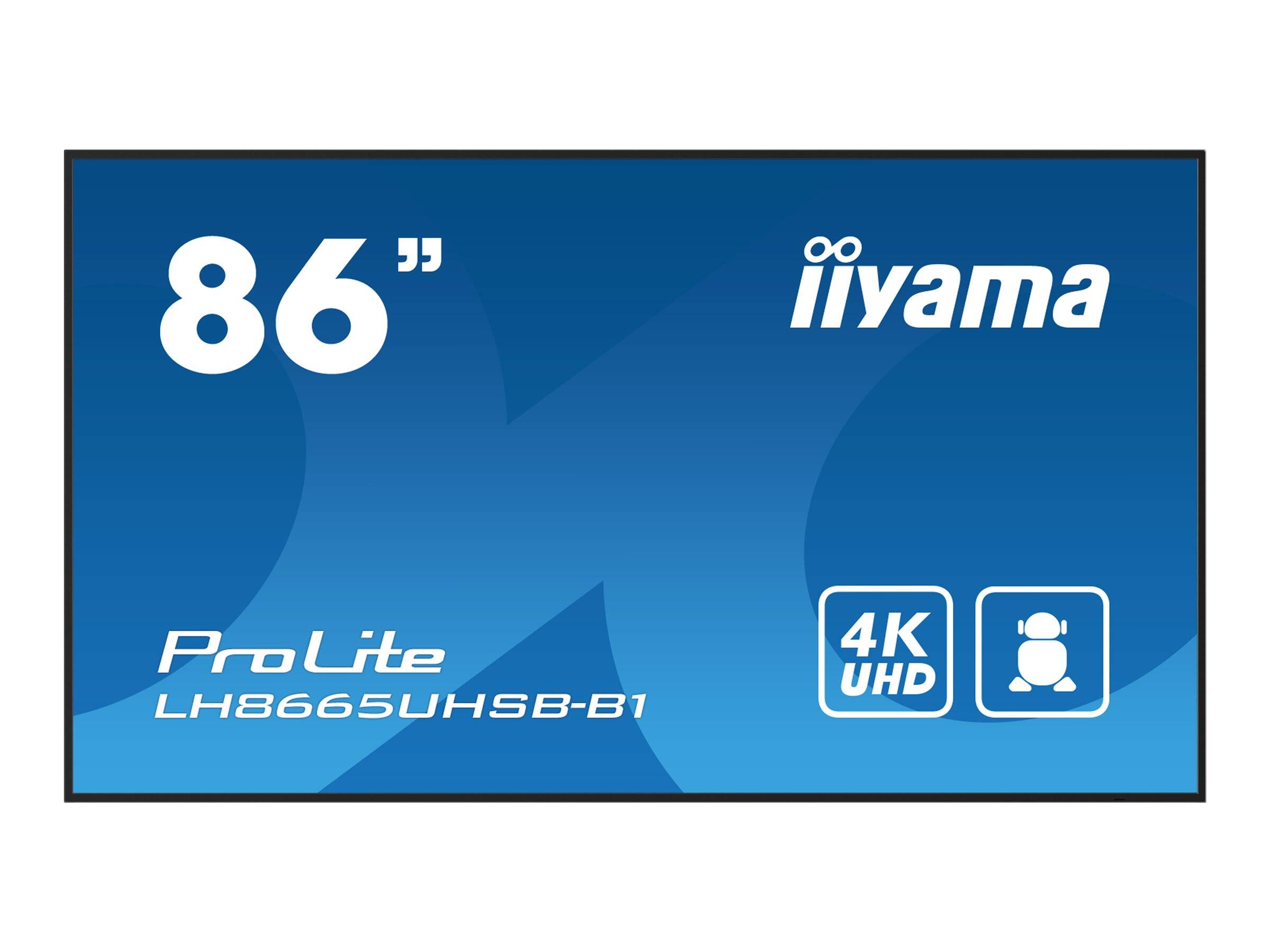

iiyama ProLite LH8665UHSB-B1 - 86" Diagonal Class LED-backlit LCD display - digital signage - Android - 4K UHD (2160p) 3840 x 2160 - black | LH8665UHSB-B1
Please sign in so that we can notify you about a reply
Product Features
- High-definition visuals
Experience clarity and color accuracy with the iiyama ProLite LH8665UHSB-B1's 86-inch 4K UHD (2160p) display. The IPS technology ensures wide viewing angles of 178°, making it suitable for digital signage and presentations. - Robust connectivity
Equipped with multiple connectivity options including HDMI, DisplayPort, USB 2.0, LAN, and Wi-Fi protocols, this display offers versatile connection possibilities for a wide range of devices and networks. - Designed for continuous use
With a fanless design for silent operation and a built-in feature for 24/7 operation, the iiyama ProLite LH8665UHSB-B1 is built to withstand the demands of continuous use in public spaces and commercial environments. - Smart and interactive
The display comes with a built-in ARM Cortex-A73 quad-core + ARM Cortex-A53 quad-core processor, 4 GB RAM, and 32 GB storage, supporting advanced applications and interactive digital signage with EShare and iiSignage capabilities. - Energy-efficient operation
Class E energy efficiency with a power consumption of 159 W during operation and low standby power consumption ensures that the display is both powerful and economical to run.
Special Fetures
- 86-inch 4K UHD (2160p) IPS display for stunning visuals
- 24/7 operation capability with fanless design for silent running
- Comprehensive connectivity with HDMI, DisplayPort, and Wi-Fi
- Built-in ARM Cortex quad-core processors for advanced applications
- Energy-efficient Class E rating with low standby power consumption
Product Specification
| Product Type | LED-backlit LCD flat panel display |
| Energy Label QR Code URL | Https://eprel.ec.europa.eu/qr/1965476 |
| Energy Class | Class E |
| Power Consumption Operational | 159 Watt |
| Power Consumption (On mode) | 159 W |
| Power Consumption SDR (On mode) | 159 kWh/1000h |
| Diagonal Class | 86" |
| Commercial Use | Yes - digital signage |
| Platform | Android |
| Operating System | Android OS 11 |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Video Interface | HDMI |
| HDMI Ports Qty | 2 ports |
| PC Interface | DisplayPort |
| Modes | Portrait mode, landscape mode |
| Design | Fanless Design, Thin Bezel Design |
| Width | 192.7 cm |
| Depth | 5.7 cm |
| Height | 109.85 cm |
| Weight | 49 kg |
| Enclosure Colour | Black |
| Display | |
| LCD Display Technology | IPS |
| Pixel Pitch | 0.315 mm |
| Colour Support | 1070000000 colours |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Image Aspect Ratio | 16:9 |
| Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
| LCD Backlight Technology | LED backlight |
| Coating | 1% haze |
| Image Contrast Ratio | 1200:1 |
| Brightness | 800 cd/m² |
| Viewing Angle | 178 degrees |
| Viewing Angle (Vertical) | 178 degrees |
| Response Time | 8 ms |
| Display Menu Language | English, German, French, Spanish, Italian, Chinese, Russian, Japanese, Czech, Dutch, Polish, Swedish, Finnish, Danish, Norwegian |
| Commercial Features | FailOver |
| Operation Hours / Days | 24 / 7 |
| Features | Low Blue Light Technology, 24/7 operation time, Smart Display Module slot, iiSignage² |
| Stands & Mounts | |
| Flat Panel Mount Interface | 600 x 400 mm |
| VESA Compatibility | Yes |
| Media Player | |
| USB Port | Yes |
| USB Ports Qty | 2 |
| Configuration | ARM Cortex-A73 Quad-Core + ARM Cortex-A53 Quad-Core - 4 GB - 32 GB - Mali G52 MP8 |
| Remote Control | |
| Type | Remote control |
| Battery Included | Yes |
| Audio System | |
| Speaker System | 2 speakers |
| Output Power / Total | 20 Watt |
| Speakers | 2 x speaker - 10 Watt |
| Network & Internet Multimedia | |
| Connectivity | LAN, Wi-Fi |
| Wi-Fi Protocol | 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac |
| Connect & Share | EShare |
| Connections | |
| Connector Type | 2 x HDMI input <br /> DisplayPort input <br /> RS-232C input <br /> LAN <br /> 2 x USB 2.0 <br /> Audio line-out |
| Miscellaneous | |
| Included Accessories | Stickers for screw holes, adhesive cable clips, AC switch cover |
| Cables Included | HDMI cable <br /> RS-232C cable |
| Compliant Standards | TUV Bauart, DDC-2B, RoHS, ERP, WEEE, REACH, UKCA |
| Power | |
| Power Device | Power supply |
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption Stand by | 0.5 Watt |
| Power Consumption (Off Mode) | 0.3 Watt |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years - on-site |
| Dimensions & Weight (Shipping) | |
| Width (Shipping) | 212.3 cm |
| Depth (Shipping) | 22.5 cm |
| Height (Shipping) | 124.7 cm |
| Weight (Shipping) | 64 kg |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
Features - Iiyama - LH8665UHSB-B1
Resolution
3840 x XXXX
More Details
Product Code
07:21234091
EAN Code
4948570123605
Manufacturer
Iiyama
No posts found
