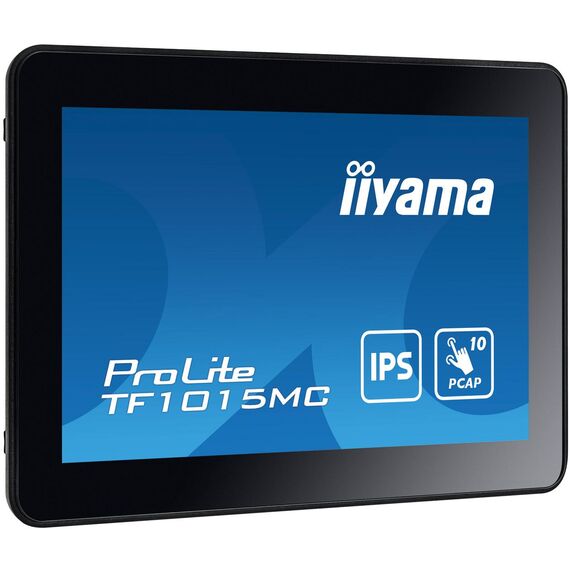

iiyama ProLite TF1015MC-B3 / LCD monitor / 10.1" / open frame / touchscreen / 1280 x 800 WXGA / IPS / 500 cd/m² / 800:1 / 29 ms / HDMI, VGA, DisplayPort / black | TF1015MC-B3
Please sign in so that we can notify you about a reply
Product Features
- Enhanced durability
Equipped with a 7H Hard Coating and IP65 protection, this monitor is designed to withstand the rigors of daily use while maintaining its pristine appearance. - Optimal viewing experience

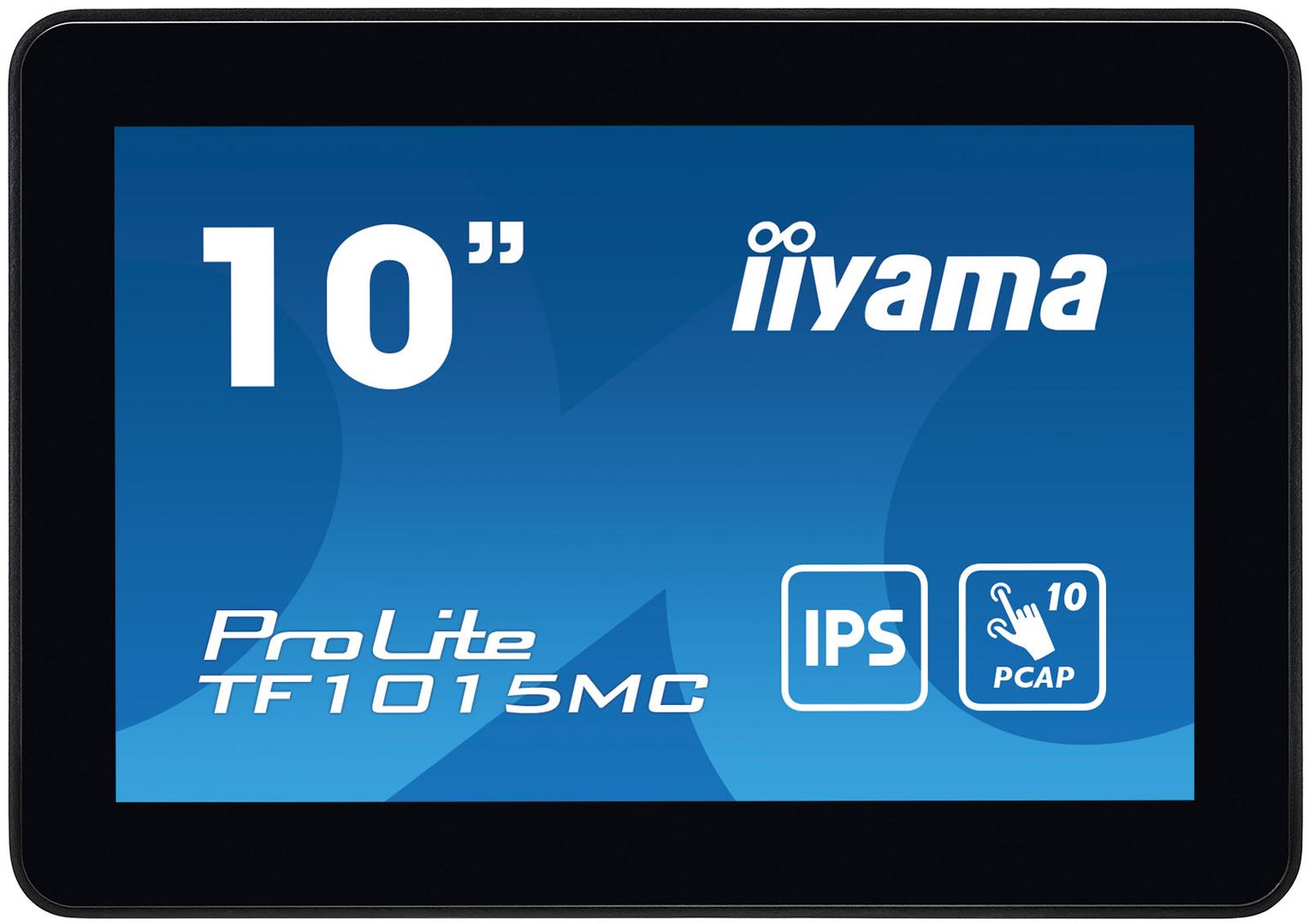

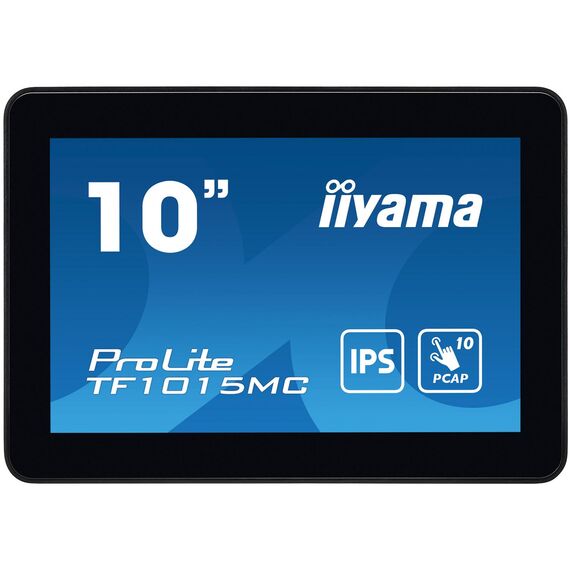

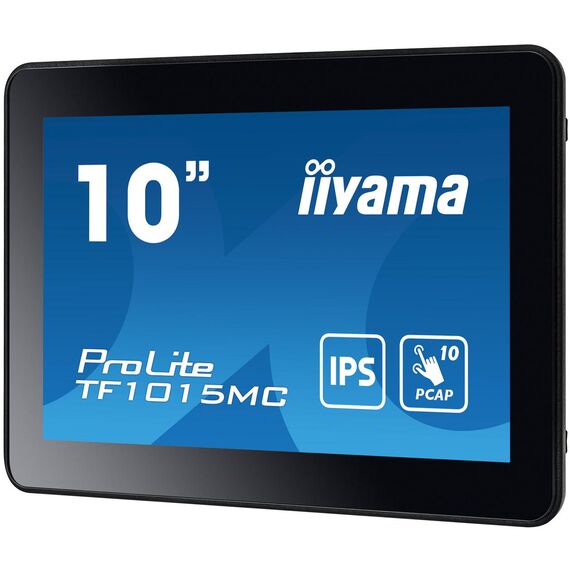

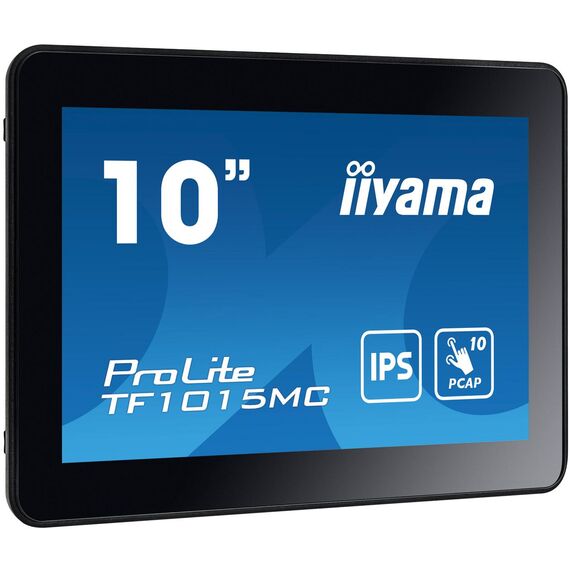

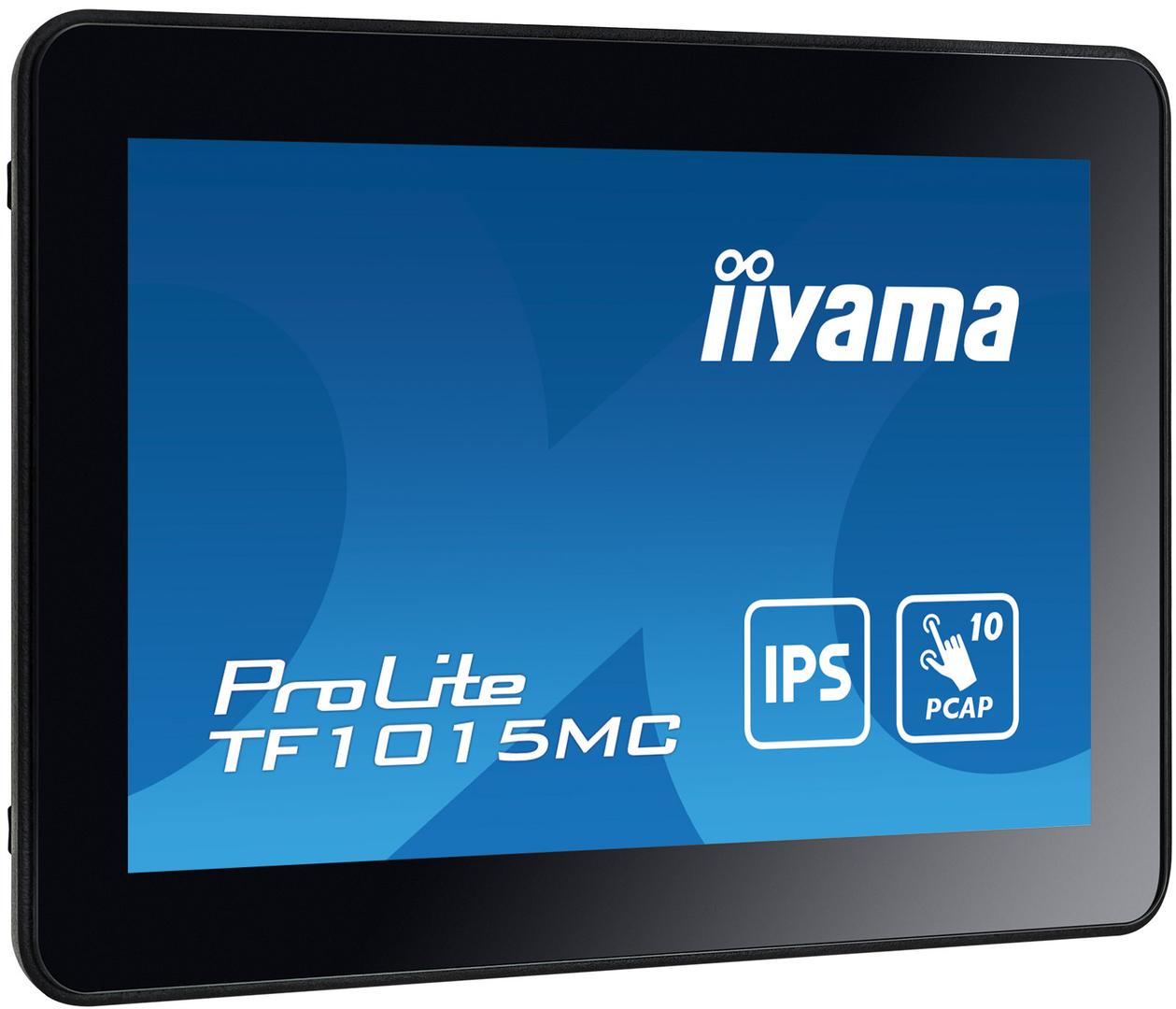

Featuring a 10.1-inch IPS display with a 16:10 aspect ratio, 1280 x 800 native resolution, and 500 cd/m2 brightness, the TF1015MC-B3 offers vivid colors and sharp images from any viewing angle. - Interactive technology
With Projected Capacitive Touch (P-CAP) technology and 10-point multi-touch capability, users can enjoy a responsive and intuitive touch experience, enhancing interaction in various applications. - Versatile connectivity
This monitor supports multiple inputs including HDMI, VGA, and DisplayPort, ensuring compatibility with a wide range of devices for both multimedia and professional use. - Energy-efficient design
With a power consumption of just 6 watts in typical operation and a Class C energy rating, the TF1015MC-B3 is an eco-friendly choice that helps reduce energy costs.
Special Features
- 10.1-inch IPS display with 1280 x 800 resolution for clear, vibrant images
- Projected Capacitive Touch (P-CAP) technology for a responsive 10-point multi-touch experience
- IP65 protection and 7H Hard Coating for enhanced durability and longevity
- Comprehensive connectivity with HDMI, VGA, and DisplayPort inputs
- Energy-efficient operation with a typical power consumption of only 6 watts
Product Specification
| Display Type | LCD monitor / TFT active matrix |
| Energy Label QR Code URL | Https://eprel.ec.europa.eu/qr/1834678 |
| Energy Class | Class C |
| Diagonal Size | 10.1" |
| Panel Type | IPS |
| Aspect Ratio | 16:10 |
| Native Resolution | WXGA 1280 x 800 |
| Pixel Pitch | 0.1695 mm |
| Brightness | 500 cd/m² |
| Brightness w/touchscreen | 425 cd/m² |
| Contrast Ratio | 800:1 |
| Colour Support | 16.7 million colours |
| Response Time | 29 ms (black-to-black) |
| Horizontal Refresh Rate | 30 - 49.7 kHz |
| Horizontal Viewing Angle | +89 / -89 |
| Vertical Viewing Angle | +89 / -89 |
| Screen Coating | 7H Hard Coating |
| OSD Languages | English, German, French, Spanish, Italian, Chinese, Japanese |
| Features | Projected Capacitive Touch (P-CAP) technology, anti-fingerprint (AF) coating, touch through-glass, foam seal, OSD key lock, HDCP, landscape mode, portrait mode, Face Up mode |
| Colour | Black |
| Dimensions (WxDxH) | 26.05 cm x 3.95 cm x 18.35 cm |
| Weight | 1.4 kg |
| Input | Input |
| Type | Touch-screen - touchscreen |
| Movement Detection Technology | Projected capacitive |
| Connectivity | Connectivity |

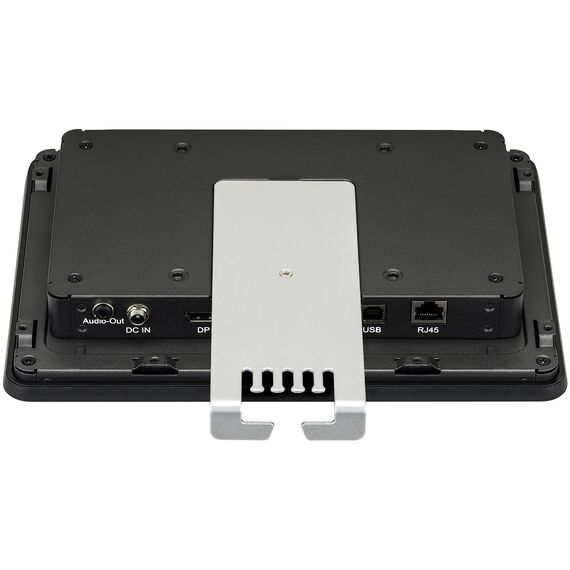

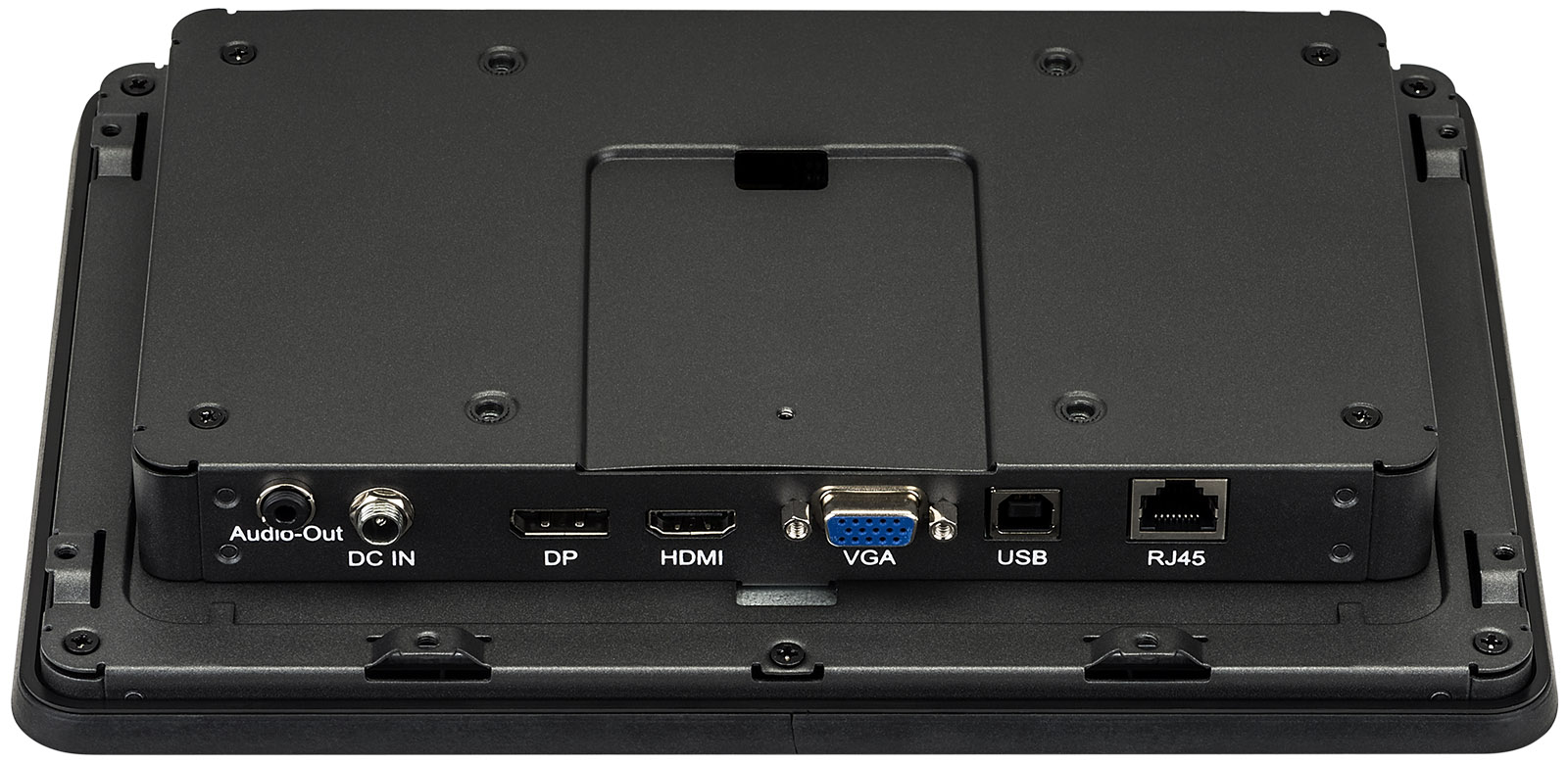

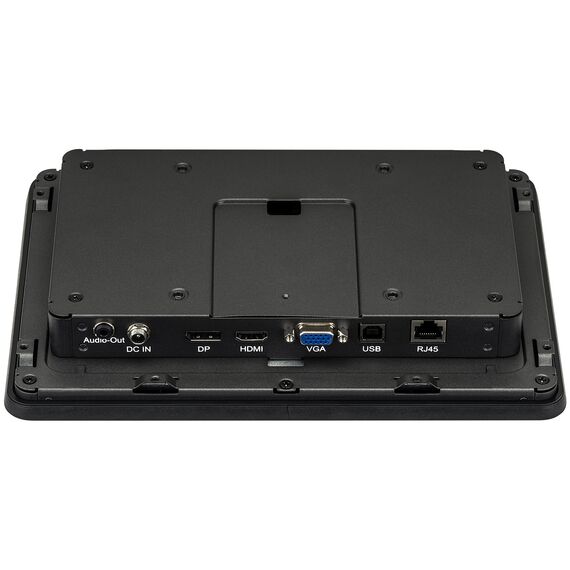

| Interfaces | VGA DisplayPort HDMI USB Audio line-out (mini-jack) LAN (RJ-45) |
| Mechanical | Mechanical |

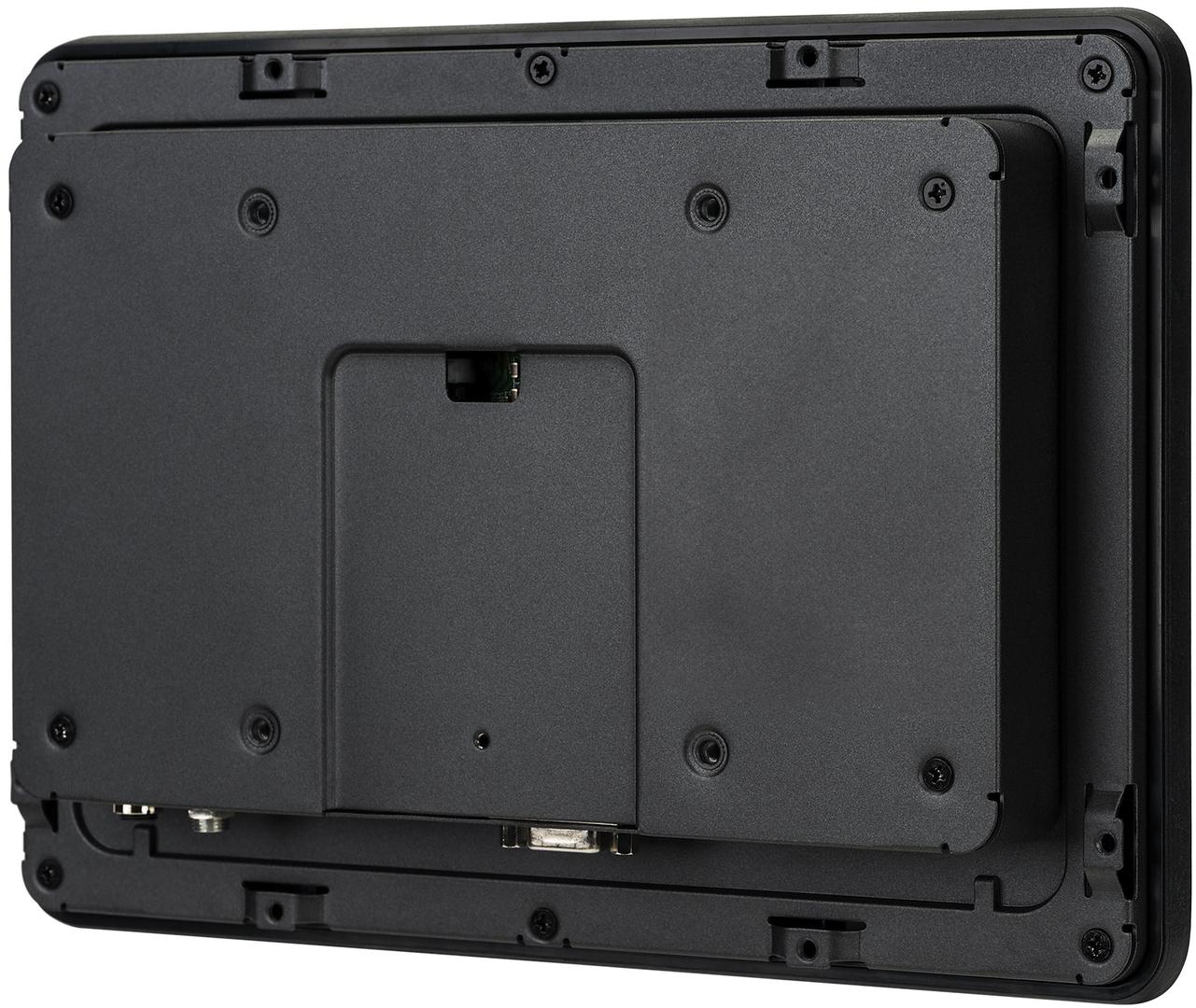

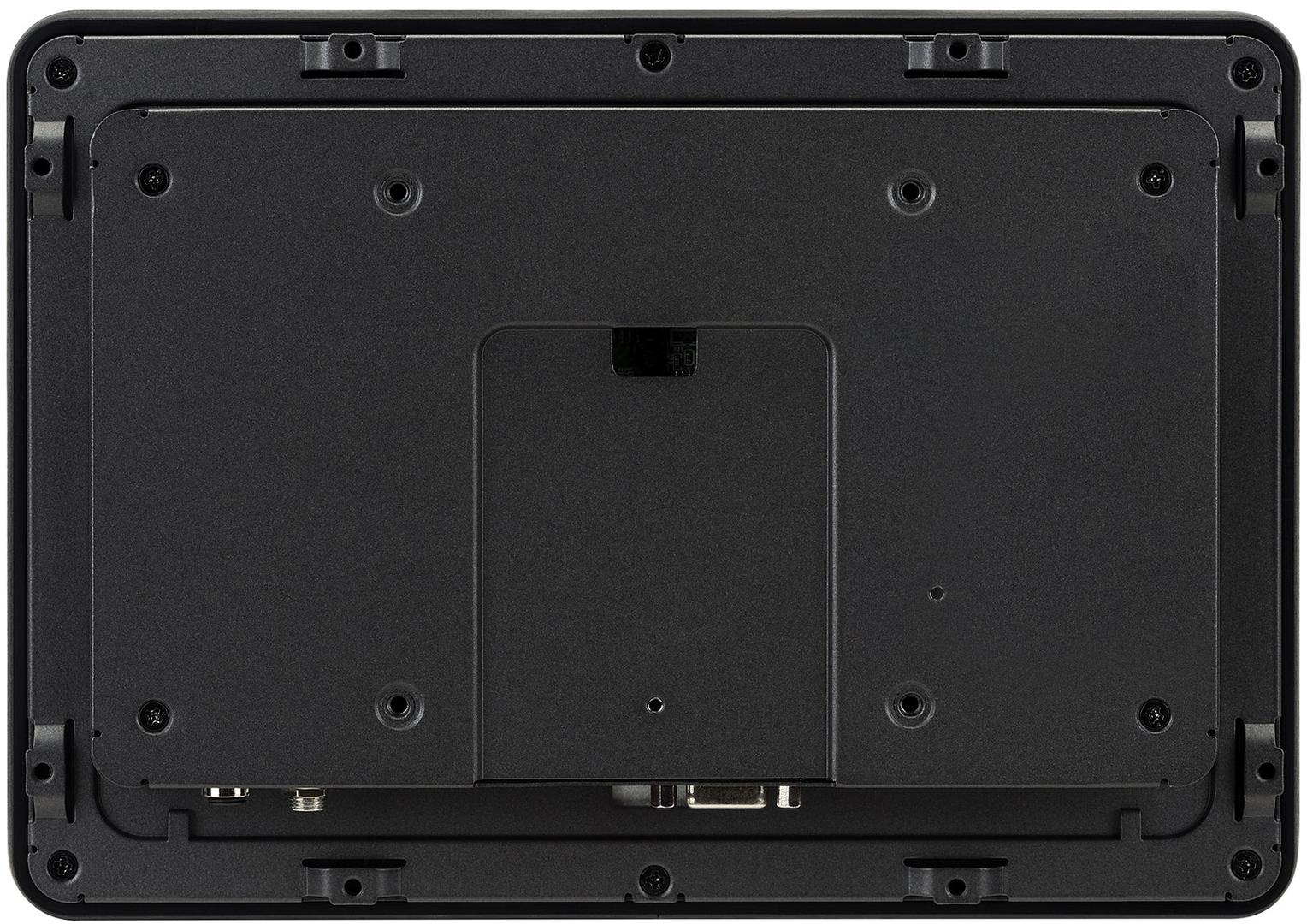

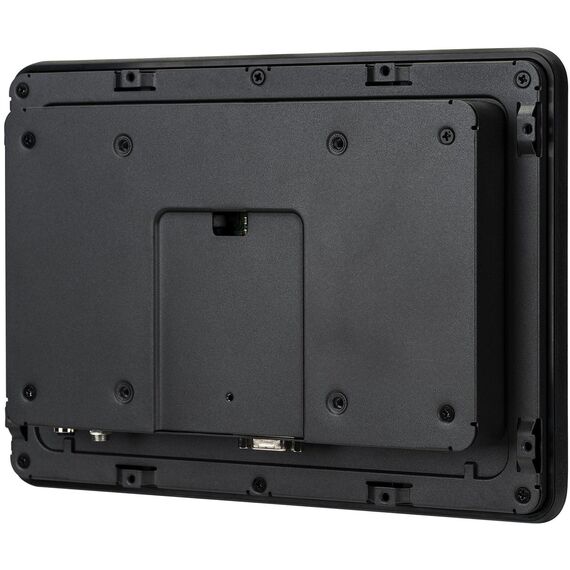

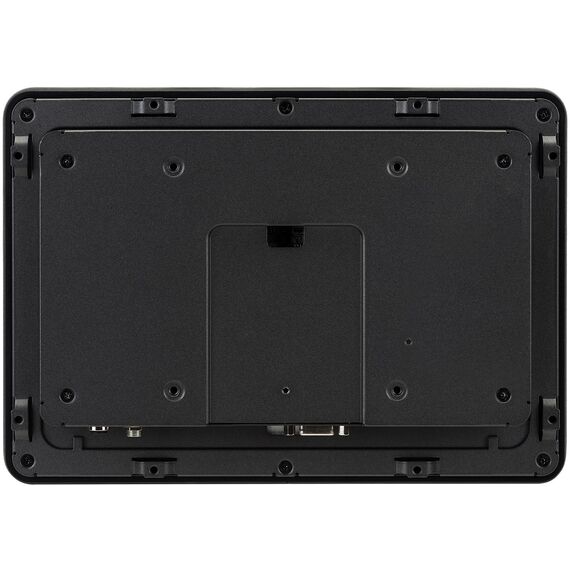

| VESA Mounting Interface | 100 x 100 mm |
| Miscellaneous | Miscellaneous |
| Features | IP65 protection, 85% light transmittance |

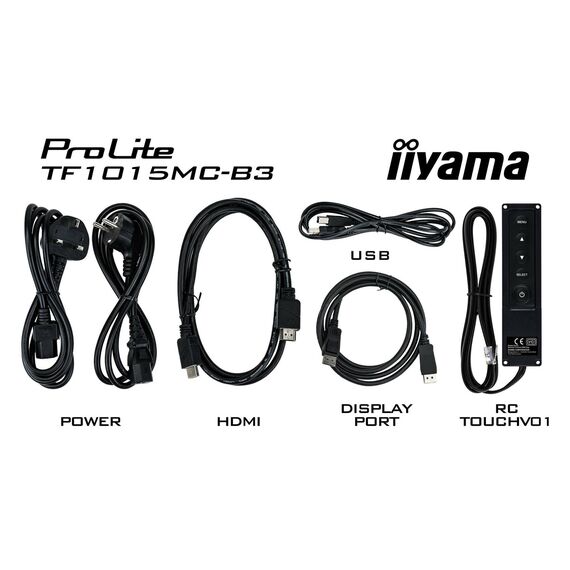

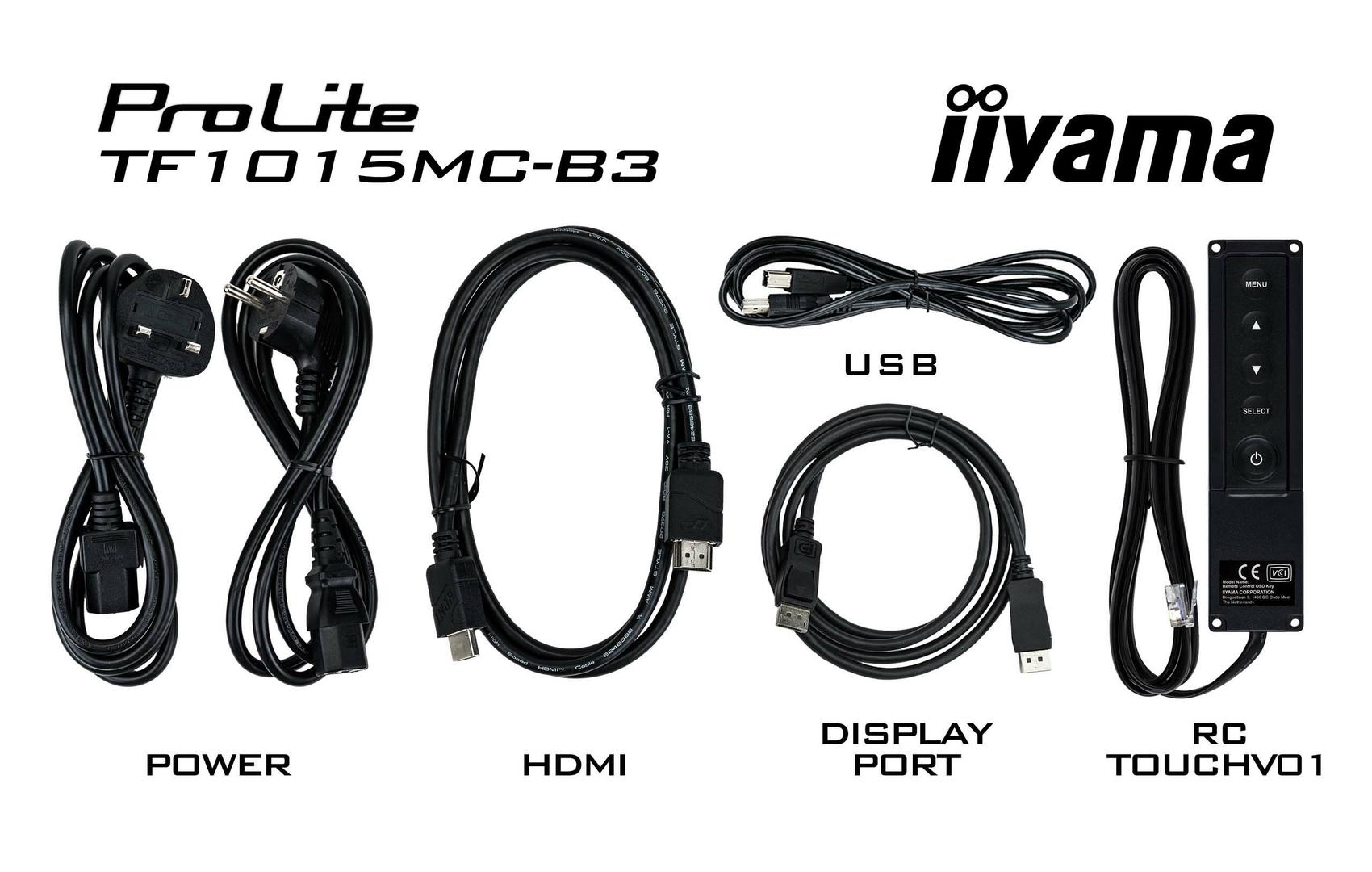

| Included Accessories | External control pad, power adapter |
| Cables Included | 1 x HDMI cable 1 x DisplayPort cable 1 x USB cable |

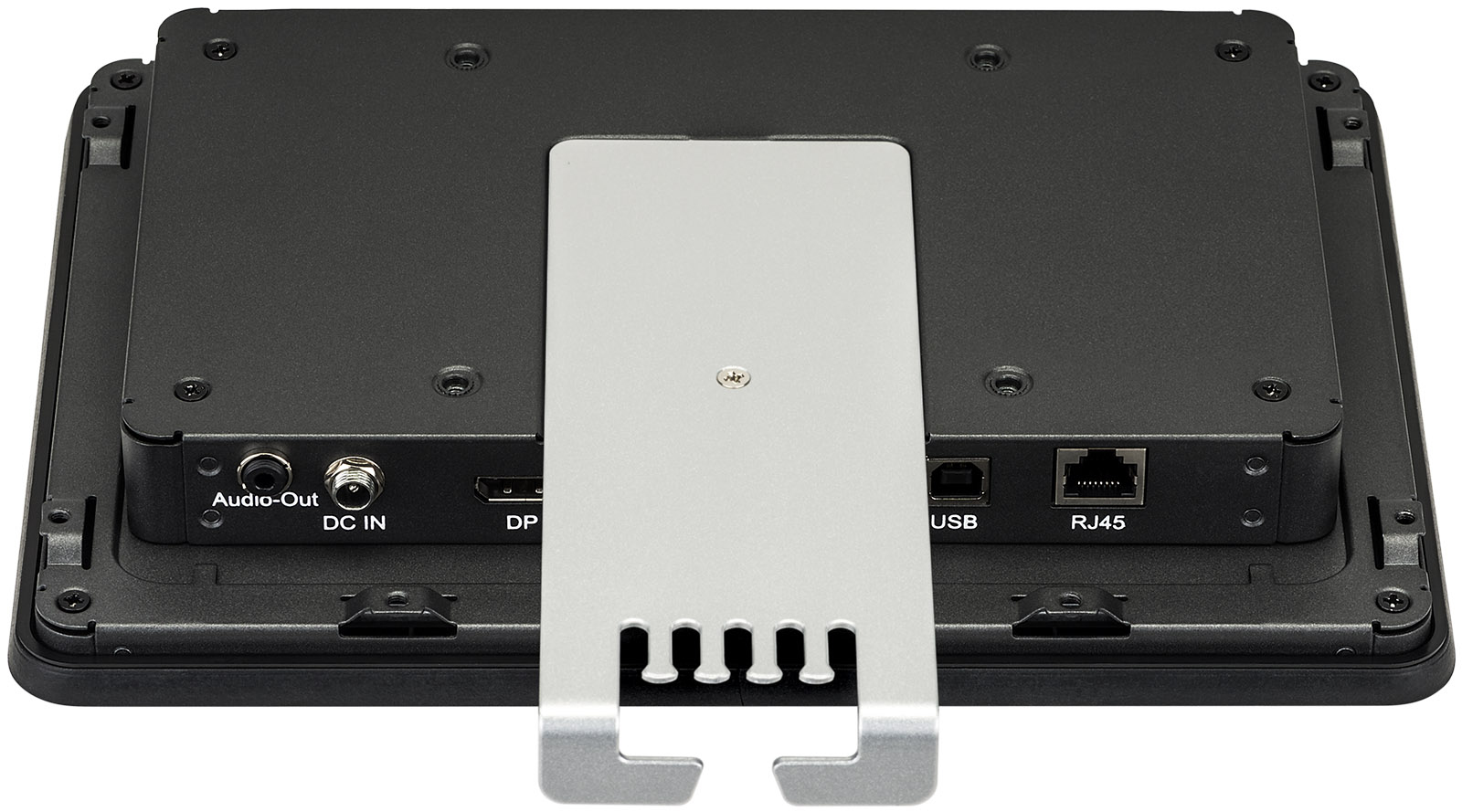

| Mounting Kit | Optional |
| MTBF | 50,000 hours |
| Compliant Standards | DDC-2B, EAC, RoHS, ERP, WEEE, cULus, REACH, UKCA, REACH SvHC |
| Power | Power |
| Input Voltage | DC 12 V |
| Power Consumption SDR (On mode) | 6 kWh/1000h |
| Power Consumption (Typical) | 6 Watt |
| Power Consumption Stand by | 1.5 Watt |
| Power Consumption (Off Mode) | 0.3 Watt |
| Software / System Requirements | Software / System Requirements |
| OS Required | Microsoft Windows, Linux |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 31 cm |
| Shipping Depth | 37 cm |
| Shipping Height | 16 cm |
| Shipping Weight | 2.7 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years - on-site |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
