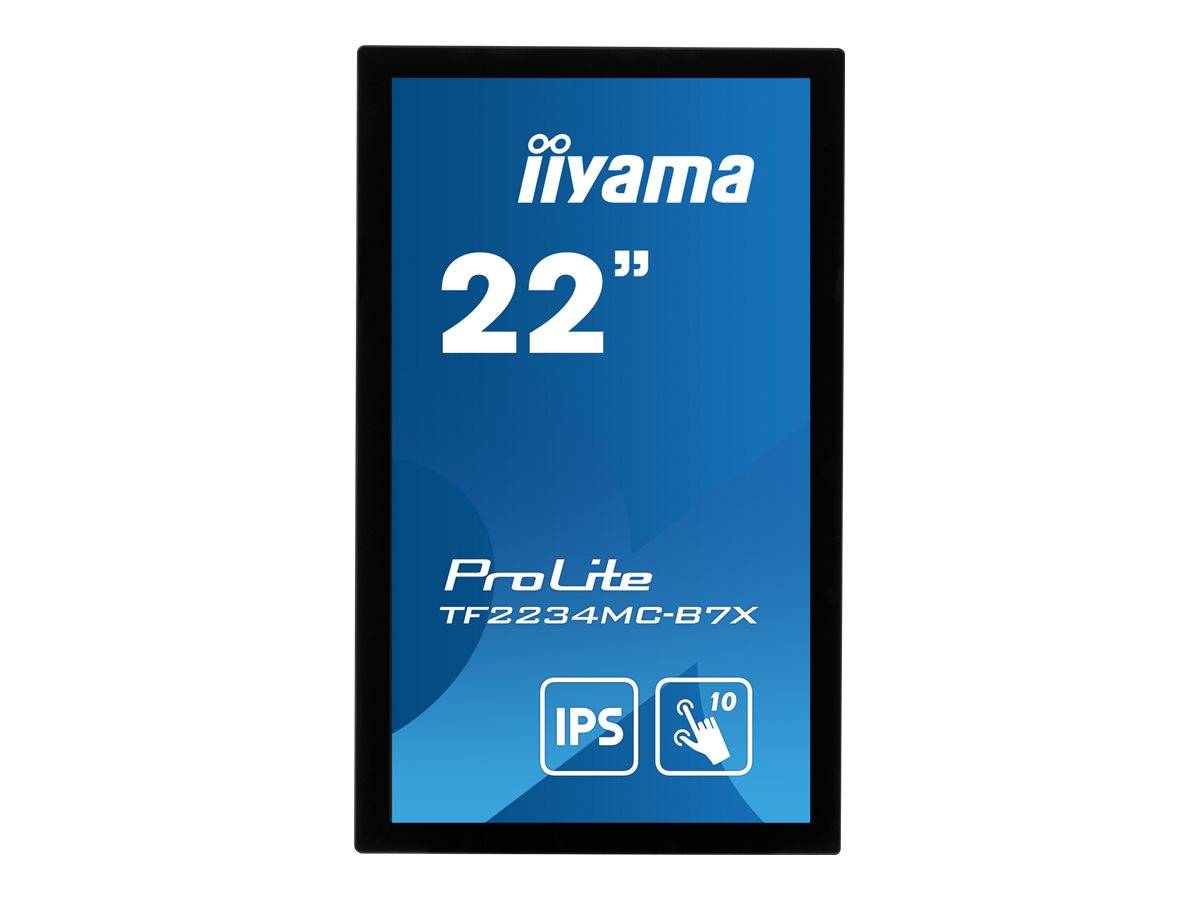

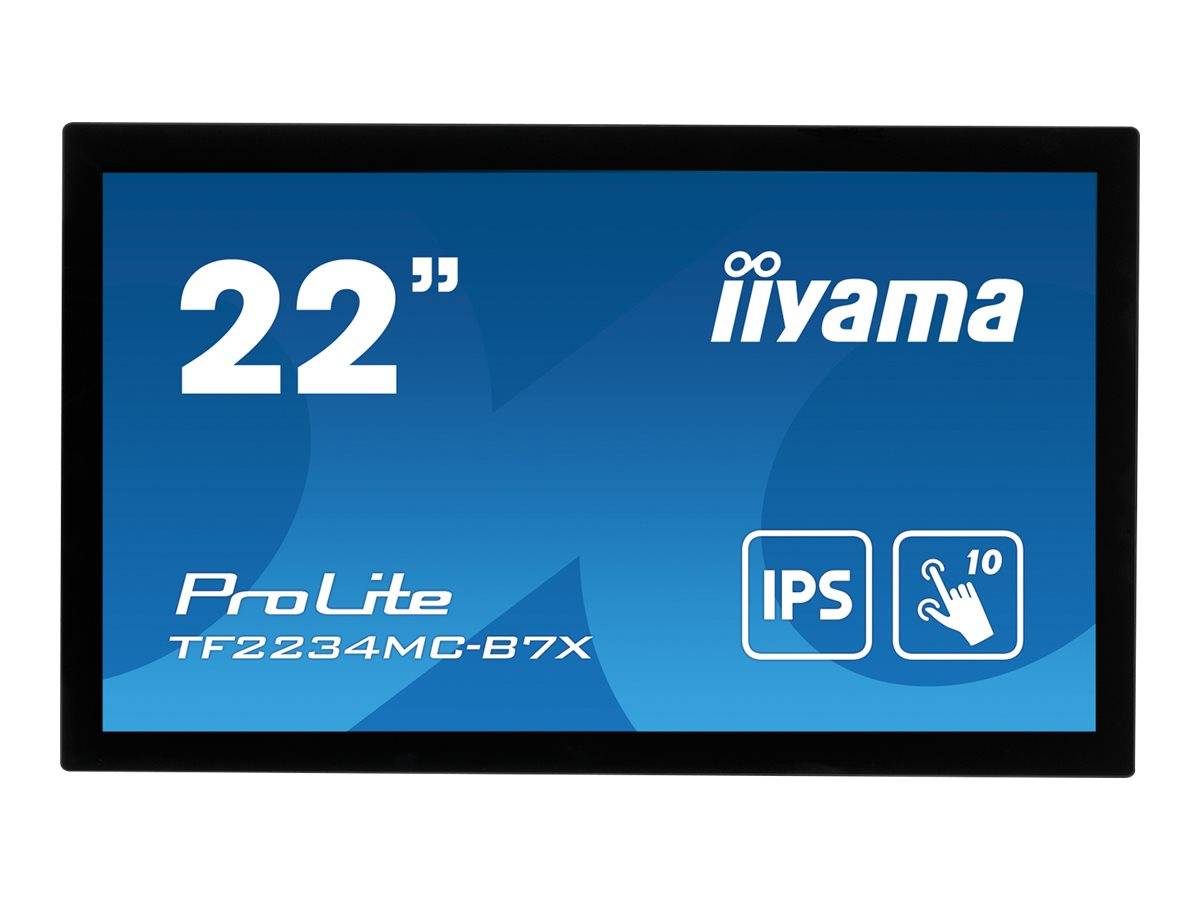

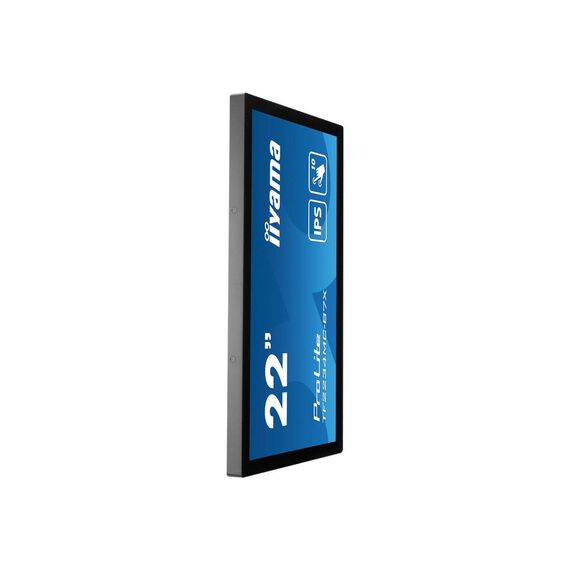

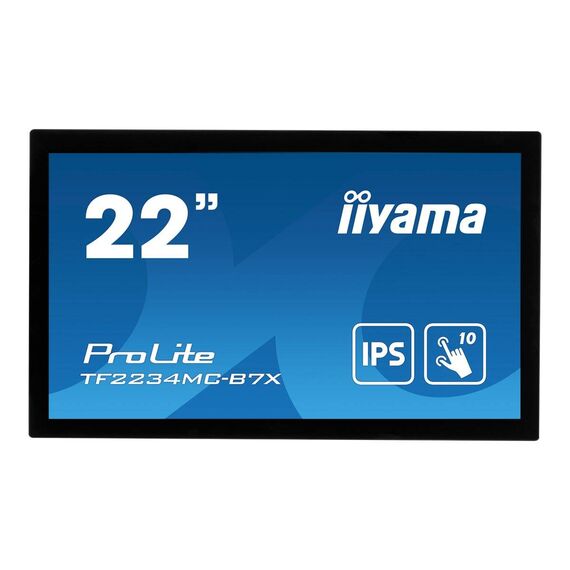

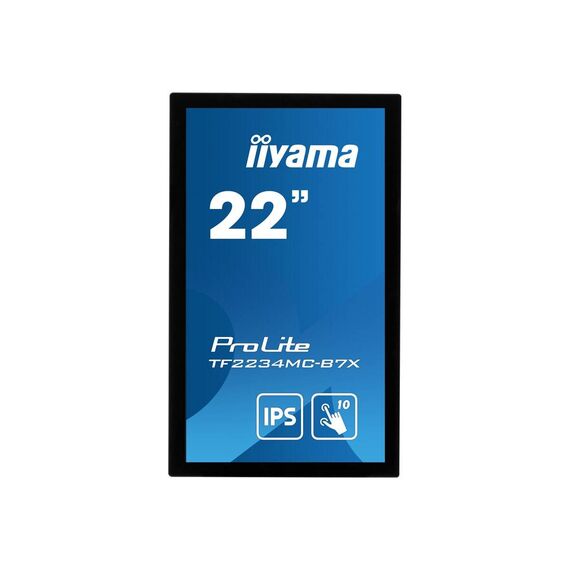

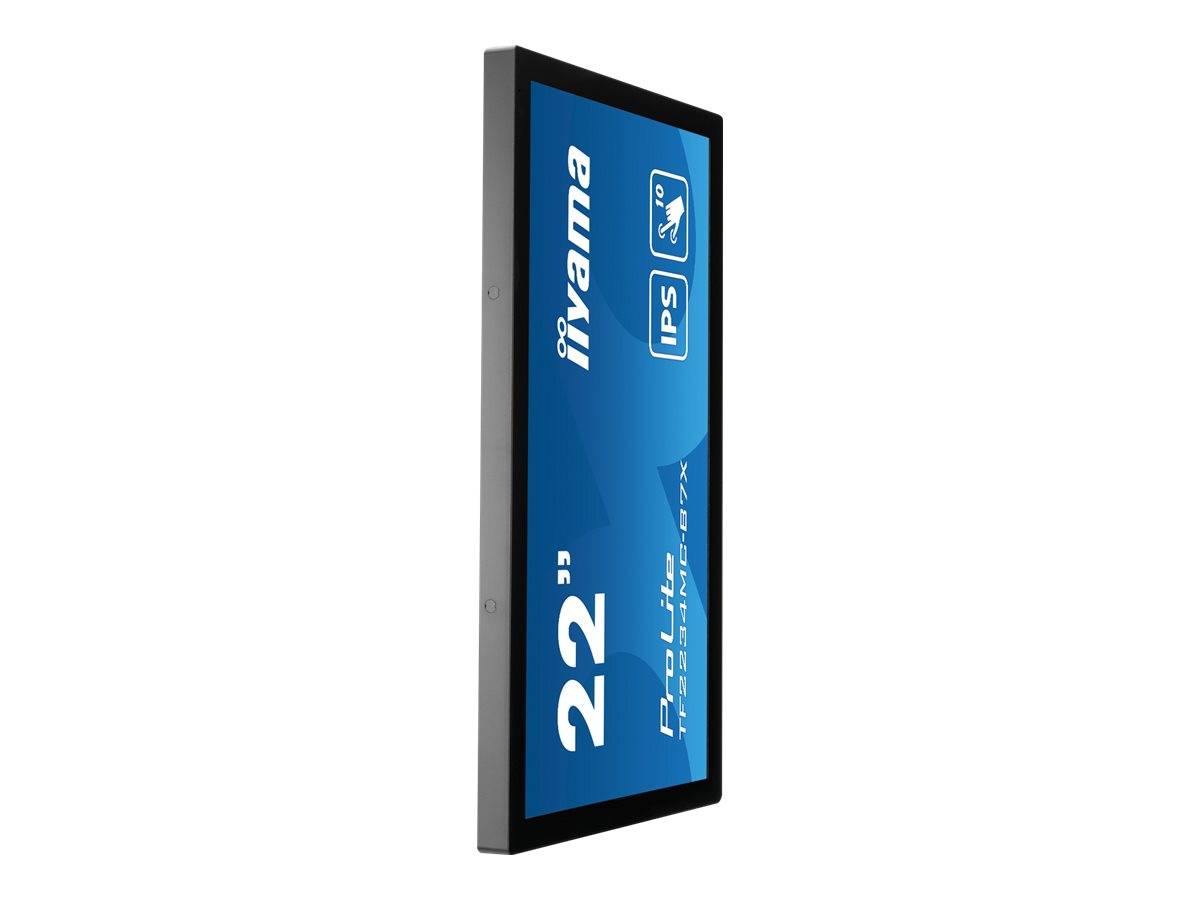

iiyama ProLite TF2234MC-B7X / LED monitor / 22" (21.5" viewable) / open frame / touchscreen / 1920 x 1080 Full HD (1080p) @ 60 Hz / IPS / 350 cd/m² / 1000:1 / 8 ms / HDMI, VGA, DisplayPort / black | TF2234MC-B7X
Please sign in so that we can notify you about a reply
Product Features
- IPS technology
IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it. - Touch through-glass
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants. - Touch technology - capacitive
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen. - Anti-fingerprint coating
This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen. - Scratch resistance
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
Special Features
- IPS technology
- Touch through-glass
- Touch technology - capacitive
- Anti-fingerprint coating
- Scratch resistance
Product Specification
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Energy Class | Class F |
| Diagonal Size | 22" |
| Viewable Size | 21.5" |
| Panel Type | IPS |
| Aspect Ratio | 16:9 |
| Native Resolution | Full HD (1080p) 1920 x 1080 at 60 Hz |
| Pixel Pitch | 0.247 mm |
| Brightness | 350 cd/m² |
| Brightness w/touchscreen | 305 cd/m² |
| Contrast Ratio | 1000:1 |
| Colour Support | 16.7 million colours |
| Response Time | 8 ms |
| Vertical Refresh Rate | 56 - 76 Hz |
| Horizontal Refresh Rate | 30 - 84 kHz |
| Horizontal Viewing Angle | 178 |
| Vertical Viewing Angle | 178 |
| Screen Coating | 7H Hard Coating |
| Backlight Technology | LED backlight |
| OSD Languages | English, German, French, Italian, Polish, Russian, Spanish, Dutch, Japanese |
| Features | HighBrightness, HDCP, 10-point multi-touch, anti-fingerprint, landscape mode, portrait mode, Face Up mode |
| Colour | Black |
| Dimensions (WxDxH) | 51.75 cm x 4.6 cm x 31.35 cm |
| Weight | 4.4 kg |
| Input | Input |
| Type | Touch-screen - touchscreen |
| Movement Detection Technology | Projected capacitive |
| Connectivity | Connectivity |
| Interfaces | DisplayPort ¦ VGA ¦ HDMI ¦ USB |
| Mechanical | Mechanical |
| VESA Mounting Interface | 100 x 100 mm |
| Miscellaneous | Miscellaneous |

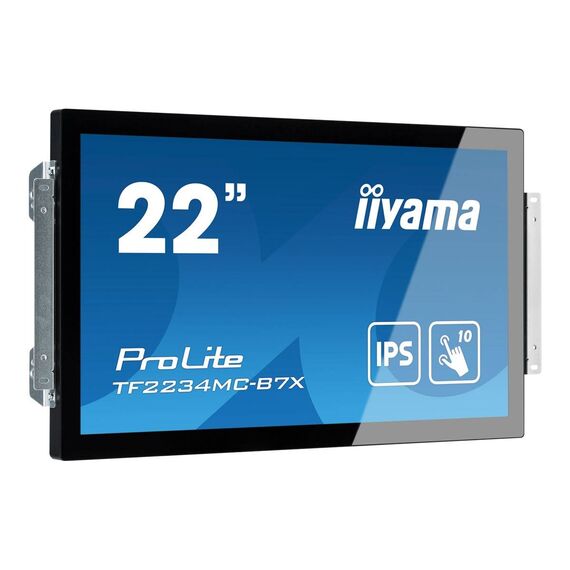

| Features | Landscape / portrait mounting, front IP65 protection |
| Cables Included | 1 x HDMI cable - 1.8 m ¦ 1 x display cable - 1.8 m ¦ 1 x USB cable - 1.8 m |
| Mounting Kit | Included |
| Compliant Standards | Plug and Play, VCCI, DDC-2B, cULus, TUV Bauart, IP65, CU, REACH SvHC |
| Power | Power |
| Input Voltage | AC 120/230 V (50/60 Hz) |
| Power Consumption (On mode) | 18.8 W |
| Power Consumption SDR (On mode) | 18.8 kWh/1000h |
| Power Consumption (Typical) | 18 Watt |
| Power Consumption Stand by | 1 Watt |
| Power Consumption (Off Mode) | 1 Watt |
| Software / System Requirements | Software / System Requirements |
| Included Software | Drivers & Utilities |
Features - Iiyama - TF2234MC-B7X
More Details
Product Code
CA86080
EAN Code
4948570118366
Manufacturer
Iiyama
