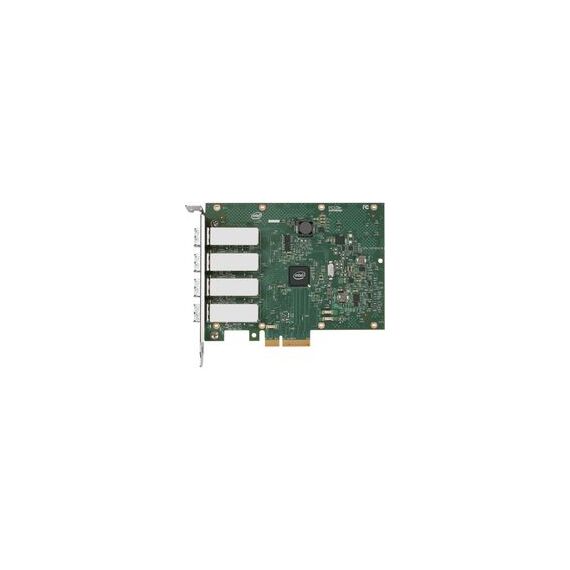

Intel Ethernet Server Adapter I350-F4 Network adapter PCI Express 2.0 x4 1000Base-SX x 4

Intel I350F4BLK Intel ETHERNET I350-F4 SERVER (I350F4BLK)

Intel ETHERNET I350-F4 SERVER (I350F4BLK)

Intel® Ethernet Power Management
Intel® Ethernet Power Management Technology provides solutions to common power management approaches by reducing idle power, reducing capacity and power as a function of demand, operating at maximum energy efficiency whenever possible, and enabling functionality only when needed.

Flexible Port Partitioning
Flexible Port Partitioning FPP technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.

Virtual Machine Device Queues VMDq
Virtual Machine Device Queues VMDq is a technology designed to offload some of the switching done in the VMM Virtual Machine Monitor to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance

PCI-SIG SR-IOV Capable
Single-Root I/O Virtualization SR-IOV involves natively directly sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function for example a single Ethernet Port can appear to be multiple separate physical devices.

Feature list

Connectivity technology:	Wired
Host interface:	PCI-E
Interface:	Ethernet
Connection to PC:	Y
Internal:	Y
Ethernet LAN RJ-45 ports quantity:	4
Data transfer rate max:	1000 Mbit/s
Ethernet LAN connection:	Y
Networking standards:	IEEE 802.3, IEEE 802.3u
Colour of product:	Green
Ethernet LAN data transfer rates:	10, 100, 1000 Mbit/s
Thermal power:	5.5 W
Intel Virtual Machine Device Queues VMDq:	Y
PCI-SIG SR-IOV Capable:	Y
On-chip QoS and Traffic Management:	Y
Intel Flexible Port Partitioning:	Y
Intelligent Offloads:	Y
iWARP/RDMA:	N
Intel Ethernet Power Management:	Y
PCI Card form factor:	full-height low-profile
Cable type:	Fiber
Networking features:	Gigabit Ethernet
