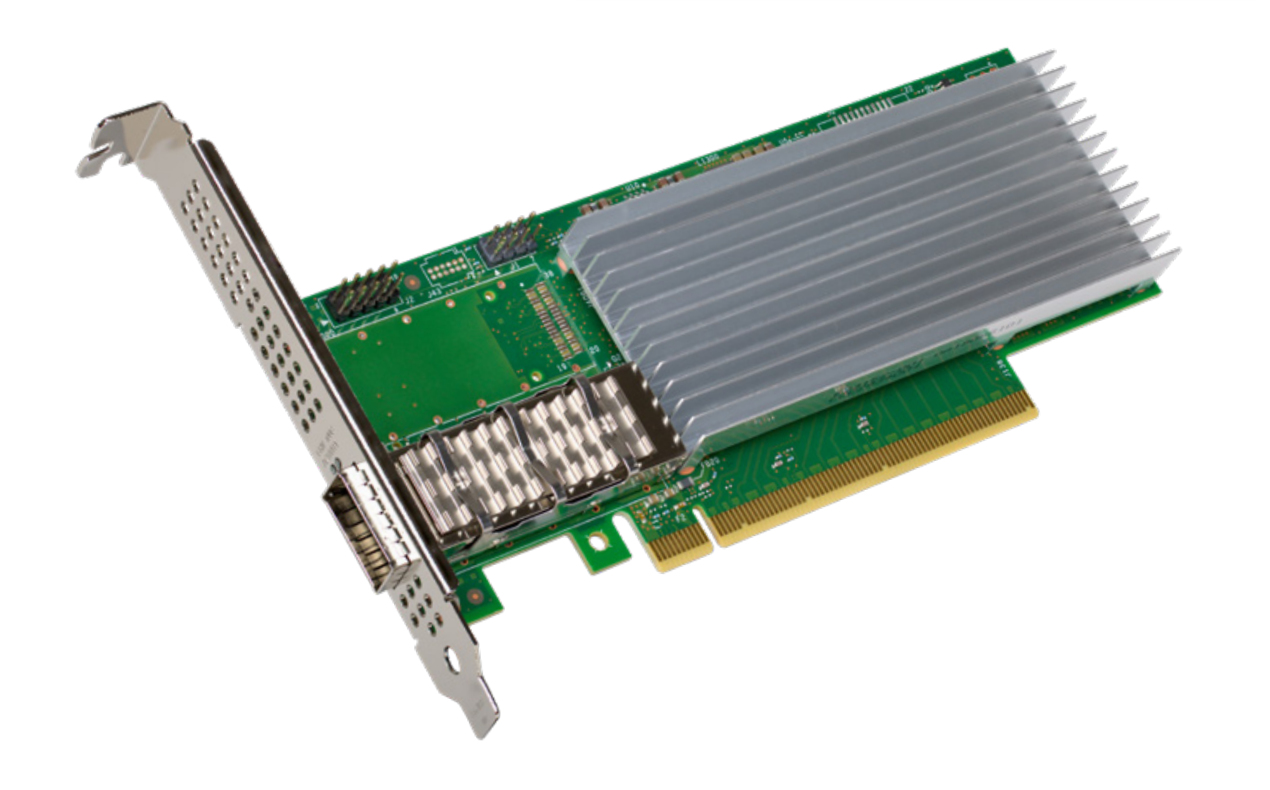

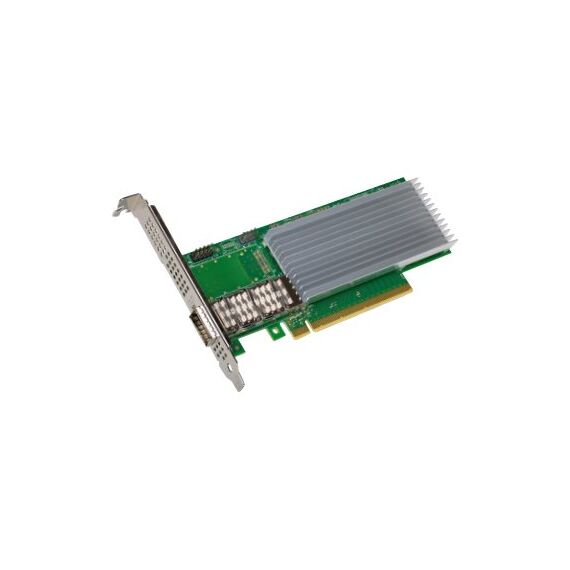

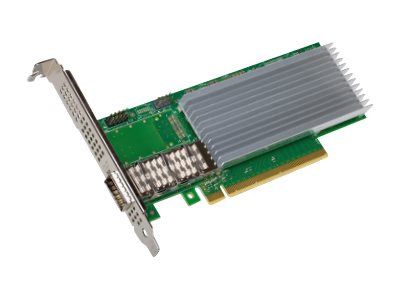

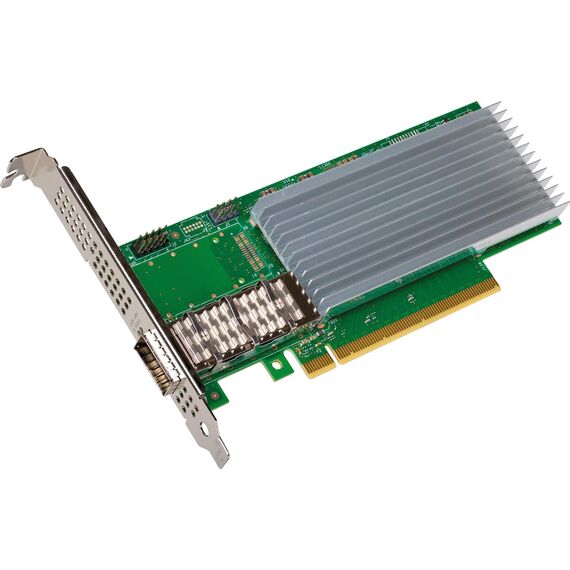

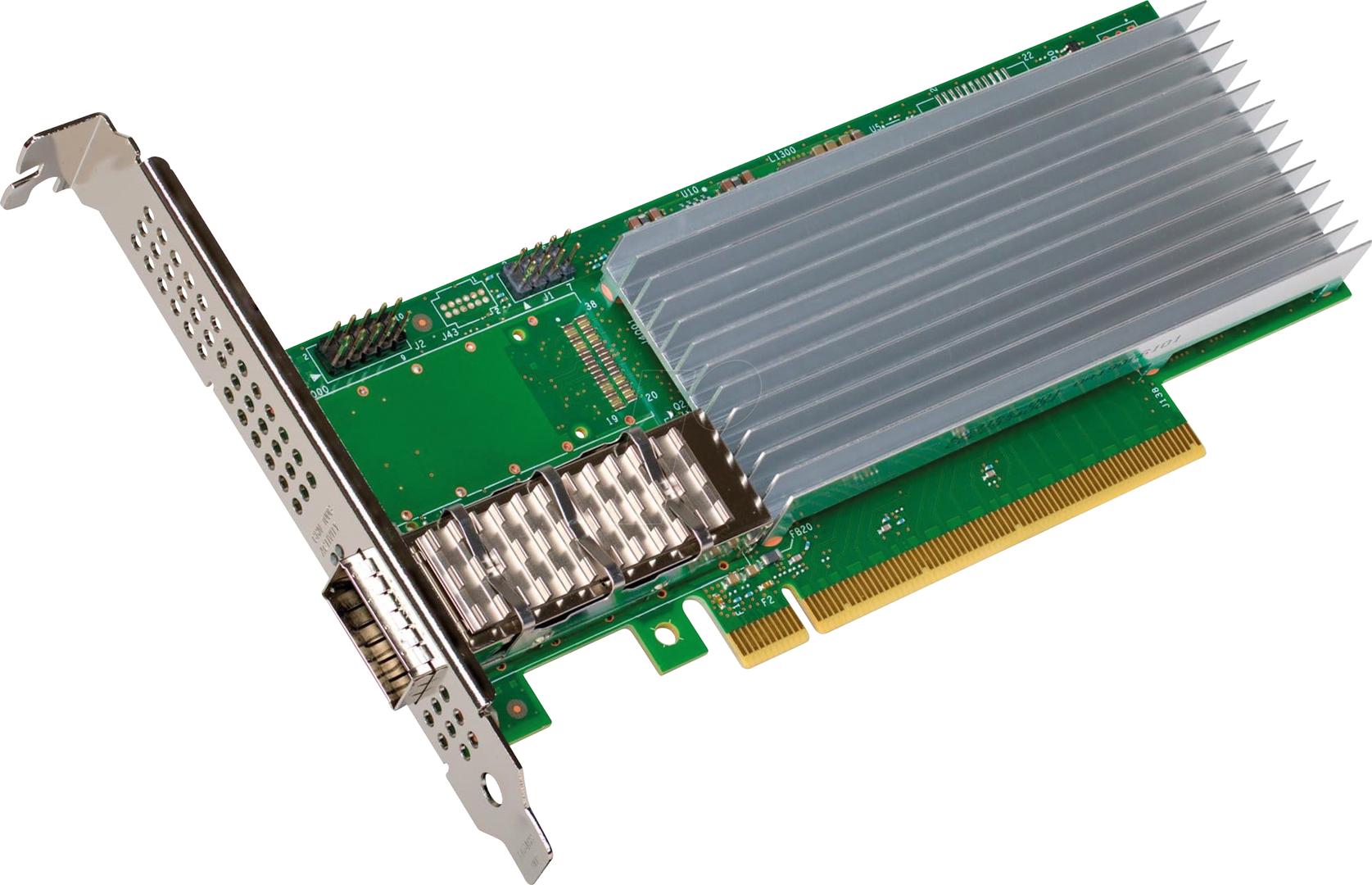

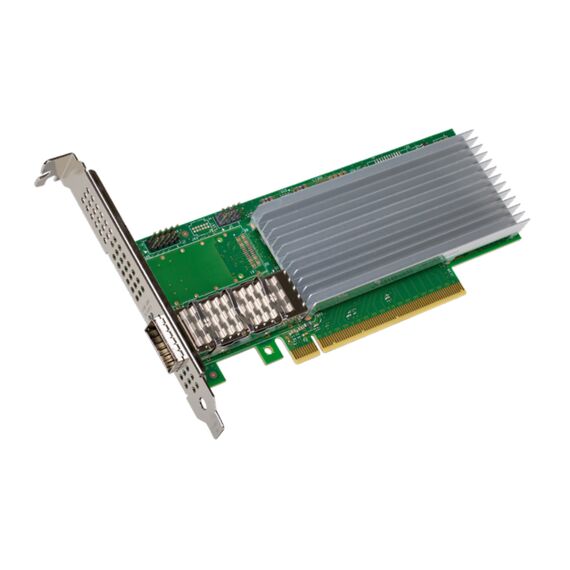

Intel Ethernet Network Adapter E810-CQDA1 - Network adapter - PCIe 4.0 x16 low profile - QSFP28 x 1 | E810CQDA1BLK
Please sign in so that we can notify you about a reply
Product Features
- Performance for cloud applications
Delivers the bandwidth and increased application throughput required for demanding cloud workloads including edge services, web servers, database applications, caching servers, and storage targets. - Optimizations for communications workloads
Provides packet classification and sorting optimizations for high-bandwidth network and communications workloads, including mobile core, 5G RAN, and network appliances.
Special Fetures
- Single and Dual-Port QSFP28
- PCI Express (PCIe) 3.0 and 4.0, x16
- Ethernet Port Configuration Tool (EPCT)
- Application Device Queues (ADQ)
- Dynamic Device Personalization (DDP)
- Supports both RDMA iWARP and RoCEv2
Product Specification
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 4.0 x16 |
| PCI Specification Revision | PCIe 3.0, PCIe 4.0 |
| Networking | |
| Ports | QSFP28 x 1 |
| Connectivity Technology | Wired |
| Data Link Protocol | 10 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 50 Gigabit Ethernet |
| Remote Management Protocol | SNMP, RMON |
| Features | RDMA support, MSI-X, DSCP support, RoCE v2 |
| Compliant Standards | IEEE 802.1p |
| Expansion / Connectivity | |
| Interfaces | 1 x 100Gb Ethernet - QSFP28 |
| Miscellaneous | |
| Included Accessories | Low-profile bracket |
| Compliant Standards | UL, VCCI, BSMI, FCC, RoHS, KCC, Directive 2011/65/EU, RCM |
| Dimensions & Weight | |
| Depth | 167 mm |
| Height | 69 mm |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 60 °C |
| Humidity Range Operating | 90% (non-condensing) |
Features - Intel - E810CQDA1BLK
More Details
Product Code
1359697
EAN Code
5032037172189
Manufacturer
Intel
