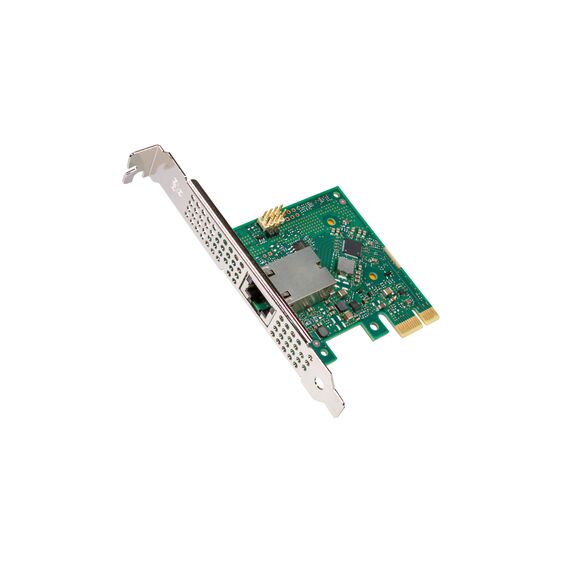

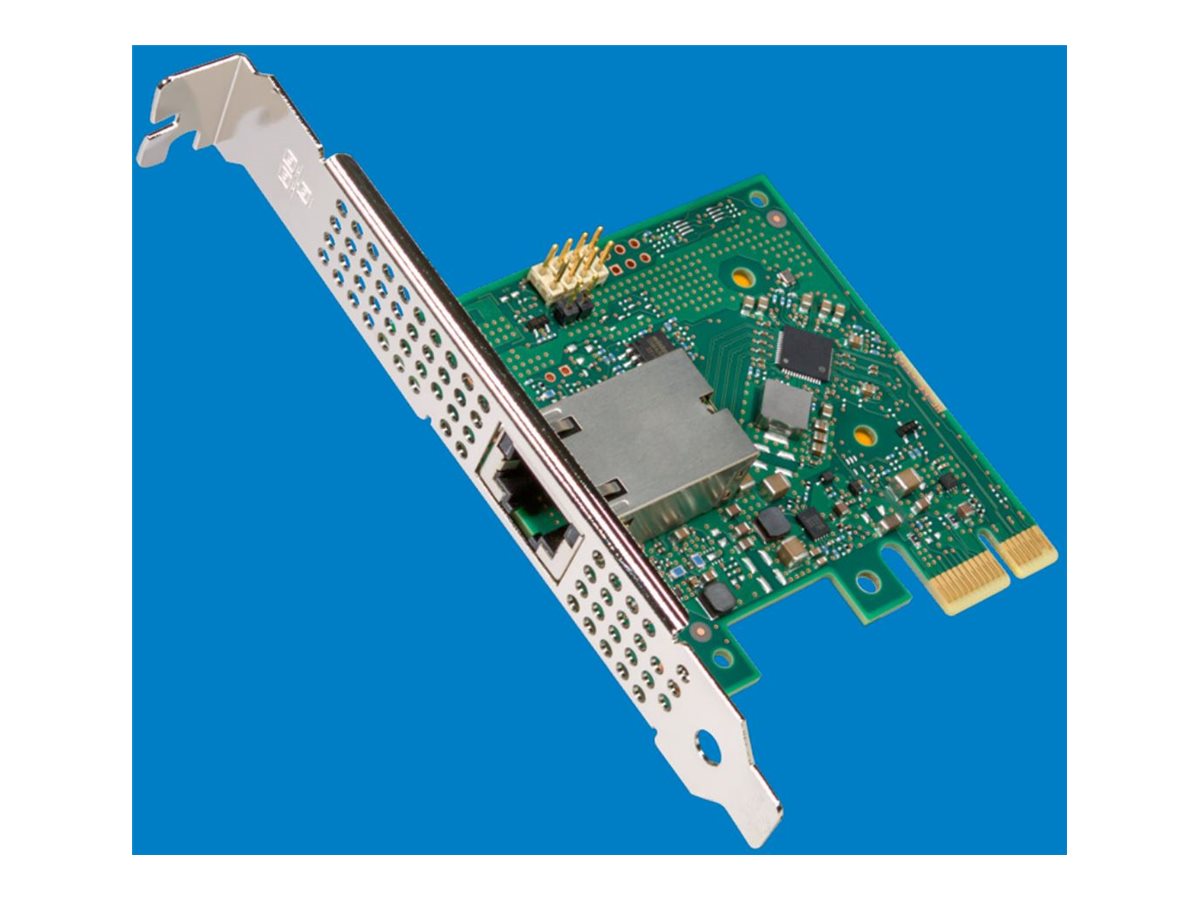

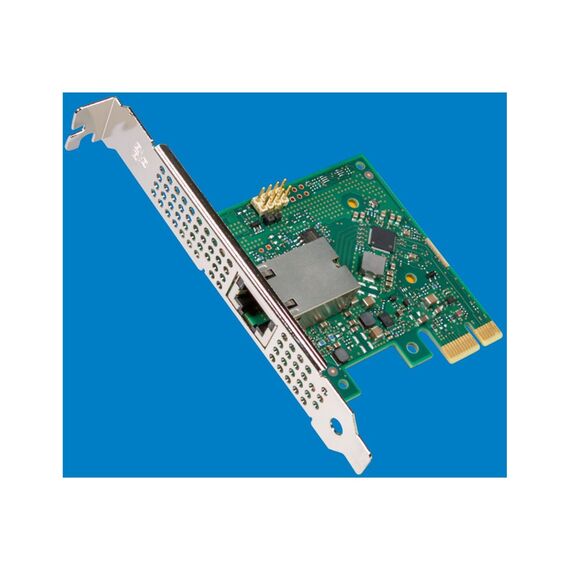

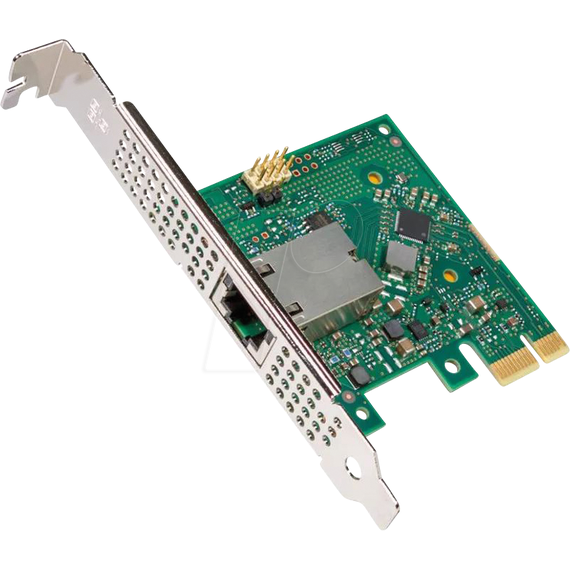

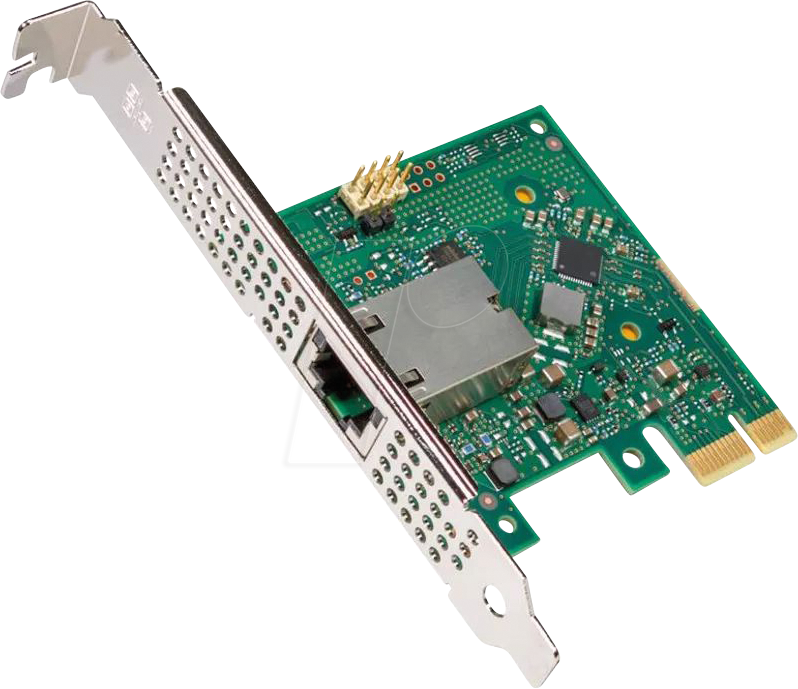

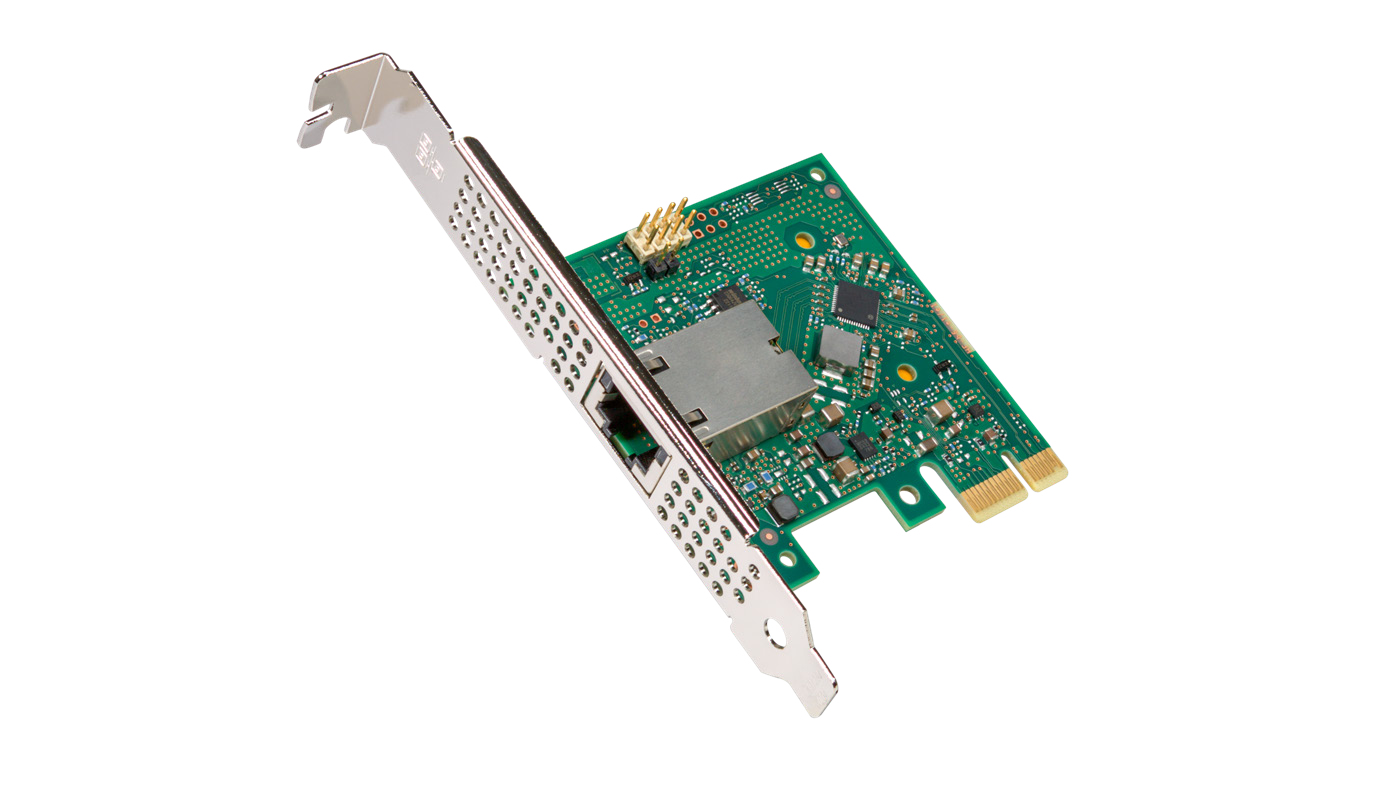

Intel Ethernet Network Adapter I226-T1 - Network adapter - PCI Express 3.1 x1 low profile - 2.5GBase-T x 1 | I226T1BLK
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 3.1 x1 |
| PCI Specification Revision | PCIe 3.1 |
| Networking | |
| Ports | 2.5GBase-T x 1 |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 2.5GBase-T |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Data Transfer Rate | 2.5 Gbps |
| Capacity | Tx queues: 4 ¦ Rx queues: 4 |
| Network / Transport Protocol | TCP/IP, UDP/IP, SCTP, IPv4, IPv6 |
| Status Indicators | Link/activity |
| Features | Flow control, auto-negotiation, load balancing, Receive Side Scaling (RSS), TCP Segmentation Offload (TSO), PXE 2.1 support, ACPI 2.0 support, APM support, Active State Power Management (ASPM) support, low power consumption, 9.5 KB Jumbo Frame |
| Compliant Standards | IEEE 802.3, IEEE 802.3z, IEEE 802.3x |
| Processor / Memory | |
| Processor | 1 x Intel I226 |
| Expansion / Connectivity | |
| Interfaces | 1 x 2.5Gb Ethernet - RJ-45 |
| Miscellaneous | |
| Included Accessories | Low-profile bracket, full-height bracket |
| Compliant Standards | FCC Class B certified, UL, VCCI, C-Tick, BSMI, EMC, RoHS, KCC, EMI, Directive 2011/65/EU, EN 62368-1:2014, UL 62368-1, Directive 2015/863/EU, CAN/CSA-C22.2 No. 62368-1-14 |
| Package Type | Bulk |
| Power | |
| Power Consumption Operational | 1.4 Watt |
| Dimensions & Weight | |
| Depth | 65.3 mm |
| Height | 68.7 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 55 °C |
Features - Intel - I226T1BLK
More Details
Product Code
04:468723
EAN Code
5032037262668
Manufacturer
Intel
