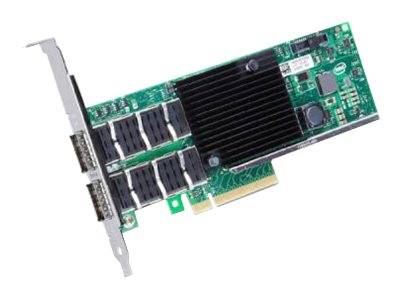

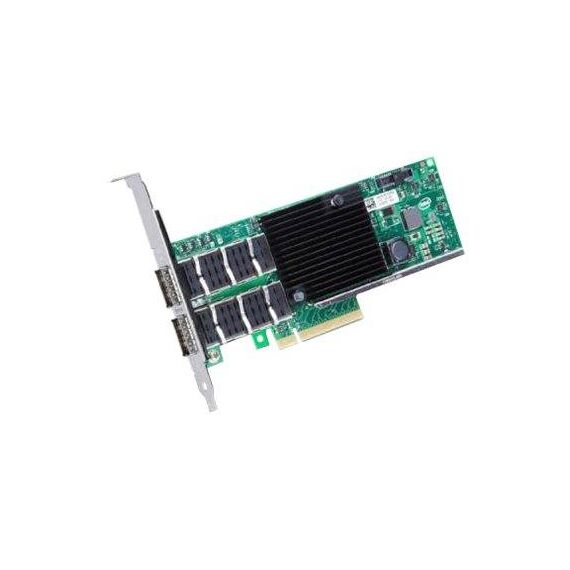

Intel Ethernet Converged Network Adapter X710-DA2 / Network adapter / PCIe 3.0 x8 low profile / 10 Gigabit SFP+ x 2 | X710DA2

Brand: Intel

CODE (SKU):

X710DA2

€297.59

(€354.13 inc. VAT)

Availability: 63 item(s)

Standard delivery within 3 to 8 business days.

+ −

Ask a question

Find similar

Delivery

Payment options

Product Code07:730230 EAN Code5032037063463 ManufacturerIntel

Description
Features

Intel Ethernet Converged Network Adapter X710-DA2 / Network adapter / PCIe 3.0 x8 low profile / 10 Gigabit SFP+ x 2 | X710DA2

Description

Intel continues its legacy of Ethernet leadership by introducing a 10/40 gigabit family of adapters powered by, the Intel Ethernet XL710 Controller.The XL710 adapter family addresses the demanding needs of the next-generation agile data center by providing unmatched features for both server and network virtualization, flexibility for LAN and SAN networks, and proven, reliable performance.

Special Features

Dual- and quad-port 10 GbE adapters
PCI Express (PCIe) 3.0, x8
Exceptional low power adapters
Network Virtualization offloads including Geneve, VXLAN and NVGRE
Intel Ethernet Flow Director for hardware based application traffic steering
Intel Data Plane Developer Kit (DPDK) optimized for efficient packet processing
Excellent small packet performance for network appliances and Network Function Virtualization (NFV)
Intelligent offloads to enable high performance with Intel Xeon servers
I/O virtualization innovations for maximum performance in a virtualized server
Unified networking providing a single wire support for LAN and storage: NAS (SMB, NFS) and SAN (iSCSI, FCoE)

Product Specification

Device Type	Network adapter
Form Factor	Plug-in card - low profile
Interface (Bus) Type	PCI Express 3.0 x8
Ports	10 Gigabit SFP+ x 2
Connectivity Technology	Wired
Data Link Protocol	10 GigE
Data Transfer Rate	10 Gbps
Network / Transport Protocol	TCP/IP, UDP/IP, iSCSI
Remote Management Protocol	SNMP, RMON
Status Indicators	Port transmission speed, link/activity
Features	Flow control, VLAN support, packet filtering, IPv6 support, TCP/IP offloading, Quality of Service (QoS), Virtual Machine Device Queues (VMDq), IPv4 support, teaming support, PXE support, Large Send Offload (LSO), Giant Send Offload (GSO), Receive Side Scaling (RSS), Single Root I/O Virtualization (SR-IOV), Data Center Bridging (DCB), adaptive load balancing (ALB), Energy Efficient Ethernet, TCP Segmentation Offload (TSO), checksum offload support, Extended Message-Signaled Interrupts (MSI-X), UDP/IP offloading, Watch Dog Timer (WDT), FCoE support, iSCSI boot
Compliant Standards	IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.1Qbg
Interfaces	2 x 10Gb Ethernet - SFP+
Compliant Standards	FCC Class B certified, UL, VCCI, C-Tick, BSMI, RoHS, KCC, Directive 2011/65/EU, MSA SFF-8431
OS Required	Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008, Linux Kernel 2.6.32, Microsoft Windows Server 2012, FreeBSD 9, Microsoft Windows Server 2008 R2 (64-bits), VMware ESXi 5.1, Microsoft Windows Server 2012 x64 Edition, Microsoft Windows Server 2012 R2, Linux Kernel 3.x, Microsoft Windows Server 2012 R2 x64 Edition, SuSE Linux Enterprise Server 11 SP3, Red Hat Enterprise Linux 6.5, VMware ESXi 5.5, FreeBSD 10, Red Hat Enterprise Linux 7, SuSE Linux Enterprise Server 11 SP3 x64 Edition, SUSE Linux Enterprise Server 12 x64 Edition
Depth	16.7 cm
Height	6.9 cm
Service & Support	Limited lifetime warranty
Service & Support Details	Limited warranty - lifetime
Min Operating Temperature	0 °C
Max Operating Temperature	55 °C
