Intel Next Unit of Computing Kit 10 Performance / NUC10i5FNK / barebone / mini PC / Core i5 10210U / 1.6 GHz / UHD Graphics / GigE, Bluetooth 5.0, 802.11ax / WLAN: Bluetooth 5.0, 802.11a/b/g/n/ac/ax | BXNUC10I5FNK2
Please sign in so that we can notify you about a reply
Intel Next Unit of Computing Kit 10 Performance / NUC10i5FNK / Kit / barebone / mini PC / 1 x Core i5 10210U / 1.6 GHz / UHD Graphics / GigE, Bluetooth 5.0, 802.11ax / WLAN: Bluetooth 5.0, 802.11a/b/g/n/ac/ax | BXNUC10I5FNK2
Description
No more compromising between performance, profile, and value. The NUC is a tiny computing device with the power of advanced processor. Its lower power consumption enables innovative system designs and energy-efficient applications in places like digital signage, home entertainment, and portable uses.
Intel Next Unit of Computing Kit 10 Performance / NUC10i5FNK | BXNUC10I5FNK2
Special Features
- Superior processing and graphics
- Stunningly small form factor
- Advanced technology
Product features
- Superior processing and graphics
Visibly smart graphics using the advanced processor deliver amazing performance and visually stunning graphics. - Stunningly small form factor
The compact form factor unlocks a world of potential design applications, from digital signage and kiosks to portable innovations. - Advanced technology
The NUC features two sockets for expandability of memory, two mini-card connectors for flexible support of wireless and hard drive configurations, BIOS vault technology, fast boot and the Visual BIOS. The NUC also supports The Anti-Theft technology, providing hardware intelligence, designed to protect your device and its data, if its lost or stolen.
Product Specification
| Type | PC barebone |
| Product Form Factor | Mini PC |
| Sensors | Infrared (IR) sensor |
| Localisation | Region: Europe |
| CPU | Intel Core i5 (10th Gen) 10210U / 1.6 GHz |
| Max Turbo Speed | 4.2 GHz |
| Number of Cores | Quad-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| CPU Upgradability | Not upgradable |
| Processor Main Features | Intel Virtualization Technology, Intel AES New Instructions |
| Installed Size | L3 Cache 6 MB |
| Cache Per Processor | 6 MB |
| Installed Size | 0 GB 64 GB (max) |
| Technology | DDR4 SDRAM |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (Total) / 2 (empty) |
| Features | Dual channel memory architecture |
| Type | No HDD |
| Type | SATA |
| Controller Interface Type | SATA 6Gb/s / PCIe 3.0 x4 (NVMe) |
| Type | No optical drive |
| Type | Card reader |
| Supported Flash Memory Cards | SDXC UHS-II Memory Card |
| Monitor Type | None. |
| Graphics Processor | Intel UHD Graphics |
| Video Interfaces | HDMI, USB-C |
| Max Monitors Supported | 3 |
| Sound Output Mode | 7.1 channel surround |
| Compliant Standards | High Definition Audio |
| Type | Quad array microphone |
| Ethernet Controller | Intel I219-V |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel Wireless-AX MAC |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11ax |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
| Slots | 1 (total) / 1 (free) x M.2 Card - 2242/2280 (Key M) |

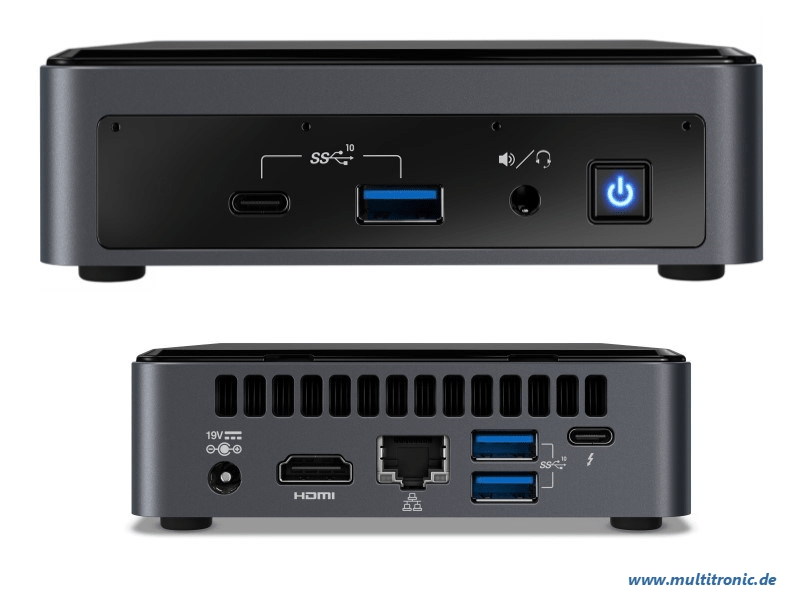

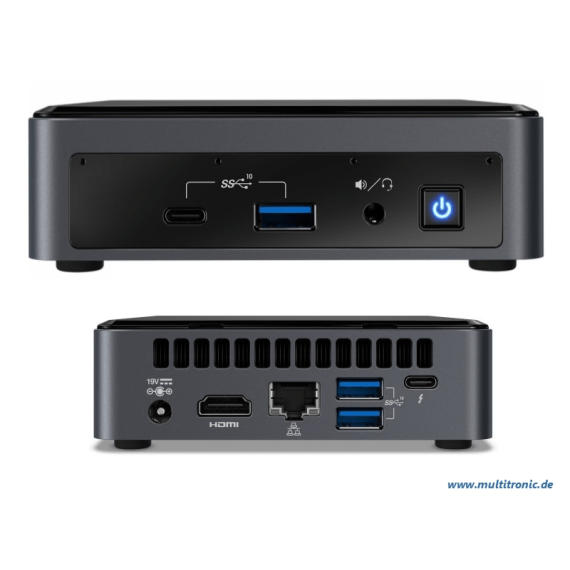

| Interfaces | 3 x USB 3.1 Gen 2 - Type A (1 front, 2 rear) ¦ 2 x Thunderbolt 3/USB-C 3.1 Gen 2 - Type C (1 front, 1 rear) (one of them is fast-charging) ¦ 1 x HDMI ¦ 1 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x audio line-in/headphones/microphone - mini-jack |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Compliant Standards | CISPR 24, ICES-003, EN55024, FCC Part 15 B, FCC Part 15 C, AS/NZS 4268, FCC Part 15 E, BSMI CNS 13438, REACH, EN 62311, EN 300.440, China RoHS, EN 300 328, EN 301 489-1, CISPR32/EN55032, KN32, KN35, AS/NZS 2772.2, EN 301 893, IEC/EN/UL 60950-1, EN 301 489-3, EU RoHS, IEC/EN/UL 62368-1, EN 301 489-17, ARPANSA, Taiwan BSMI RoHS, AS/NZS CISPR 32, VCCI 32 |
| Device Type | Power adapter |
| Nominal Voltage | DC 19 V |
| Power Provided | 90 Watt |
| Service & Support | Limited warranty - 3 years |
| Width | 11.7 cm |
| Depth | 11.2 cm |
| Height | 3.8 cm |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 35 °C |
Features - Intel - BXNUC10I5FNK2
CPU Type
- Intel Core i5
More Details
Product Code
07:113558
EAN Code
5032037172950
Manufacturer
Intel
