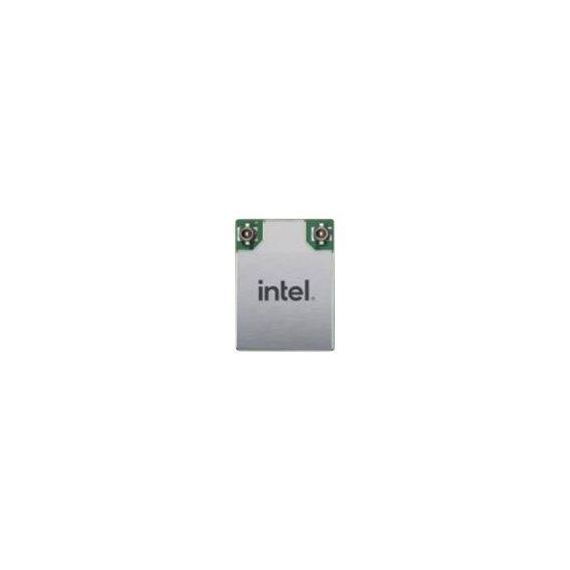

Intel Wi-Fi 6E AX210 / Network adapter / M.2 2230 / 802.11ax, Bluetooth 5.2 | AX210.NGWG
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | M.2 2230 |
| Networking | Networking |
| Connectivity Technology | Wireless |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax, Bluetooth 5.2 |
| Line Coding Format | 1024 QAM |
| Features | Wi-Fi Multimedia (WMM) support, dual-stream (2x2), Wi-Fi Direct, 802.1x authentication, 2x2 MU-MIMO technology, Intel vPro Technology support, Wi-Fi 6E technology |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n, IEEE 802.11k, IEEE 802.11ac, IEEE 802.11w, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
| Miscellaneous | Miscellaneous |
| Encryption Algorithm | PEAP, WPA2, 128-bit AES, CCMP, EAP-SIM, EAP-AKA, WPA3, 256-bit AES-GCMP, EAP-TLS, EAP-TTLS, MSCHAPv2 |
| Compliant Standards | UL, CB, IEC 60950-1, UEFI |
| Software / System Requirements | Software / System Requirements |
| OS Required | Linux, Google Chrome OS, Windows 10 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 3 cm |
| Depth | 2.4 cm |
| Height | 2.2 cm |
| Weight | 2.8 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 80 °C |
| Humidity Range Operating | 50 - 90% (non-condensing) |
Features - Intel - AX210.NGWG
More Details
Product Code
07:136518
EAN Code
0675901877039
Manufacturer
Intel
