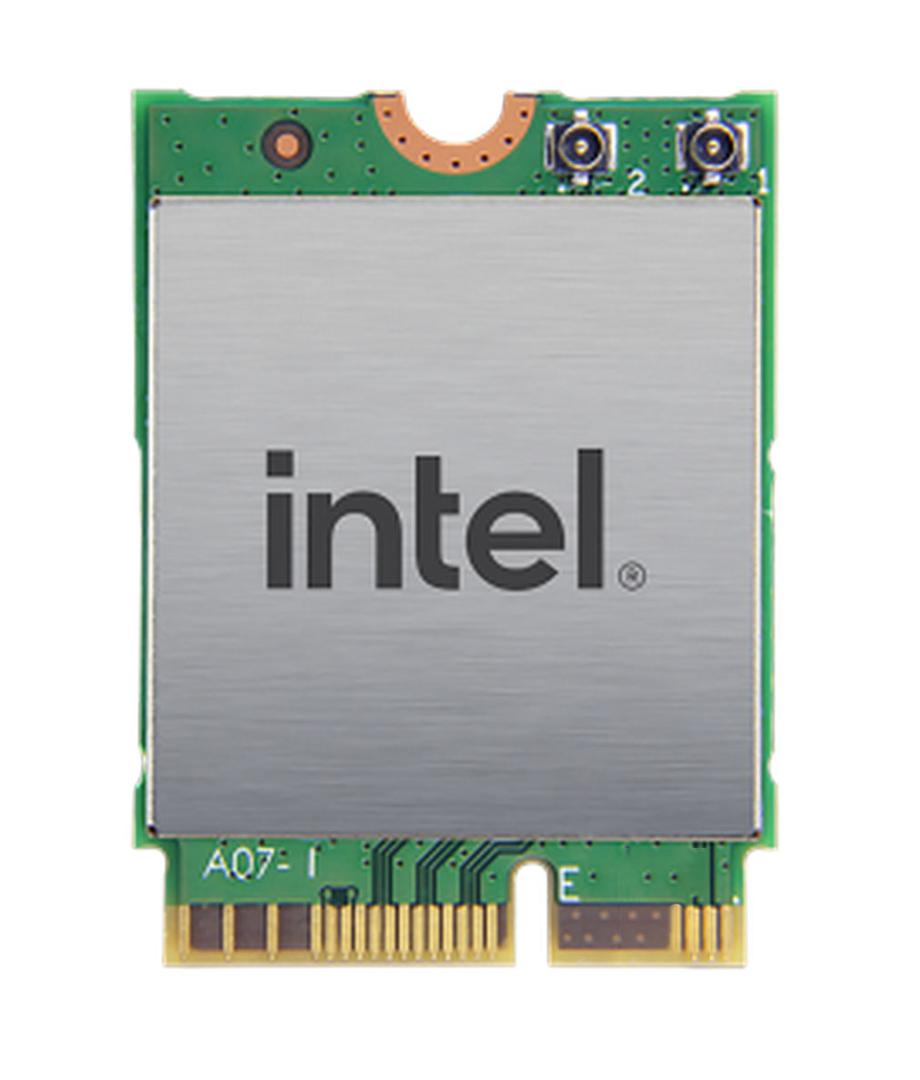

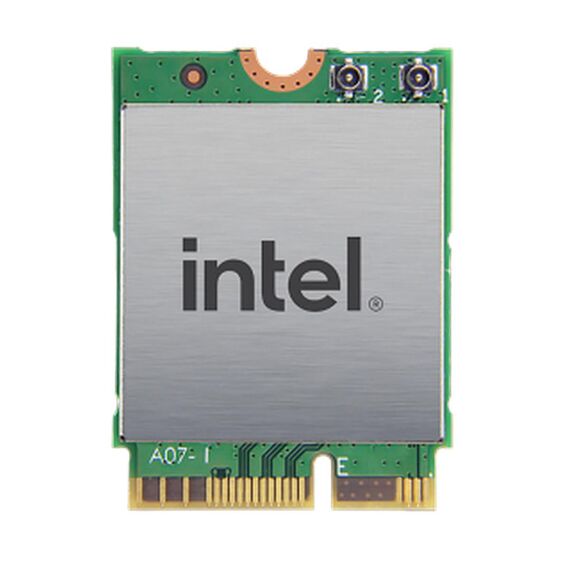

Intel Wi-Fi 6E AX211 / Network adapter / M.2 2230 (CNVio2) / 802.11ax, Bluetooth 5.2 | AX211.NGWG.NV
Please sign in so that we can notify you about a reply
Product Features
- Enhanced connectivity
With support for Wi-Fi 6E technology, this Intel Wi-Fi 6E AX211 network adapter offers faster data transfer rates up to 2.4 Gbps, ensuring smooth streaming, gaming, and downloads across the 2.4 GHz, 5 GHz, and 6 GHz bands. - Robust security
Equipped with advanced encryption algorithms including 128-bit AES-CCMP, 256-bit AES-GCMP, and WPA3, the Intel Wi-Fi 6E AX211 provides a secure connection, protecting your data from potential threats. - Seamless integration
Featuring 2x2 MU-MIMO technology and Wi-Fi Direct, this plug-in card enhances your device's connectivity capabilities without compromising on speed or performance, making it an ideal upgrade for your networking needs.
Special Features
- Supports Wi-Fi 6E for expanded network capacity
- Data transfer rates up to 2.4 Gbps for high-speed connectivity
- Includes advanced encryption for secure data transmission
- 2x2 MU-MIMO technology for improved network efficiency
- Compatible with 2.4 GHz, 5 GHz, and 6 GHz bands for versatile use
Product Specification
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | M.2 2230 (CNVio2) |
| Networking | Networking |
| Connectivity Technology | Wireless |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax, Bluetooth 5.2 |
| Data Transfer Rate | 2.4 Gbps |
| Line Coding Format | 1024 QAM, OFDMA |
| Frequency Band | 2.4 GHz, 5 GHz, 6 GHz |
| Features | WMM support, Wi-Fi Direct, 802.1x authentication, 2x2 MU-MIMO technology, 160MHz bandwidth support |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n, IEEE 802.11k, IEEE 802.11ac, IEEE 802.11w, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.11ax, Bluetooth 5.2, Wi-Fi CERTIFIED 6E, IEEE 802.11az |
| Miscellaneous | Miscellaneous |
| Encryption Algorithm | PEAP, FIPS 140-2, WPA2, 128-bit AES-CCMP, EAP-SIM, EAP-AKA, WPA3, 256-bit AES-GCMP, EAP-TLS, EAP-TTLS, MSCHAPv2 |
| Compliant Standards | UL, cUL, CB, IEC 60950-1, FISMA |
| Software / System Requirements | Software / System Requirements |
| OS Required | Linux, Google Chrome OS, Windows 10, Windows 11 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 3 cm |
| Depth | 0.24 cm |
| Height | 2.2 cm |
| Weight | 2.83 g |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Height | 2.2 cm |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 80 °C |
| Humidity Range Operating | 50 - 90% (non-condensing) |
Features - Intel - AX211.NGWG.NV
More Details
Product Code
07:134992
EAN Code
0675901878760
Manufacturer
Intel
