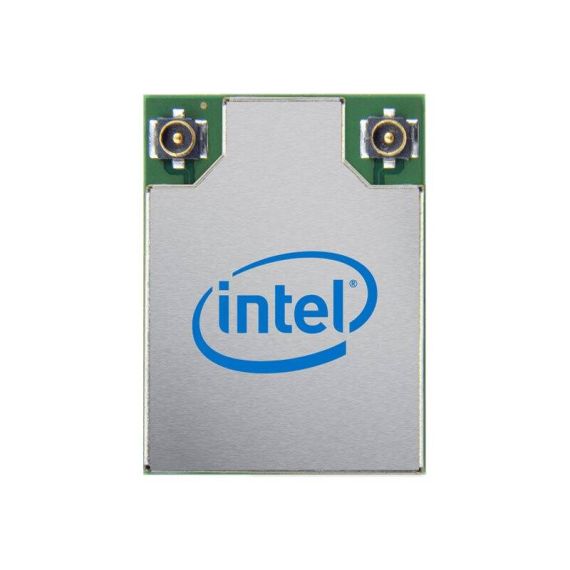

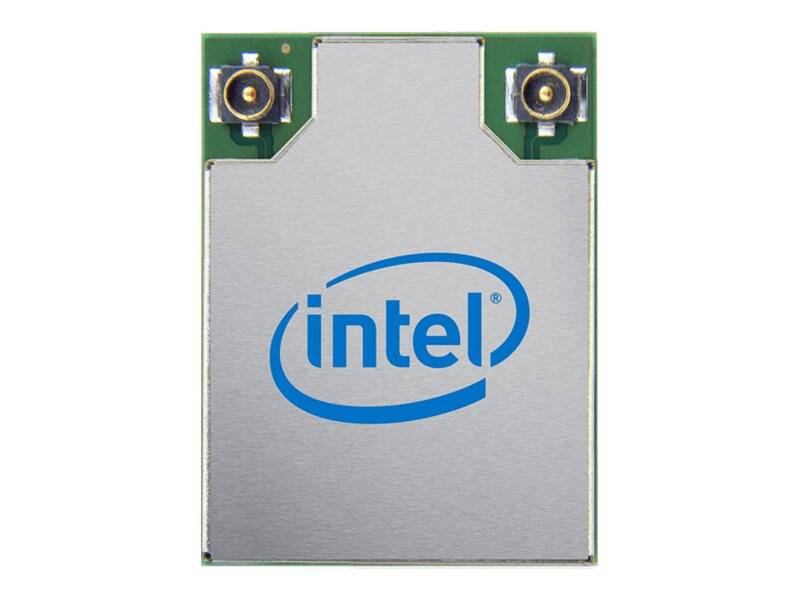

Intel Wireless-AC 9462 - Network adapter - M.2 2230 - Wi-Fi 5, Bluetooth 5.0 | 9462.NGWG.NV
Please sign in so that we can notify you about a reply
Product Features
- Integrated connectivity
Platforms designed with Intel's CNVi3 offer end users an optimized wireless experience and outstanding performance, while helping OEMs to reduce overall system size and cost. - MU-MIMO
Downlink MU-MIMO allows an access point to simultaneously transmit data to multiple clients and can improve overall downlink network capacity much faster.
Special Fetures
- Integrated connectivity
- Downlink MU-MIMO
Product Specification
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | M.2 2230 |
| Networking | |
| Connectivity Technology | Wireless |
| Data Link Protocol | IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n |
| Data Transfer Rate | 433 Mbps |
| Frequency Band | 2.4 GHz, 5 GHz |
| Features | MU-MIMO technology, Intel Smart Connect Technology, dual band, Wi-Fi Diversity |
| Compliant Standards | IEEE 802.11ac, IEEE 802.11n, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, Wi-Fi CERTIFIED, IEEE 802.11d, IEEE 802.11e, IEEE 802.11h, IEEE 802.11i, IEEE 802.11r, IEEE 802.11w, IEEE 802.11k, IEEE 802.11v, IEEE 802.1x |
| Aerial | |
| Antenna | Internal |
| Antenna Qty | 1 |
| Miscellaneous | |
| Encryption Algorithm | FIPS, WPA, WPA2, TLS, PEAP, EAP-SIM, EAP-AKA, 128-bit WEP, 64-bit WEP, 128-bit AES-CCMP, WPA2-PSK, AES-CCMP |
| Compliant Standards | FISMA, UL, cUL, CB, IEC 60950-1 |
| Software / System Requirements | |
| OS Required | Linux, Windows 10, Google Chrome OS |
| Dimensions & Weight | |
| Width | 2.2 cm |
| Depth | 3 cm |
| Height | 2.4 cm |
| Weight | 2.7 g |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 80 °C |
Features - Intel - 9462.NGWG.NV
More Details
Product Code
07:21231253
EAN Code
0675901483469
Manufacturer
Intel
