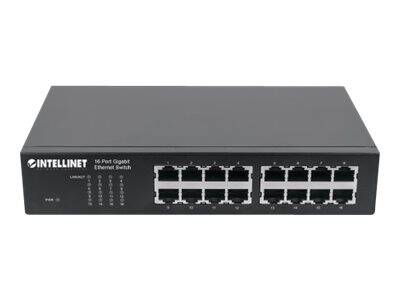

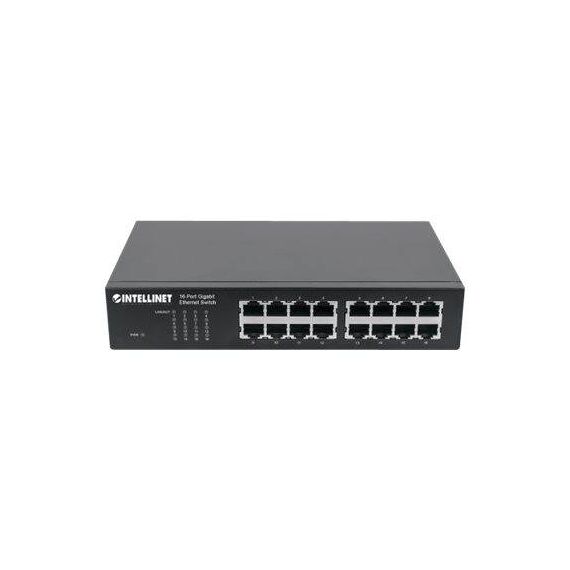

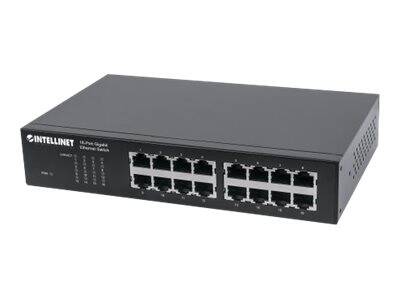

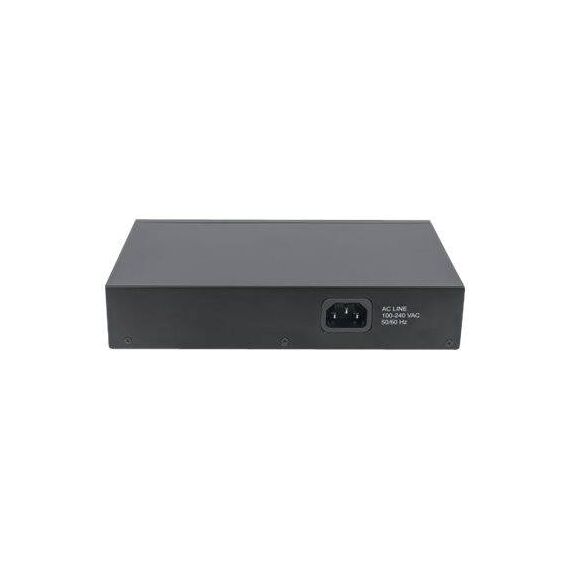

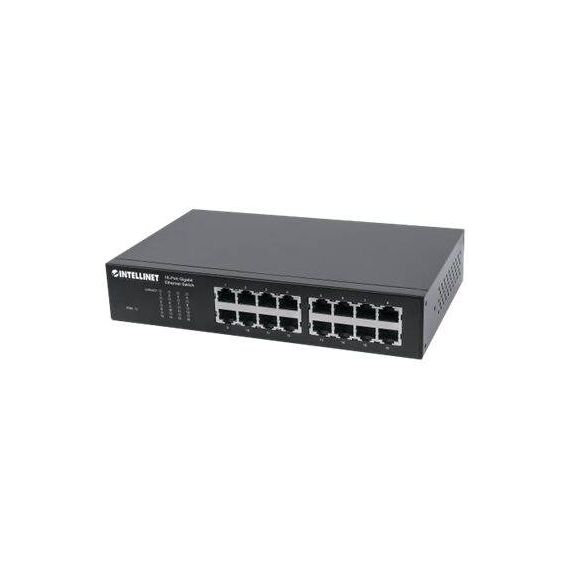

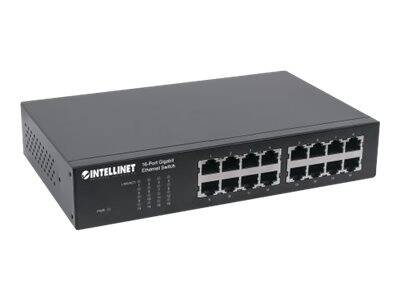

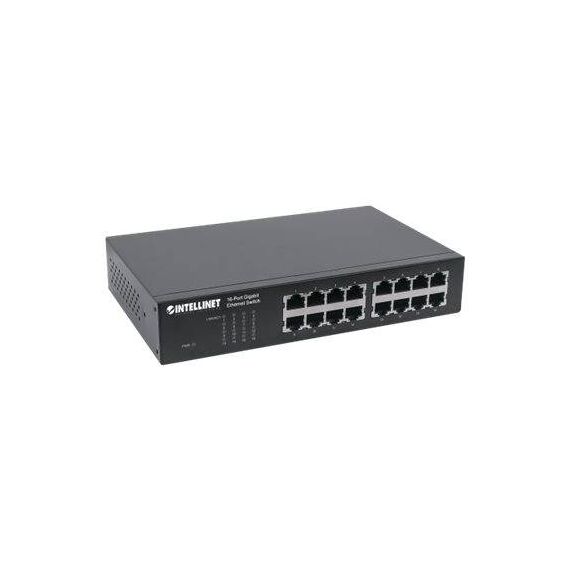

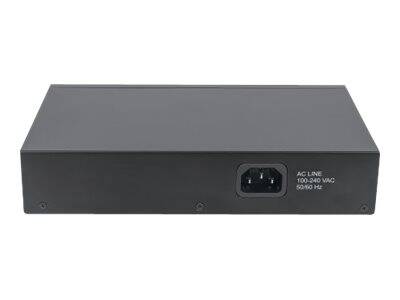

Intellinet 16-Port Gigabit Ethernet Switch, 16-Port RJ45 10/100/1000 Mbps, IEEE 802.3az Energy Efficient Ethernet, Desktop, 19" Rackmount (Euro 2-pin plug) - Switch - 16 x 10/100/1000 - desktop, rack-mountable | 561068
Please sign in so that we can notify you about a reply
Product Features
- Extreme flexibility
Sixteen 10/100/1000 Mbps auto-sensing ports automatically detect optimal network speeds. - Extreme throughput
With a backplane speed of 32 Gbps, there is plenty of performance available for your computers, servers and other networking devices.
Special Fetures
- 10/100/1000 auto-sensing ports automatically detect optimal network speeds
- All RJ45 ports with Auto-MDIX (auto uplink) support
- For use on desktop or mounted in standard 19" rack
Product Specification
| Device Type | Switch - 16 ports |
| Enclosure Type | Desktop, rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 16 x 10/100/1000 |
| Performance | Backplane speed: 32 Gbps |
| MAC Address Table Size | 8192 entries |
| Jumbo Frame Support | 9KB |
| Features | Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, half duplex mode, full duplex mode |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az |
| Status Indicators | Port transmission speed, power, link/activity |
| Expansion / Connectivity | |
| Interfaces | 16 x 1000Base-T RJ-45 |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 9.1 Watt |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| Compliant Standards | FCC Class A certified |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 70 °C |
Features - Intellinet - 561068
General
16-Port
More Details
Product Code
04:195151
EAN Code
0766623561068
Manufacturer
Intellinet
