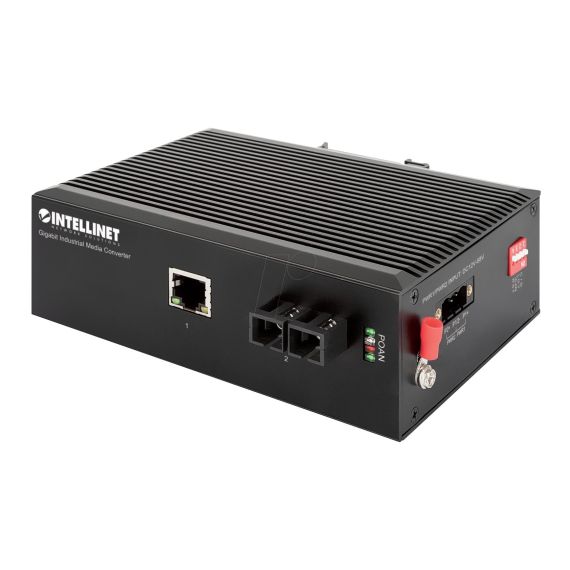

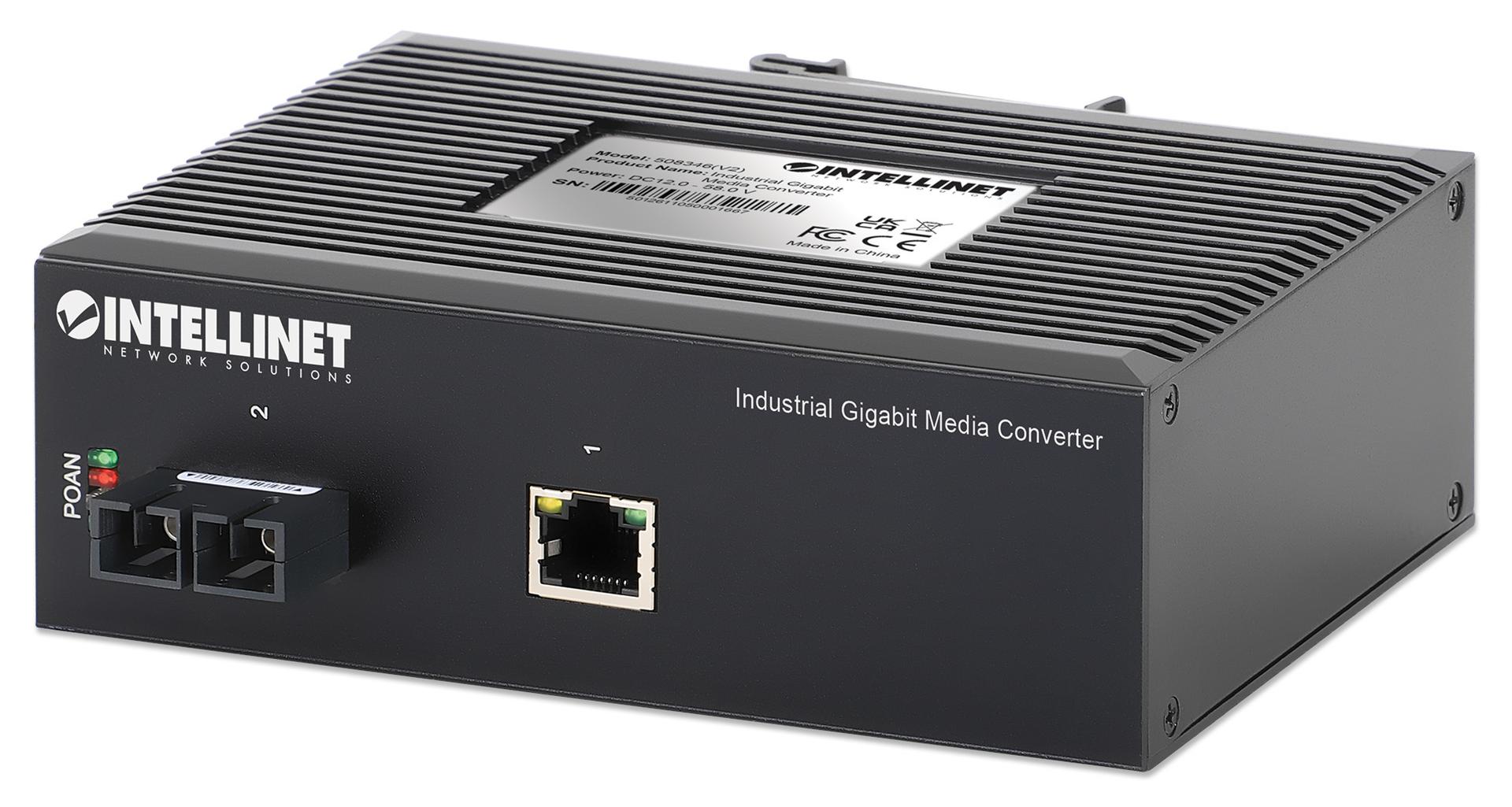

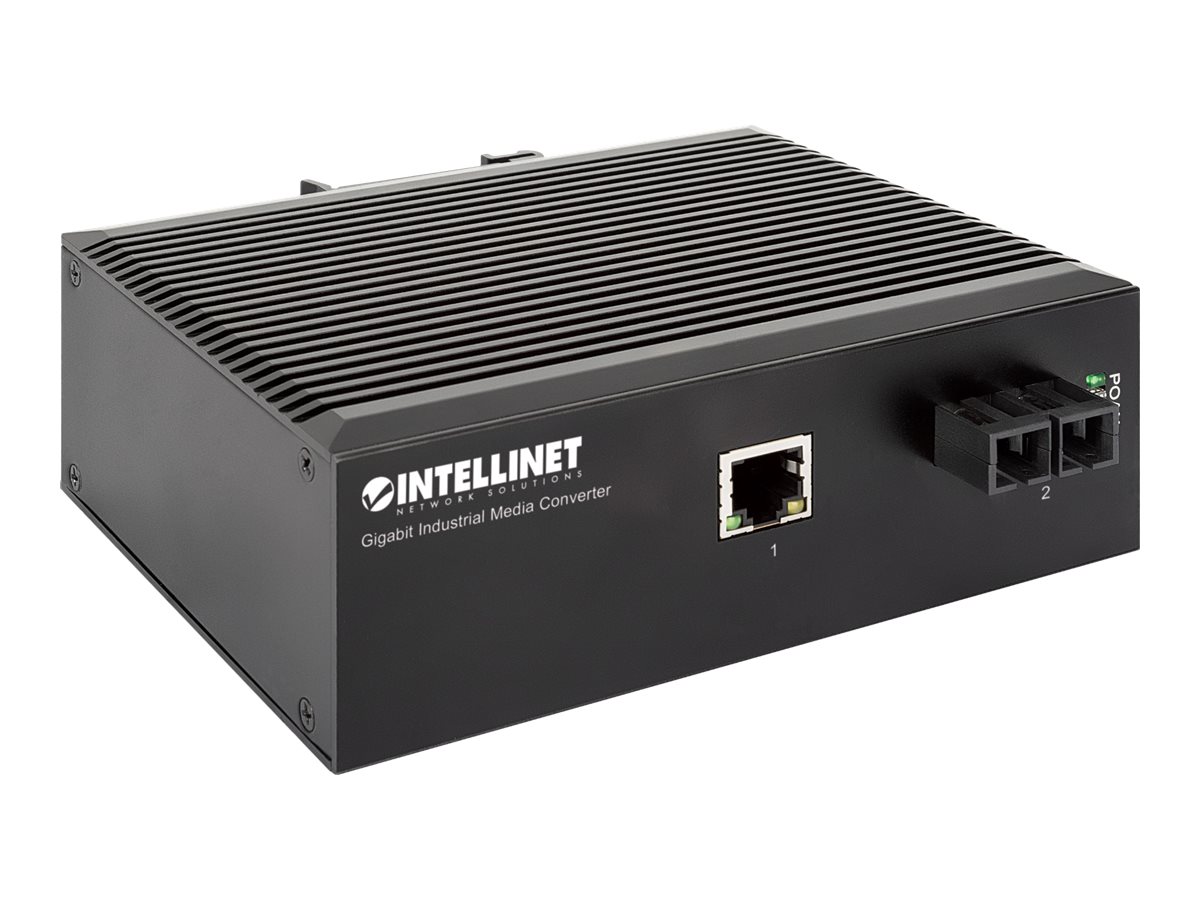

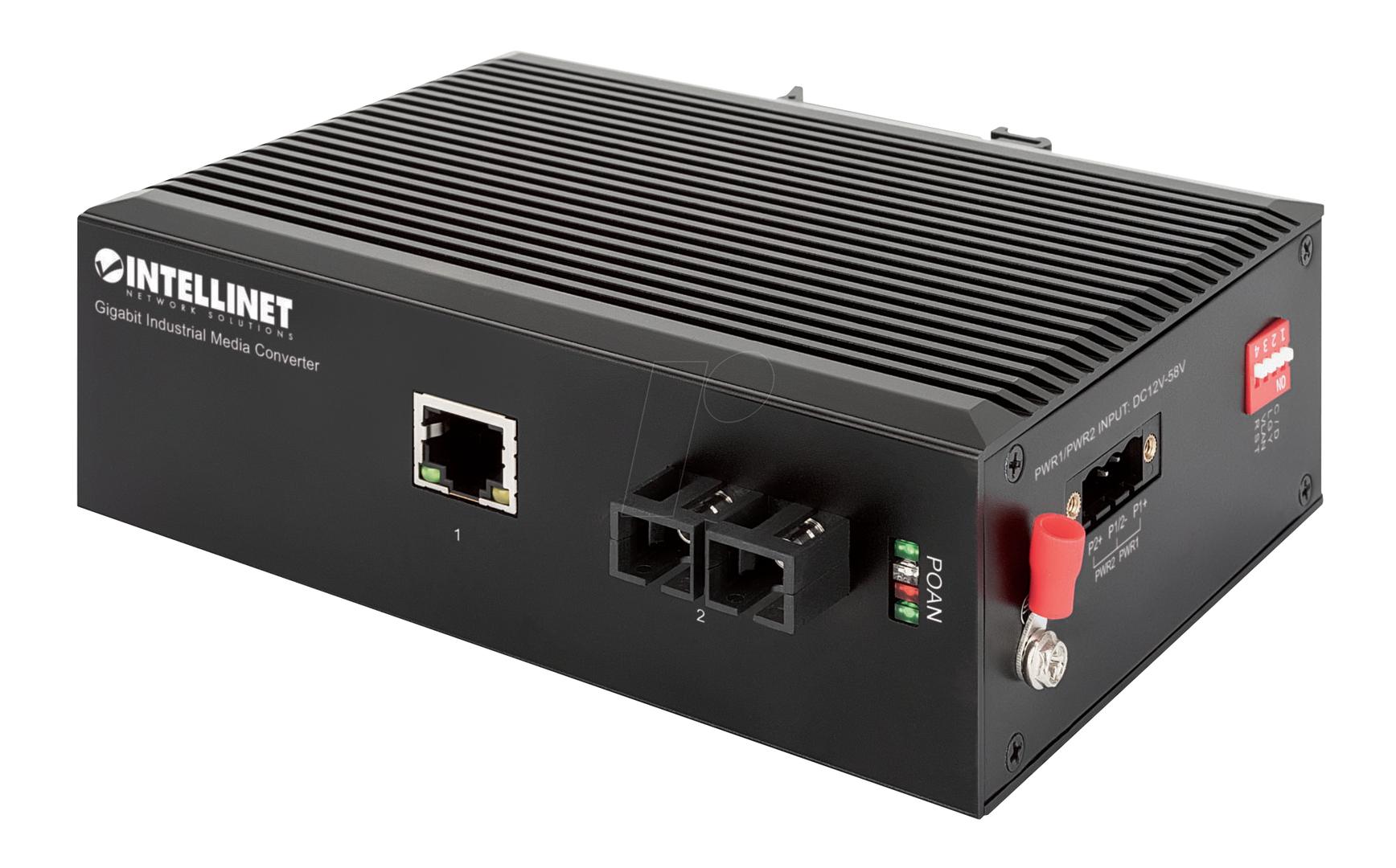

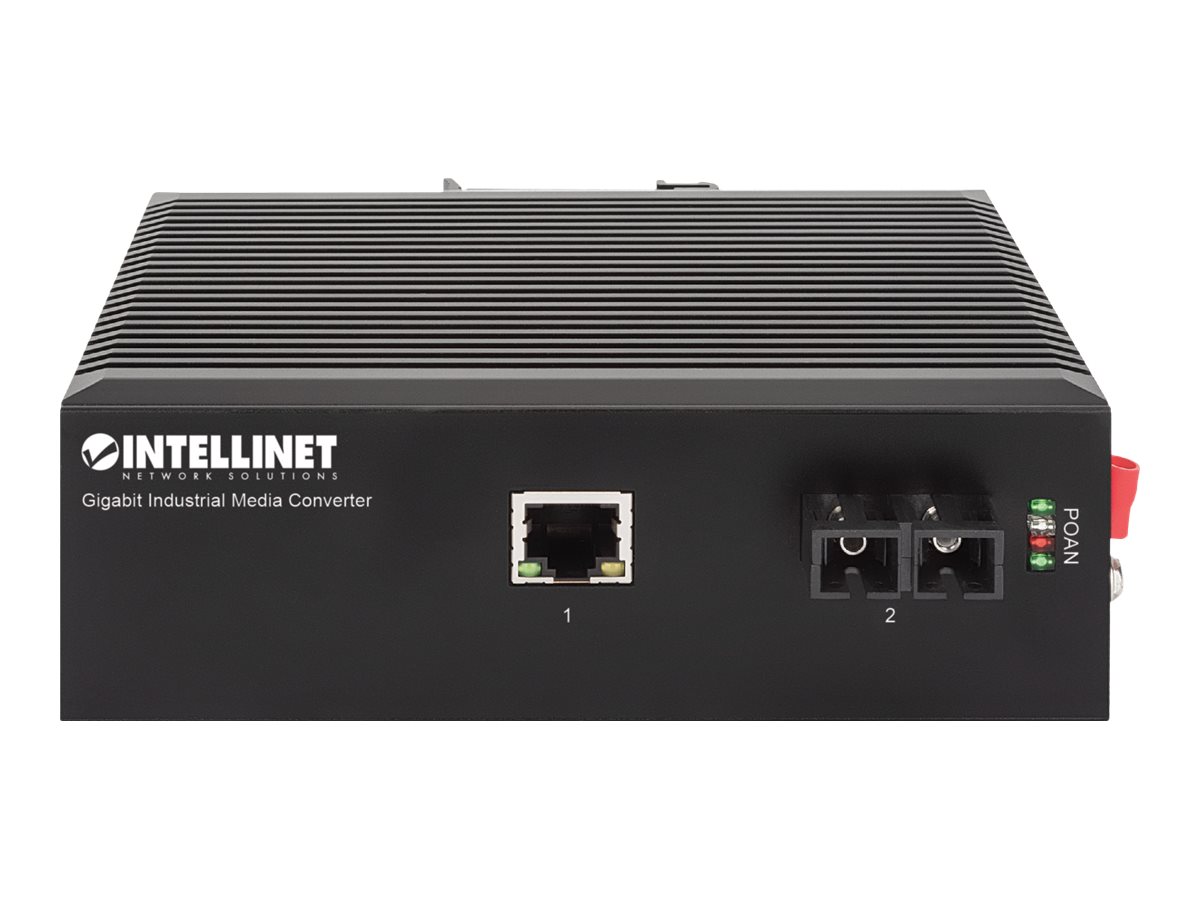

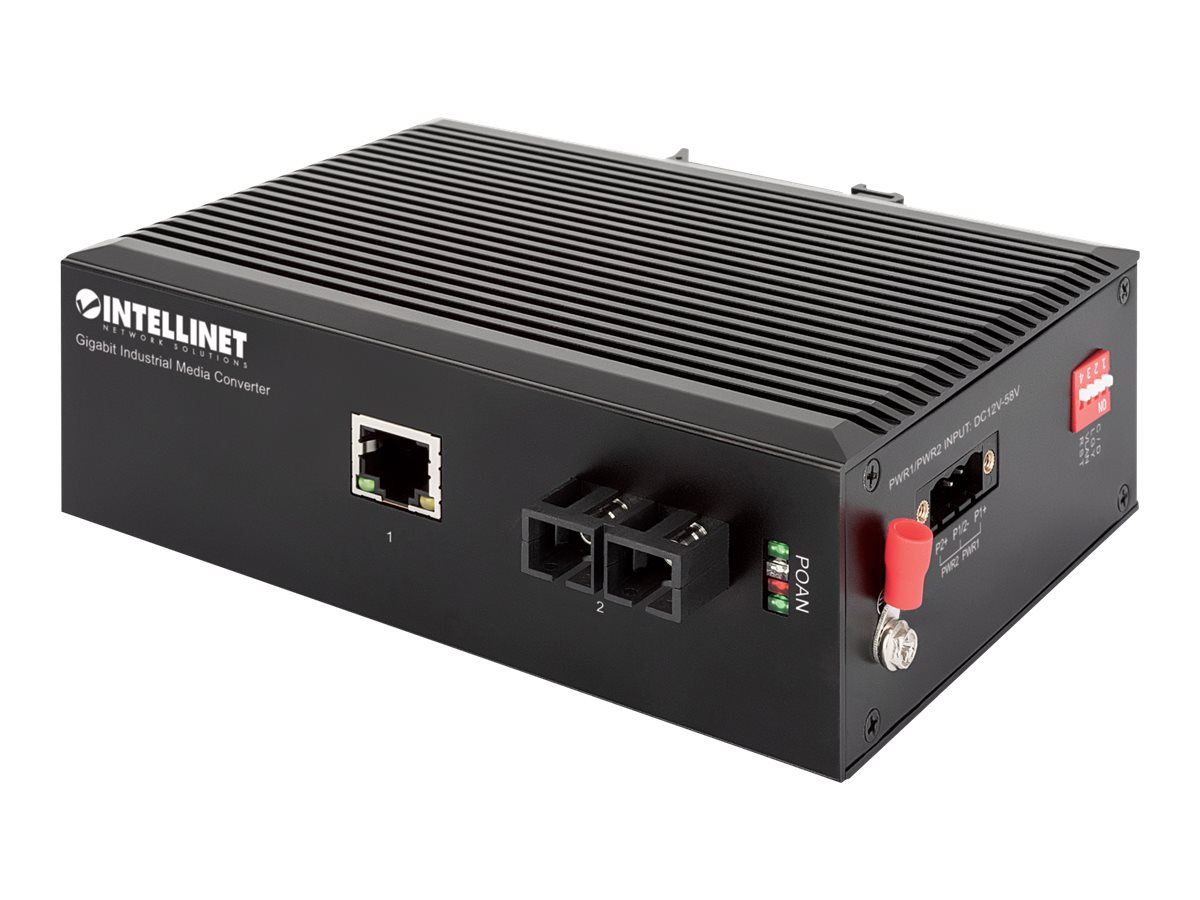

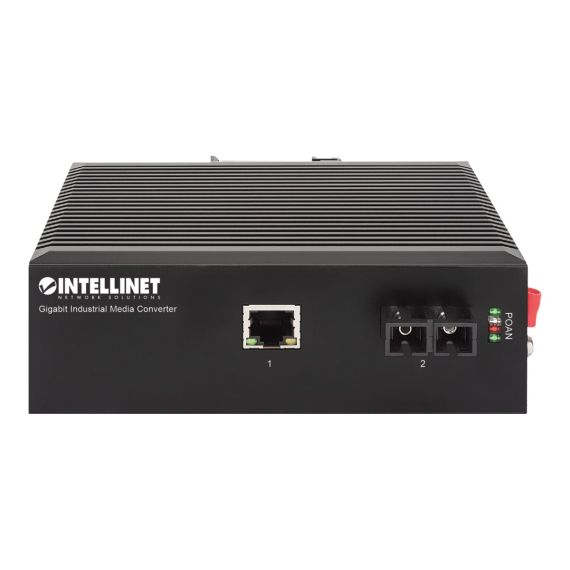

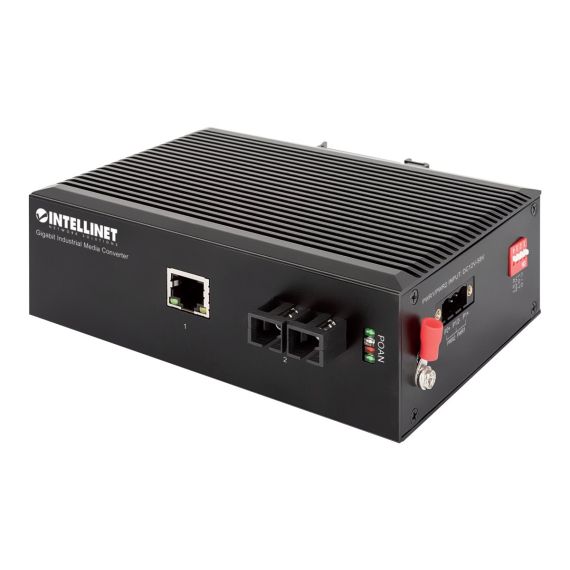

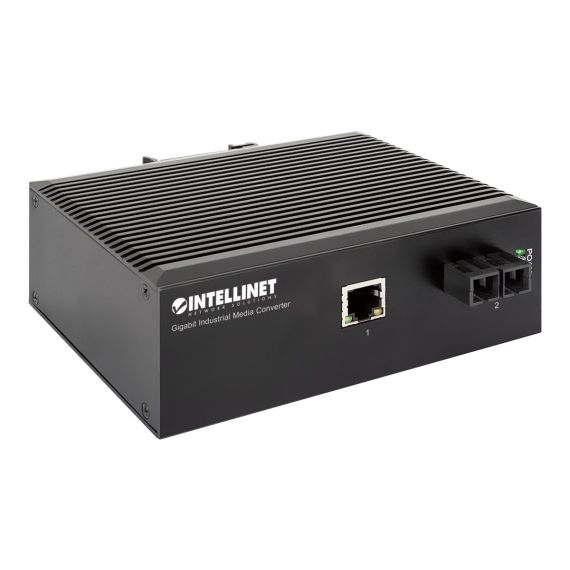

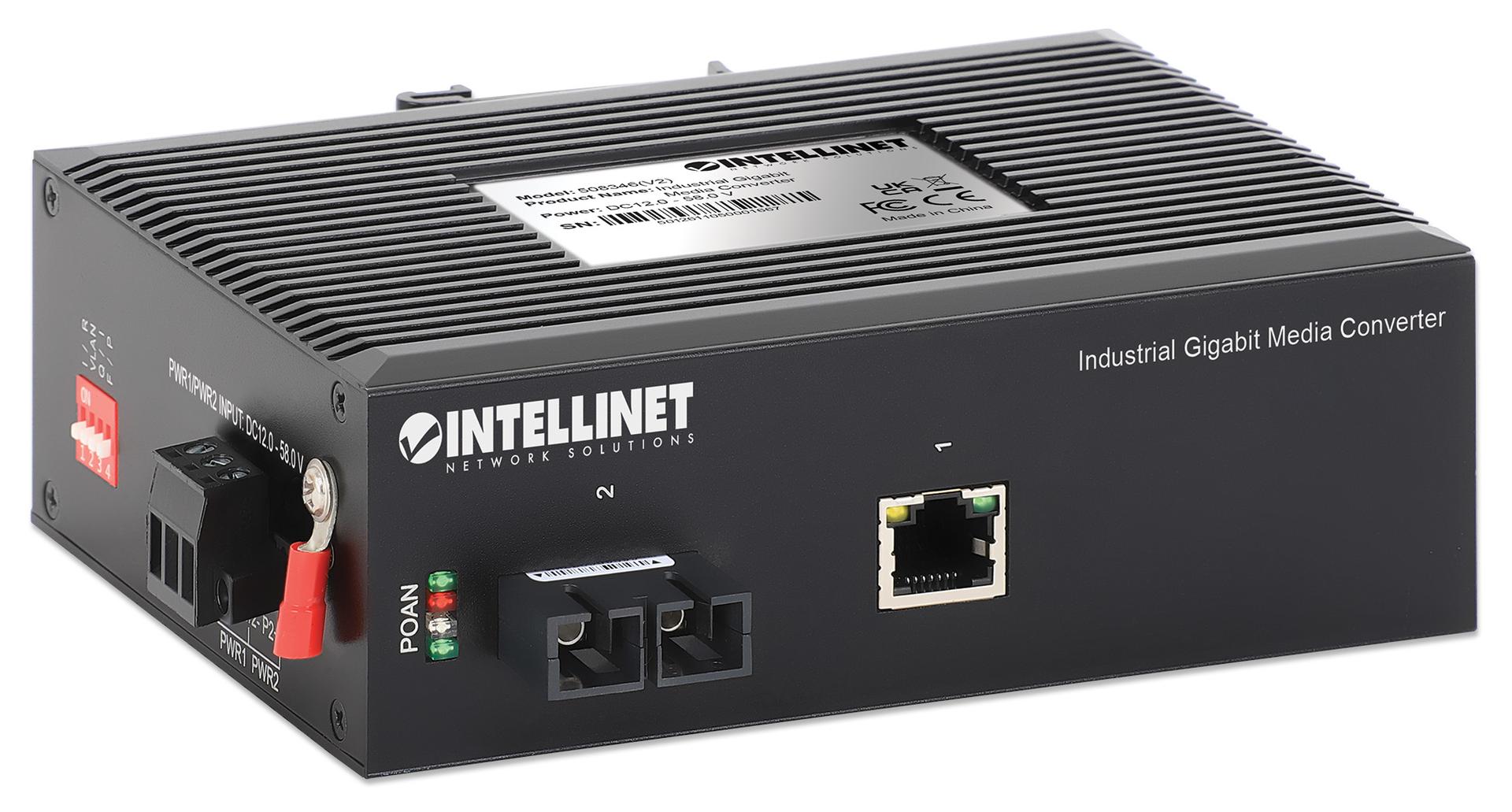

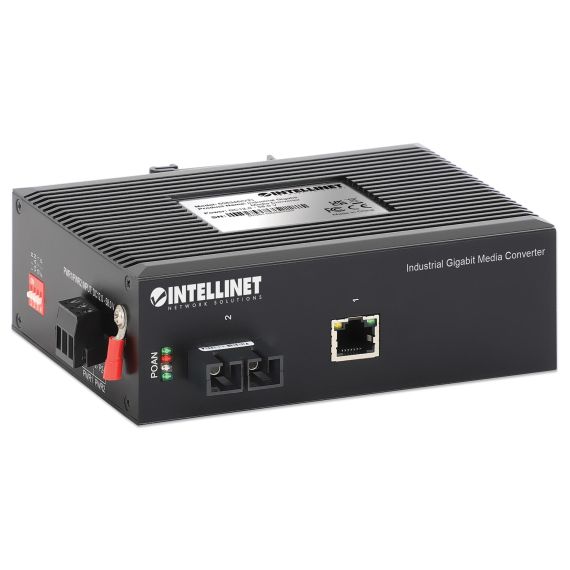

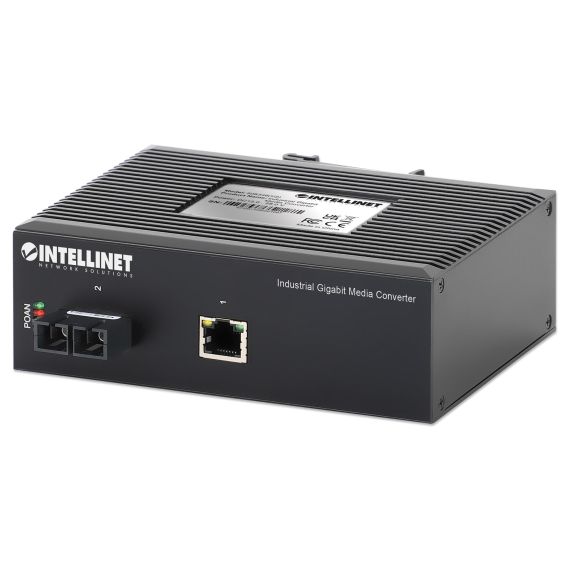

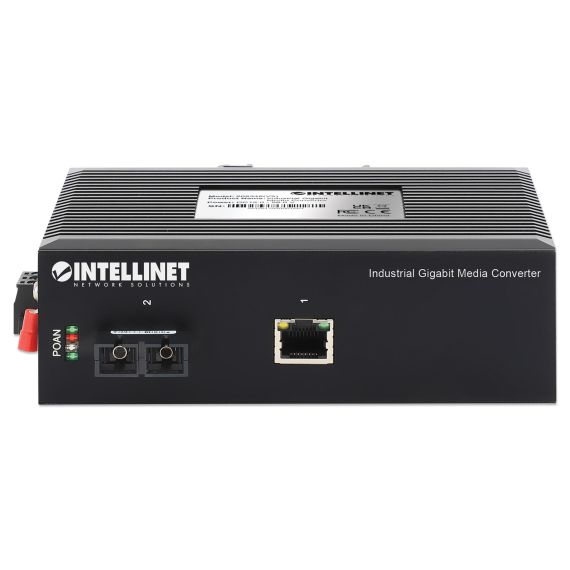

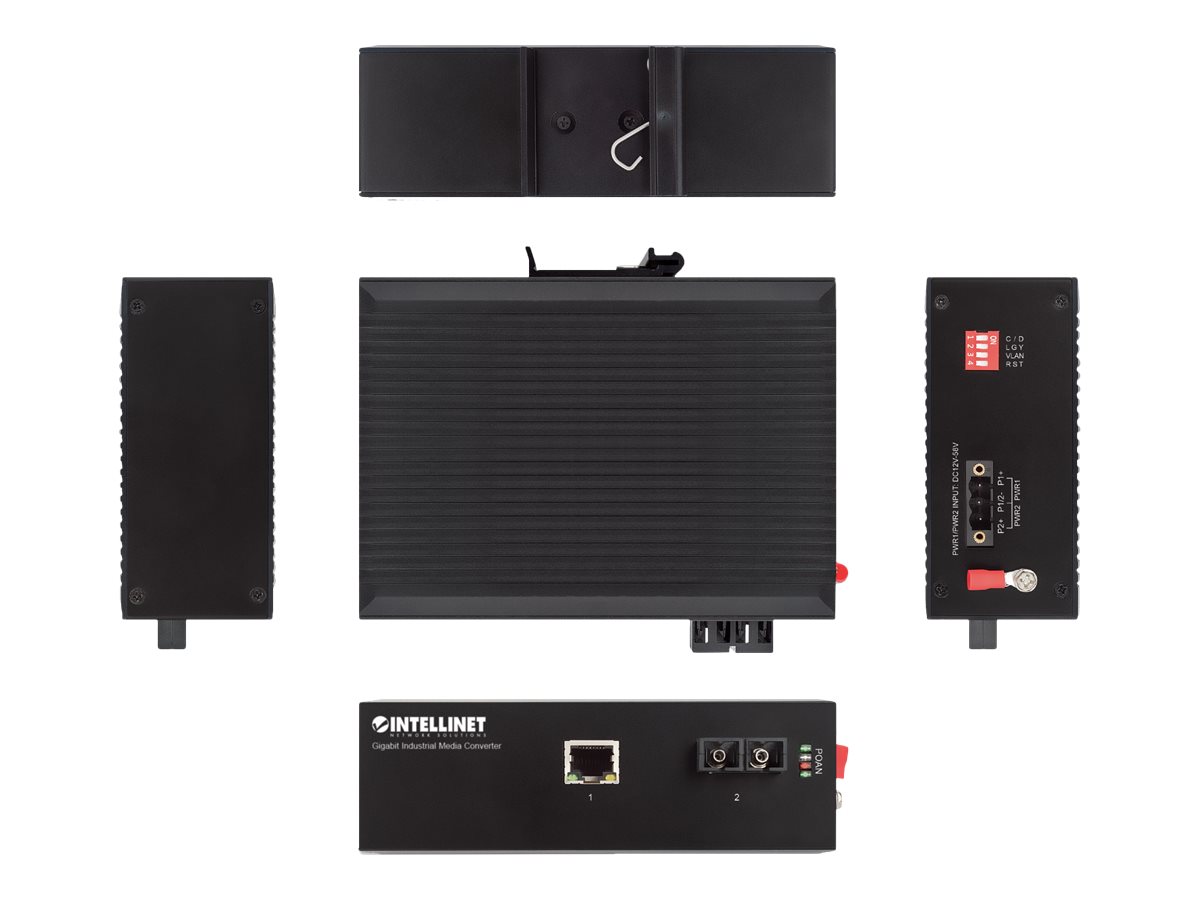

Intellinet - Fibre media converter - 1GbE - 10Base-T, 1000Base-SX, 100Base-TX, 1000Base-T - RJ-45 / SC single-mode - up to 20 km - 1310 nm | 508346
Please sign in so that we can notify you about a reply
Special Fetures
- One 10/100/1000 RJ45 port supporting a maximum distance of 100 m (300 ft.)
- One 1000Base-LX fiber SC single-mode port supporting a maximum distance of 20 km (12.4 mi.)
- IP40 slim-type metal housing to withstand harsh industrial conditions

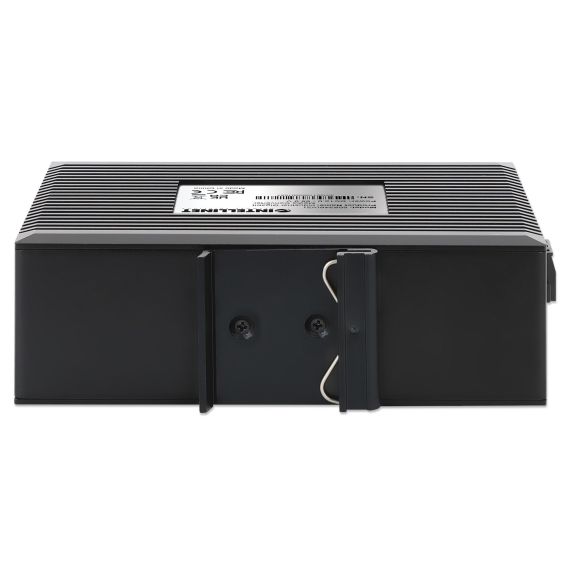

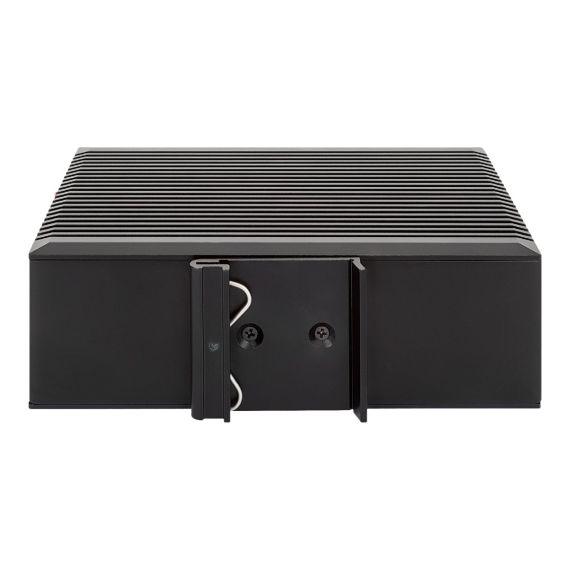

- Option for DIN-rail installation

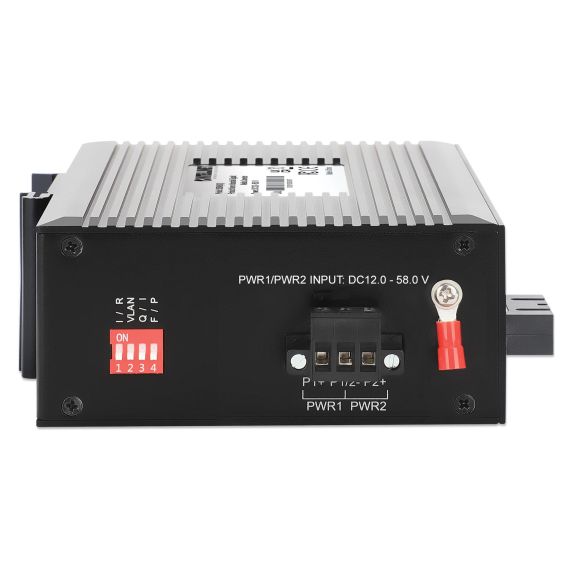

- Two redundant DC inputs (12 - 58 V) with I/O terminal block
- Requires industrial power supply (not included)
- Port surge protection up to 6 kV
- Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32) and vibration (IEC 60068-2-6)
- Wavelength: 1310 nm
- Supports full-duplex and half-duplex modes with auto negotiation
- Wide operating temperature: -40 - 75? (-40 - 167°F)
- Supports 8k MAC address entries with Auto-learning and Auto-aging
- Buffer memory of 1 MByte
- Supports jumbo frames up to 10 kBytes
- Fanless design for silent operation
Product Specification
| Device Type | Fibre media converter |
| Form Factor | DIN rail mountable |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 1000Base-SX, 100Base-TX, 1000Base-T |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Data Transfer Rate | 1 Gbps |
| Optical Wave Length | 1310 nm |
| MAC Address Table Size | 8K entries |
| Max Transfer Distance | 20 km |
| Status Indicators | Port status, power, alarm |
| Features | Half duplex mode, full duplex mode, fanless, metal housing, 6KV Surge protection, 10 KB Jumbo Frame |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 female <br /> 1 x Ethernet 1000Base-SX - SC single-mode female x 2 |
| Miscellaneous | |
| Compliant Standards | FCC Class B certified, RoHS, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6 |
| Power | |
| Voltage Required | DC 12 - 58 V |
| Dimensions & Weight | |
| Width | 14.3 cm |
| Depth | 10.4 cm |
| Height | 4.8 cm |
| Weight | 600 g |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 5 - 90% (non-condensing) |
Features - Intellinet - 508346
More Details
Product Code
04:361584
EAN Code
0766623508346
Manufacturer
Intellinet
