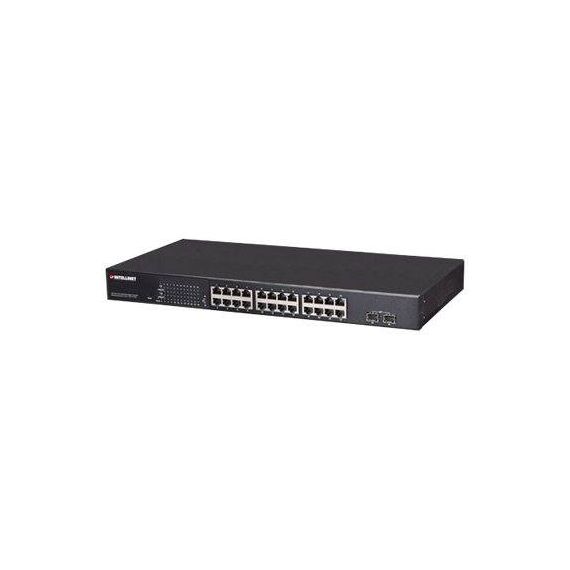

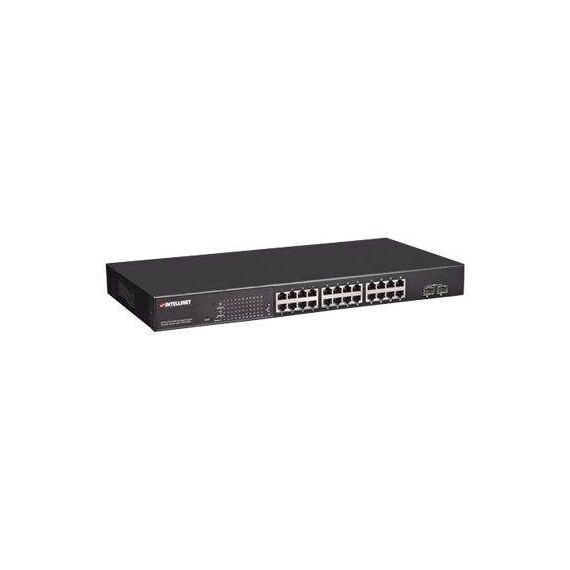

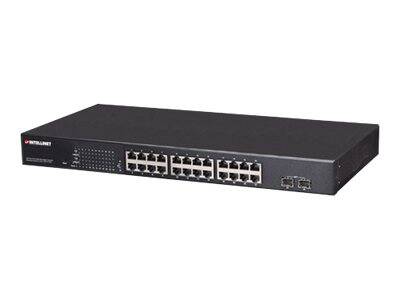

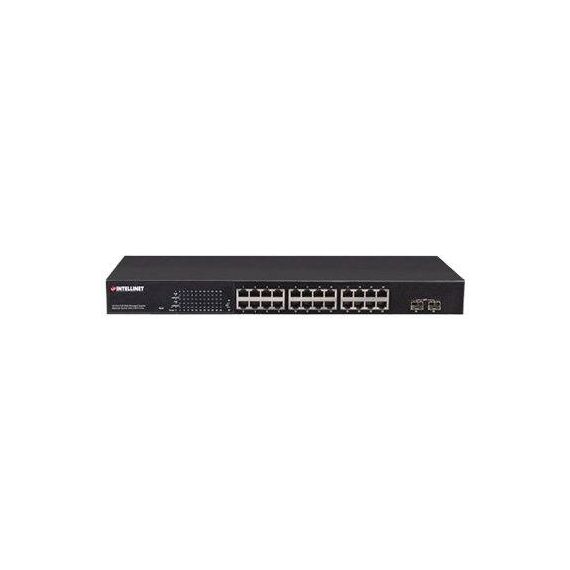

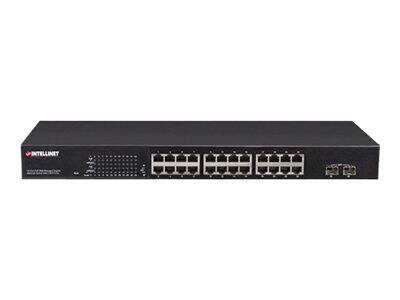

Intellinet 24-Port Gigabit Ethernet PoE+ Web-Managed Switch with 2 SFP Ports, 24 x PoE ports, IEEE 802.3at/af Power over Ethernet (PoE+/PoE), 2 x SFP, Endspan, 19" Rackmount - Switch - Managed - 24 x 10/100/1000 (PoE+) + 2 x SFP - desktop, rack-mountable
Product Features
- Power over Ethernet 802.3at
The Intellinet Network Solutions 24-Port Gigabit Ethernet PoE+ Web-Managed Switch with two SFP ports supports the IEEE 802.3at protocol and is designed to inject up to 30 watts of power per port. IEEE802.3af or IEEE802.3at compliant devices attached to the switch require no additional power, thus eliminating the time and expense of electrical rewiring and minimizing the unsightly clutter caused by power supplies and adapters in awkward places such as ceilings and walls. Any mix of PoE and non-PoE devices is supported, and thanks to its short circuit, overload and high-voltage protection function, your equipment is well-protected. - Eliminate bottlenecks with Gigabit speeds
Equipped with 24 auto-sensing 10/100/1000 Mbps RJ45 Gigabit Ethernet ports, the 24-Port Gigabit Ethernet PoE+ Web-Managed Switch with 2 SFP Ports offers plenty of performance for your computers, servers and other networking devices. In addition, two small form-factor pluggable GBIC module slots (SFP) provide fiber connectivity for greater distances. - Web management
This PoE switch is equipped with an impressive array of advanced management functions that allow you to be in full control over your network. The 24-Port Gigabit Ethernet PoE+ Web-Managed Switch with 2 SFP Ports supports VLAN, port aggregation, QoS, port mirroring, SNMP V1 and the popular SNMP V2c, just to name a few.
Special Fetures
- Provides power and data connection for up to 24 PoE network devices
- Save installation cost by delivering data and power over existing network cables
- Domotz compatible for cloud management (may require firmware upgrade)
Product Specification
Device Type | Switch - 24 ports - Managed |
Enclosure Type | Desktop, rack-mountable |
Subtype | Gigabit Ethernet |
Ports | 24 x 10/100/1000 (PoE+) + 2 x SFP |
Power Over Ethernet (PoE) | PoE+ |
Performance | Forwarding performance: 1.49 Mpps ¦ Backplane speed: 52 Gbps |
MAC Address Table Size | 16K entries |
Jumbo Frame Support | 9KB |
Remote Management Protocol | SNMP 1, SNMP 2c, HTTP |
Features | Flow control, auto-negotiation, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, packet filtering, port mirroring, store and forward, Broadcast Storm Control, half duplex mode, full duplex mode, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Quality of Service (QoS), Cable Diagnostics Function, bandwidth control, Link Aggregation Control Protocol (LACP), over-voltage protection, short circuit protection, 400KB packet buffer |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3at |
Status Indicators | Power, PoE, link/activity |
Interfaces | 24 x 1000Base-T RJ-45 PoE+ ¦ 2 x SFP (mini-GBIC) |
Power Device | Internal power supply |
Voltage Required | AC 120/230 V (50/60 Hz) |
Power Consumption Operational | 180 Watt |
Colour | Black |
Rack Mounting Kit | Included |
Compliant Standards | FCC Class A certified |
Width | 44 cm |
Depth | 22 cm |
Height | 4.4 cm |
Weight | 3.1 kg |
Service & Support | Limited warranty - 3 years |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 45 °C |
Humidity Range Operating | 10 - 90% (non-condensing) |
Min Storage Temperature | -20 °C |
Max Storage Temperature | 90 °C |
Features - Intellinet - 560559
