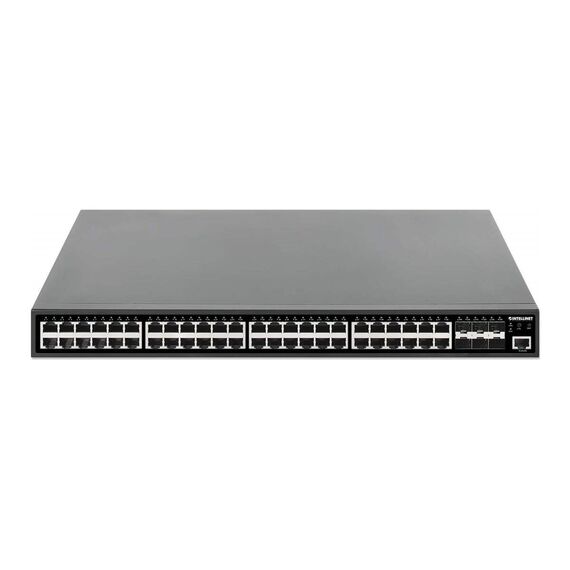

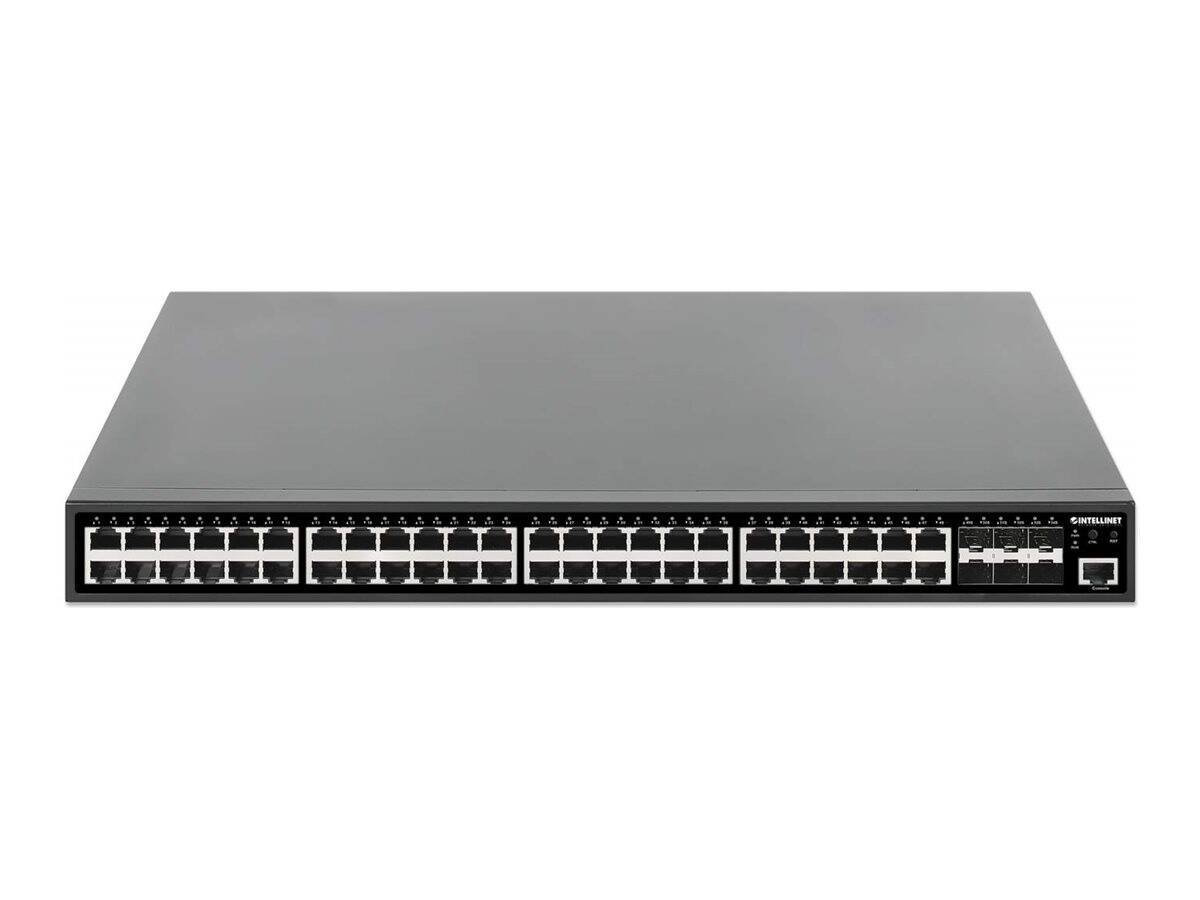

Intellinet - Switch - L2+ - Managed - 48 x 10/100/1000 (PoE+) + 6 x 10 Gigabit SFP+ (uplink) - rack-mountable - PoE+ (450 W) | 561969
561969
Find similar
Delivery
Payment options
Συνδεθείτε για να μπορέσουμε να σας ειδοποιήσουμε σχετικά με μια απάντηση
Product Specification
| Device Type | Switch - 54 ports - L2+ - Managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 (PoE+) + 6 x 10 Gigabit SFP+ (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 450 W |
| Performance | Forwarding rate: 160.704 Mpps ¦ Backplane speed: 216 Gbps |
| Capacity | Link aggregation groups: 16 |
| MAC Address Table Size | 32K entries |
| Jumbo Frame Support | 12KB |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH-2, DHCP |
| Authentication Method | Secure Shell v.2 (SSH2) |
| Features | IGMP snooping, port mirroring, store and forward, Quality of Service (QoS), Class of Service (CoS), metal housing, DiffServ Code Point (DSCP) support, Internet Control Message Protocol (ICMP), self-healing network, LLDP |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.3at, IEEE 802.3az |
| Status Indicators | Power, system, PoE, link/activity |
| Expansion / Connectivity | |
| Interfaces | 48 x 10/100/1000Base-TX (PoE+) RJ-45 PoE+ - 30 W ¦ 6 x Gigabit LAN SFP+ uplink ¦ 1 x console RJ-45 |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| Power Consumption Operational | 460 Watt |
| Miscellaneous | |
| Included Accessories | 19" mounting brackets |
| Rack Mounting Kit | Included |
| Compliant Standards | FCC, NDAA, UKCA, EEE |
| Dimensions & Weight | |
| Width | 44 cm |
| Depth | 33 cm |
| Height | 4.4 cm |
| Weight | 5.45 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
