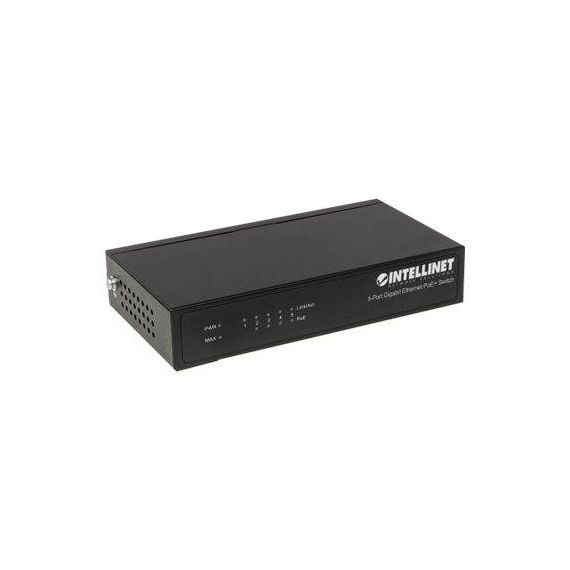

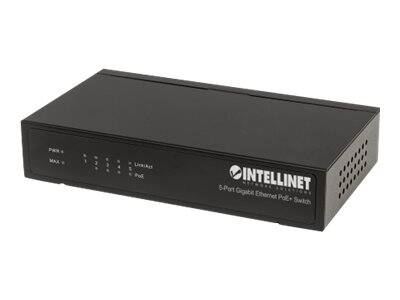

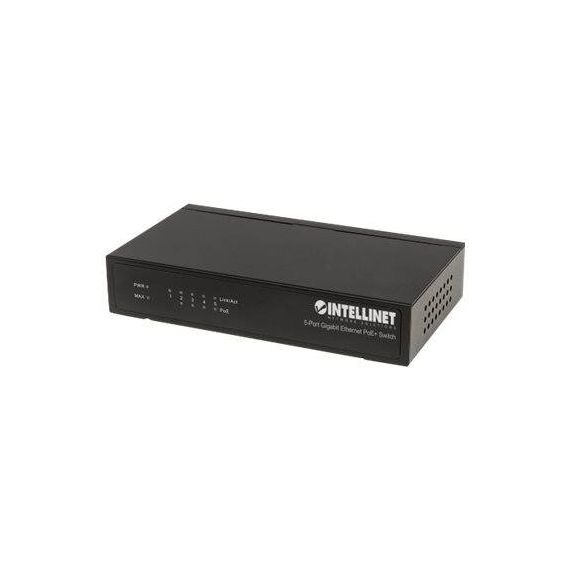

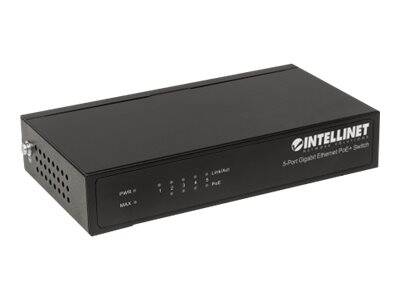

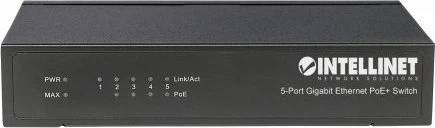

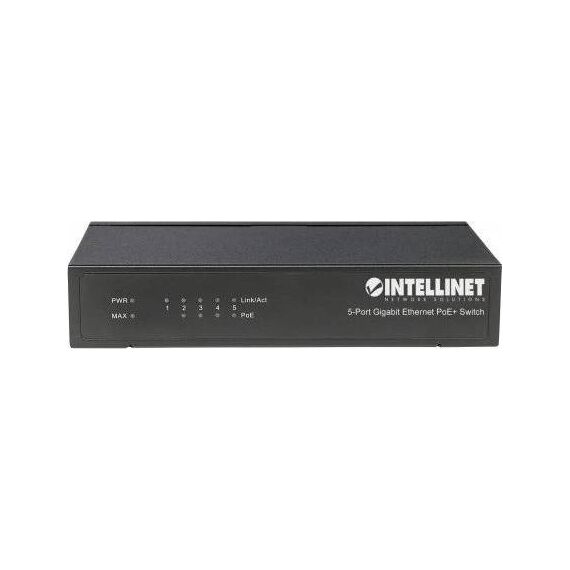

Intellinet 5-Port Gigabit Ethernet PoE+ Switch, 4 x PSE Ports, IEEE 802.3at/af Power over Ethernet (PoE+/PoE) Compliant, 60 W, Desktop - Switch - 4 x 10/100/1000 (PoE+) + 1 x 10/100/1000 - desktop - PoE+ (60 W) | 561228
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Switch - 5 ports |
| Enclosure Type | Desktop |
| Subtype | Gigabit Ethernet |
| Ports | 4 x 10/100/1000 (PoE+) + 1 x 10/100/1000 |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 60 W |
| Performance | Switching fabric bandwidth: 10 Gbps ¦ Packet filter/forwarding rate (1000 Mbps):: 1448000 pps ¦ Packet filter/forwarding rate (100 Mbps): 148000 pps ¦ Packet filter/forwarding rate (10 Mbps): 14880 pps |
| Capacity | Buffer memory (kBytes): 192 |
| MAC Address Table Size | 2K entries |
| Jumbo Frame Support | 9KB |
| Features | Flow control, auto-uplink (auto MDI/MDI-X), store and forward, half duplex mode, full duplex mode, fanless, Energy Efficient Ethernet, 1.5MB packet buffer, power-saving mode, 9 KB Jumbo Frame |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az |
| Built-in Devices | Led panel |

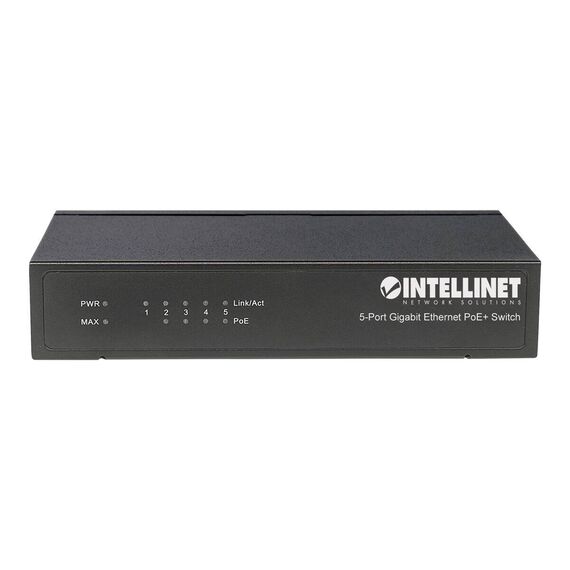

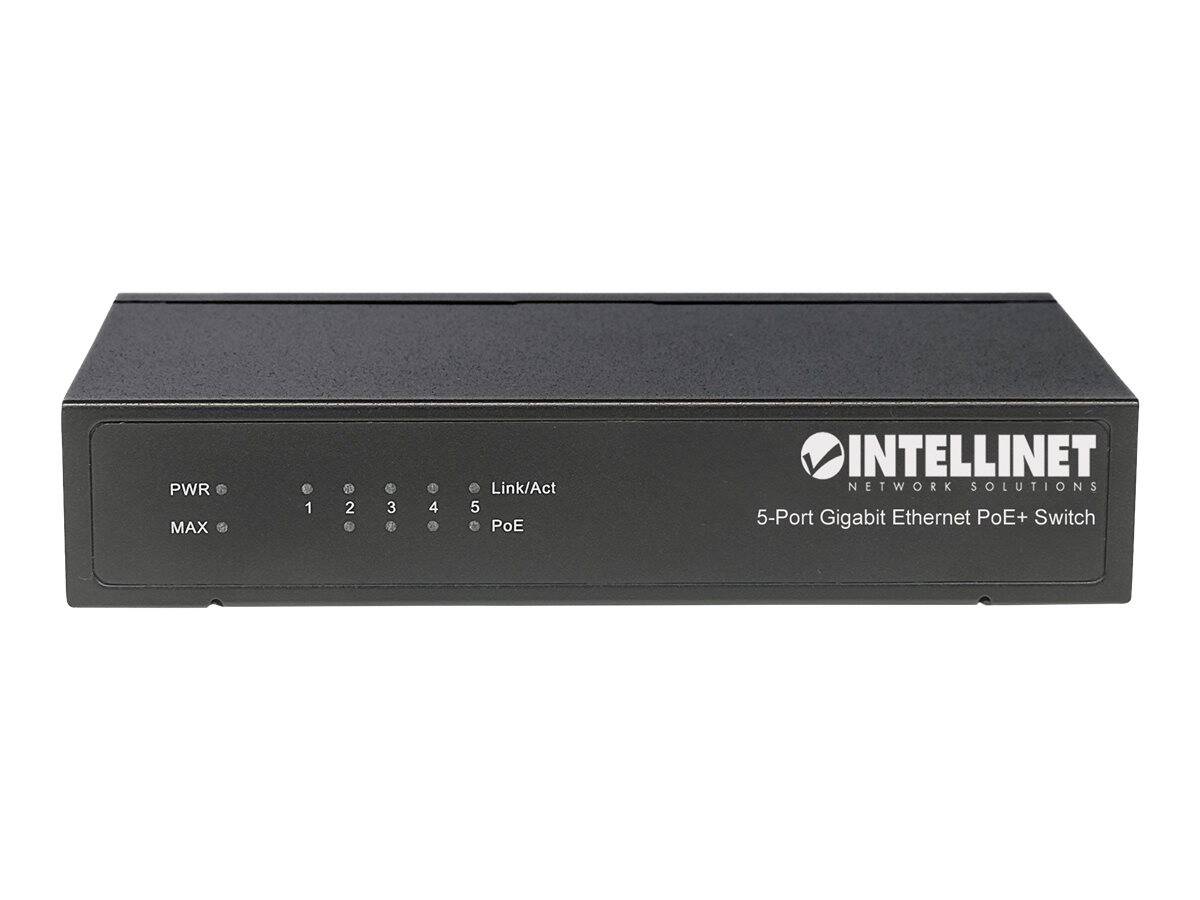

| Status Indicators | Power, PoE, link/activity |
| Expansion / Connectivity | |

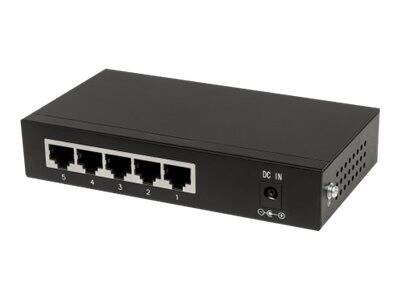

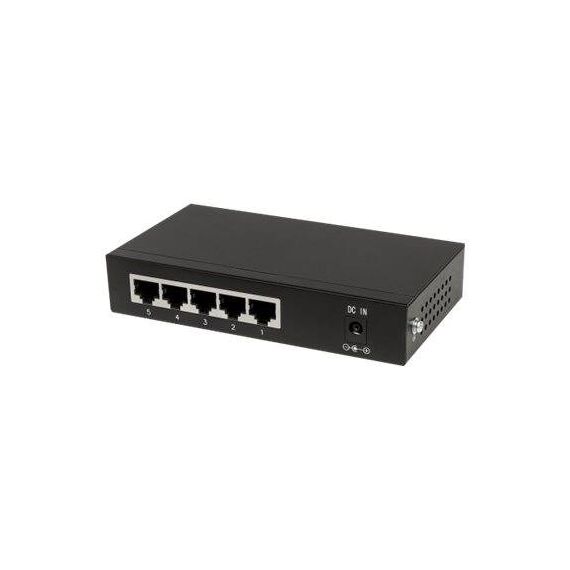

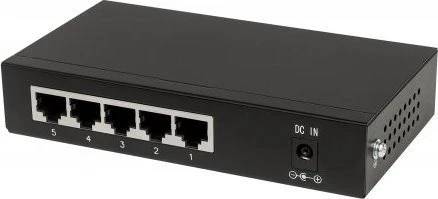

| Interfaces | 4 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 1 x 1000Base-T RJ-45 |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 70 Watt |
| Miscellaneous | |
| Compliant Standards | FCC Class B certified |
| Dimensions & Weight | |
| Width | 14 cm |
| Depth | 7.6 cm |
| Height | 2.7 cm |
| Weight | 710 g |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 70 °C |
