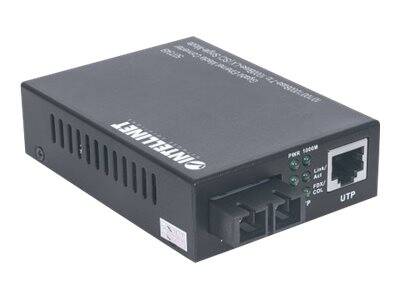

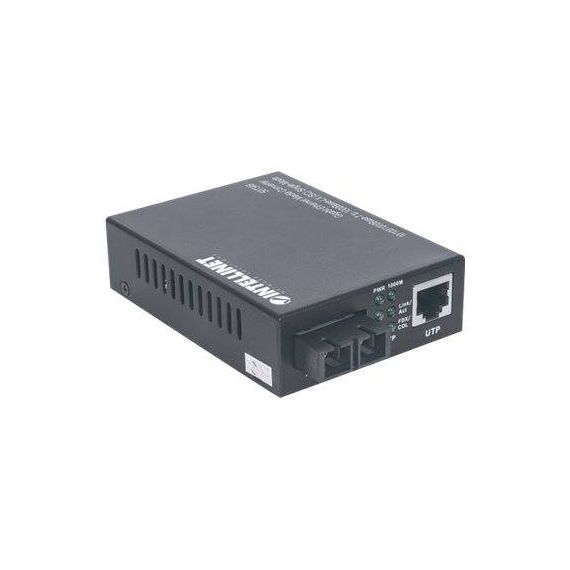

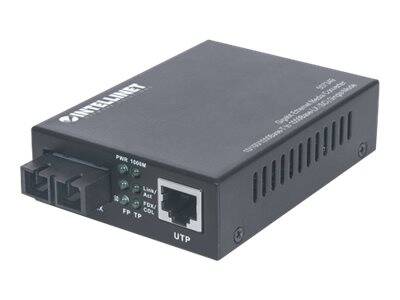

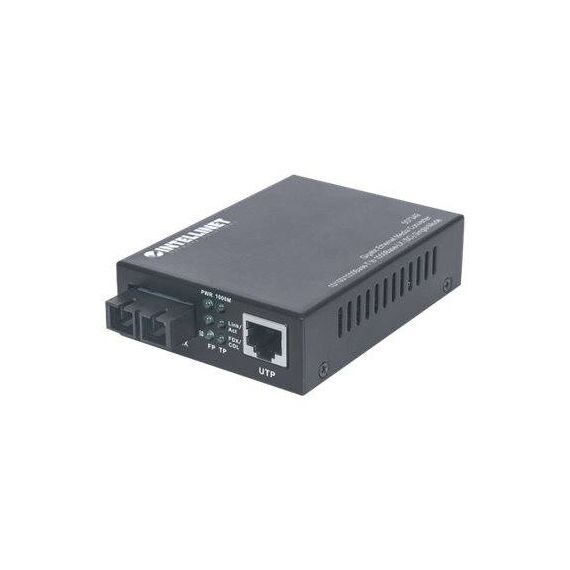

Intellinet Gigabit Ethernet Single Mode Media Converter, 10/100/1000Base-T to 1000Base-Lx (SC) Single-Mode, 20km (Euro 2-pin plug) - Fibre media converter - GigE - 10Base-T, 1000Base-LX, 100Base-TX, 1000Base-T - RJ-45 / SC single-mode - up to 20 km - 1310
Please sign in so that we can notify you about a reply
Product Features
- Expands the size of an existing network
Provides fiber connectivity to Ethernet segments, allowing for even further networking expansion between extended workgroups. Also provides building-to-building connectivity without the need for the cost and disruption associated with the installation of additional routers. - Enhances the distance between networking devices
Connecting the converter to fiber segments can further extend distances between networking nodes. This can be achieved by direct connection between the converter and a fiber-based node or networking device. - Cabling flexibility
Network managers can install fiber cabling anywhere within a network without changing the arrangement of copper-based Ethernet. The compact size of the converter allows it to be easily deployed in any narrow desktop location.
Special Fetures

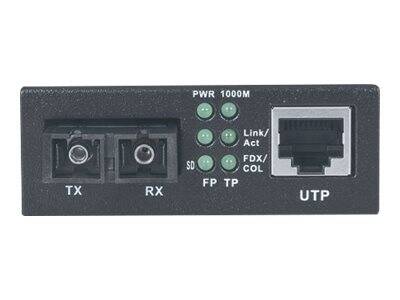

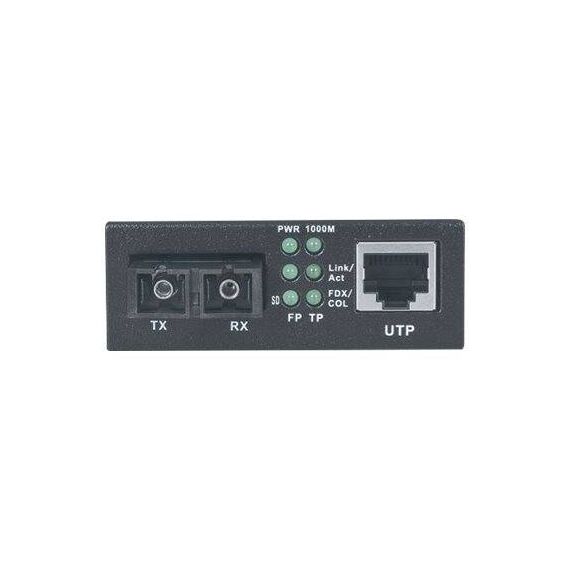

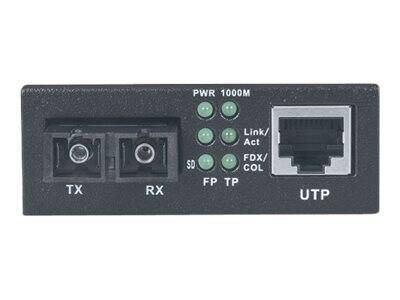

- Fiber SC single-mode port
- High data transfer rate
- Auto-sensing Gigabit Ethernet RJ45 port with auto MDI/MDI-X support and auto-negotiation

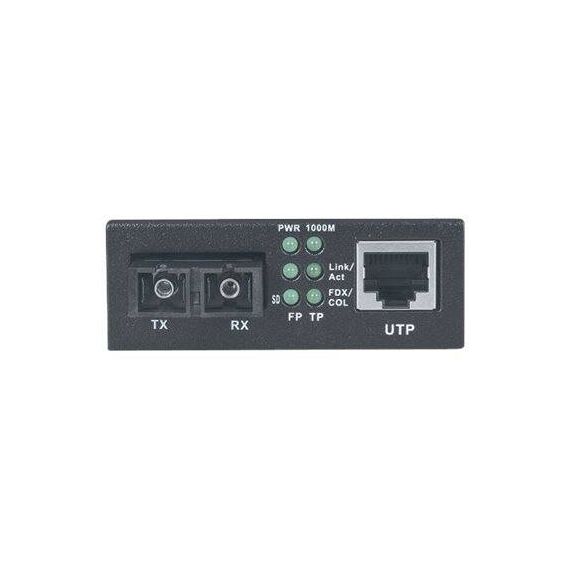

- Status LEDs for power and link/TX for both ports
Product Specification
| Device Type | Fibre media converter |
| Form Factor | External |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 1000Base-LX, 100Base-TX, 1000Base-T |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE |
| Data Transfer Rate | 1 Gbps |
| Optical Wave Length | 1310 nm |
| Max Transfer Distance | 20 km |
| Status Indicators | Collision status, port duplex mode, power, link/activity |
| Features | Auto-sensing per device, auto-negotiation, auto-uplink (auto MDI/MDI-X), full duplex mode |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x Ethernet 1000Base-LX - SC single-mode x 2 |
| Miscellaneous | |
| MTBF | 100,000 hours |
| Compliant Standards | FCC Class B certified |
| Power | |

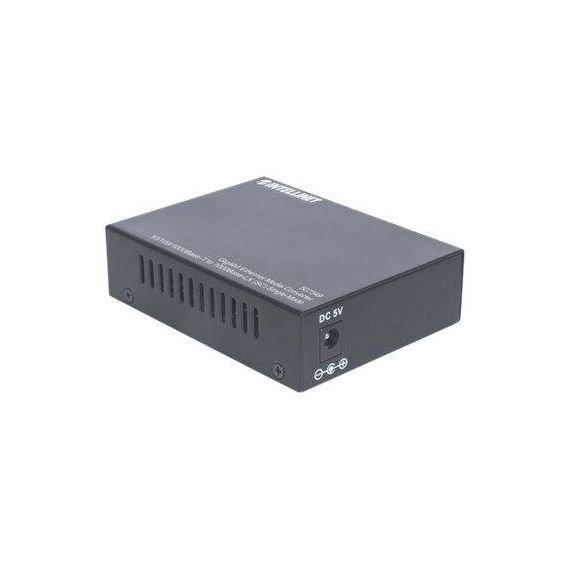

| Power Device | External power adapter |
| Power Consumption Operational | 5 Watt |
| Dimensions & Weight | |
| Width | 7 cm |
| Depth | 10.5 cm |
| Height | 2.6 cm |
| Weight | 180 g |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - Intellinet - 507349
More Details
Product Code
04:191852
EAN Code
0766623507349
