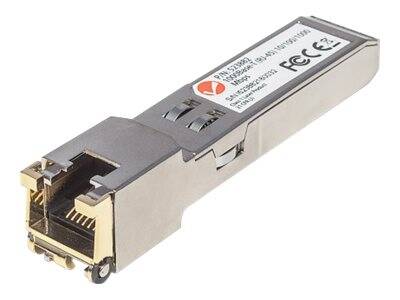

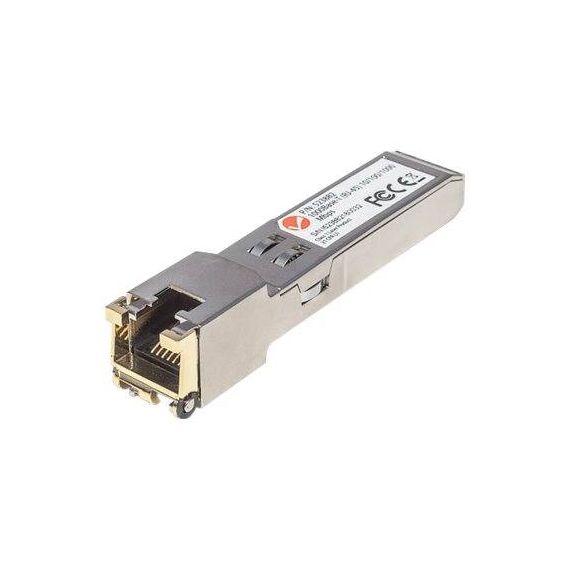

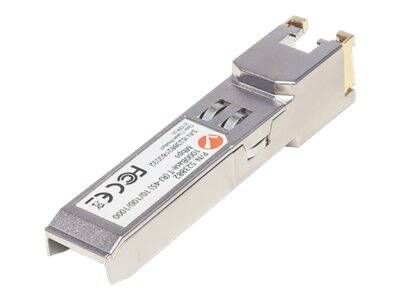

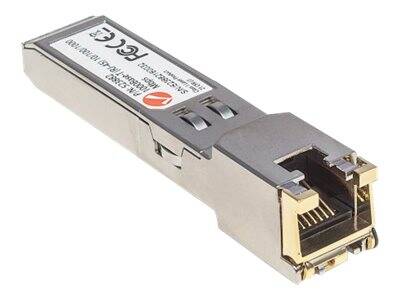

Intellinet Gigabit RJ45 Copper SFP Optical Transceiver Module, 1000Base-T (RJ-45) port, 100m, Equivalent to Cisco GLC-T, Three Year Warranty / SFP (mini-GBIC) transceiver module / GigE / 10Base-T, 100Base-TX, 1000Base-T / RJ-45 / up to 100 m | 523882
Please sign in so that we can notify you about a reply
Special Features
- Fits any Intellinet Gigabit Ethernet switch with SFP module slots
- 10/100/1000 Mbps auto-sensing Gigabit Ethernet RJ-45 port with Auto MDI/MDI-X support
- Adds a Gigabit Ethernet copper connection to a network switch or media converter that supports SFP transceivers
- Distance support of up to 100 m
- Compliant with MSA
- SFP standard form factor
- Low power dissipation
- Low EMI due to fully metallic housing
- Up to 1.25 Gbps bidirectional communication
- Supports hot-plugging
Product Specification
| Device Type | SFP (mini-GBIC) transceiver module |
| Form Factor | Plug-in module |
| Networking | Networking |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-T |
| Data Link Protocol | GigE |
| Data Transfer Rate | 1.25 Gbps |
| Max Transfer Distance | 100 m |
| Features | Auto-uplink (auto MDI/MDI-X) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 |
| Miscellaneous | Miscellaneous |
| Compliant Standards | FCC Class A certified, RoHS |
| Power | Power |
| Power Consumption Operational | 1.2 Watt |
| Dimensions & Weight | Dimensions & Weight |
| Width | 1.4 cm |
| Depth | 6.7 cm |
| Height | 1.2 cm |
| Weight | 23 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
| Humidity Range Operating | 10 - 85% (non-condensing) |
Features - Intellinet - 523882
Length
>50m
More Details
Product Code
04:200827
EAN Code
0766623523882
Manufacturer
Intellinet
