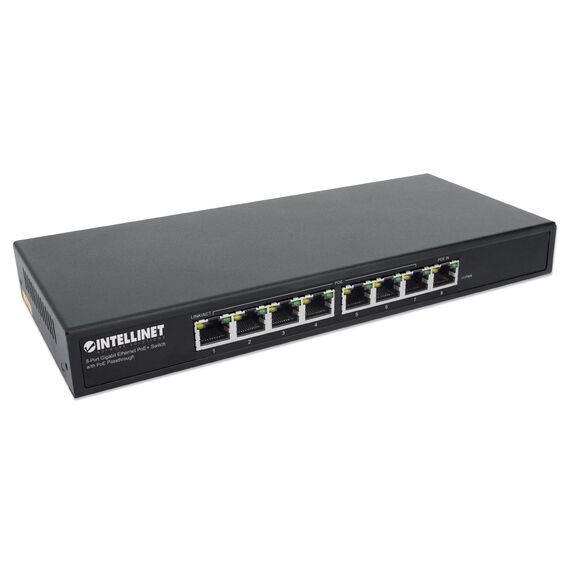

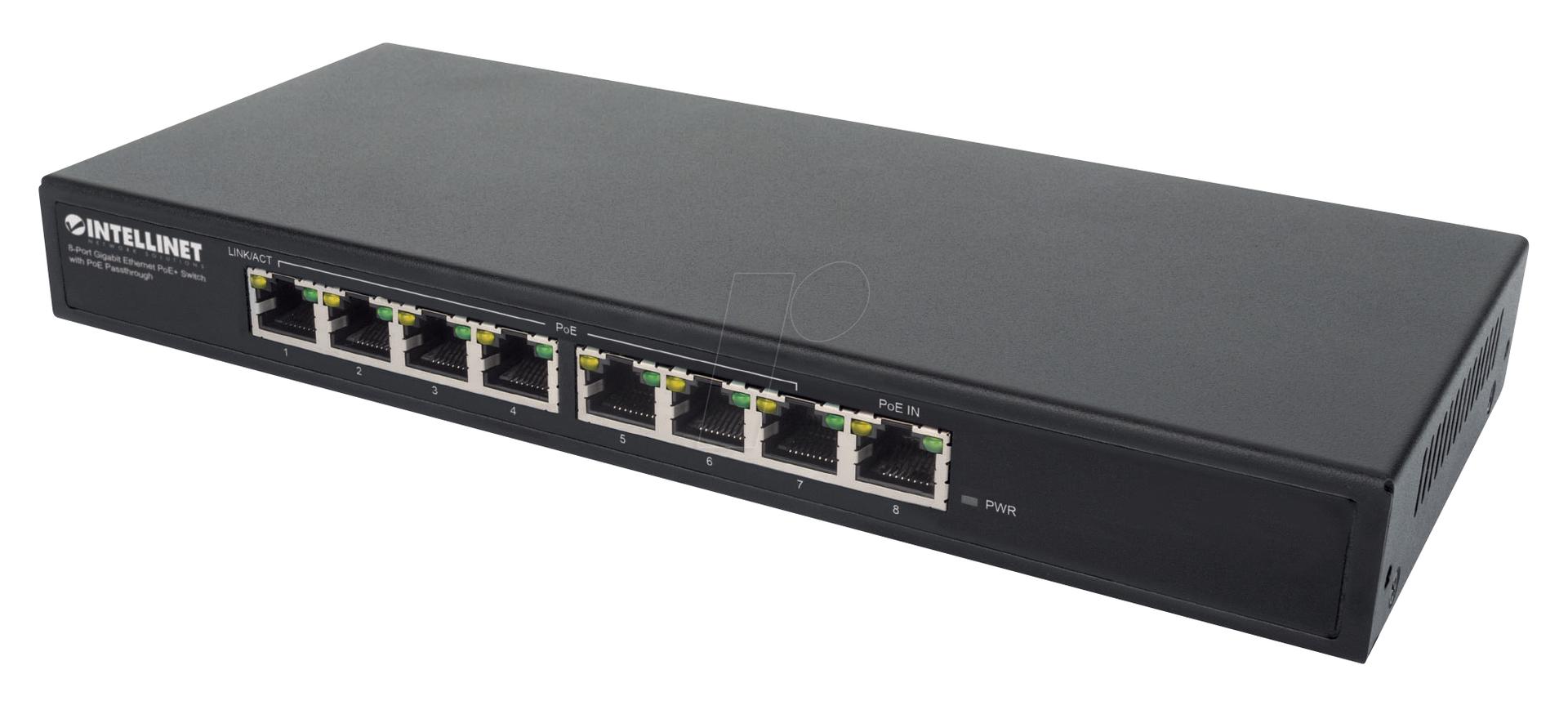

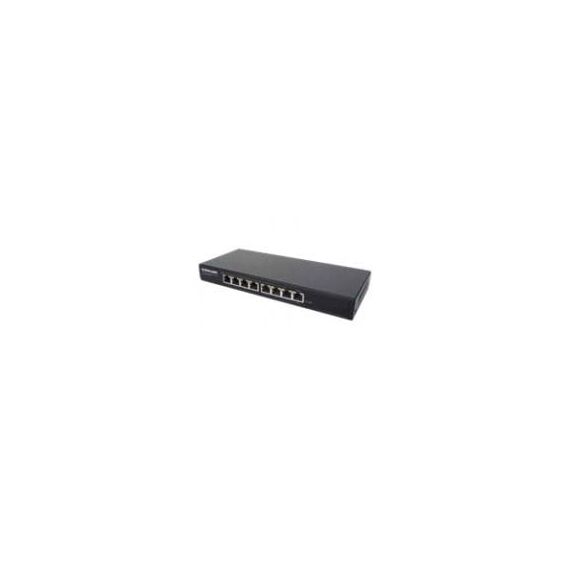

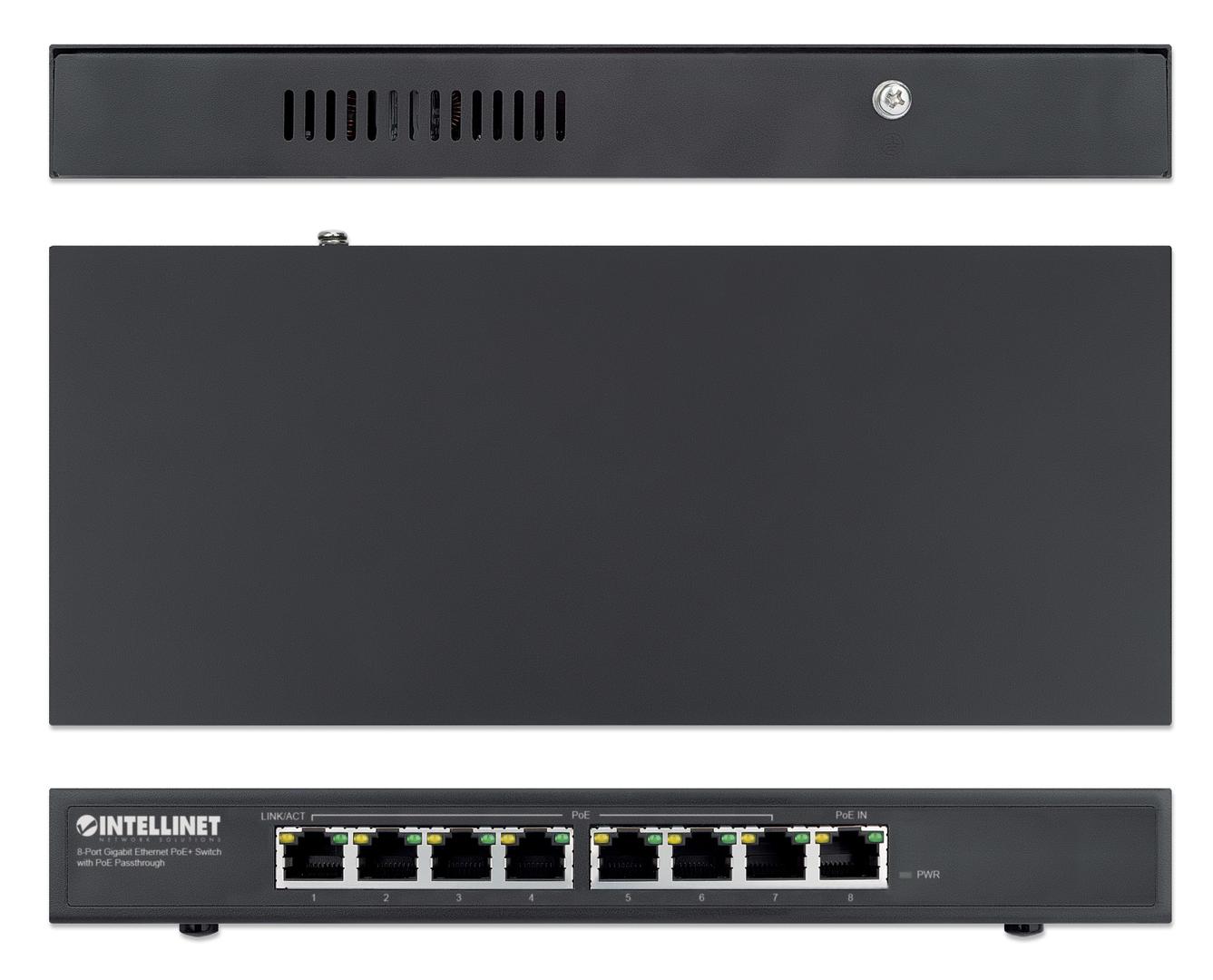

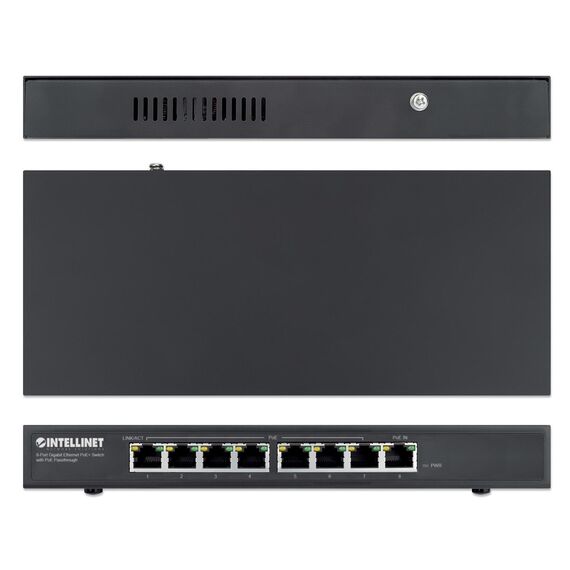

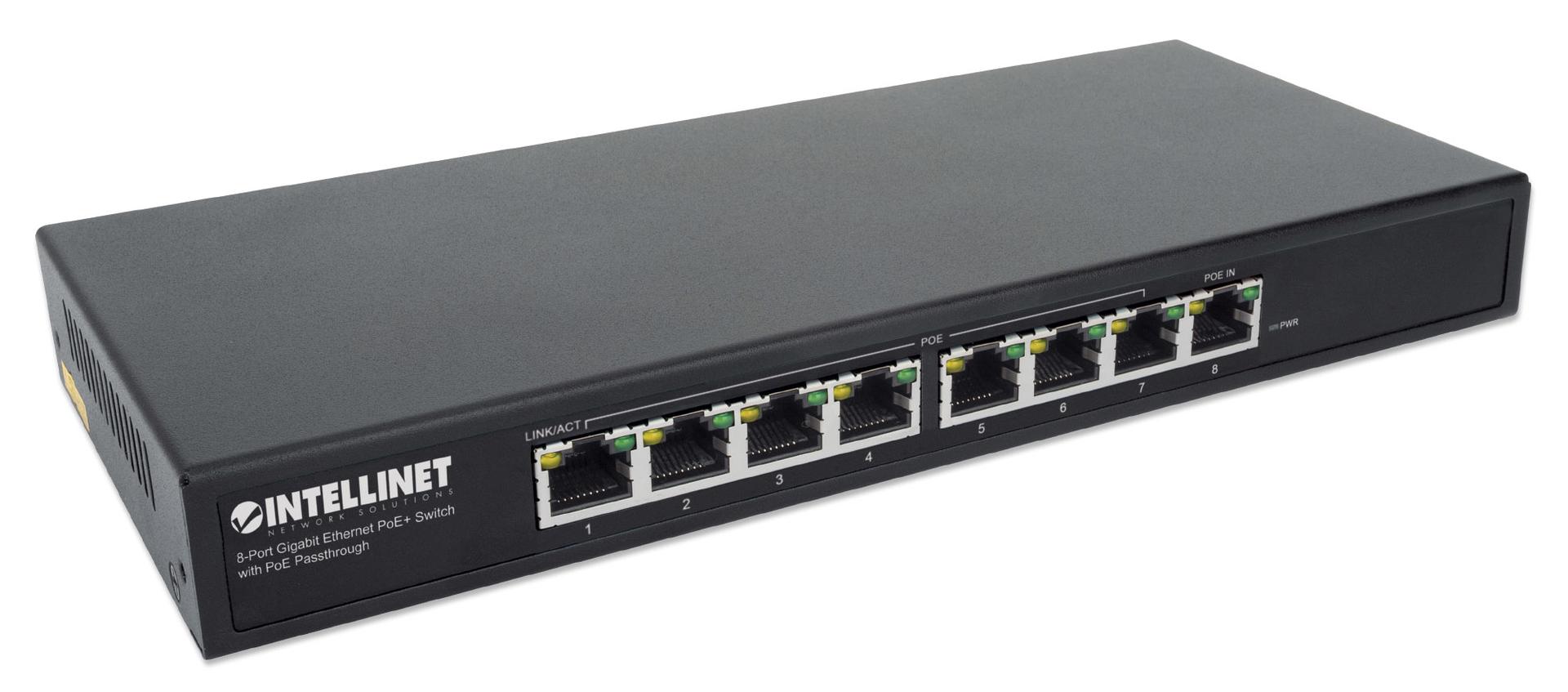

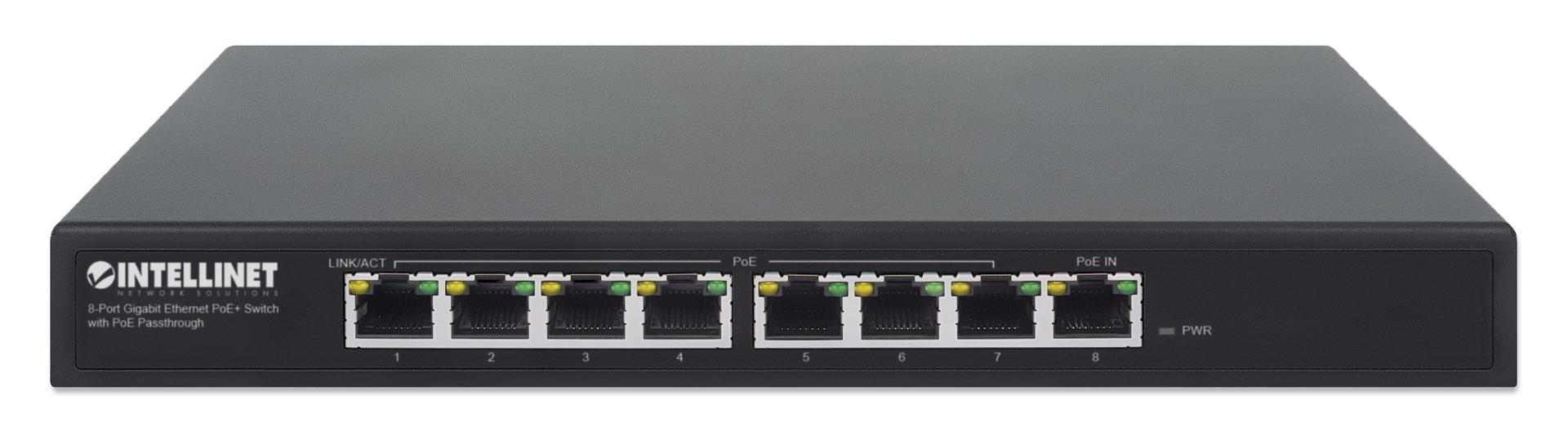

Intellinet IPS-08G-85W - Switch - unmanaged - 8 x 10/100/1000 (PoE+) - desktop - PoE Passthrough / PoE+ (85 W) | 561679

Product Features

• Save installation costs with Power over Ethernet and get the most out each PoE connection
  Equipped with eight Gigabit Ethernet ports, this PoE Passthrough Switch can power up to seven wireless LAN access points and bridges, VoIP phones or IP video cameras and deliver network speeds up to 1,000 Mbps without an external power adapter.
• Usable as a PoE extender
  Thanks to its PoE passthrough technology that extends a PoE connection, this versatile unit doubles the range between PoE source and device from 100 m (328 ft.) to 200 m (656 ft.). Using the PoE Passthrough Switch this way also eliminates the time and expense of electrical rewiring, which ultimately minimizes the unsightly clutter of power cables in awkward places such as ceilings and walls while providing up to 85 W to compatible devices.

Special Fetures

• Supports up to 90 W power input from a PoE injector or switch
• Provides up to seven PoE network devices with power and data
• Doubles the connection distance between PoE source and device from 100 m (328 ft.) to 200 m (656 ft.)
• PoE power budget of 85 W with 90 W power input through IEEE 802.3bt connection
• PoE power budget of 20 W through IEEE 802.3at connection and 10 W through IEEE 802.3af connection
• Powered via PoE only
• Saves installation costs by delivering data and power over existing network cables
• IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports
• Power output up to 30 watts per port

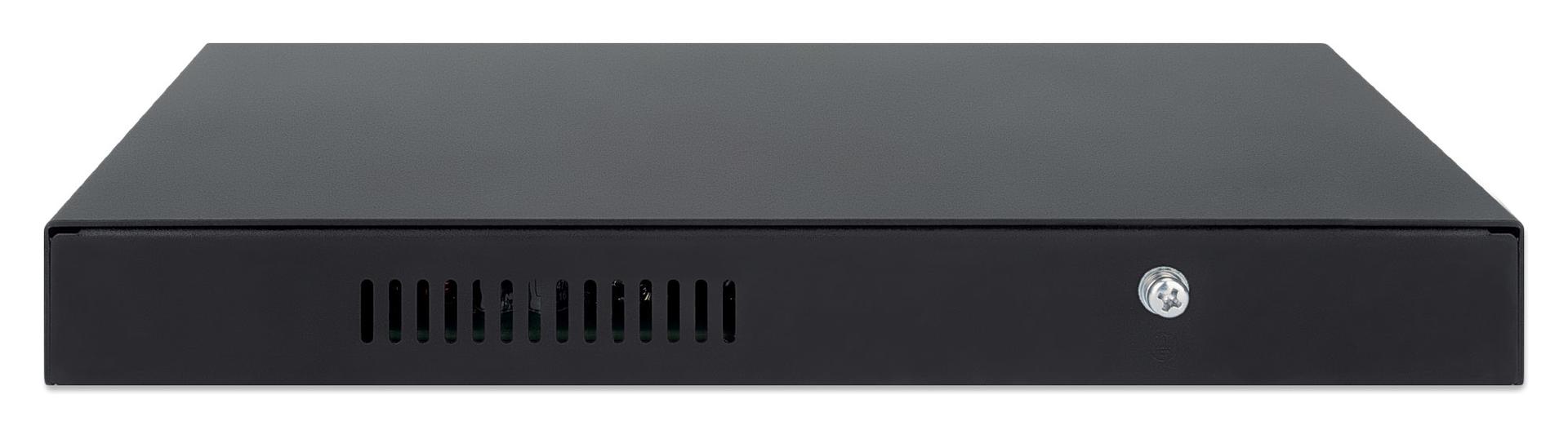

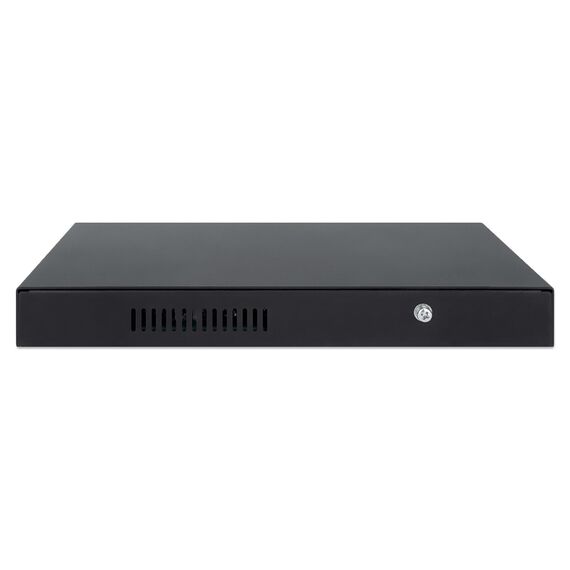

• Grounding point to protect equipment from external electrical surges
• Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (e.g., wireless access points, VoIP phones, IP cameras)
• Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection
• 10/100/1000 auto-sensing ports automatically detect optimal network speeds
• Switch fabric of 16 Gbps
• Green Ethernet power-saving technology deactivates unused ports and adjusts power levels based on the cable length
• All RJ45 ports with Auto-MDIX (auto uplink) support
• Supports 2k MAC address entries with auto-learning and auto-aging
• Store and forward switching architecture
• Supports IEEE 802.3x flow control on full duplex and backpressure on half duplex

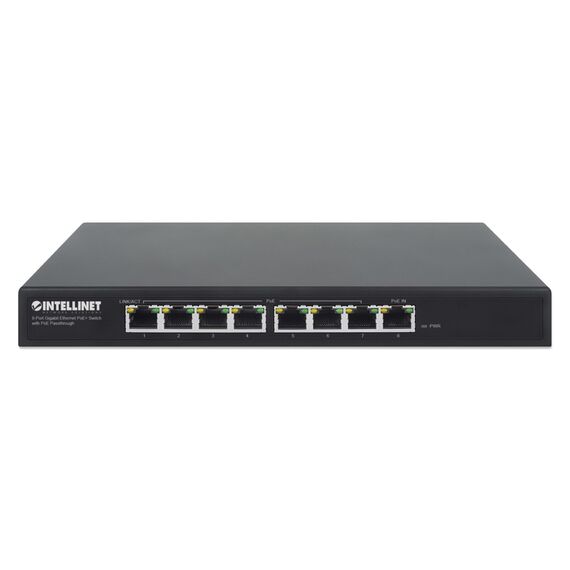

• LEDs for power, link/activity and PoE
• Fanless design ideal for silent operation
