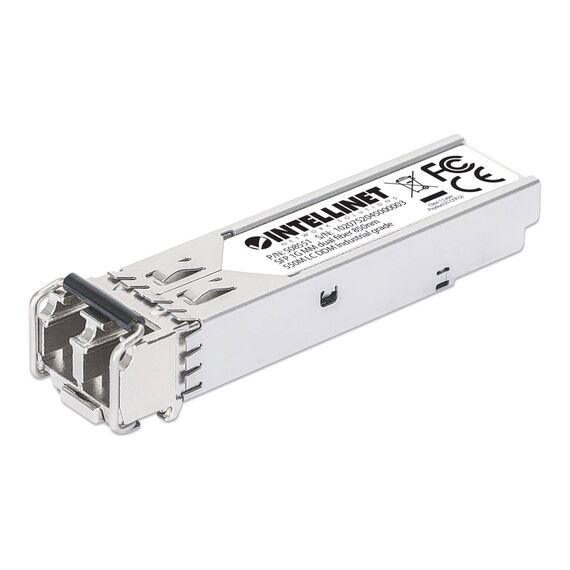

Intellinet / SFP (mini-GBIC) transceiver module (equivalent to: Cisco GLC-SX-MM) / 1GbE / 1000Base-SX / LC multi-mode / up to 550 m / 850 nm | 508551
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | SFP (mini-GBIC) transceiver module |
| Form Factor | Plug-in module |
| Networking | Networking |
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-SX |
| Data Link Protocol | 1GbE |
| Data Transfer Rate | 1000 Mbps |
| Optical Wave Length | 850 nm |
| Max Transfer Distance | 550 m |
| Features | Digital Diagnostics Monitoring (DDM), 9 dB power budget, hot-pluggable, low EMI, -18 dB sensivity |
| Compliant Standards | IEEE 802.3z |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x Ethernet 1000Base-SX - LC multi-mode x 2 |
| Miscellaneous | Miscellaneous |
| Compliant Standards | FCC Class B certified, RoHS, MSA, NDAA, UKCA, SFF-8472 |
| OEM Manufacturer Equivalent Part Number | Cisco GLC-SX-MM |
| Dimensions & Weight | Dimensions & Weight |
| Width | 1.4 cm |
| Depth | 5.7 cm |
| Height | 1.2 cm |
| Weight | 20 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
Features - Intellinet - 508551
More Details
Product Code
04:468271
EAN Code
0766623508551
Manufacturer
Intellinet
