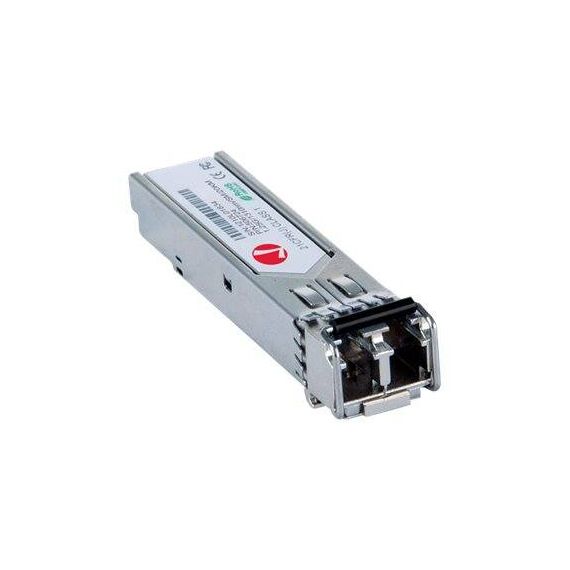

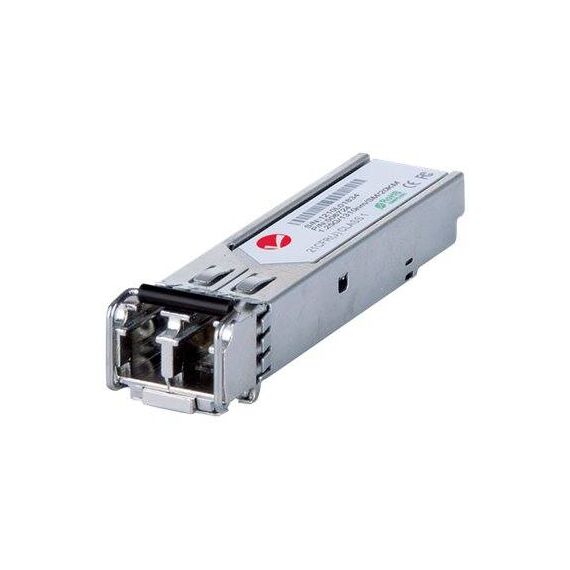

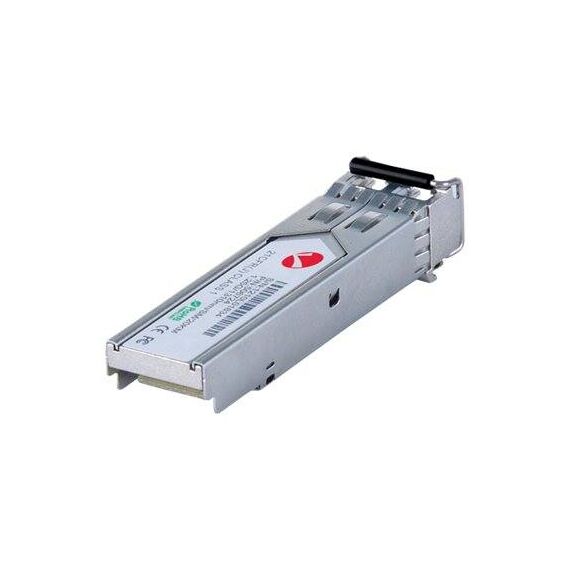

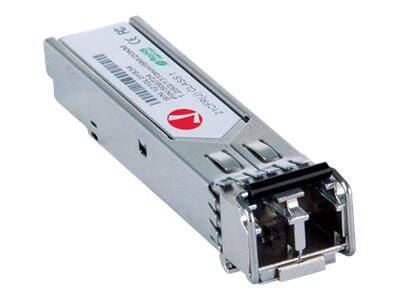

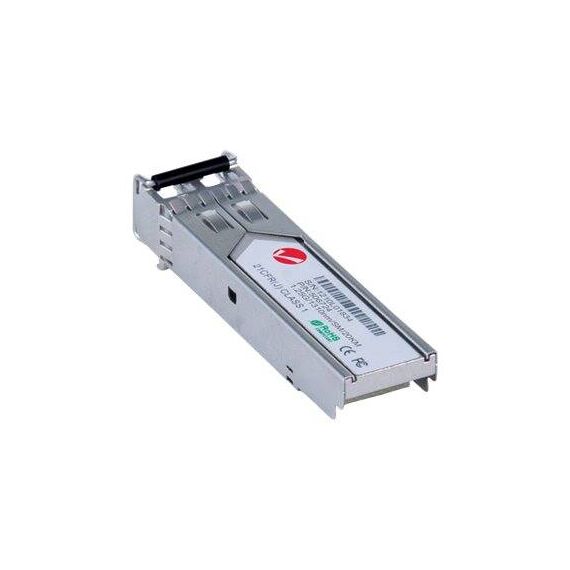

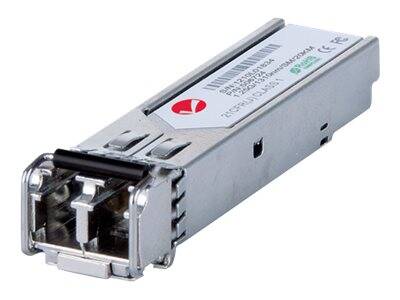

Intellinet Gigabit Ethernet SFP Mini-GBIC Transceiver, 1000Base-Lx (LC) Single-Mode Port, 20km, Equivalent to Cisco GLC-LH-SM, / SFP (mini-GBIC) transceiver module / GigE / 1000Base-LX / LC single-mode / up to 20 km / 1310 nm | 506724
Please sign in so that we can notify you about a reply
Product Features
- Small size for high-density fiber connections
The transceiver comes in a mini-GBIC form factor, making it ideal for environments that require many fiber connections by taking up less space in your cabinet and/or computer room. - Multi-vendor compatible
It meets SFP GBIC standards for use with any SFP GBIC-compliant slot. Use the transceiver with any LAN switch in your network, as long as it supports the SFP GBIC standards. - Hot-pluggable
No need to power down your LAN switches in order to install or remove the transceiver. This makes it very convenient and easy for you to make adjustments to your network that allow your business to keep pace with the changing demands of the market.
Special Features
- One 1000Base-LX single-mode fiber LC duplex port
- SFP standard form factor
- Supports hot-plugging
- Compliant with SFP transceiver MSA specifications
Product Specification
| Device Type | SFP (mini-GBIC) transceiver module |
| Form Factor | Plug-in module |
| Networking | Networking |
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-LX |
| Data Link Protocol | GigE |
| Data Transfer Rate | 1 Gbps |
| Optical Wave Length | 1310 nm |
| Max Transfer Distance | 20 km |
| Features | Hot swap module replacement |
| Compliant Standards | IEEE 802.3z |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x Ethernet 1000Base-LX - LC single-mode x 2 |
| Compatible Slots | 1 x SFP (mini-GBIC) |
| Miscellaneous | Miscellaneous |
| Compliant Standards | FCC Class A certified, RoHS, IEC 60825 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 1.3 cm |
| Depth | 5.5 cm |
| Height | 1.2 cm |
| Weight | 15 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
| Humidity Range Operating | 10 - 85% |
