Inter-Tech SAMA FTX-1200-A Armor / Power supply (internal) / ATX12V 2.4 / 80 PLUS Platinum / AC 110/240 V / 1200 Watt / active PFC | 88882197
Please sign in so that we can notify you about a reply
Special Features
- 80PLUS Platinum with more than 92% efficiency
- +12V single-rail technology with 98A
- DC/DC technology
- Full modular cable design
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 2.4 |
| PSU Form Factor | ATX |
| Power Device | Power Device |
| Input Voltage | AC 110/240 V |

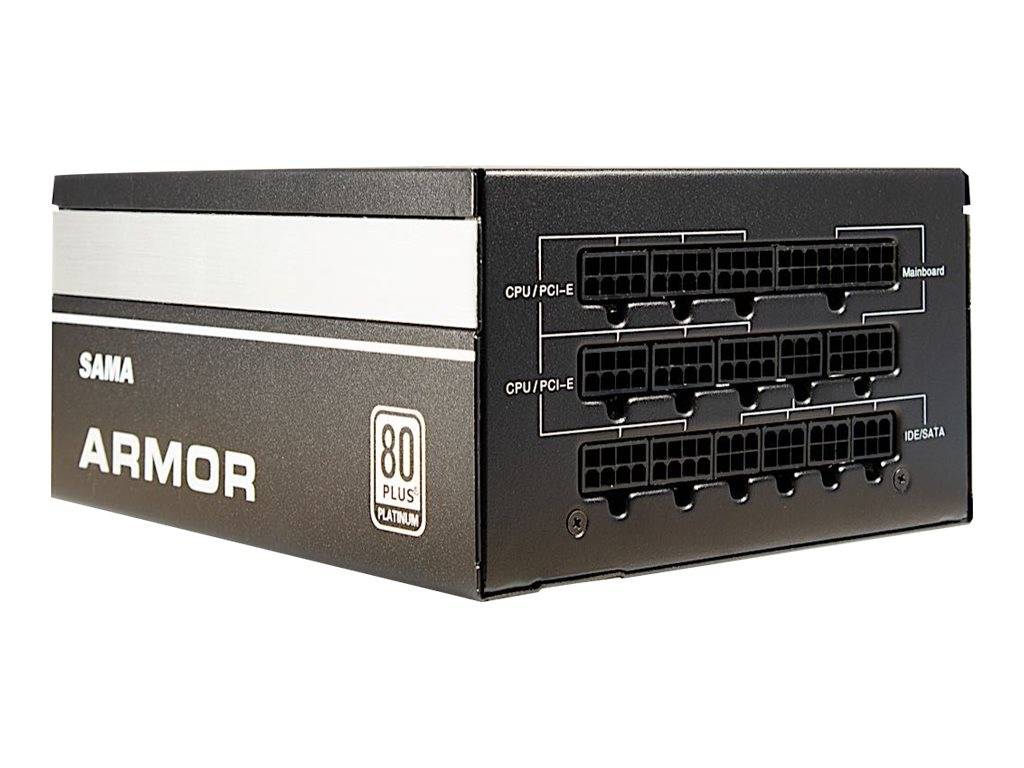

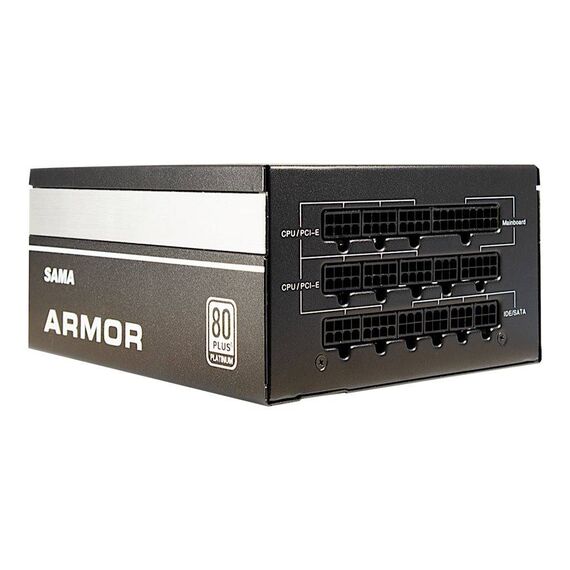

| Power Output Connectors Details | 1 x power 24 pin ATX ¦ 4 x 8 pin PCI Express power ¦ 2 x power 24 pin ATX with detachable 4 pin section ¦ 3 x 4 PIN internal power ¦ 9 x 15 pin Serial ATA power |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 1200 Watt |
| Output Current | +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 98 A ¦ -12V - 0.2 A ¦ +5VSB - 3 A |
| Efficiency | 93.91% at 20% Load, 93.50% at 50% Load, 89.31% at 100% Load, 91.4% at 20% Load |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Platinum |
| Miscellaneous | Miscellaneous |

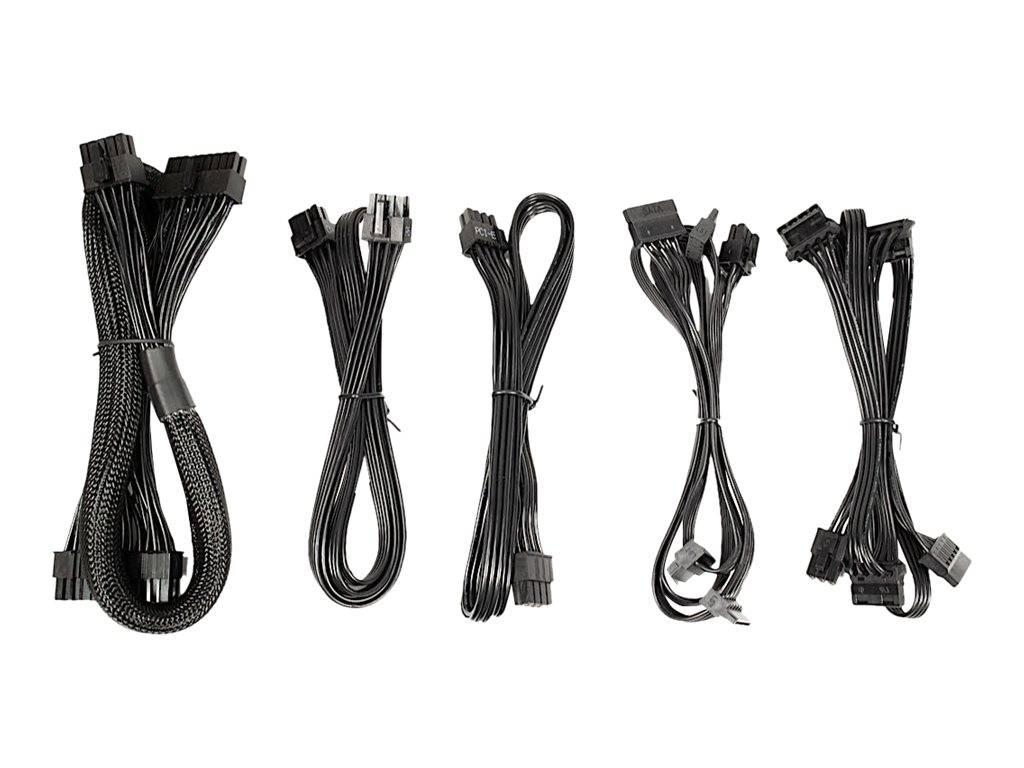

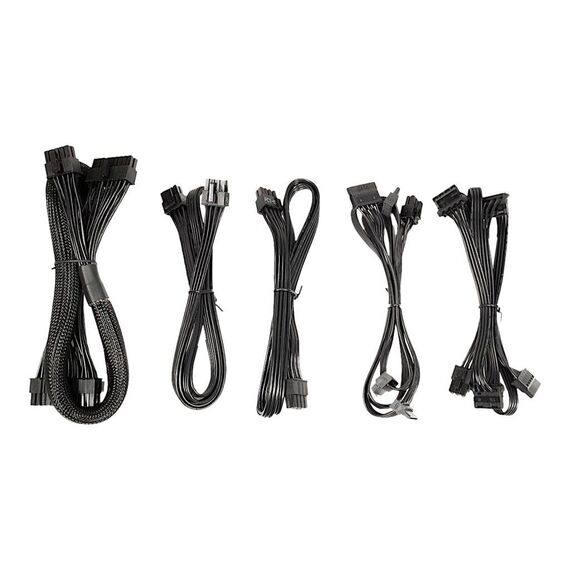

| Included Accessories | Power cable, screws, modular cables |
| Cooling System | 120 mm fan |
| Features | Over current protection, over voltage protection, cable management, short-circuit protection, no load operation protection, fully modular |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 10 years |
| Environmental Parameters | Environmental Parameters |
| Sound Emission | 22 dB |
| Dimensions & Weight | Dimensions & Weight |
| Width | 15 cm |
| Depth | 18 cm |
| Height | 8.6 cm |
| Weight | 2.01 kg |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 33.5 cm |
| Shipping Depth | 20 cm |
| Shipping Height | 13 cm |
| Shipping Weight | 3.57 kg |
Features - INTERTECH - 88882197
More Details
Product Code
04:382599
EAN Code
4260455646789
Manufacturer
INTERTECH
