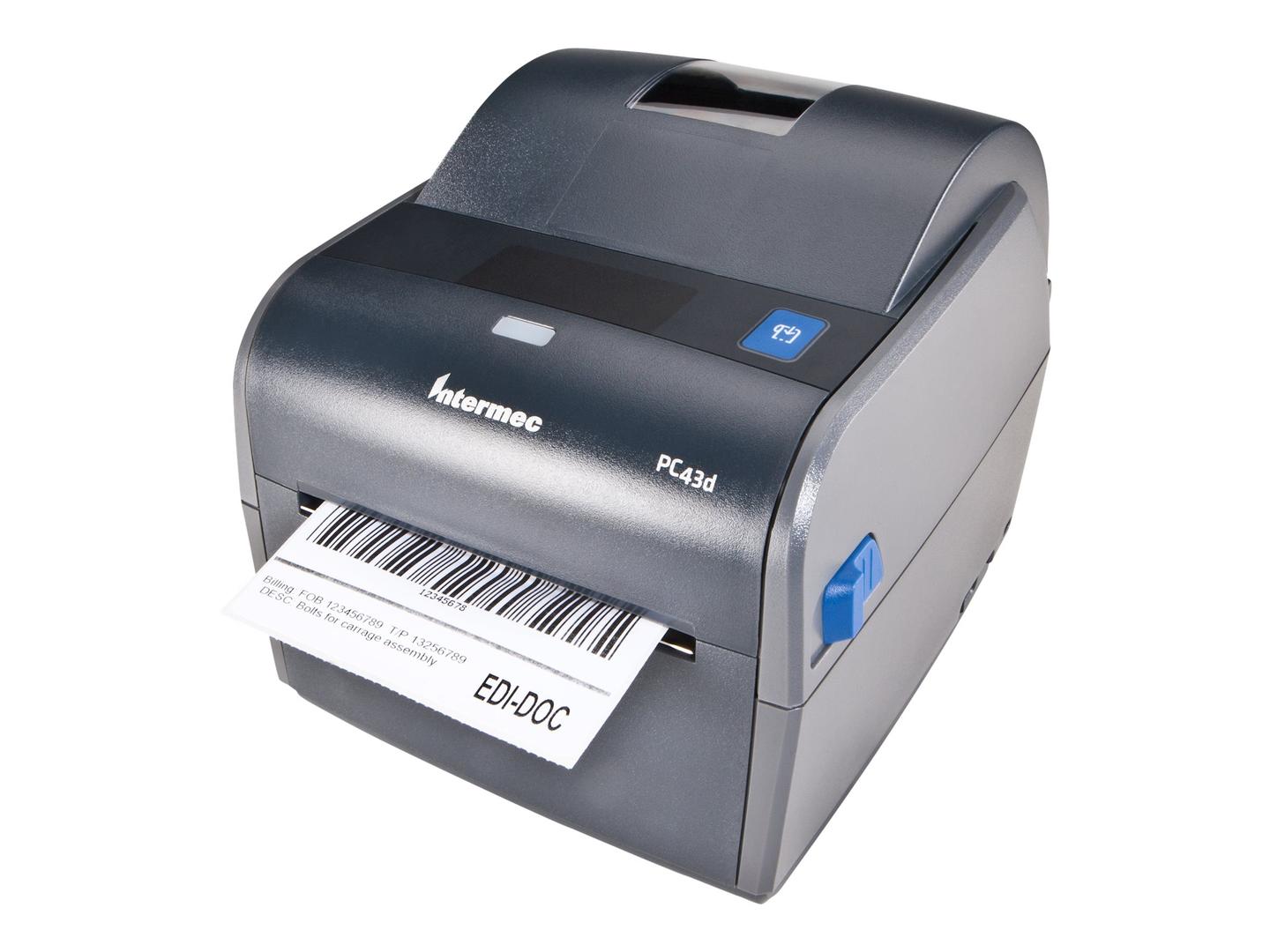

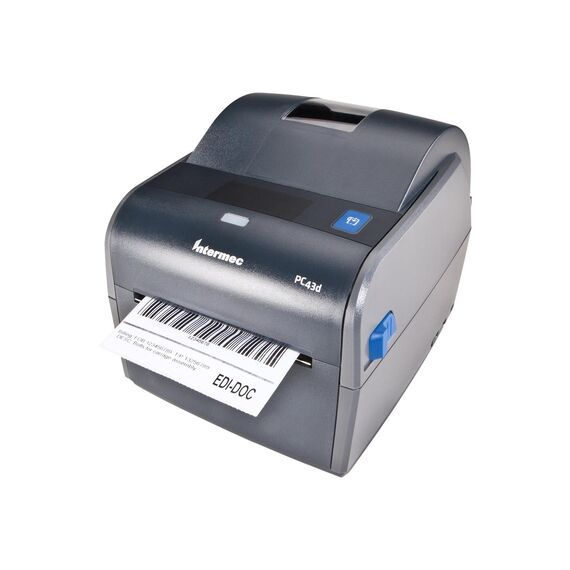

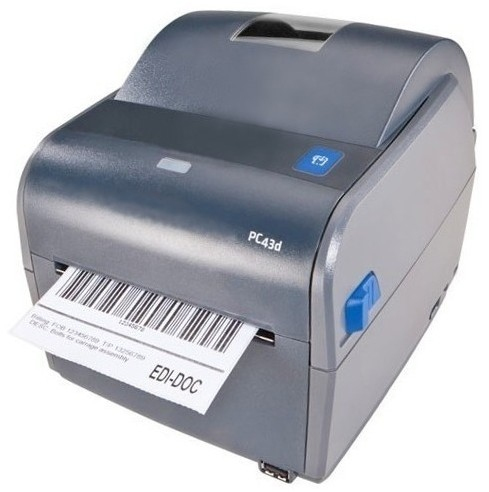

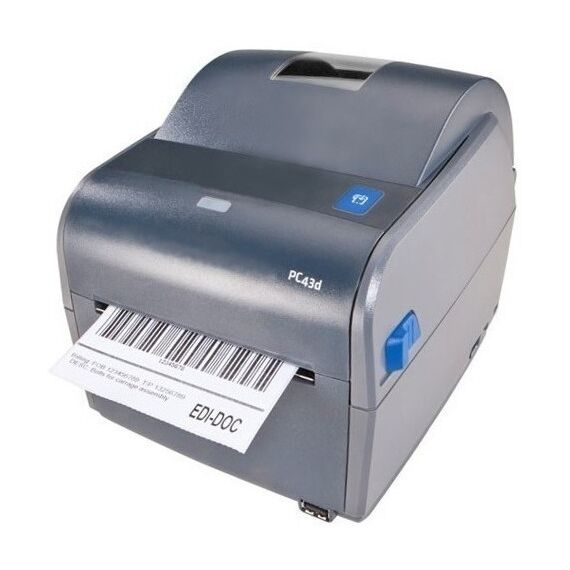

Intermec PC43d - Label printer - direct thermal - Roll (11.8 cm) - 203 dpi - up to 203.2 mm/sec - USB 2.0, LAN, USB 2.0 host | PC43DA01000202
PC43DA01000202
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Fetures
- Intuitive - super easy to install and use
- Flexible - fits your business needs today and tomorrow
- Smart - keeps you informed and productive
Product Specification
| Printer Type | Label printer - direct thermal - monochrome |
| Printer | |
| Print Speed | Up to 203.2 mm/sec - max speed - Roll (11.8 cm) |
| Connectivity Technology | Wired |
| Interface | USB 2.0, LAN, USB 2.0 host |
| Max Resolution (B&W) | 203 dpi |
| Language Simulation | ZPL, ZPL II, Intermec Printer Language (IPL), EPL2, Intermec Direct Protocol, DSim (Datamax Interpreter), ZSim, Extensible Mark-up Language (XML), DPL |
| Fonts | OCR-A, OCR-B |
| Barcodes | UCC/EAN-128, Code 49, QR code, MaxiCode, Aztec code, EAN/JAN-8, EAN/JAN-13, MicroPDF417, Code 16K, Postnet, PDF417, MSI-Plessey, Data Matrix, PLANET, Plessey, Grid Matrix Code |
| RAM | |
| RAM Installed (Max) | 128 MB |
| Technology / Form Factor | DDR2 SDRAM |
| Flash Memory | |
| Flash Memory | 128 MB |
| Media Handling | |
| Media Type | Labels, self-adhesive labels, linerless labels |
| Max Media Size | Roll (11.8 cm) |
| Max Media Size (Custom) | 118 mm |
| Media Sizes | Roll (11.8 cm) |
| Max Printing Width | 104 mm |
| Max Printing Length | 1727 mm |
| Roll Maximum Outer Diameter | 127 mm |
| Roll Core Diameter | 25.4 mm, 38.1 mm |
| Media Feeders | 1 x manual - 1 roll - Roll (11.8 cm) |
| Networking | |
| Networking | Print server |
| Expansion / Connectivity | |
| Connections | 1 x USB 2.0 - 4 pin USB Type B ¦ 1 x USB 2.0 host - 4 pin USB Type A ¦ 1 x LAN - RJ-45 |
| Miscellaneous | |
| Cables Included | 1 x USB cable |
| Compatible with Windows 7 | "Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7. |
| Compliant Standards | FCC Class A certified, UL, TUV GS, C-Tick, BSMI, cUL, GS, EN55024, CISPR 22, EN55022 Class B, CCC, EMC, IEC 60950-1, KCC, cULus |
| Power | |
| Power Device | Power adapter - external |
| Frequency Required | 50/60 Hz |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
| Environmental Standards | |
| ENERGY STAR | Yes |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Environmental Parameters | |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 80% (non-condensing) |
| Dimensions & Weight | |
| Width | 18 cm |
| Depth | 21.5 cm |
| Height | 16.7 cm |
| Weight | 1.72 kg |
