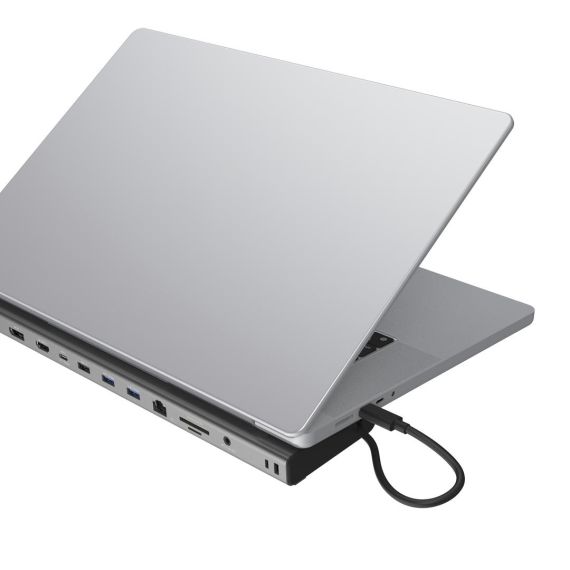

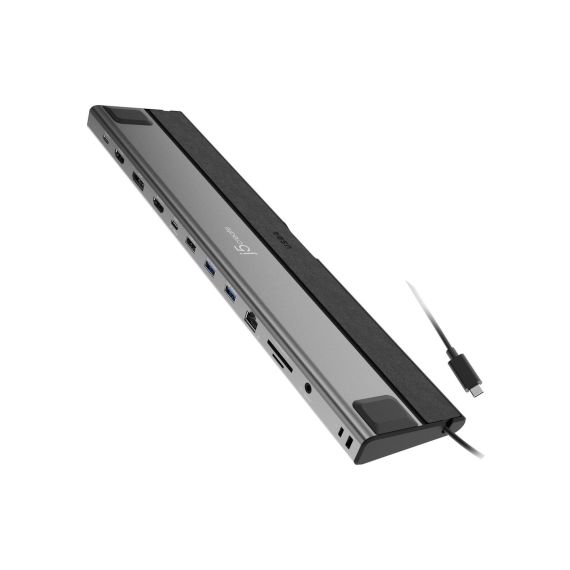

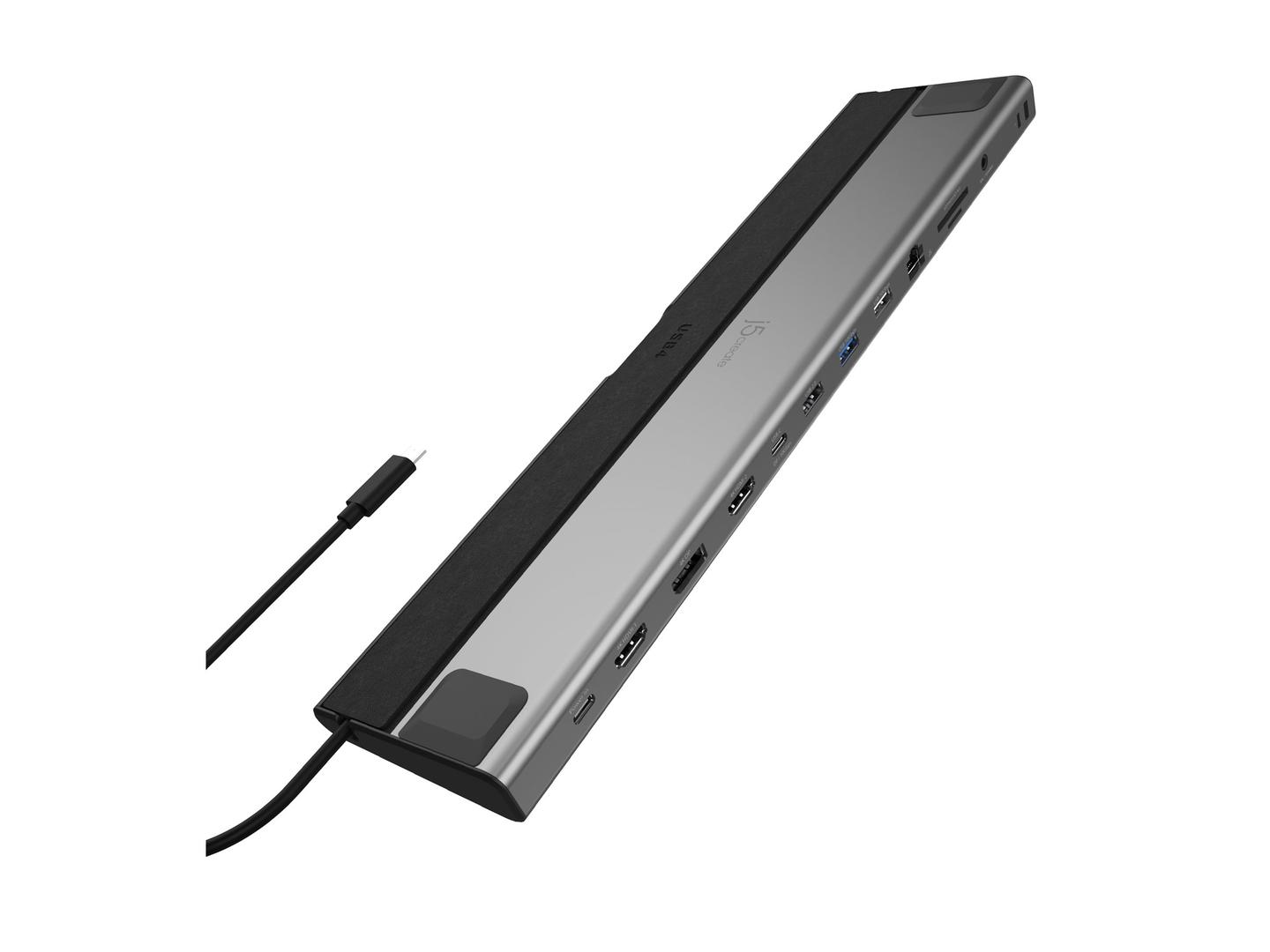

j5create - Docking station - USB4 - HDMI, DP, USB-C - 1GbE | JCD554-N
Please sign in so that we can notify you about a reply
Product Features

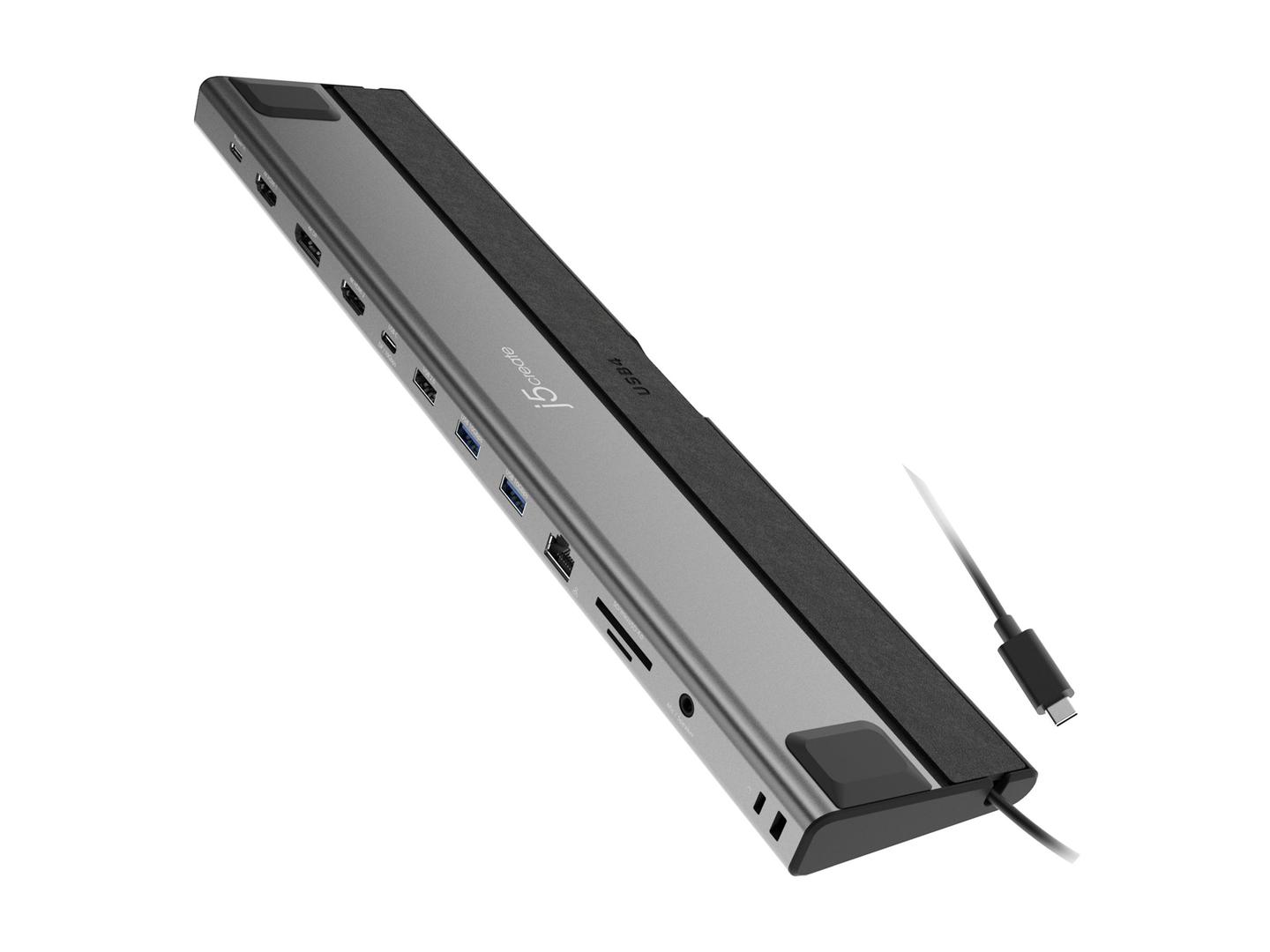

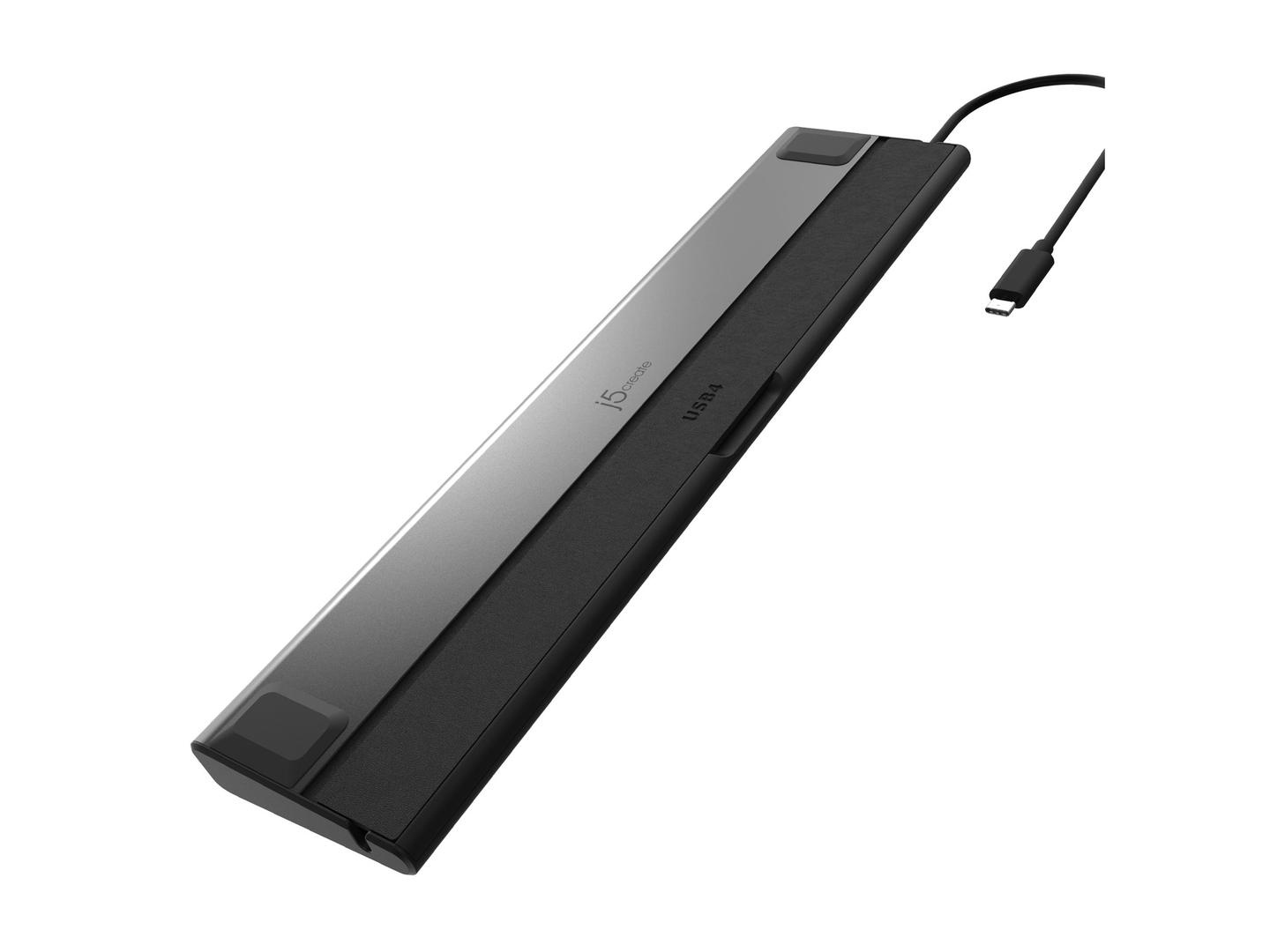

- Durable aluminum enclosure
The docking station's aluminum construction enhances durability and provides effective heat dissipation, making it a reliable addition to any workspace. - Versatile connectivity options
Equipped with multiple interface types such as HDMI, USB-A, and Ethernet, this docking station supports a wide range of devices and enables easy integration into existing setups. - High-definition dual and triple display support

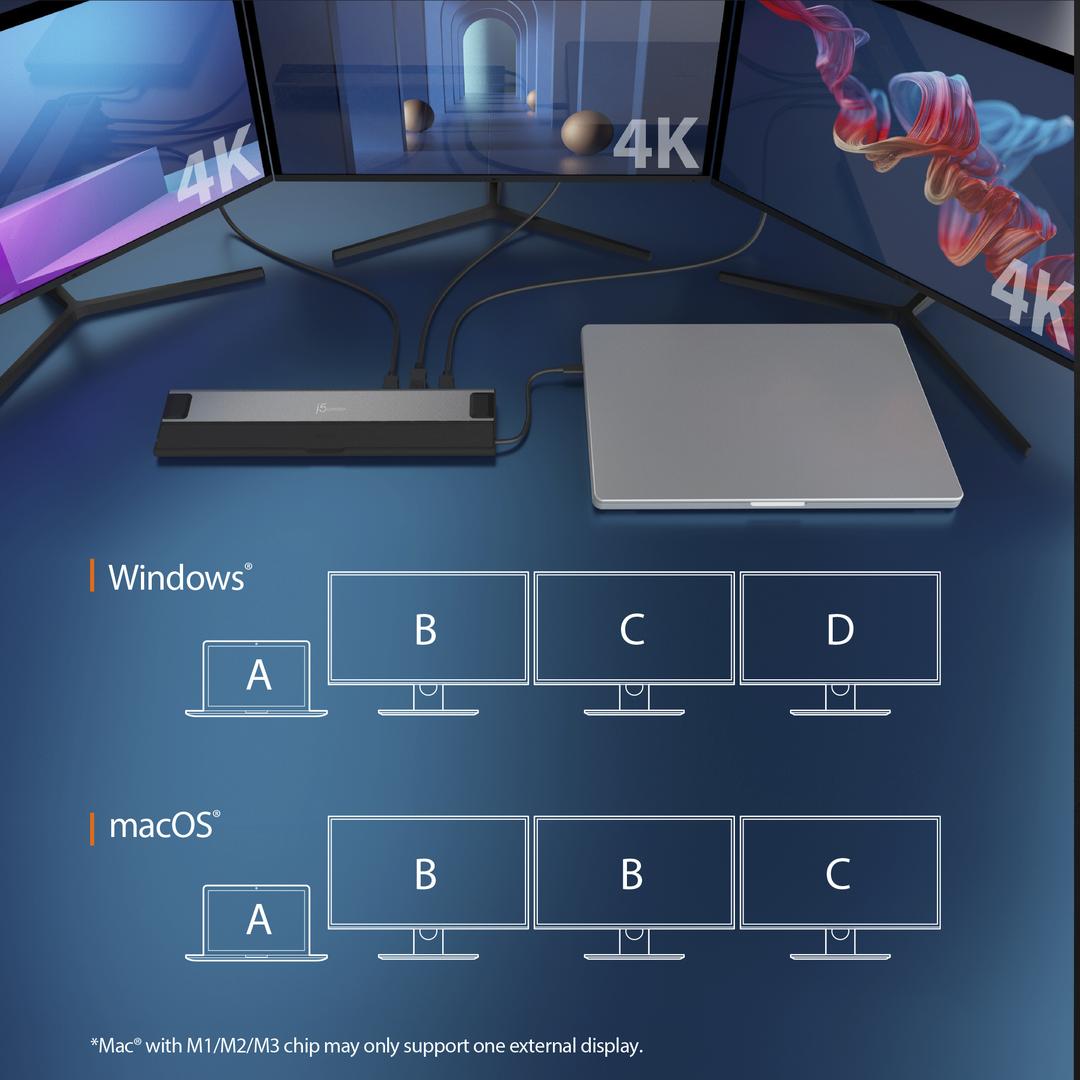

The JCD554-N supports impressive dual and triple display configurations, offering a maximum resolution of 1920 x 1080 at a refresh rate of 120 Hz, which enhances productivity. - Easy cable management

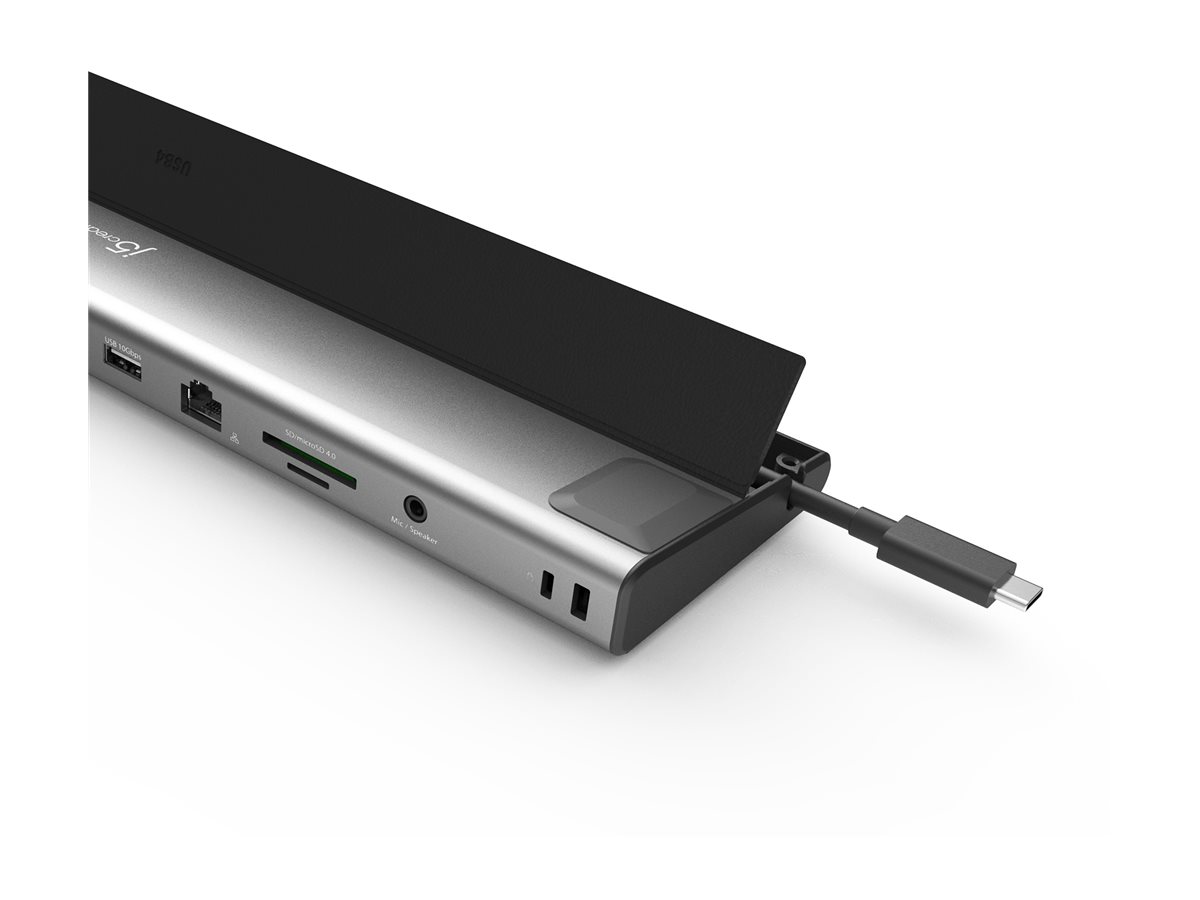

An integrated 50 cm USB-C cable ensures tidy connections without the hassle of excess wires, promoting a clean and organized workspace. - 100 W power delivery capability
This docking station delivers up to 100 W of power, maintaining device charge while in use, allowing for uninterrupted productivity.
Special Fetures
- Supports dual and triple display configurations
- Features an aluminum enclosure for durability
- Provides up to 100 W power delivery
- Includes a built-in 50 cm USB-C cable for convenience
- Compatible with multiple input and output interfaces
Product Specification
| Product Type | Docking station |
| Width | 34.4 cm |
| Depth | 8.139 cm |
| Height | 2.356 cm |
| Weight | 463 g |
| Enclosure Colour | Space grey and black |
| Video | |
| Max Resolution Details | 3840 x 2160 - 60 Hz (DisplayPort only with DSC) <br /> 2560 x 1440 - 144 Hz (DisplayPort only with DSC) <br /> 2560 x 1440 - 120 Hz (DisplayPort only with DSC) <br /> 1920 x 1080 - 144 Hz (DisplayPort only with DSC) <br /> 3840 x 2160 - 60 Hz (Dual Display) <br /> 3840 x 2160 - 60 Hz (Triple Display) |
| Networking | |

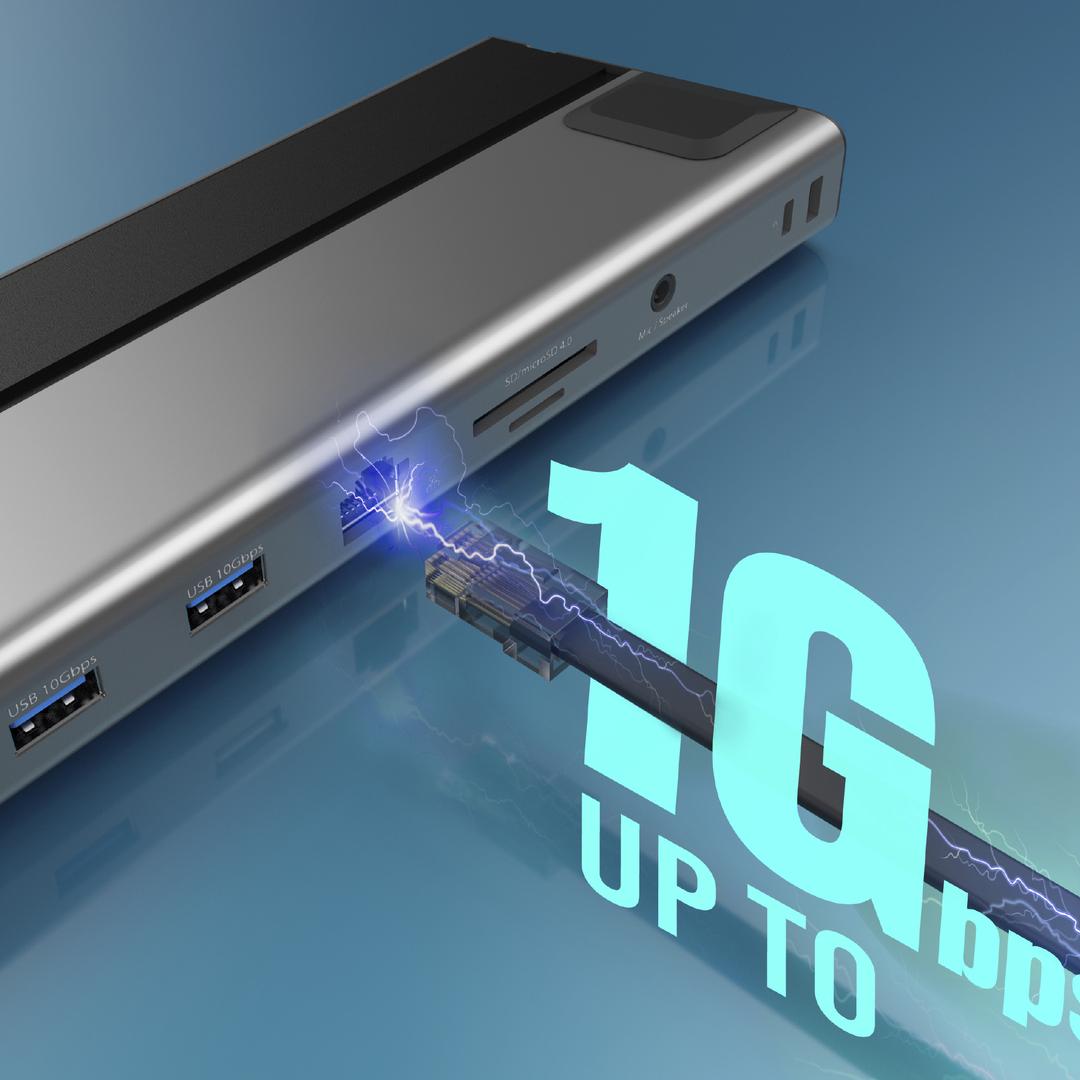

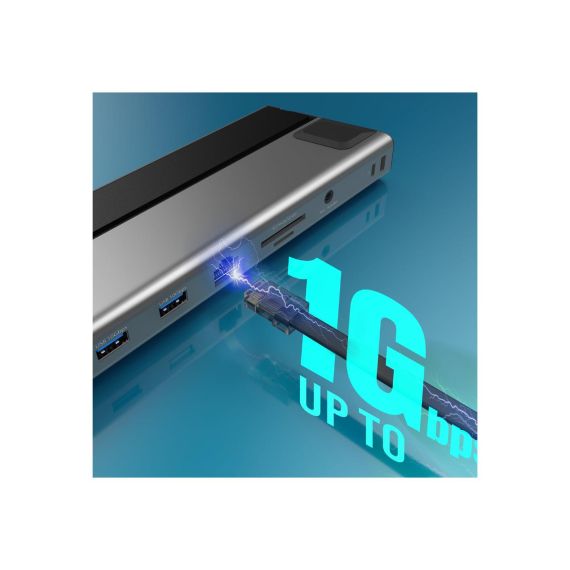

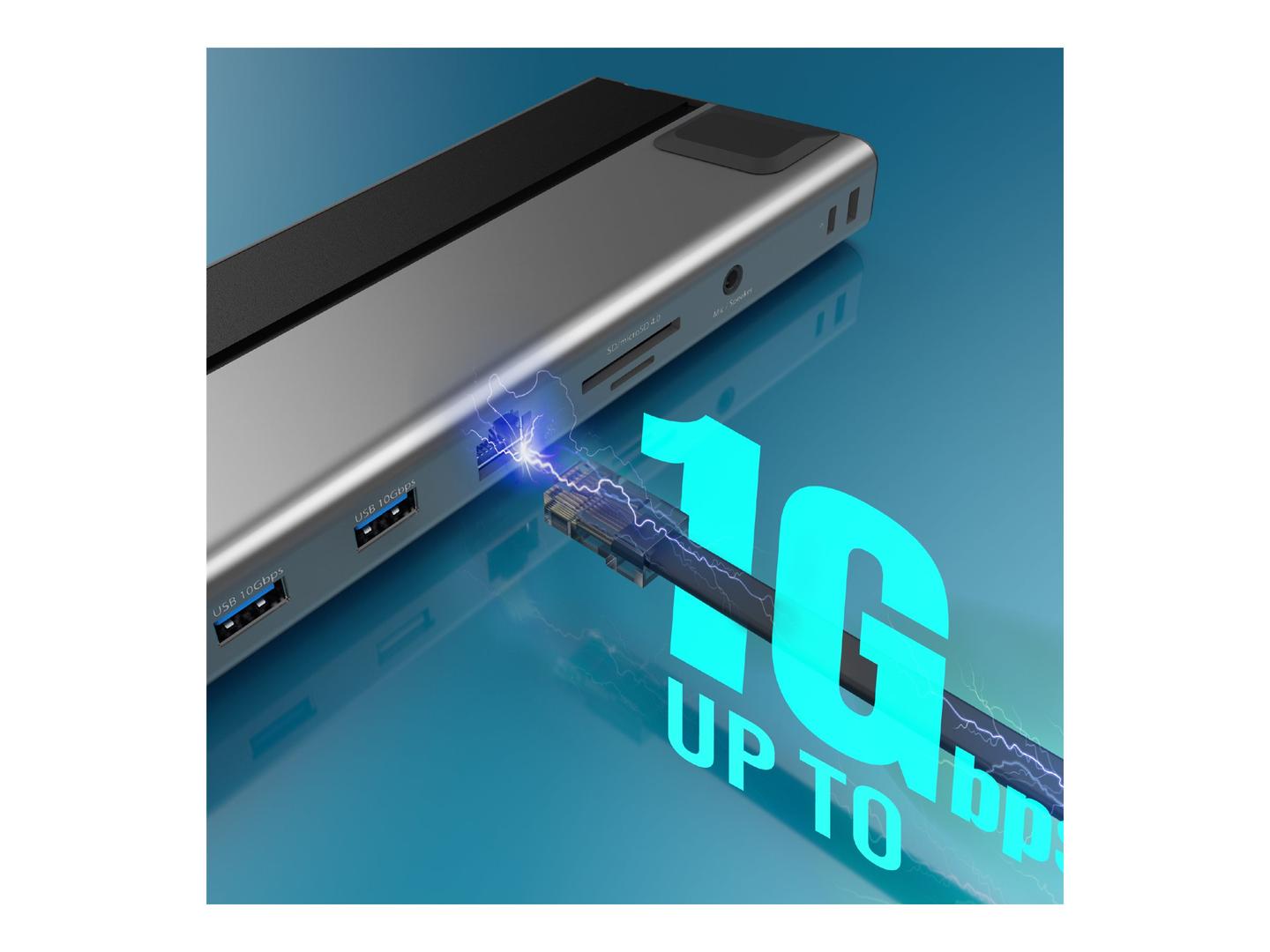

| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Expansion / Connectivity | |

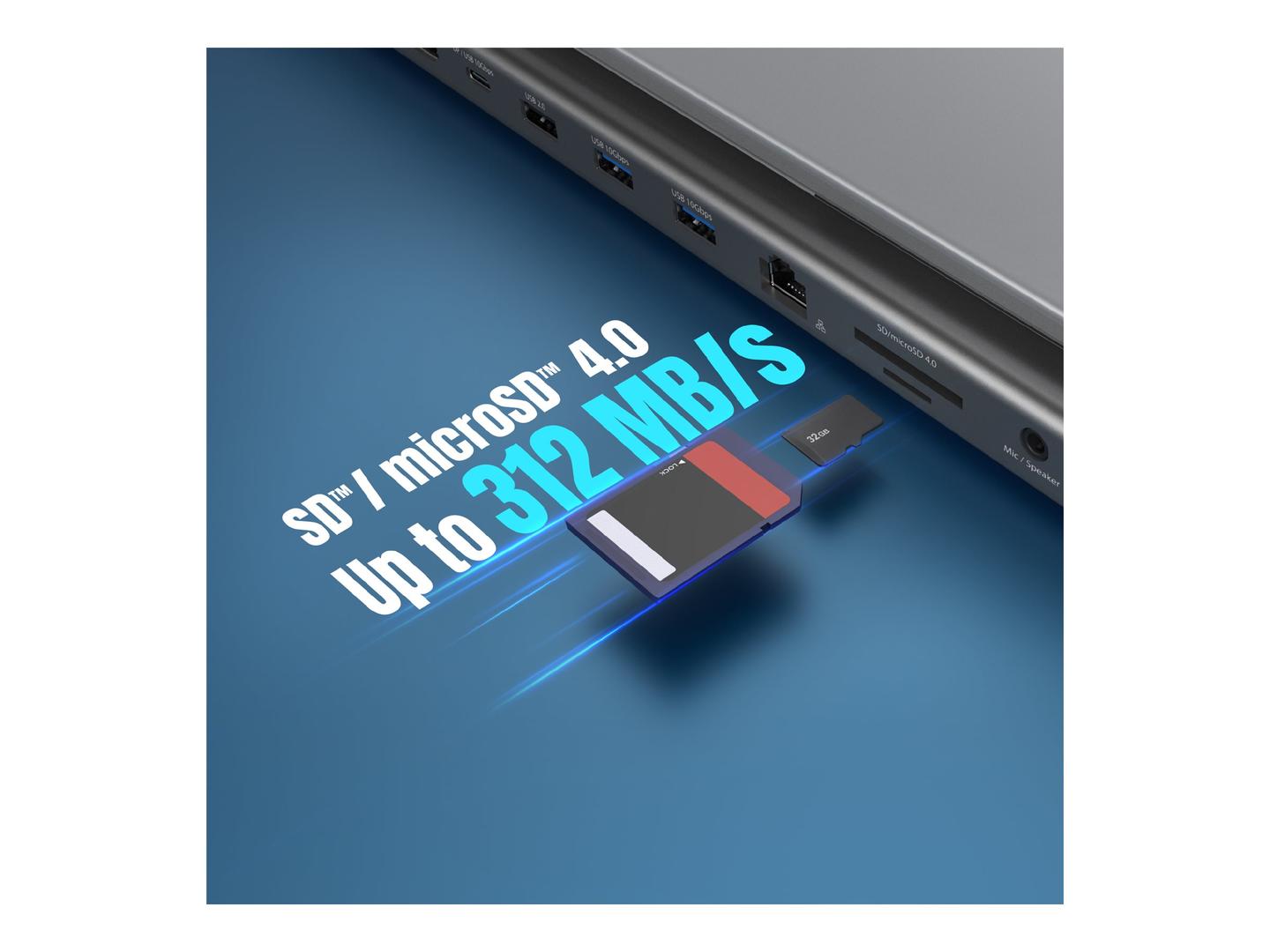

| Expansion Slots | 1 (total) / 1 (free) x SD/microSD Memory Card |

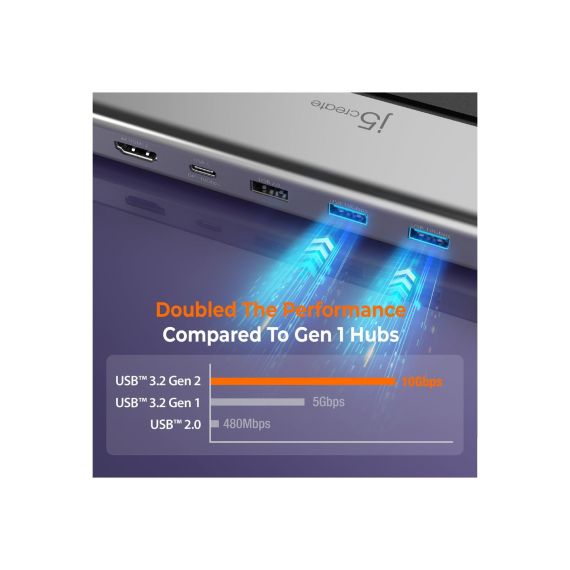

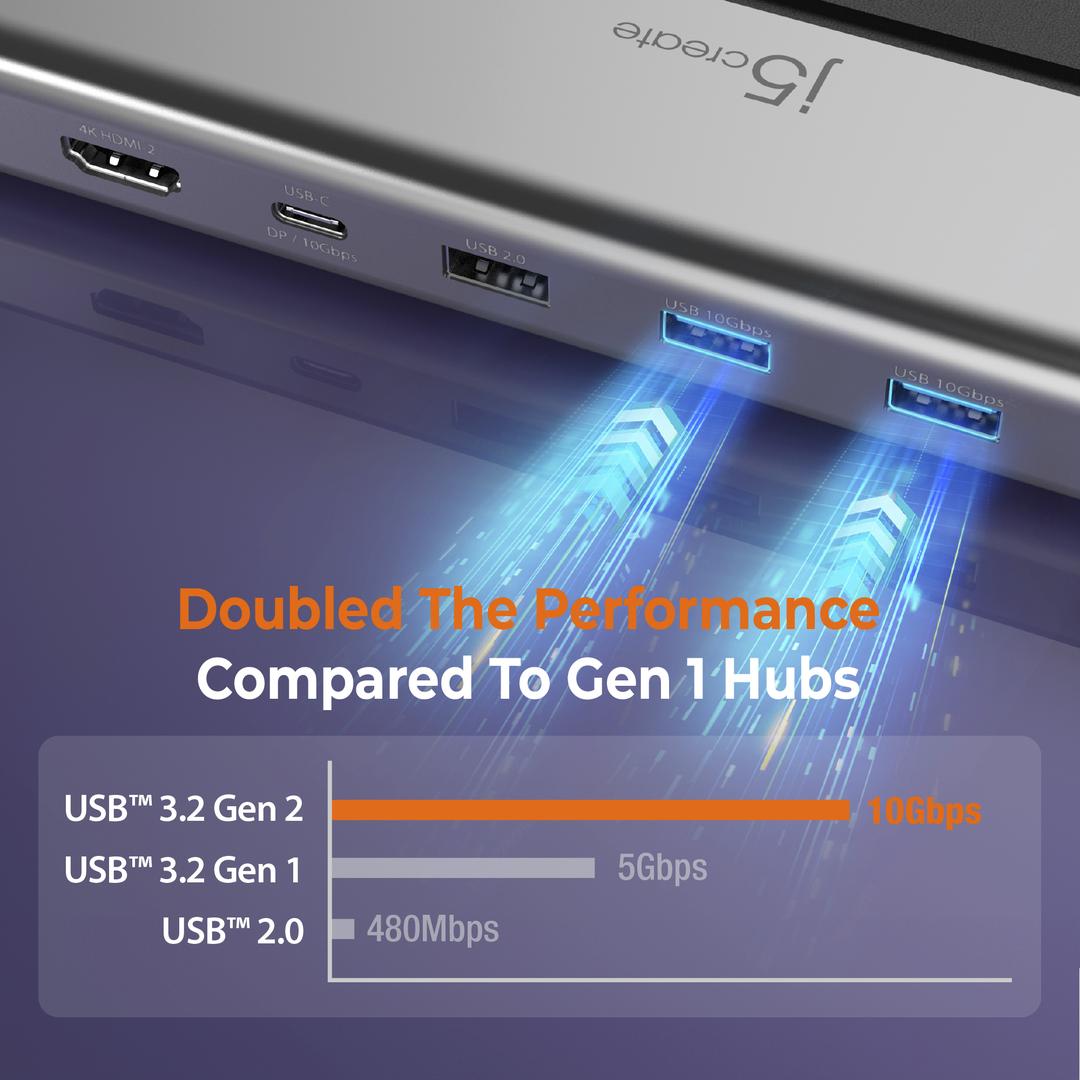

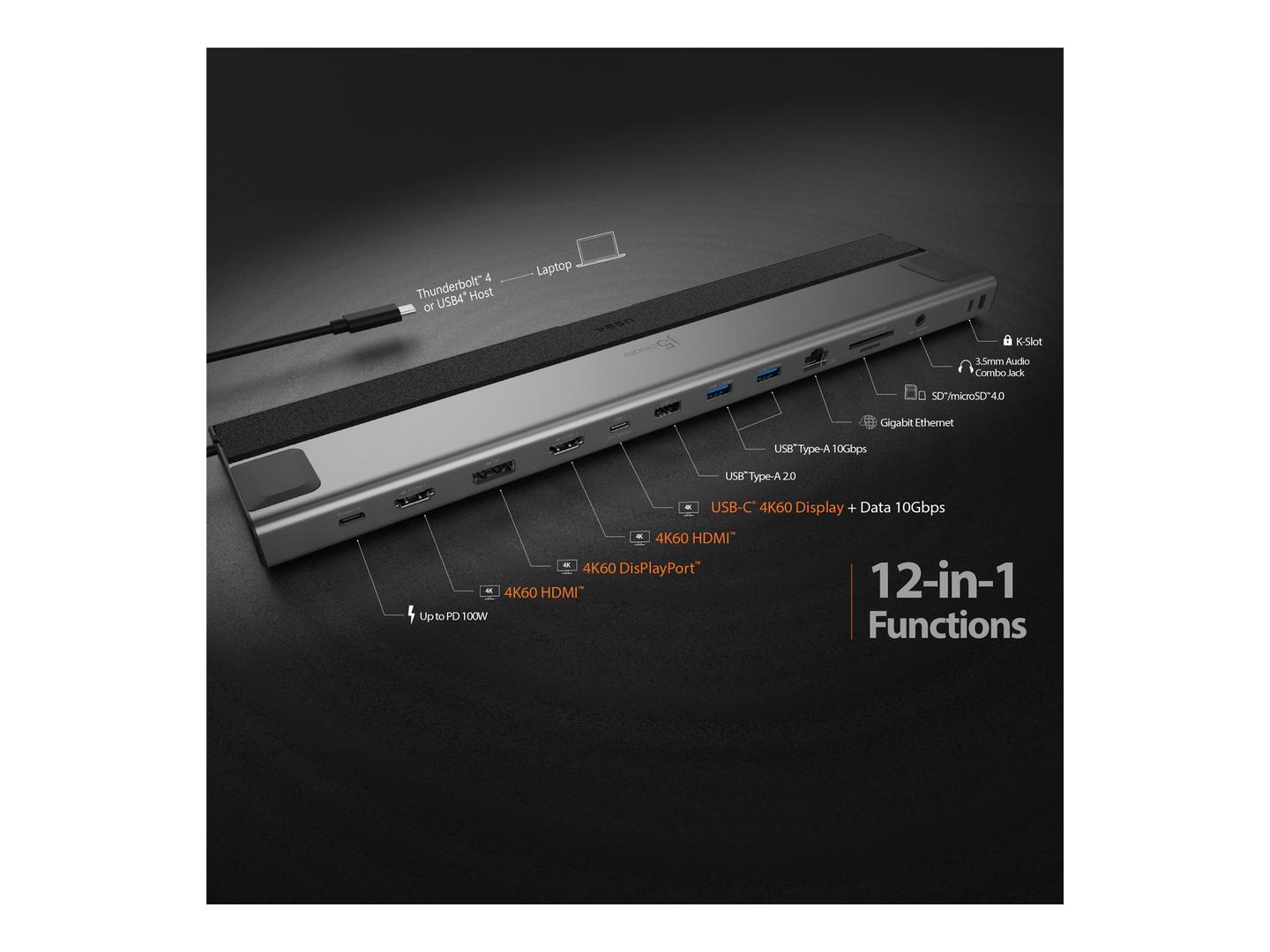

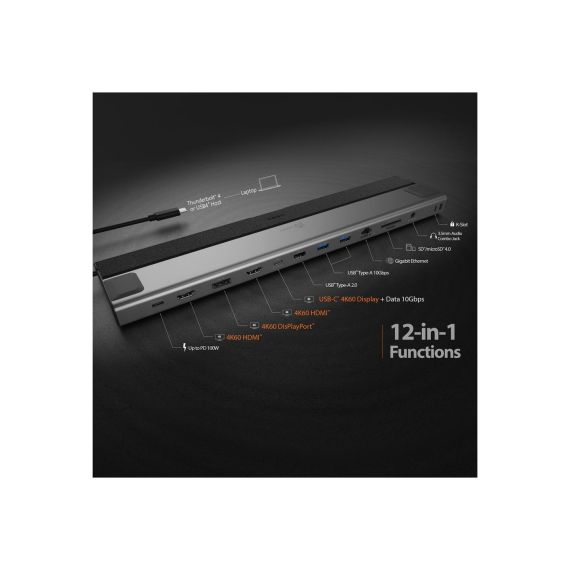

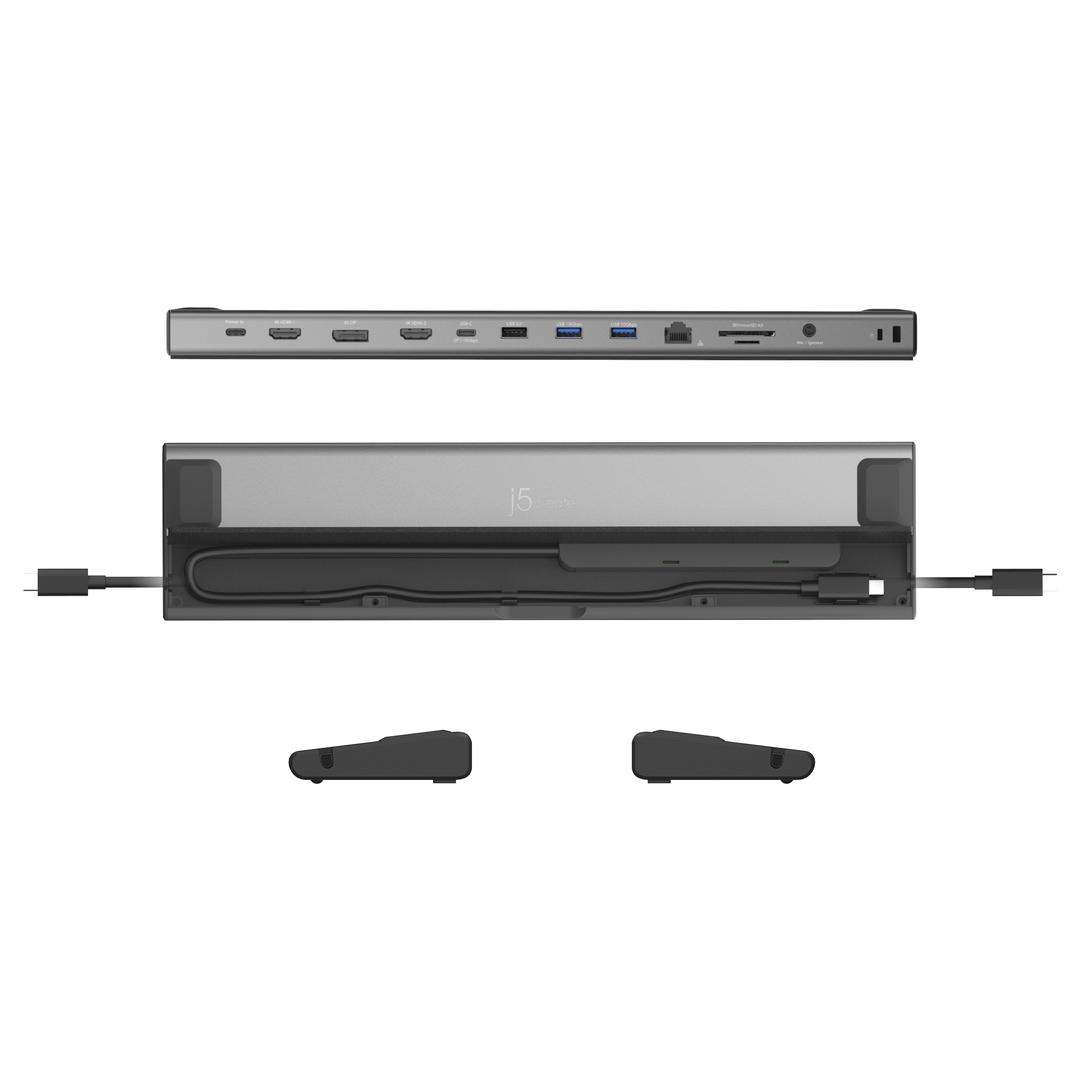

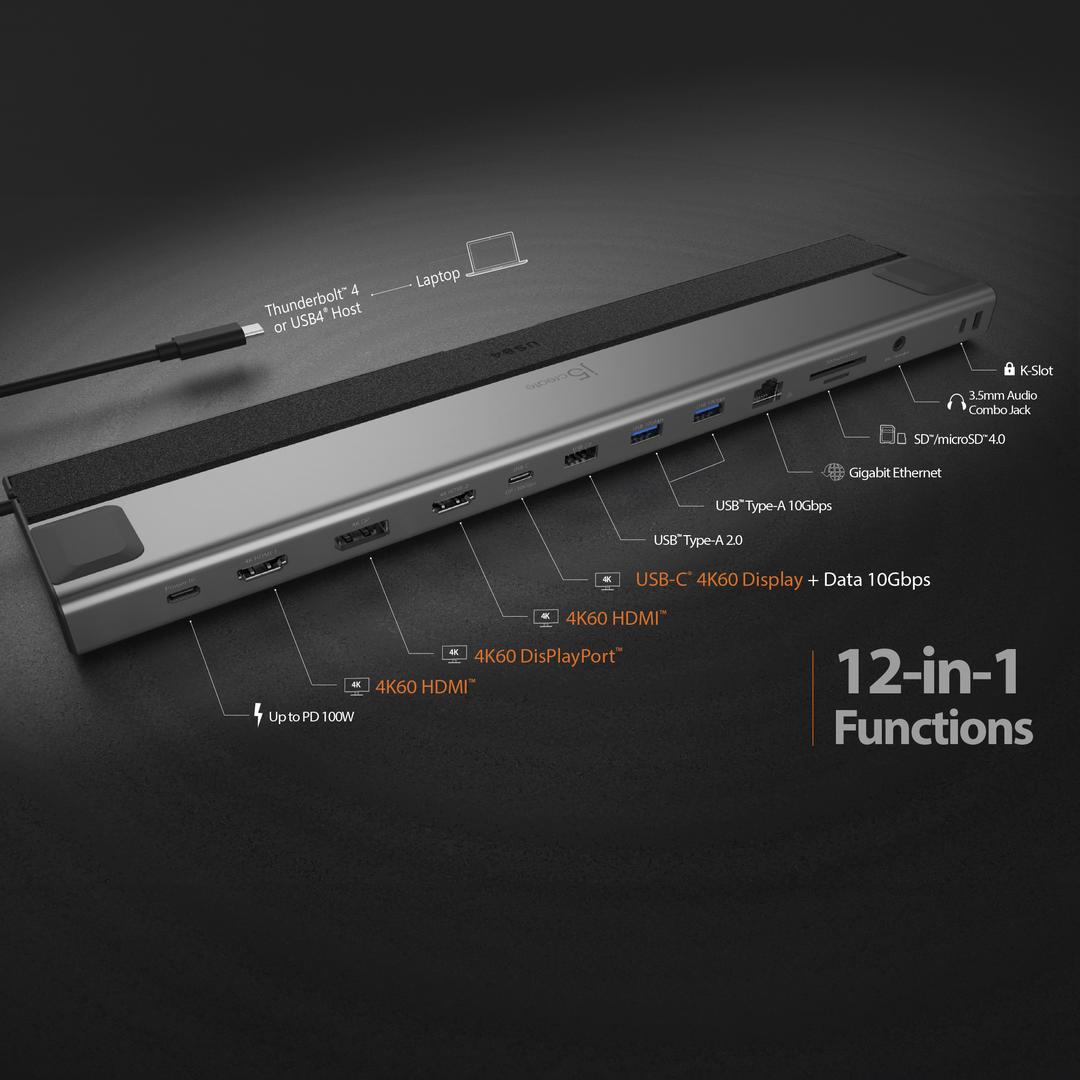

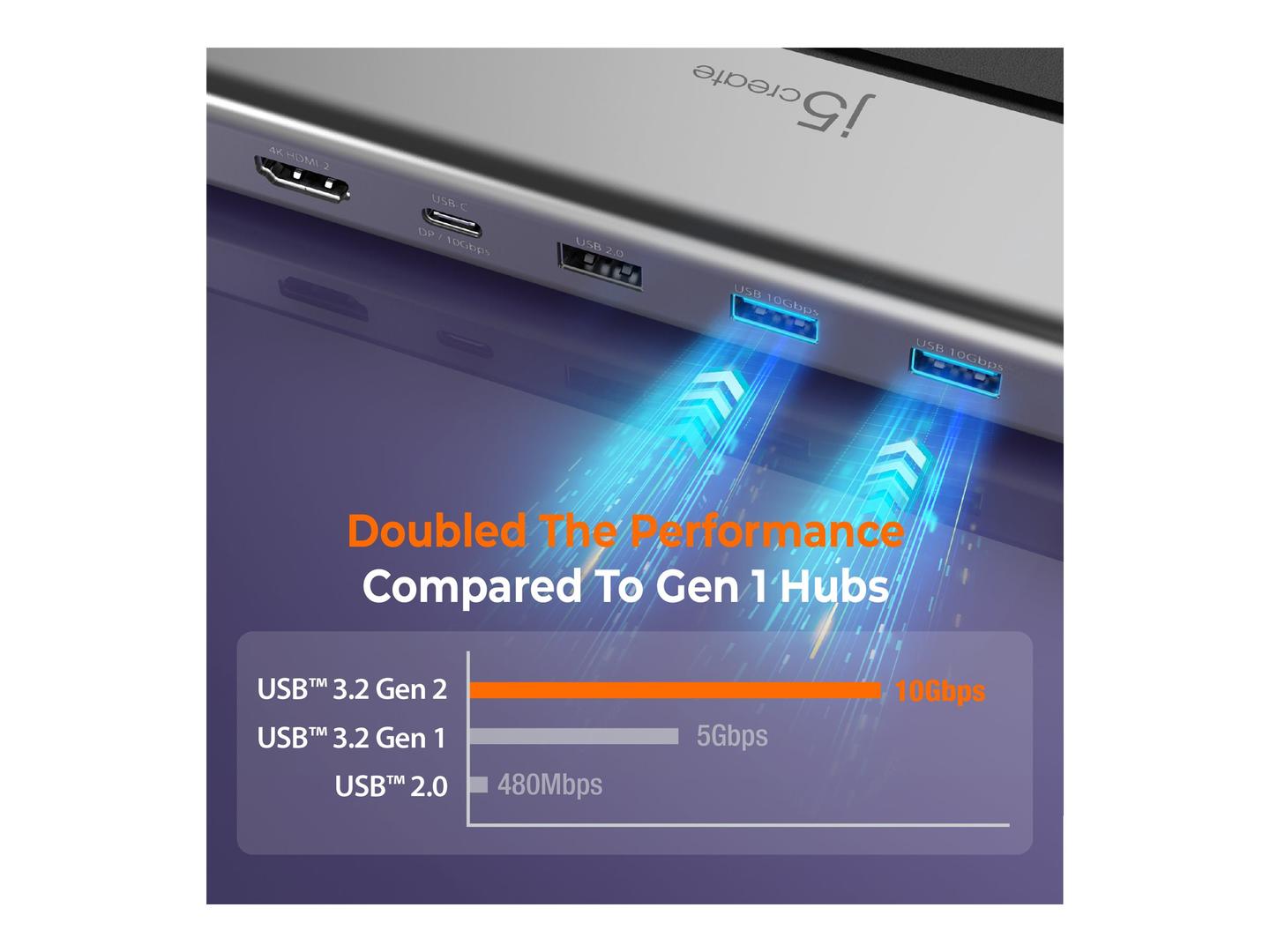

| Interfaces | 1 x USB-C - 10Gb Ethernet - 24 pin USB-C <br /> 1 x USB-A 2.0 - 4 pin USB Type A <br /> 2 x USB-A 3.2 Gen2 - 9 pin USB Type A <br /> 1 x audio / video - DisplayPort - 20 pin DisplayPort <br /> 2 x audio / video - HDMI - 19 pin HDMI Type A <br /> 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 <br /> 1 x USB-C with Power Delivery - 24 pin USB-C <br /> 1 x audio - 3.5mm audio jack <br /> 1 x USB-C / DisplayPort - 24 pin USB-C |
| Miscellaneous | |
| Cables Included | 1 x USB-C cable - integrated - 50 cm |
| Features | Aluminum enclosure, DisplayPort Alt Mode, MST (multi-stream transport), self-powered, bus powered, 100W power delivery, kensington security slot |
| Compliant Standards | USB Power Delivery 3.0, Thunderbolt 4 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | -1 °C |
| Max Operating Temperature | 41 °C |
Features - J5CREATE - JCD554-N
More Details
Product Code
CL03013
EAN Code
4712795088182
Manufacturer
J5CREATE
