j5create JCD542 / Docking station / USB-C 3.1 Gen 1 / 2 x HDMI / GigE | JCD542-N
Please sign in so that we can notify you about a reply
Special Features
- HDMI and DP dual output 4K at 30Hz, no driver needed

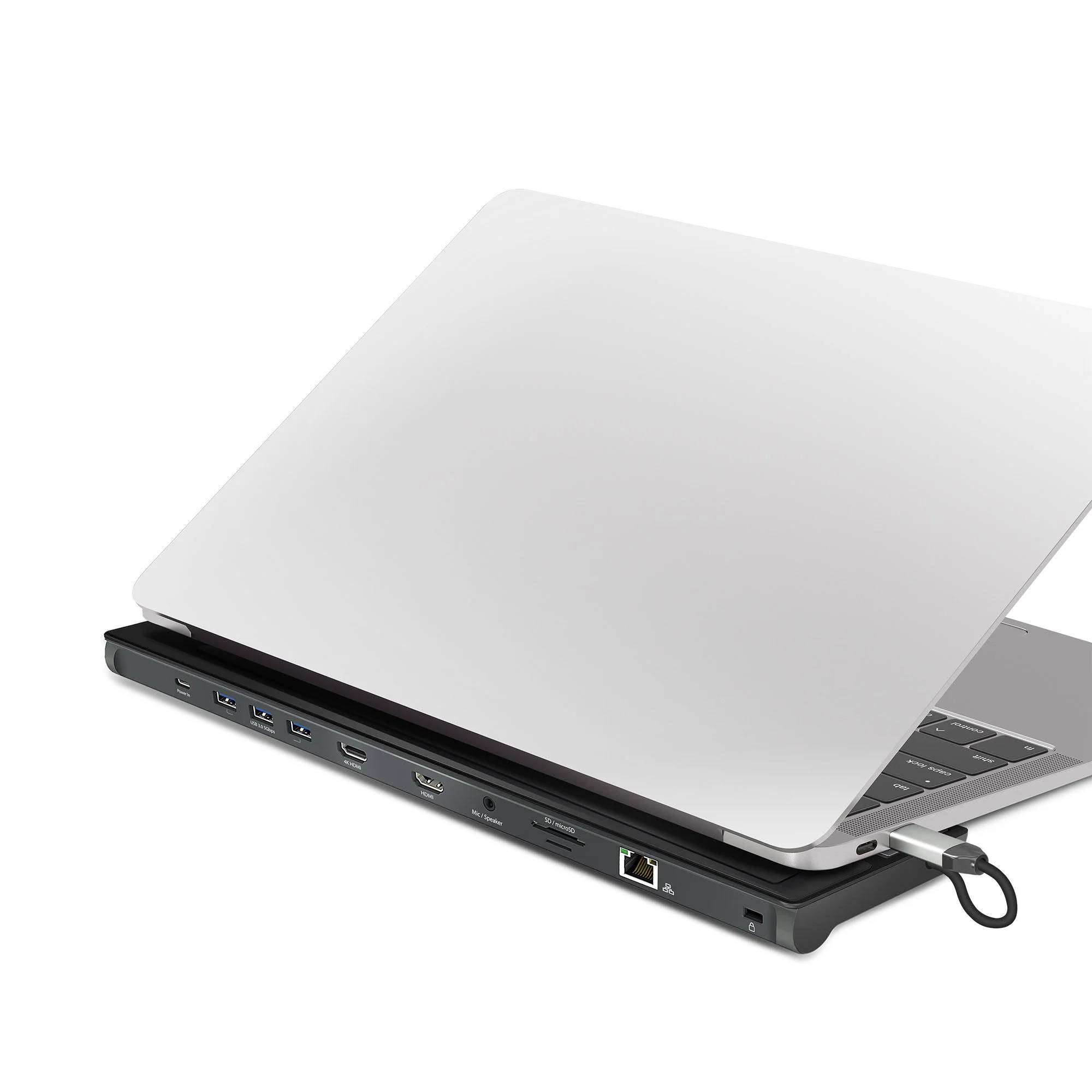

- Designed to be used as a notebook stand, which assists with heat dissipation
- Flexible USB-C cord, ensuring an easy connection
Product Specification
| Product Type | Docking station |
| Width | 8.246 cm |
| Depth | 35.018 cm |
| Height | 2.198 cm |
| Weight | 306 g |
| Enclosure Colour | Grey, black |
| Video | Video |
| Max Resolution Details | 3840 x 2160 - 30 Hz ¦ 2048 x 1152 - 60 Hz |
| Networking | Networking |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 (total) / 1 (free) x SD Memory Card ¦ 1 (total) / 1 (free) x microSD |

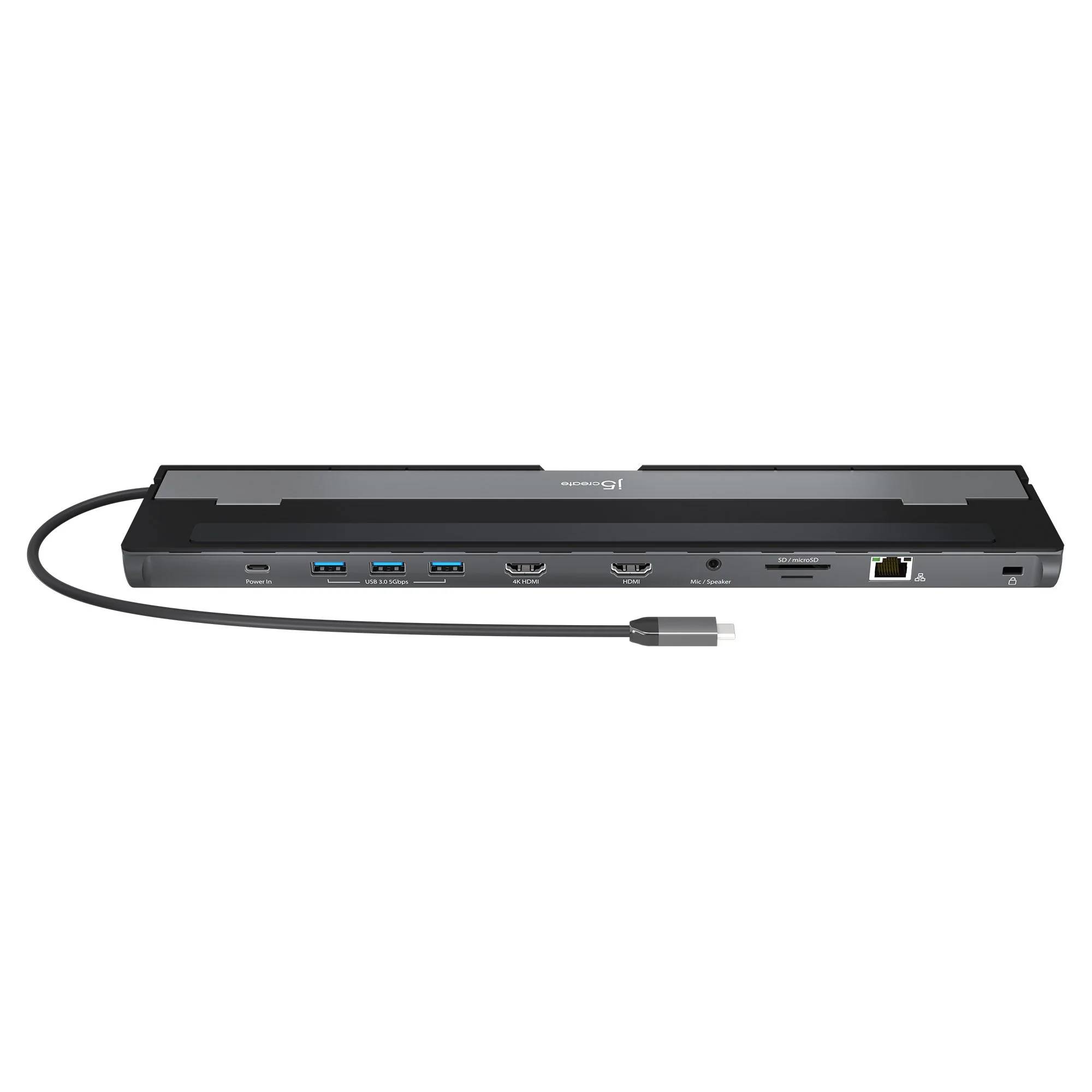

| Interfaces | 3 x SuperSpeed USB 3.0 - 9 pin USB Type A ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 2 x audio / video - HDMI - 19 pin HDMI Type A ¦ 1 x audio - line-out/line-in - mini-phone stereo 3.5 mm ¦ 1 x USB-C with Power Delivery (100 W) - 24 pin USB-C |
| Miscellaneous | Miscellaneous |
| Cables Included | 1 x USB-C cable - integrated - 45 cm |
| Features | Security lock slot (cable lock sold separately), USB powered, dual display support, DisplayPort Alt Mode, 100W power delivery (pass-through), aluminium housing |
| Security Slot Type | Kensington security slot |
| Compliant Standards | USB Power Delivery 3.0 |
| System Requirements | System Requirements |
| OS Required | Windows 10 or later, Apple MacOS 10.11 or later |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 48 °C |
Features - J5CREATE - JCD542-N
More Details
Product Code
CE58395
EAN Code
4712795086041
Manufacturer
J5CREATE
